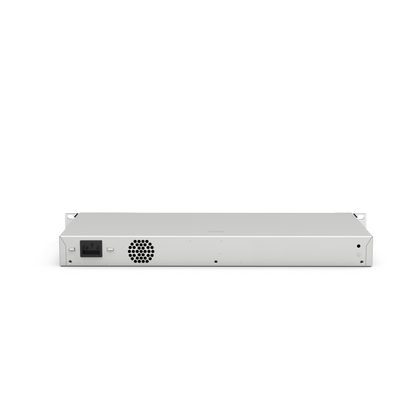

RG-NBS3200-24GT4XS-P 24-Port Gigabit Layer 2+ Cloud Managed PoE Switch – 24 PoE+ Ports, 4 × 10G SFP+ Uplinks, 370W, Enterprise-Class

RG-NBS3200-24GT4XS-P 24-Port Gigabit Layer 2+ Cloud Managed PoE Switch – 24 PoE+ Ports, 4 × 10G SFP+ Uplinks, 370W, Enterprise-Class

$1,073.75 AUD
$2,028.78 AUD $1,073.75 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The RG-NBS3200-24GT4XS-P is a 24-port Gigabit Layer 2+ cloud-managed PoE switch designed for enterprise, hospitality, factory, education, retail, and surveillance networks. Featuring 24 PoE+ ports and 4 × 10G SFP+ uplinks, this switch delivers both data and power to devices such as IP cameras, access points, and VoIP phones, simplifying deployments and reducing cabling complexity.

Built for enterprise-class performance, it supports IP camera recognition, multiple security policies, and lifetime remote management via Ruijie Cloud, ensuring seamless monitoring and configuration from anywhere. The switch uses dual fixed fans with left-to-right airflow for efficient cooling, while surge protection safeguards critical devices.

What’s Included

  • RG-NBS3200-24GT4XS-P 24-Port Layer 2+ PoE+ Switch

  • Power Adapter / Cable

  • User Manual / Quick Start Guide

Key Features

  • 24 Gigabit PoE+ Ports: Power IP cameras, access points, and VoIP phones directly over Ethernet.

  • 4 × 10G SFP+ Uplinks: High-speed uplinks for backbone connectivity or aggregation.

  • PoE Budget: 370W, compliant with IEEE 802.3af / 802.3at standards.

  • Layer 2+ Managed: Supports advanced features for enterprise networking and CCTV integration.

  • IP Camera Recognition: Optimized for CCTV deployments for automatic camera detection.

  • Multiple Security Policies: Protects network integrity and prevents unauthorized access.

  • High Network Performance: Switching capacity of 128 Gbps and forwarding rate of 96 Mpps.

  • MAC Address Table: Supports 16,000 entries for efficient traffic management.

  • VLAN Support: Up to 4094 VLANs for network segmentation.

  • Dual Fixed Fans: Air cooling with left-to-right airflow ensures silent and reliable operation.

  • Port Surge Protection: ±6 kV for service ports; ±6 kV for power connector (common and differential mode).

  • Warranty: 5-Year manufacturer-backed coverage.

Technical Specifications

Specification Details
10/100/1000BASE-T Ports 24 PoE+ ports
10GE SFP+ Uplink Ports 4
PoE Standard IEEE 802.3af / 802.3at, 370W total
Switch Type Layer 2+ Cloud Managed
Switching Capacity 128 Gbps
Forwarding Rate 96 Mpps
MAC Address Table Size 16,000 entries
Max VLANs 4094
Fan 2 × fixed fans, left-to-right airflow
Port Surge Protection ±6 kV service port, ±6 kV power connector
Dimensions (W×D×H) 440 × 357.6 × 43.6 mm (17.32 × 14.08 × 1.72 in.)
Weight (Without Packaging) 4.75 kg (10.47 lbs)
MTBF 400,000 hours
Certifications CE, FCC
Warranty 5 Years

Practical Applications

  • Enterprise & Office Networks: Power multiple devices with PoE+ while maintaining high-speed backbone connectivity.

  • CCTV Surveillance Systems: Deploy and manage IP cameras with automatic recognition and PoE support.

  • Hospitality & Retail: Stable network for Wi-Fi access points, POS systems, and monitoring cameras.

  • Factories & Educational Campuses: High-performance Layer 2+ networking with cloud management for secure and efficient operations.

Datasheet

A full technical datasheet for the RG-NBS3200-24GT4XS-P is available for download:
RG-NBS3200-24GT4XS-P Datasheet

SKU / Product Info

  • Model: RG-NBS3200-24GT4XS-P

  • Series: 24-Port Layer 2+ Cloud Managed PoE+ Switch

  • Brand: Ruijie

  • Warranty: 5 Years
