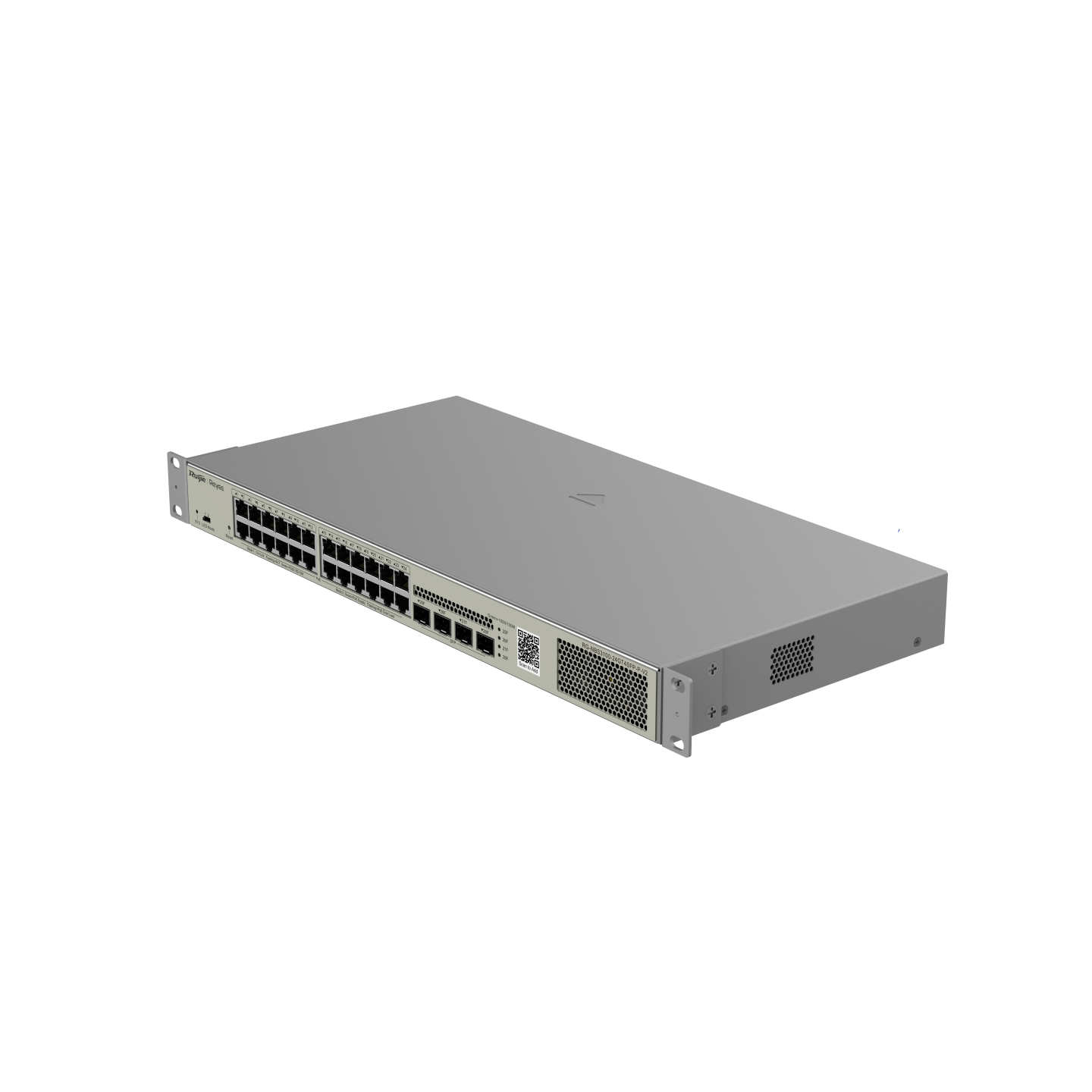

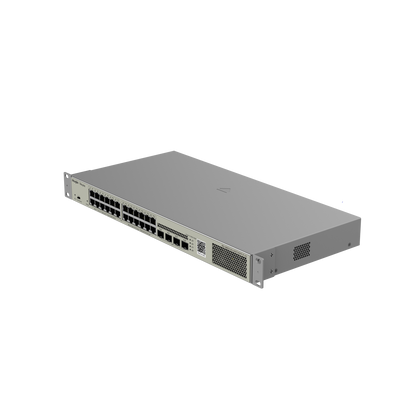

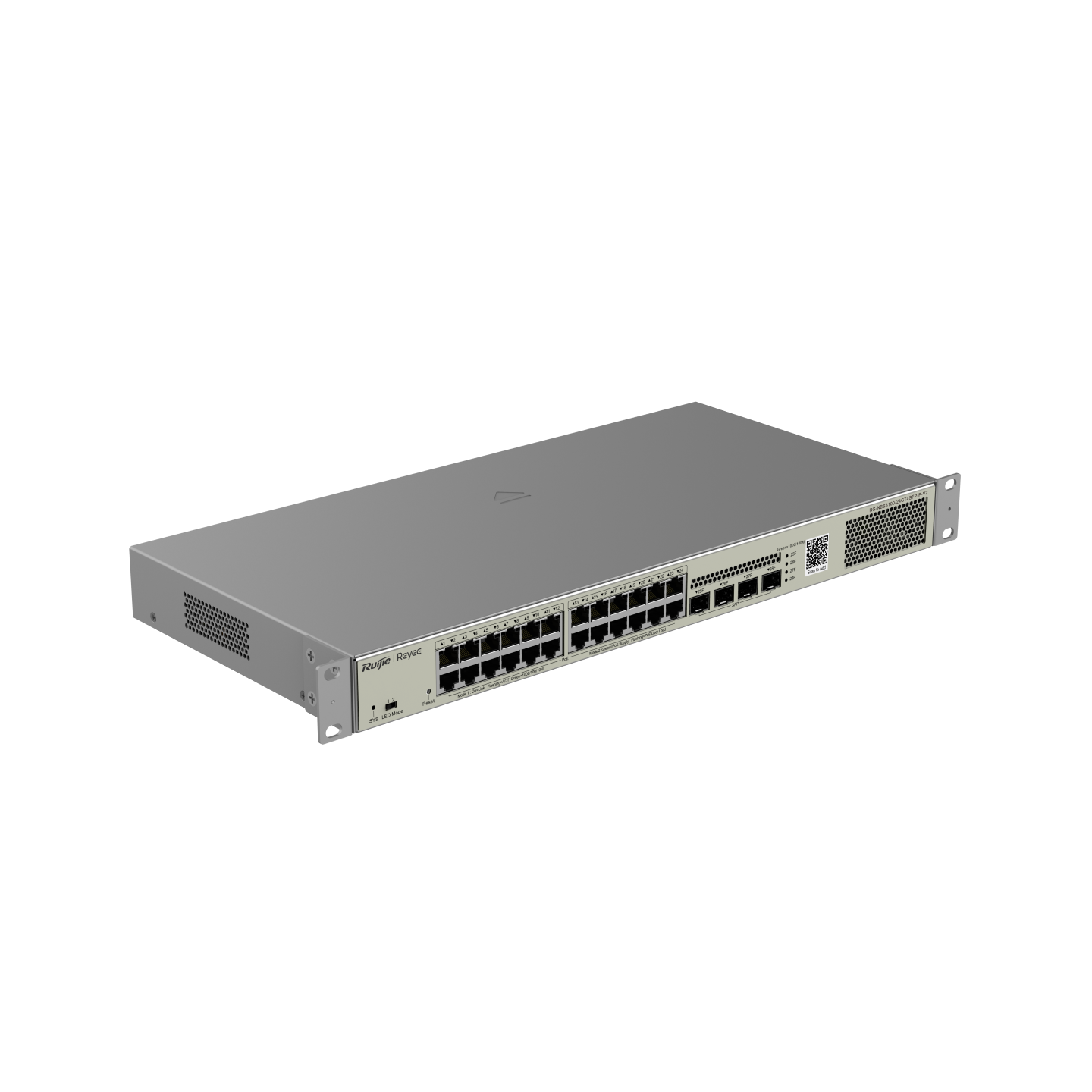

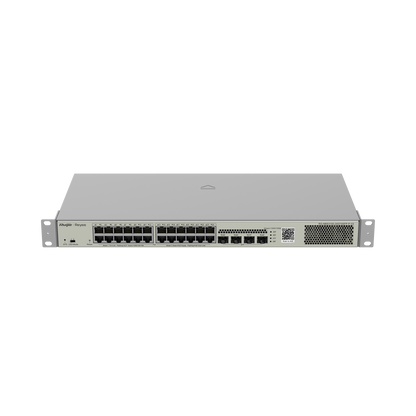

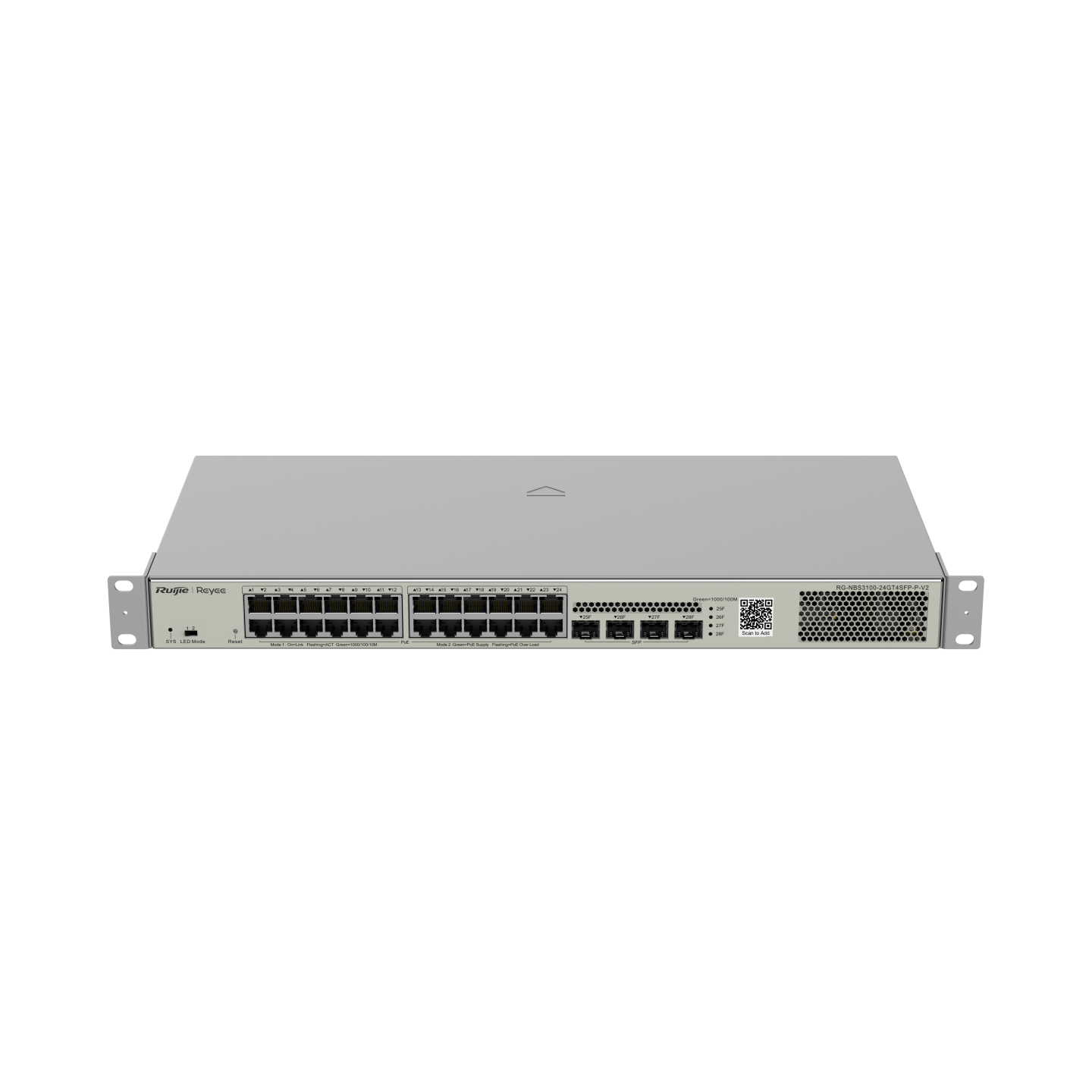

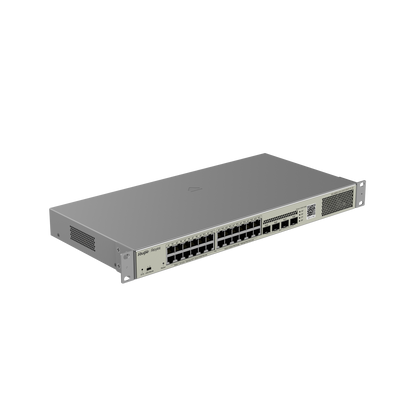

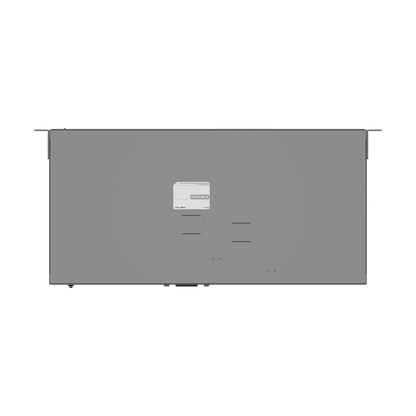

RG-NBS3100-24GT4SFP-P-V2 28-Port Gigabit Layer 2 Cloud Managed PoE Switch – 24 PoE+ Ports, 4 SFP Uplinks, 370W, Enterprise-Class

RG-NBS3100-24GT4SFP-P-V2 28-Port Gigabit Layer 2 Cloud Managed PoE Switch – 24 PoE+ Ports, 4 SFP Uplinks, 370W, Enterprise-Class

$943.12 AUD
$1,487.16 AUD $943.12 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The RG-NBS3100-24GT4SFP-P-V2 is a 28-port Gigabit Layer 2 cloud-managed PoE switch designed for enterprise, hospitality, factory, educational, retail, and surveillance environments. Featuring 24 PoE+ ports and 4 SFP uplink ports, this switch powers IP cameras, access points, and VoIP phones directly via Ethernet, reducing the need for separate power sources.

Engineered for enterprise-class performance, it offers IP camera recognition, multiple security policies, and lifetime remote management via Ruijie Cloud. The switch includes a single fan with left-to-right airflow, high surge protection, and a fan design optimized for silent, reliable operation.

What’s Included

  • RG-NBS3100-24GT4SFP-P-V2 28-Port Layer 2 PoE+ Switch

  • Power Adapter / Cable

  • User Manual / Quick Start Guide

Key Features

  • 28 Gigabit Ports: 24 PoE+ ports and 4 SFP uplink ports for high-speed connectivity.

  • PoE Power Supply: 370W total, compliant with IEEE 802.3af / 802.3at standards.

  • Smart Cloud Management: Remote monitoring, configuration, and lifetime management via Ruijie Cloud.

  • IP Camera Recognition: Optimized for CCTV networks to automatically detect and manage IP cameras.

  • Multiple Security Policies: Protects your network against unauthorized access and attacks.

  • Enterprise-Class Design: High-quality components for robust performance.

  • Fan Design: Single fan with left-to-right airflow ensures silent operation and optimal cooling.

  • High Network Performance: Switching capacity of 56 Gbps and forwarding rate of 41.67 Mpps.

  • MAC Address Table: 8000 entries for smooth traffic management.

  • VLAN Support: Up to 4094 VLANs for network segmentation.

  • Port Surge Protection: 6 kV to safeguard devices from electrical surges.

  • Warranty: 5-Year manufacturer-backed coverage.

Technical Specifications

Specification Details
Ports 24 × 10/100/1000Base-T PoE+ ports, 4 × SFP uplink ports
PoE Standard IEEE 802.3af / 802.3at, 370W total
Switch Type Layer 2 Cloud Managed
Switching Capacity 56 Gbps
Forwarding Rate 41.67 Mpps
MAC Address Table Size 8000 entries
Max VLANs 4094
Fan Single, left-to-right airflow
Port Surge Protection 6 kV
Dimensions (W×D×H) 440 × 293 × 44 mm
Weight (With Package) 4.5 kg
MTBF > 200,000 hours
Certifications CE, FCC
Warranty 5 Years

Practical Applications

  • Enterprise & Office Networks: Power and connect IP phones, access points, and surveillance cameras.

  • CCTV Surveillance Networks: Optimized for large-scale IP camera deployments with PoE+ support.

  • Hospitality & Retail: Reliable network for Wi-Fi access points, POS systems, and monitoring cameras.

  • Factories & Educational Campuses: Efficient, high-performance Layer 2 networking with cloud management.

Datasheet

A full technical datasheet for the RG-NBS3100-24GT4SFP-P-V2 is available for download:
RG-NBS3100-24GT4SFP-P-V2 Datasheet

SKU / Product Info

  • Model: RG-NBS3100-24GT4SFP-P-V2

  • Series: 28-Port Layer 2 Cloud Managed PoE+ Switch

  • Brand: Ruijie

  • Warranty: 5 Years
