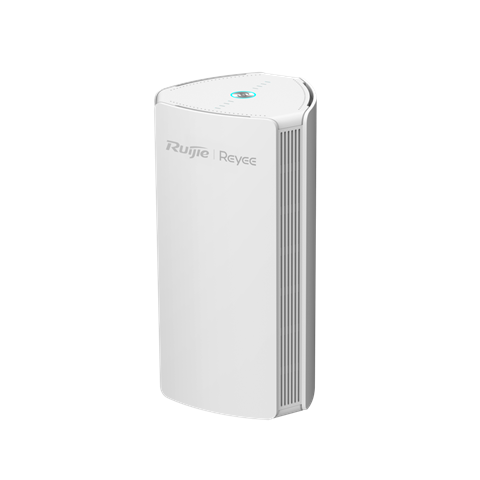

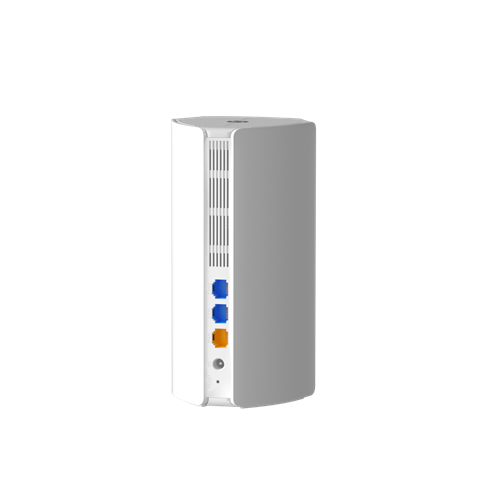

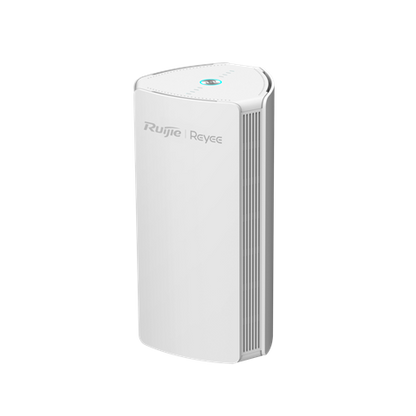

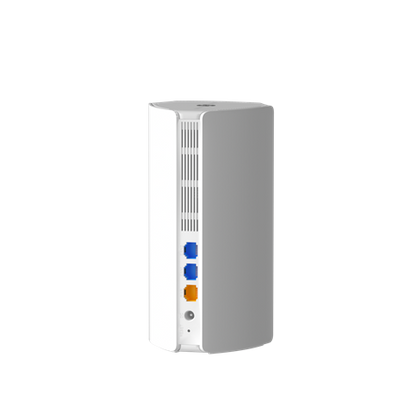

RG-M18 AX1800 Wi-Fi 6 Dual-Band Gigabit Mesh Router | 1800Mbps Whole-Home Mesh Wi-Fi System

The RG-M18 AX1800 Wi-Fi 6 Dual-Band Gigabit Mesh Router is designed to deliver seamless whole-home wireless coverage, fast internet speeds, and reliable connectivity for modern connected households. Powered by the latest Wi-Fi 6 (IEEE 802.11ax) technology, the RG-M18 combines OFDMA and 1024-QAM technologies to achieve wireless speeds of up to 1800Mbps, providing improved network efficiency, reduced latency, and enhanced performance across multiple devices.

Built specifically for mesh networking environments, the RG-M18 features Reyee Mesh 3.0 technology, enabling one-click mesh pairing and seamless roaming throughout your home. With four internal antennas, smart signal indicators, cloud-based management, and support for up to 192 connected devices, the RG-M18 provides a powerful and user-friendly solution for homes requiring consistent Wi-Fi coverage across multiple rooms and levels.

---

What's Included in the Box

• 1 × RG-M18 Wi-Fi 6 Mesh Router

• 1 × Power Adapter

• 1 × Quick Start Guide

• 1 × Cat5E UTP Ethernet Cable

---

Main Features

• Wi-Fi 6 (IEEE 802.11ax) technology

• AX1800 dual-band wireless performance

• Combined wireless speeds up to 1800Mbps

• OFDMA technology for improved network efficiency

• 1024-QAM technology for enhanced throughput

• Reyee Mesh 3.0 support

• One-click mesh pairing

• Seamless roaming functionality

• Smart signal strength indicator

• Four internal high-performance antennas

• Strong wall penetration capability

• Cloud-based management via Ruijie Cloud

• Reyee Router App support

• Remote network management

• Smart Home integration features

• Parental controls

• IPv6 support

• Supports up to 192 concurrent clients

---

Detailed Specifications

Hardware Specifications

Antennas

• 4 × Internal Antennas

• Antenna Gain (2.4GHz): 3 dBi

• Antenna Gain (5GHz): 4 dBi

Wireless Technology

• Wi-Fi Standard: Wi-Fi 6 (IEEE 802.11ax)

• Wireless Speed:

  • 2.4GHz: Up to 573Mbps

  • 5GHz: Up to 1200Mbps

• Combined Wireless Speed: Up to 1773Mbps (AX1800 Class)

• OFDMA Technology

• 1024-QAM Modulation

• FEM Signal Amplification

• EPA Technology

Connectivity

• Gigabit Ethernet Connectivity

---

Software Features

Network Management

• Ruijie Cloud Management

• Reyee Router App

• Remote Management

Mesh Networking

• Reyee Mesh 3.0

• One-Click Mesh Pairing

• Seamless Roaming

• Smart Signal Placement Indicator

Family & Smart Home Features

• Parental Controls

• Smart Home Management

IP Services

• IPv6 Support

---

Performance Capacity

Maximum Concurrent Clients

• 2.4GHz: 64 Devices

• 5GHz: 128 Devices

• Total Supported Clients: Up to 192 Devices

Recommended Concurrent Clients

• 2.4GHz: 12 Devices

• 5GHz: 36 Devices

---

Practical Use Scenarios

Whole-Home Wi-Fi Coverage

The RG-M18 creates a seamless mesh network that eliminates dead zones and provides stable Wi-Fi throughout homes, apartments, duplexes, and multi-level properties.

Smart Home Networking

Connect multiple smart home devices including cameras, smart TVs, lighting systems, voice assistants, and IoT devices simultaneously.

Family Internet Usage

Support streaming, browsing, online learning, video conferencing, and gaming across multiple devices at the same time.

Multi-Room Coverage

The integrated smart signal indicator helps users position mesh units in optimal locations for maximum wireless coverage.

Work-from-Home Connectivity

Provides reliable wireless connectivity for remote work, cloud applications, video meetings, and VPN access.

Easy Mesh Expansion

Expand network coverage effortlessly with one-click Reyee Mesh pairing and unified management through the Reyee App.

---

Warranty Information

• Manufacturer Warranty: Refer to the official Ruijie/Reyee warranty policy applicable in your region.

• Warranty claims and technical support are handled through authorised distributors and manufacturer support channels.

---

Brand Description

Reyee by Ruijie Networks

Reyee, a brand developed by Ruijie Networks, provides intelligent networking solutions for homes and businesses. Combining enterprise-grade technology with simple deployment and cloud management, Reyee products deliver reliable performance, advanced mesh networking capabilities, and user-friendly management tools.

---

Datasheets & Resources

Available resources may include:

• Product Datasheet

• Compliance Documentation

• Installation Guide

• Configuration Guide

• Software Downloads

• Firmware Updates

• Release Notes

• Implementation Cookbooks

---

Excellence for the Australian and New Zealand Market

The RG-M18 is an excellent solution for Australian and New Zealand households seeking affordable, high-performance Wi-Fi 6 mesh networking. Its seamless roaming capabilities, strong wireless coverage, and support for large numbers of connected devices make it ideal for modern homes with growing connectivity demands.

Key advantages for Australian and New Zealand customers include:

• Optimised for NBN, fibre, and high-speed broadband services

• Wi-Fi 6 technology for improved performance and network efficiency

• Whole-home mesh coverage with seamless roaming

• Ideal for smart homes, streaming, online learning, and remote work

• Genuine products sourced through authorised distribution channels

• Access to official firmware updates and manufacturer support

• Supports IPv6 networking environments

• Warranty support handled according to manufacturer and distributor policies

• Designed for reliable operation in multi-device households

---

FAQs

Q1: What is the maximum wireless speed of the RG-M18?

The RG-M18 delivers combined wireless speeds of up to 1800Mbps, including up to 573Mbps on 2.4GHz and 1200Mbps on 5GHz.

Q2: Does the RG-M18 support Wi-Fi 6?

Yes, the RG-M18 supports Wi-Fi 6 (IEEE 802.11ax), providing improved speed, efficiency, and performance compared to previous Wi-Fi generations.

Q3: Does the RG-M18 support mesh networking?

Yes, the RG-M18 supports Reyee Mesh 3.0, allowing multiple compatible devices to create a seamless whole-home Wi-Fi network.

Q4: What is the smart signal indicator on the RG-M18?

The smart signal indicator on the RG-M18 helps users identify the optimal location for placing additional mesh units to maximise coverage and performance.

Q5: How many devices can the RG-M18 support simultaneously?

The RG-M18 supports up to 192 concurrent wireless client connections.

Q6: Can the RG-M18 be managed remotely?

Yes, the RG-M18 supports remote management through the Reyee Router App and Ruijie Cloud platform.

Q7: Does the RG-M18 support IPv6?

Yes, the RG-M18 fully supports IPv6 networking.

Q8: Does the RG-M18 include parental control features?

Yes, the RG-M18 includes parental control functions that allow users to manage internet access and connected devices.

Q9: What is the management address for the RG-M18 web interface?

The default management address for the RG-M18 is 192.168.110.1.

Q10: Can the RG-M18 create a mesh network with routers from other brands?

No, the RG-M18 only supports mesh networking with compatible Reyee Mesh-enabled devices and cannot form a mesh network with routers from other manufacturers.
