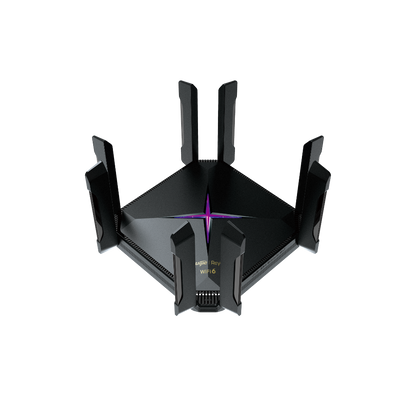

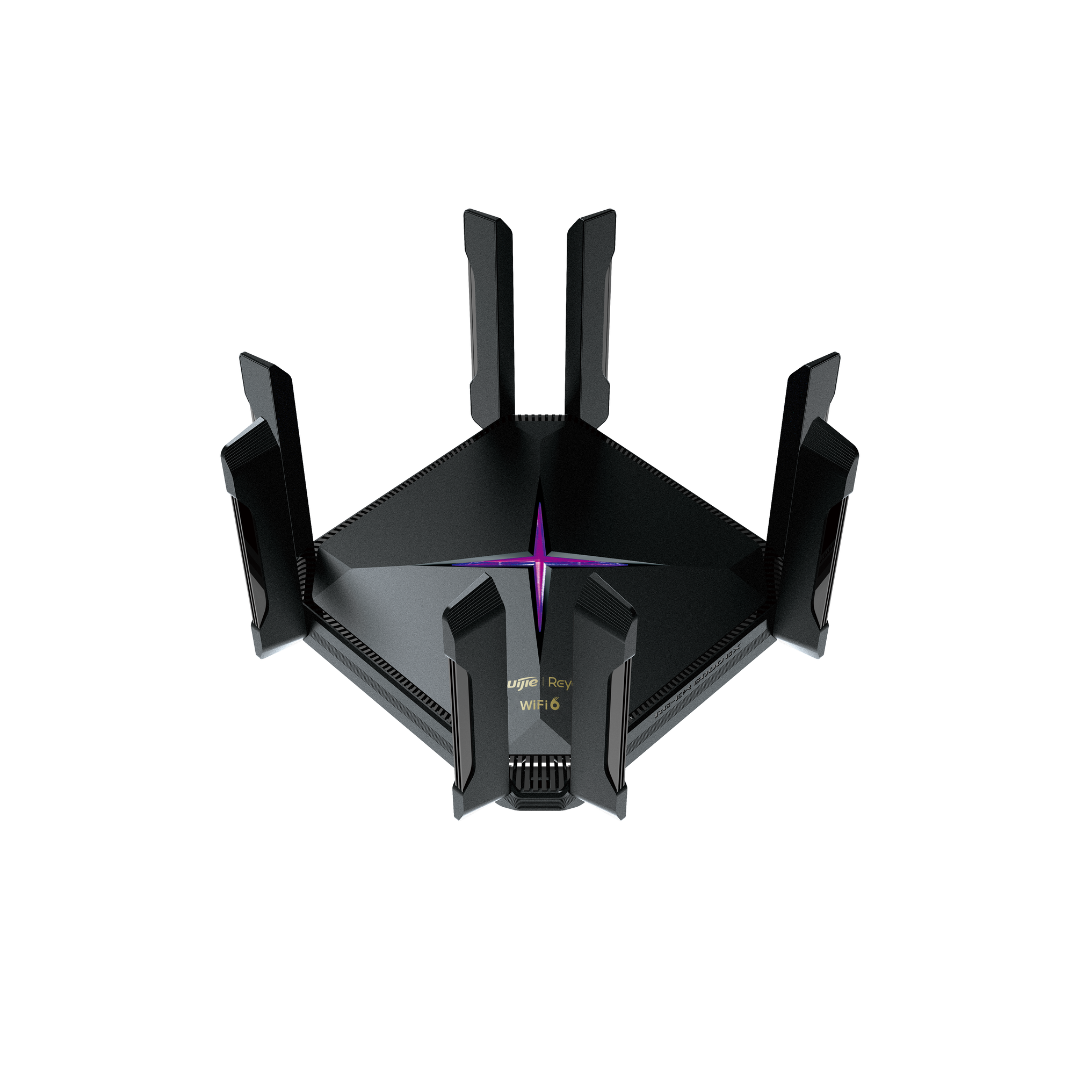

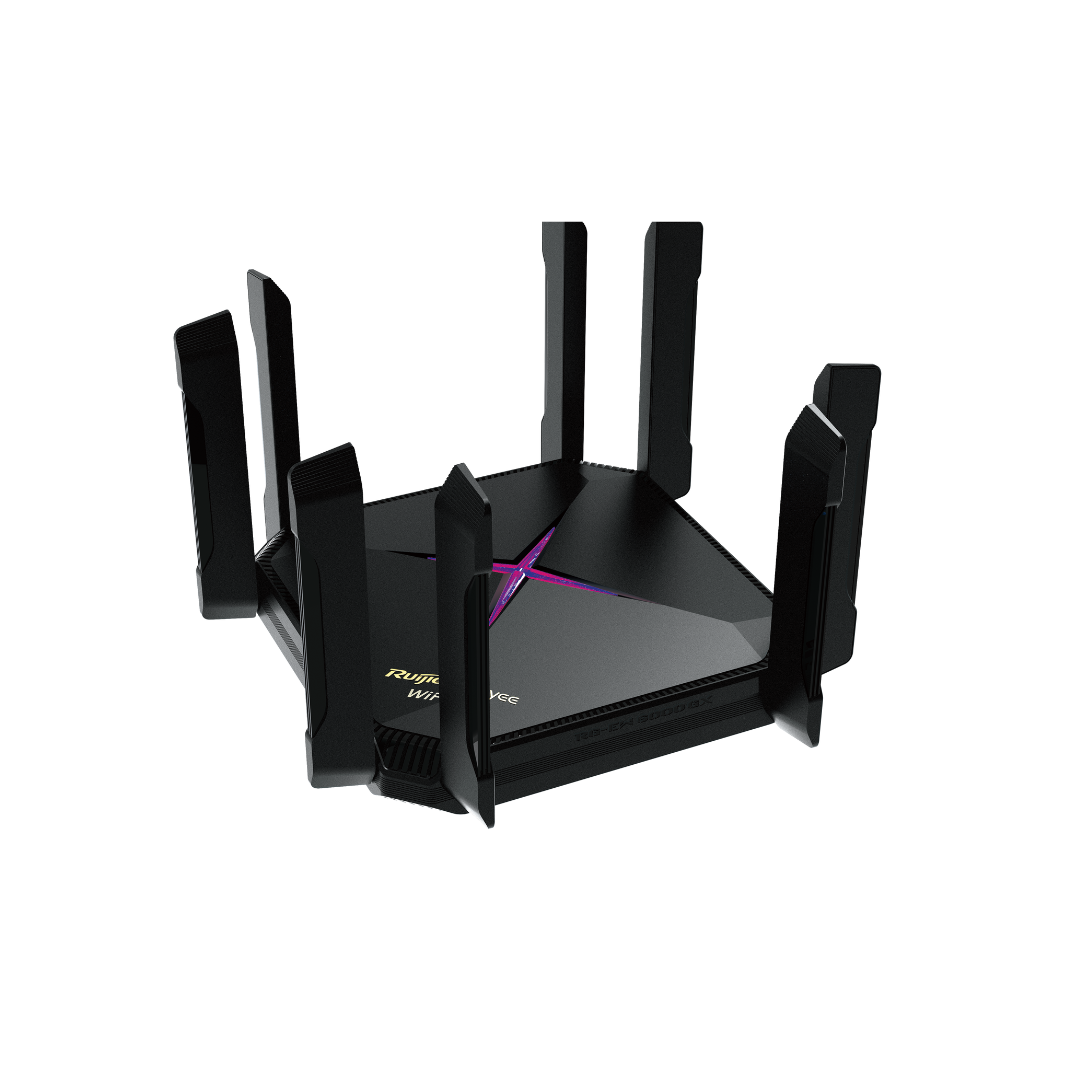

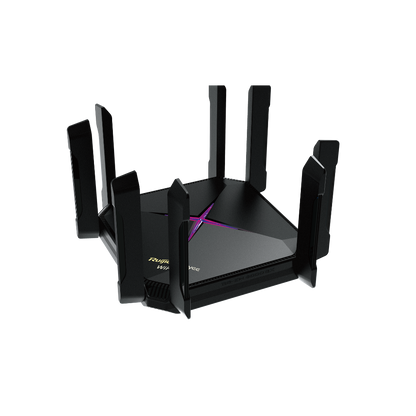

RG-EW6000GX AX6000 Wi-Fi 6 Mesh Router with 2.5G Port | High-Performance Wi-Fi 6 Router with Reyee Mesh & Gaming Mode

The RG-EW6000GX AX6000 Wi-Fi 6 Mesh Router delivers enterprise-level performance for modern homes, gamers, smart homes, and bandwidth-intensive environments. Powered by the latest Wi-Fi 6 (IEEE 802.11ax) standard with 160MHz channel bandwidth, the router achieves combined wireless speeds of up to 5951Mbps, providing exceptional performance for 4K/8K streaming, competitive gaming, cloud applications, and large-scale device connectivity.

Built around an enterprise-grade 2.0GHz quad-core chipset, the RG-EW6000GX maintains outstanding stability under heavy network loads while supporting up to 384 concurrent client connections. Equipped with eight high-performance external antennas, advanced MU-MIMO technology, a dedicated gaming mode, 2.5Gbps multi-gigabit connectivity, Dual-WAN aggregation, Dual-LAN aggregation, and Reyee Mesh 3.0, this powerful router is designed to eliminate dead zones and provide seamless whole-home coverage. Combined with Ruijie Cloud management and the Reyee App, users gain complete control and visibility of their network from anywhere.

---

What's Included in the Box

• 1 × RG-EW6000GX Wi-Fi 6 Mesh Router

• 1 × Power Adapter

• 1 × Quick Start Guide

• 1 × Ethernet Cable

---

Main Features

• Wi-Fi 6 (IEEE 802.11ax) technology

• AX6000 dual-band wireless performance

• Combined wireless speeds up to 6000Mbps

• 160MHz channel bandwidth support

• Enterprise-grade 2.0GHz quad-core processor

• 2.5Gbps WAN/LAN multi-gigabit port

• 1 × Gigabit WAN/LAN port

• 3 × Gigabit LAN ports

• Dedicated gaming mode and gaming port

• Dual-WAN aggregation support

• Dual-LAN aggregation support

• Reyee Mesh 3.0 seamless mesh networking

• MU-MIMO technology with 8 spatial streams

• Eight high-gain external antennas

• Advanced FEM and iPA signal amplification

• Cloud-based remote management

• Network monitoring and remote reboot functions

• Password management tools

• IPv6 support

• Supports up to 384 concurrent clients

---

Detailed Specifications

Hardware Specifications

Antennas

• 8 × External High-Gain Antennas

• Antenna Gain (2.4GHz): 4.5 dBi

• Antenna Gain (5GHz): 5.5 dBi

Wireless Technology

• Wi-Fi Standard: Wi-Fi 6 (IEEE 802.11ax)

• Wireless Speed:

  • 2.4GHz: Up to 1147Mbps

  • 5GHz: Up to 4804Mbps

• Combined Wireless Speed: Up to 5951Mbps (AX6000 Class)

• 160MHz Channel Bandwidth

• MU-MIMO Technology

• 8 Spatial Streams (4×4 on 2.4GHz and 4×4 on 5GHz)

• FEM Signal Amplification

• iPA Technology

Processor

• Enterprise-Level Quad-Core CPU

• 2.0GHz Chipset

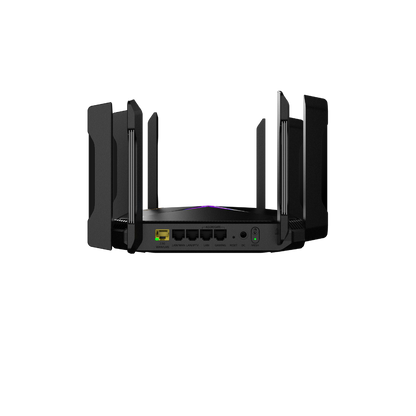

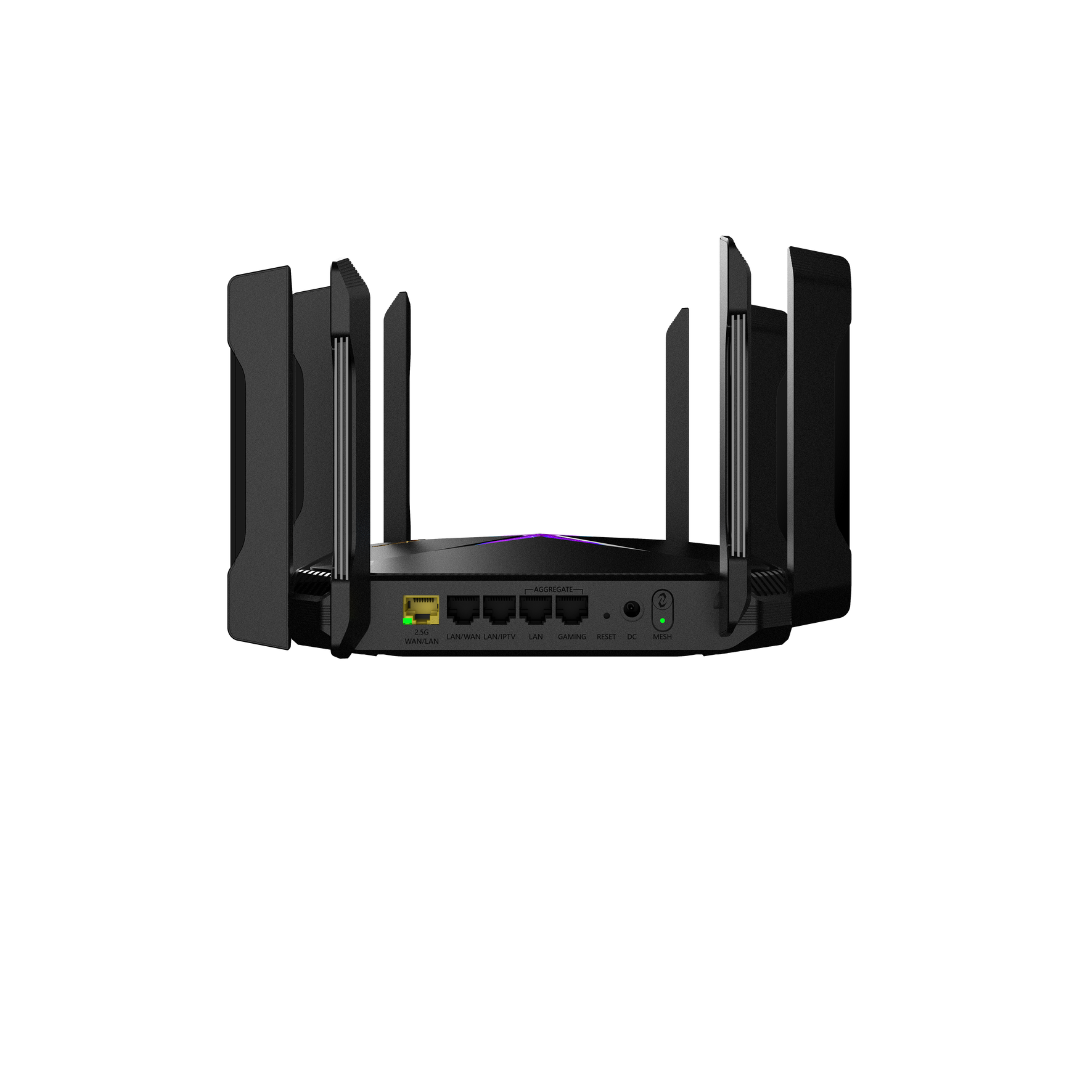

Ethernet Ports

• 1 × 2.5Gbps WAN/LAN Port

• 1 × 1Gbps WAN/LAN Port

• 3 × 1Gbps LAN Ports

Aggregation Features

• Dual-WAN Aggregation

• Dual-LAN Aggregation

Gaming Features

• Dedicated Gaming Mode

• Gaming Port Optimisation

• Low-Latency Traffic Prioritisation

---

Software Features

Network Management

• Ruijie Cloud Management

• Reyee App Management

• Remote Network Management

• Real-Time Network Status Monitoring

• Online Client Monitoring

• Remote Reboot Function

• Password Management

Mesh Networking

• Reyee Mesh 3.0

• One-Click Mesh Expansion

• Seamless Roaming

IP Services

• IPv6 Support

---

Performance Capacity

Maximum Concurrent Clients

• 2.4GHz: 128 Devices

• 5GHz: 256 Devices

• Total Supported Clients: Up to 384 Devices

Recommended Concurrent Clients

• 2.4GHz: 16 Devices

• 5GHz: 64 Devices

---

Practical Use Scenarios

Ultra-Fast Fibre Broadband

Take full advantage of high-speed fibre and multi-gigabit internet services using the integrated 2.5Gbps WAN/LAN port and Dual-WAN aggregation capabilities.

Competitive Gaming

Dedicated gaming mode and gaming port prioritise gaming traffic to minimise latency and deliver smoother gameplay experiences.

Large Homes and Multi-Storey Properties

Eight high-performance antennas and Reyee Mesh 3.0 provide extensive wireless coverage for large homes, duplexes, villas, and multi-level buildings.

Smart Home Networks

Connect hundreds of smart devices including cameras, sensors, automation systems, smart TVs, and voice assistants without compromising network performance.

Business and Home Office Environments

The enterprise-grade quad-core processor delivers stable performance for remote work, cloud services, VPNs, video conferencing, and collaborative applications.

High-Density Device Environments

Ideal for households with numerous smartphones, tablets, laptops, gaming consoles, and streaming devices connected simultaneously.

---

Warranty Information

• Manufacturer Warranty: Refer to the official Ruijie/Reyee warranty policy applicable in your region.

• Warranty support and claims are handled through authorised distributors and manufacturer support channels.

---

Brand Description

Reyee by Ruijie Networks

Reyee, a brand developed by Ruijie Networks, provides intelligent networking solutions that combine enterprise-grade technology with user-friendly deployment. Known for innovation, cloud management, mesh networking, and high-performance Wi-Fi solutions, Reyee products are trusted by homes, businesses, and professional users worldwide.

---

Datasheets & Resources

Available resources may include:

• Product Datasheet

• Compliance Documentation

• Installation Guide

• Configuration Guides

• Software Downloads

• Firmware Updates

• Release Notes

• Product Training Videos

---

Excellence for the Australian and New Zealand Market

The RG-EW6000GX is perfectly suited to Australian and New Zealand homes seeking premium Wi-Fi 6 performance, multi-gigabit networking, and seamless whole-home wireless coverage. Its enterprise-grade architecture and advanced networking capabilities make it ideal for modern fibre broadband services and demanding connected environments.

Key advantages for Australian and New Zealand customers include:

• Optimised for high-speed NBN and fibre broadband services

• Multi-gigabit networking with integrated 2.5Gbps connectivity

• Wi-Fi 6 technology for superior speed, efficiency, and capacity

• Excellent for gaming, streaming, smart homes, and remote work

• Genuine products sourced through authorised distribution channels

• Access to official firmware updates and manufacturer support

• Supports modern IPv6 networking standards

• Warranty support handled according to manufacturer and distributor policies

• Designed for reliable operation in high-density device environments

---

FAQs

Q1: What is the maximum wireless speed of the RG-EW6000GX?

The RG-EW6000GX delivers combined wireless speeds of up to 6000Mbps, including up to 1147Mbps on 2.4GHz and 4804Mbps on 5GHz.

Q2: Does the RG-EW6000GX support Wi-Fi 6?

Yes, the RG-EW6000GX supports the latest Wi-Fi 6 (IEEE 802.11ax) standard and 160MHz channel bandwidth for enhanced wireless performance.

Q3: What is the purpose of the 2.5Gbps port on the RG-EW6000GX?

The RG-EW6000GX includes a 2.5Gbps WAN/LAN port that supports high-speed internet services and multi-gigabit wired network connections.

Q4: Does the RG-EW6000GX support mesh networking?

Yes, the RG-EW6000GX supports Reyee Mesh 3.0 for seamless whole-home Wi-Fi coverage and roaming.

Q5: How many devices can the RG-EW6000GX support simultaneously?

The RG-EW6000GX supports up to 384 concurrent client connections across both wireless bands.

Q6: Does the RG-EW6000GX include gaming features?

Yes, the RG-EW6000GX includes a dedicated gaming mode and gaming port designed to optimise gaming traffic and reduce latency.

Q7: Does the RG-EW6000GX support Dual-WAN aggregation?

Yes, the RG-EW6000GX supports Dual-WAN aggregation, allowing multiple internet connections to improve bandwidth utilisation and traffic distribution.

Q8: Can I manage the RG-EW6000GX remotely?

Yes, the RG-EW6000GX can be managed remotely through Ruijie Cloud and the Reyee App.

Q9: Does the RG-EW6000GX support IPv6?

Yes, the RG-EW6000GX fully supports IPv6 networking.

Q10: Is the RG-EW6000GX suitable for large homes?

Yes, the RG-EW6000GX is specifically designed for large homes and multi-storey properties, featuring eight external antennas and Reyee Mesh 3.0 technology for extensive wireless coverage.
