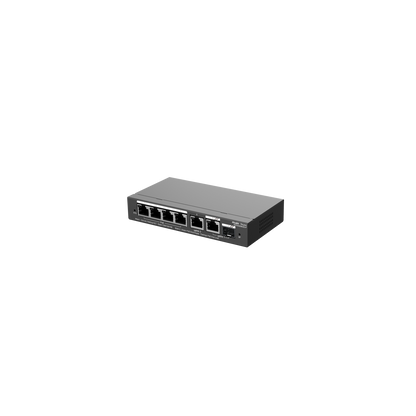

RG-ES206GS-P 6-Port Gigabit Smart Cloud Managed PoE Switch – 4 PoE+ Ports, Fanless, Ideal for Enterprise, Surveillance & Hospitality Networks

RG-ES206GS-P 6-Port Gigabit Smart Cloud Managed PoE Switch – 4 PoE+ Ports, Fanless, Ideal for Enterprise, Surveillance & Hospitality Networks

$156.16 AUD
$331.50 AUD $156.16 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The RG-ES206GS-P is a 6-port Gigabit smart cloud-managed switch designed for enterprises, hospitality, factories, educational institutions, retail environments, and surveillance networks. With 4 PoE+ ports and 1 combo port, this switch powers devices such as IP cameras, access points, and VoIP phones directly over Ethernet, eliminating the need for separate power cables.

As a smart cloud-managed switch, the RG-ES206GS-P offers remote monitoring and configuration via Ruijie Cloud, enabling lifetime management from anywhere at any time. Key features include IP camera recognition, automatic loop prevention for service continuity, and fanless operation for silent deployment in office or hospitality environments.

What’s Included

  • RG-ES206GS-P 6-Port Smart Managed PoE Switch

  • Power Adapter / Cable

  • User Manual / Quick Start Guide

Key Features

  • 6-Port Gigabit Switch: 4 PoE+ ports, 1 Gigabit uplink port, 1 combo SFP port.

  • PoE Power Supply: 54W budget, compliant with IEEE 802.3at / 802.3af standards.

  • Smart Cloud Management: Monitor, configure, and manage the switch remotely via Ruijie Cloud.

  • IP Camera Recognition: Automatically identifies and manages IP cameras for CCTV networks.

  • Automatic Loop Prevention: Ensures continuous network service by preventing loops.

  • Fanless Design: Silent operation suitable for office and surveillance environments.

  • High Network Performance: Switching capacity of 12 Gbps and forwarding rate of 8.93 Mpps.

  • MAC Address Table: Supports 2000 entries.

  • VLAN Support: Up to 16 VLANs for network segmentation.

  • Port Surge Protection: 6 kV to safeguard connected devices.

  • Warranty: 3-Year manufacturer-backed coverage.

Technical Specifications

Specification Details
Ports 4 × 10/100/1000 Mbps PoE+ ports, 1 × Gigabit uplink, 1 × combo SFP port
PoE Standard IEEE 802.3at / IEEE 802.3af, 54W total
Switching Capacity 12 Gbps
Forwarding Rate 8.93 Mpps
MAC Address Table 2000 entries
Max VLANs 16
Fan Fanless
Port Surge Protection 6 kV
Dimensions (W×D×H) 148 × 78 × 26 mm
Weight (With Package) 1.38 kg
MTBF > 200,000 hours
Certifications CE, FCC
Warranty 3 Years

Practical Applications

  • Enterprise Networks: Power and connect IP phones, access points, and networked devices.

  • Surveillance Systems: Easily deploy and manage CCTV cameras with PoE+ ports and IP camera recognition.

  • Hospitality & Retail: Provide reliable connectivity for Wi-Fi access points, POS systems, and security cameras.

  • Educational Institutions & Factories: Robust, high-performance networking for classrooms, labs, or production environments.

Datasheet

A full technical datasheet for the RG-ES206GS-P is available for download:
RG-ES206GS-P Datasheet

SKU / Product Info

  • Model: RG-ES206GS-P

  • Series: 6-Port Smart Cloud Managed PoE Switch

  • Brand: Ruijie

  • Warranty: 3 Years
