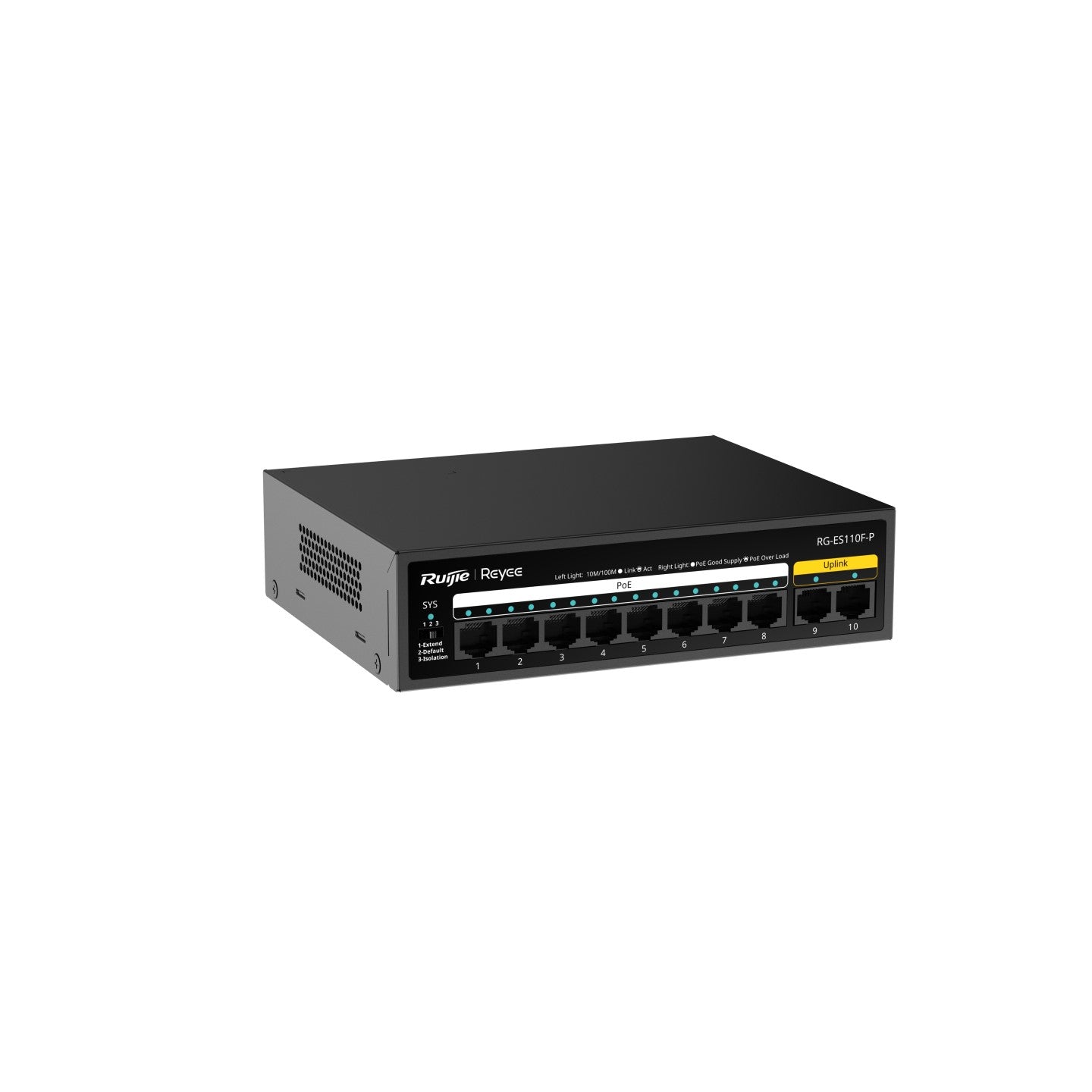

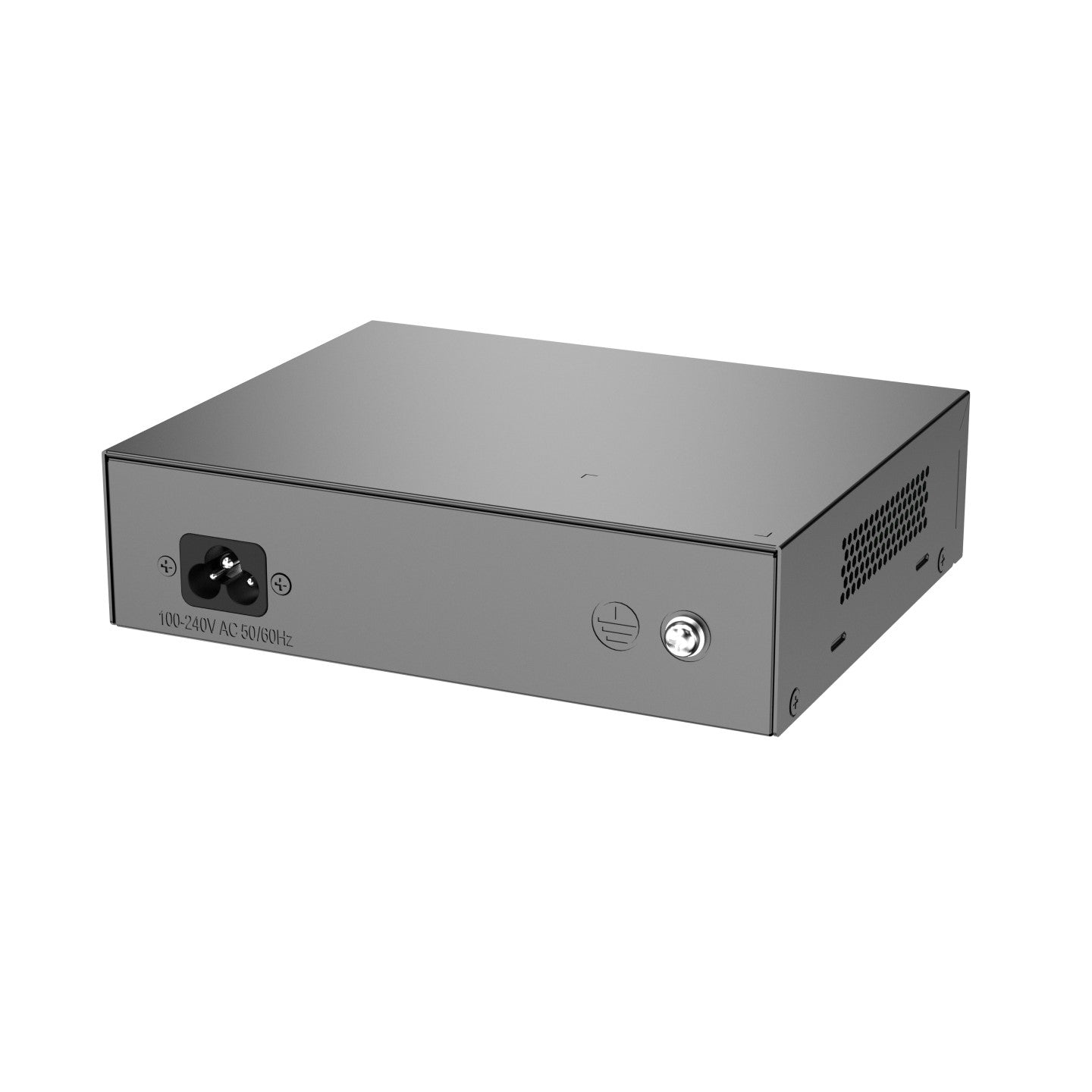

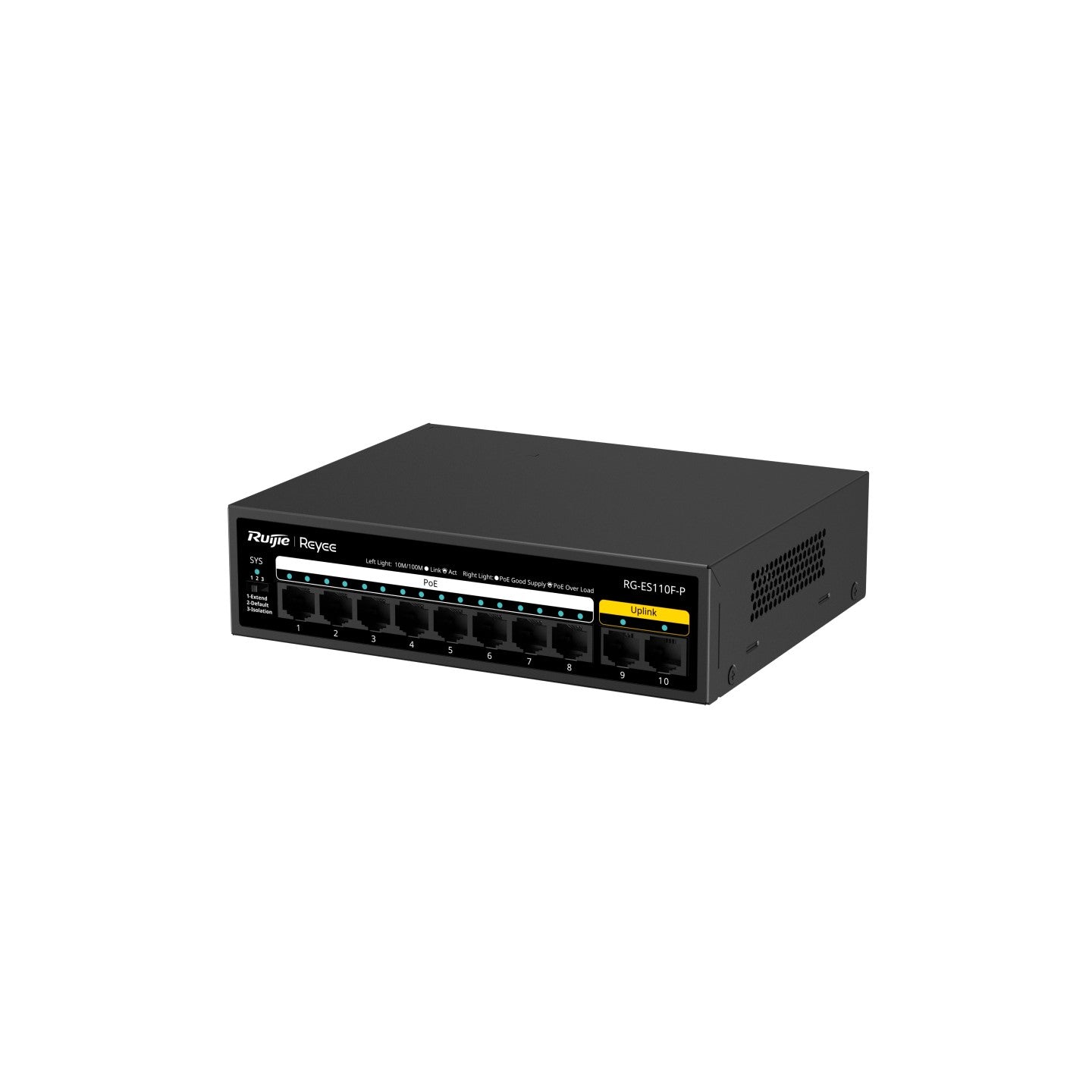

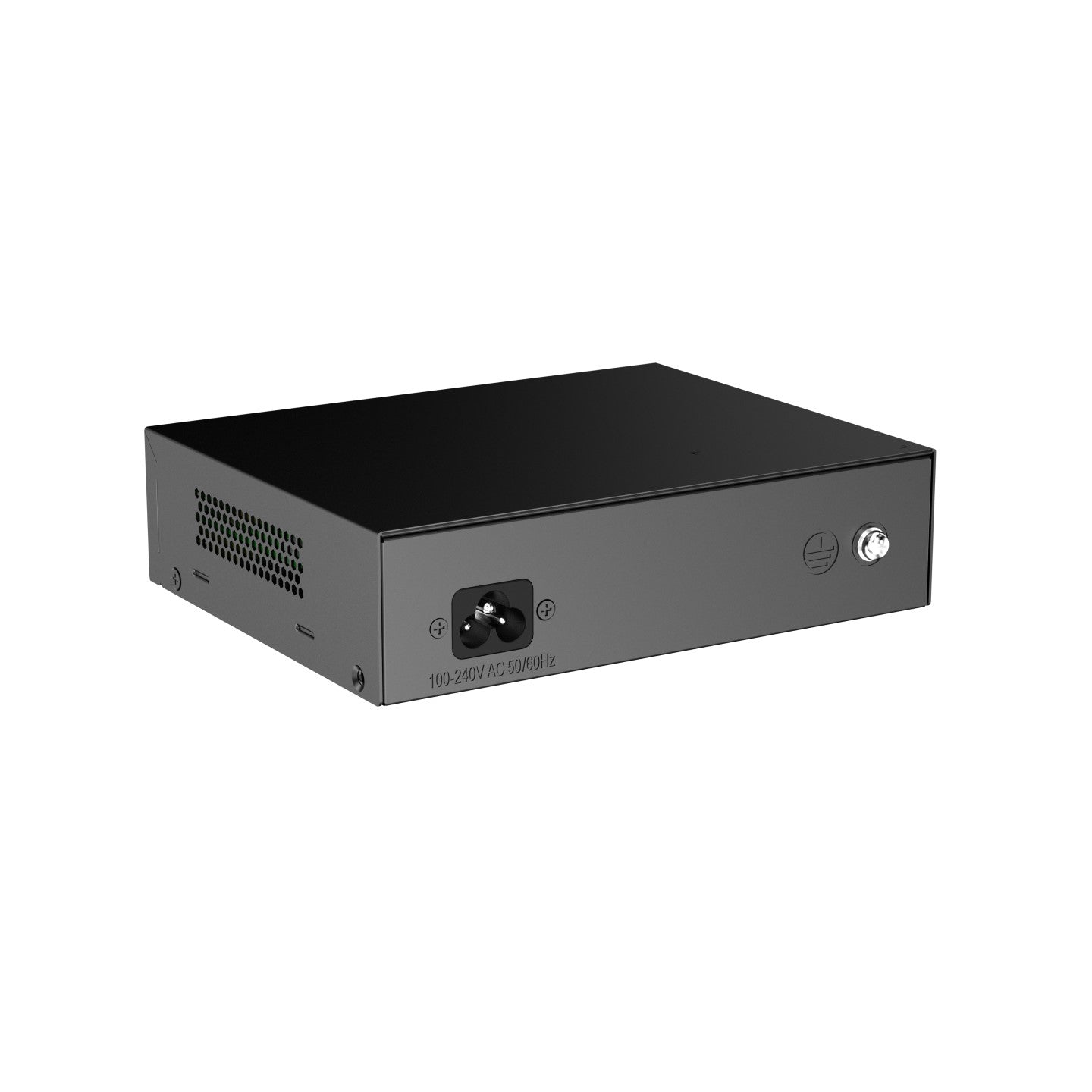

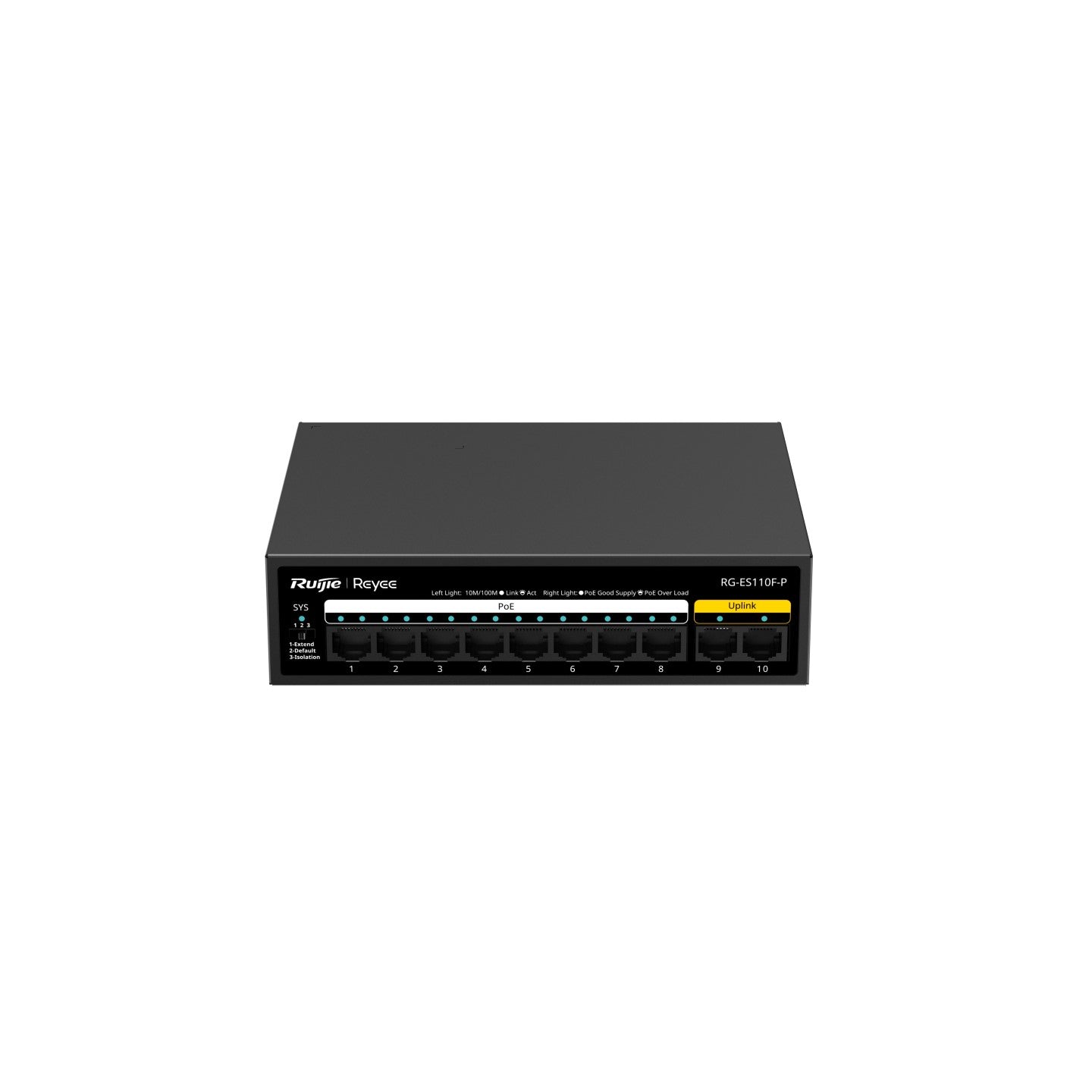

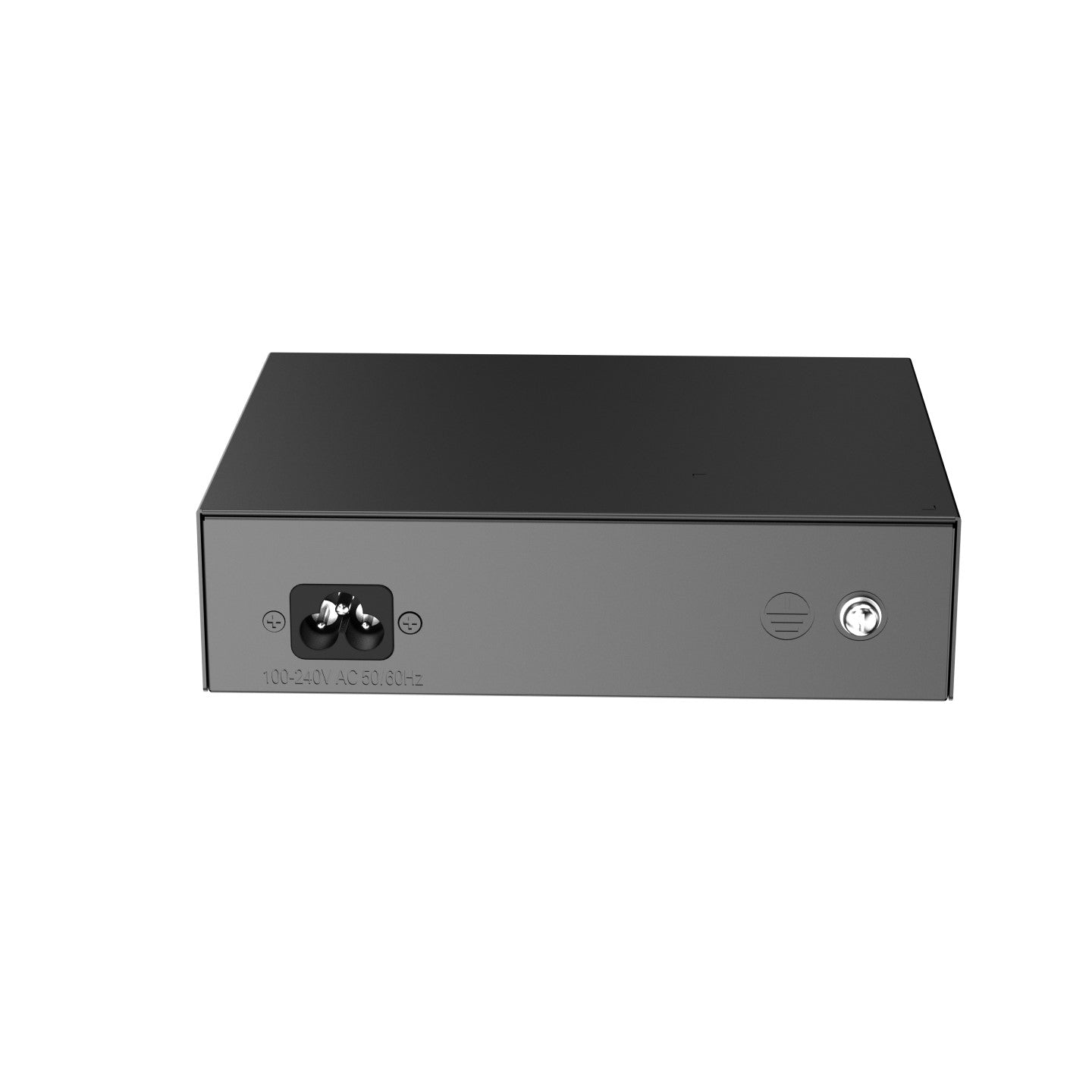

RG-ES110F-P 10-Port 10/100 Mbps Unmanaged PoE Switch – 8 PoE+ Ports, Fanless, Ideal for Surveillance & Small Office Networking

RG-ES110F-P 10-Port 10/100 Mbps Unmanaged PoE Switch – 8 PoE+ Ports, Fanless, Ideal for Surveillance & Small Office Networking

$118.32 AUD
$331.50 AUD $118.32 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The RG-ES110F-P is a 10-port unmanaged PoE switch engineered for surveillance networks, home offices, retail outlets, and small businesses. Featuring 8 PoE+ ports, this switch can power devices such as IP cameras, access points, and VoIP phones directly over Ethernet, simplifying deployments and reducing cable clutter.

As a plug-and-play unmanaged switch, it requires no configuration while providing high network reliability and a large MAC address table for efficient traffic handling. Compatible with the Ruijie Cloud App, the RG-ES110F-P allows network visibility and monitoring. Its fanless design ensures silent operation, and 4 kV surge protection safeguards connected devices.

What’s Included

  • RG-ES110F-P 10-Port PoE Switch

  • Power Adapter / Cable

  • User Manual / Quick Start Guide

Key Features

  • 10 × 10/100 Mbps Ports: 8 PoE+ ports and 2 standard ports for flexible deployments.

  • Unmanaged Switch: Plug-and-play operation for fast installation.

  • Intelligent PoE Management: Delivers safe, reliable power to connected PoE devices.

  • Fanless Design: Silent operation suitable for office or home environments.

  • High Network Reliability: Switching capacity of 2.0 Gbps and forwarding rate of 1.48 Mpps.

  • MAC Address Table: 8000 entries for smooth traffic handling.

  • Surge Protection: 4 kV to protect devices from electrical spikes.

  • Durable Design: High-quality casing and internal components for long-term performance.

  • Warranty: 3-Year manufacturer-backed coverage.

Technical Specifications

Specification Details
Ports 8 × 10/100BASE-T PoE+ ports, 2 × 10/100BASE-T ports
Switch Type Unmanaged
Switching Capacity 2.0 Gbps
Forwarding Rate 1.48 Mpps
MAC Address Table Size 8000 entries
Fan Fanless
Surge Protection 4 kV
Dimensions (W×D×H) 166 × 132.6 × 43 mm (6.54 × 5.22 × 1.69 in.)
Weight (With Package) 1.22 kg (2.69 lbs)
Warranty 3 Years
Certifications CE

Practical Applications

  • CCTV & Surveillance Networks: Power multiple IP cameras directly through PoE+ ports.

  • Small Office & Home Networking: Connect computers, Wi-Fi access points, and VoIP phones.

  • Retail & Cafés: Provide stable network for POS systems, security cameras, and guest Wi-Fi.

  • Plug-and-Play Deployment: Simplifies network setup for multiple devices without configuration.

Datasheet

A complete technical datasheet for the RG-ES110F-P is available for download here:
RG-ES110F-P Datasheet

SKU / Product Info

  • Model: RG-ES110F-P

  • Series: 10-Port Unmanaged PoE Switch

  • Brand: Ruijie

  • Warranty: 3 Years
