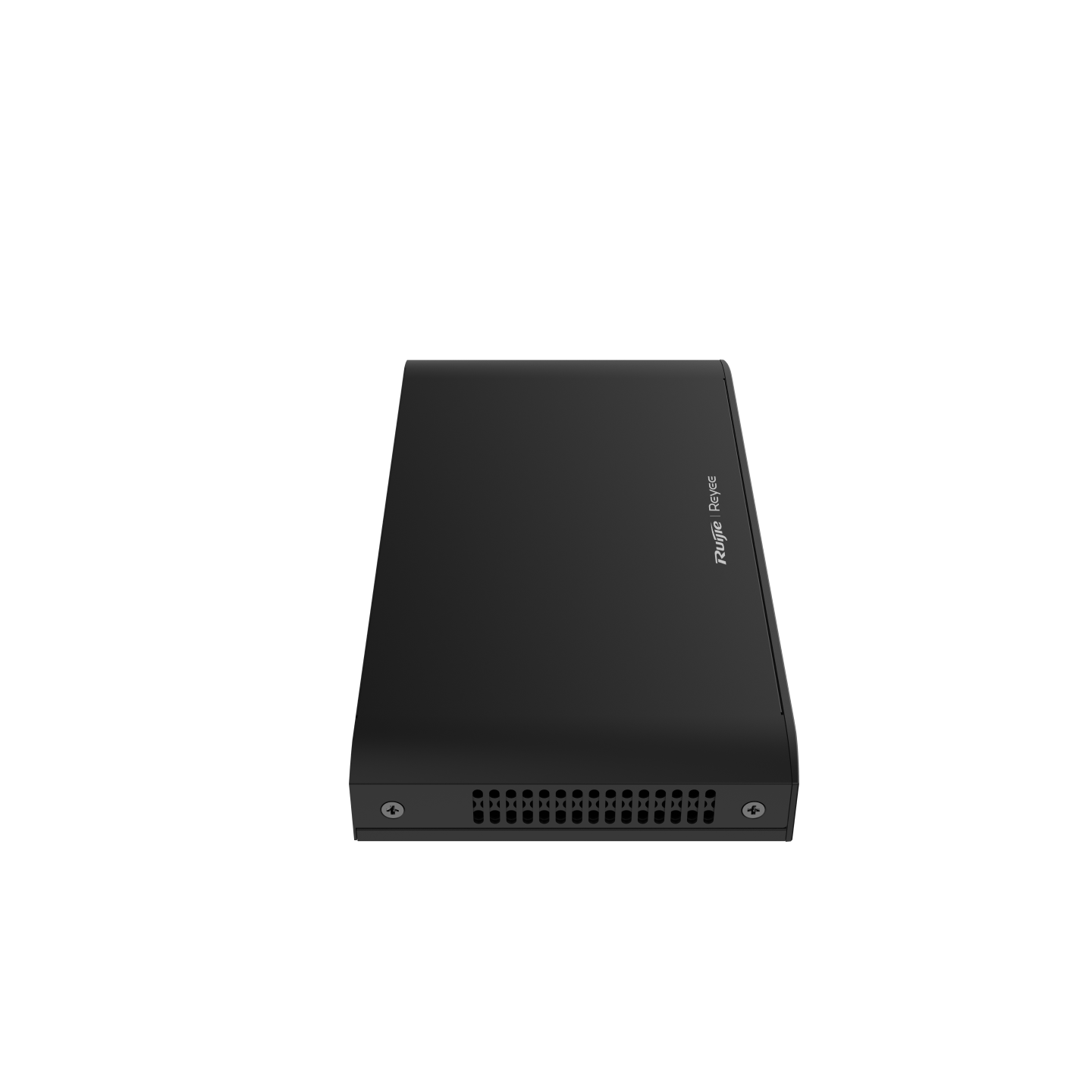

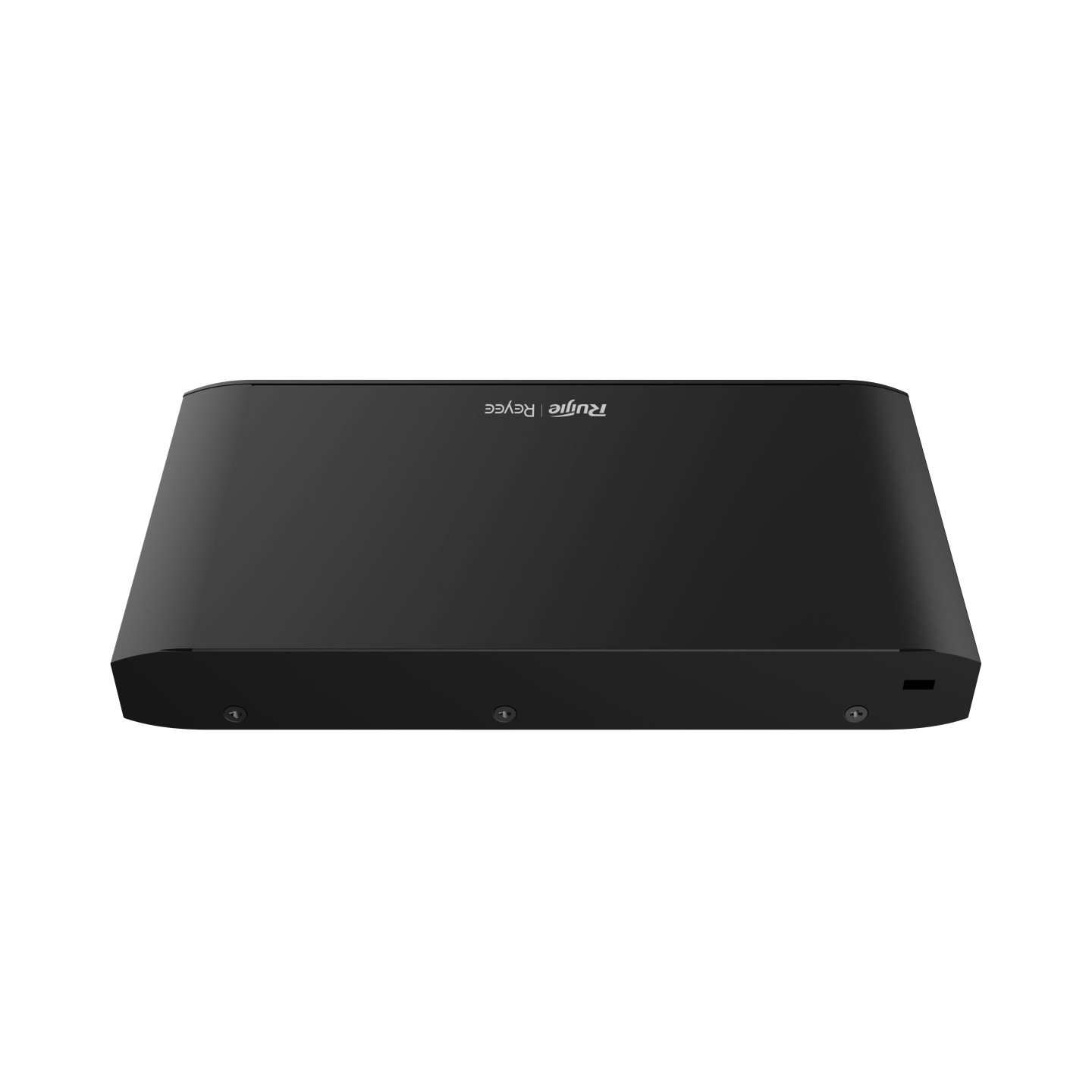

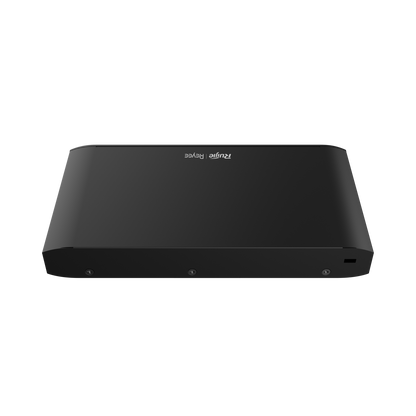

RG-EG105G-V3 Reyee Cloud Managed Router | Gigabit Multi-WAN VPN Router with Free Cloud Management

The RG-EG105G-V3 Reyee Cloud Managed Router is a feature-rich business gateway designed to deliver reliable internet connectivity, simplified cloud management, and enterprise-grade networking capabilities for small and medium-sized organisations. Combining intelligent Multi-WAN functionality, secure VPN services, captive portal authentication, and centralised cloud management, the RG-EG105G-V3 enables businesses to deploy and manage professional networks with minimal effort.

Built around a dual-core processor and capable of delivering up to 1000Mbps throughput in Turbo Mode, the RG-EG105G-V3 provides stable performance for offices, retail environments, hospitality venues, educational facilities, and distributed branch locations. Integrated with the Ruijie Reyee Cloud platform and mobile application, administrators can remotely monitor, configure, and maintain their network infrastructure from anywhere while benefiting from advanced security and traffic management capabilities.

---

What's Included in the Box

• 1 × RG-EG105G-V3 Reyee Cloud Managed Router

• 1 × Power Adapter

• 1 × Quick Installation Guide

• Product Documentation

---

Main Features

• Cloud-managed business router

• Gigabit Ethernet connectivity

• Multi-WAN load balancing

• WAN failover and link redundancy

• Bandwidth aggregation support

• IPSec VPN support

• OpenVPN support

• PPTP VPN support

• L2TP VPN support

• Captive portal authentication

• Customisable portal pages (WYSIWYG)

• Application and website control

• Automatic application library updates

• Secure remote access to internal devices

• Cloud portal authentication

• Scenario-based deployment configuration

• Self-Organising Network (SON) support

• Centralised network management

• Remote monitoring and maintenance

• Free Ruijie Cloud management

• Reyee App support

• 3-Year Manufacturer Warranty

---

Detailed Specifications

Hardware Specifications

Ethernet Ports

• 5 × 10/100/1000BASE-T Gigabit Ports

• 3 × Fixed LAN Ports

• 1 × Fixed WAN Port

• Multi-WAN Support

Processor

• Dual-Core Processor

• 880MHz Clock Frequency Per Core

Memory

• RAM: 128MB

• Flash Memory: 32MB

Physical Specifications

• Dimensions: 206.5 × 108.5 × 28 mm

• Weight: 0.406kg

Installation

• Desktop Mounting

Environmental Specifications

• Operating Temperature:

  • 0°C to 40°C

  • 32°F to 104°F

---

Software Features

WAN & Internet Features

• Multi-WAN Load Balancing

• Intelligent Traffic Distribution

• WAN Failover

• Link Redundancy

• Aggregated Bandwidth

• Automatic WAN Configuration

• Customisable Link Weight Allocation

VPN Services

• IPSec VPN

• OpenVPN

• PPTP VPN

• L2TP VPN

• Future WireGuard Support via Firmware Upgrade

Security & Authentication

• Captive Portal Authentication

• Cloud Portal Authentication

• Custom Portal Pages (WYSIWYG)

• RADIUS Authentication Support

• Application Control

• Website Filtering

• User Access Management

Cloud Management

• Ruijie Cloud Management

• Reyee App Management

• Centralised Network Monitoring

• Remote Maintenance

• Remote Configuration

• Self-Organising Network (SON)

• Scenario-Based Configuration

Remote Access Features

• Intranet Access Function

• Remote NVR Access

• Remote IPC Access

• Internal Server Access

---

Performance Capacity

Throughput

• Turbo Mode: Up to 1000Mbps

• Normal Mode: Up to 600Mbps

Recommended Client Capacity

• Up to 100 Concurrent Users

---

Practical Use Scenarios

Small Business Networking

The RG-EG105G-V3 provides secure internet connectivity, centralised management, and traffic optimisation for small businesses and branch offices.

Retail & Hospitality Environments

Deploy guest Wi-Fi with customised captive portal authentication while managing business applications securely.

Remote Site Connectivity

Utilise VPN connectivity and cloud management tools to securely connect remote locations and branch offices.

Surveillance Networks

Enable secure remote access to NVRs, IP cameras, and surveillance infrastructure from anywhere.

Multi-ISP Internet Connections

Improve uptime and internet reliability using Multi-WAN load balancing and automatic failover functionality.

Managed Service Provider Deployments

Cloud-based management and centralised monitoring make the RG-EG105G-V3 ideal for MSPs managing multiple customer locations.

---

Warranty Information

• 3-Year Manufacturer Warranty

• Warranty support is provided through authorised distributors and manufacturer support channels.

• Access to firmware updates and cloud services through the Ruijie ecosystem.

---

Brand Description

Reyee by Ruijie Networks

Reyee, a business networking brand from Ruijie Networks, provides intelligent cloud-managed networking solutions designed for small businesses, enterprise environments, hospitality venues, education, and commercial applications. Reyee products combine enterprise-grade performance with simple deployment and powerful cloud management capabilities.

---

Datasheets & Resources

Available resources may include:

• Product Datasheet

• Compliance Documentation

• Installation Guide

• Configuration Guide

• Implementation Cookbook

• Firmware Downloads

• Software Updates

• Release Notes

• Cloud Management Documentation

---

Excellence for the Australian and New Zealand Market

The RG-EG105G-V3 is ideally suited to Australian and New Zealand businesses requiring reliable internet connectivity, cloud management, VPN services, and Multi-WAN redundancy. Its enterprise-grade capabilities and simplified management platform make it an excellent choice for modern business environments.

Key advantages for Australian and New Zealand customers include:

• Optimised for NBN, fibre, and business internet services

• Multi-WAN redundancy for improved uptime and reliability

• VPN support for secure remote access

• Captive portal authentication for guest Wi-Fi deployments

• Cloud-based management for simplified administration

• Suitable for retail, hospitality, education, and office environments

• Genuine products sourced through authorised distribution channels

• Access to official firmware updates and manufacturer support

• Warranty support handled according to official manufacturer policies

• Designed for dependable operation in business-critical networks

---

FAQs

Q1: What is the maximum throughput of the RG-EG105G-V3?

The RG-EG105G-V3 supports throughput up to 1000Mbps in Turbo Mode and up to 600Mbps in Normal Mode.

Q2: Does the RG-EG105G-V3 support Multi-WAN load balancing?

Yes, the RG-EG105G-V3 supports intelligent Multi-WAN load balancing, WAN failover, bandwidth aggregation, and custom link weighting.

Q3: What VPN protocols are supported by the RG-EG105G-V3?

The RG-EG105G-V3 supports IPSec, OpenVPN, PPTP, and L2TP VPN protocols, with WireGuard support expected through future firmware updates.

Q4: Does the RG-EG105G-V3 support captive portal authentication?

Yes, the RG-EG105G-V3 includes captive portal authentication with fully customisable WYSIWYG portal pages.

Q5: Can the RG-EG105G-V3 be managed remotely?

Yes, the RG-EG105G-V3 supports remote cloud management through the Ruijie Cloud platform and Reyee App.

Q6: Does the RG-EG105G-V3 support RADIUS authentication?

Yes, the RG-EG105G-V3 supports RADIUS authentication for user verification and AAA integration.

Q7: How many Ethernet ports does the RG-EG105G-V3 include?

The RG-EG105G-V3 includes five Gigabit Ethernet ports, including three fixed LAN ports and one fixed WAN port.

Q8: How many users can the RG-EG105G-V3 support?

The RG-EG105G-V3 is recommended for networks with up to 100 concurrent users.

Q9: Can the RG-EG105G-V3 provide remote access to NVRs and internal devices?

Yes, the RG-EG105G-V3 supports secure remote access to NVRs, IP cameras, internal servers, and other local network devices through its intranet access functionality.

Q10: Does the RG-EG105G-V3 include free cloud management?

Yes, the RG-EG105G-V3 includes free Ruijie Cloud management for centralised monitoring, configuration, maintenance, and remote administration.
