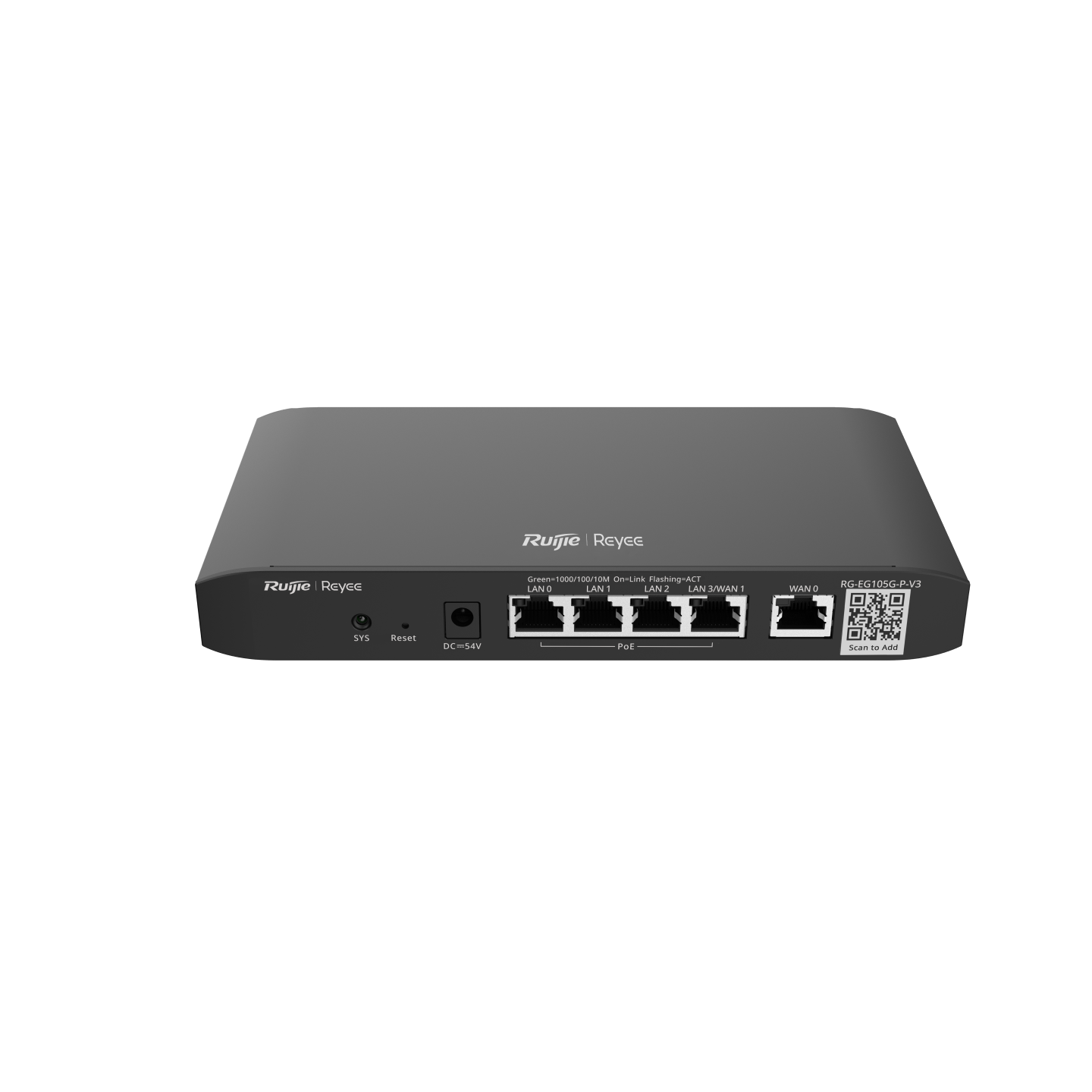

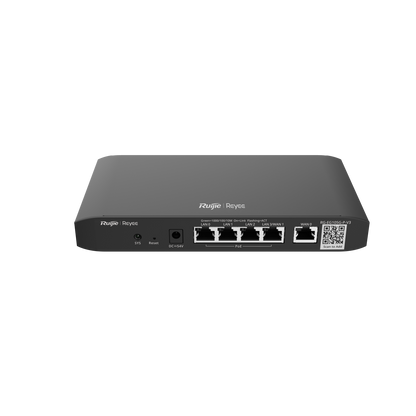

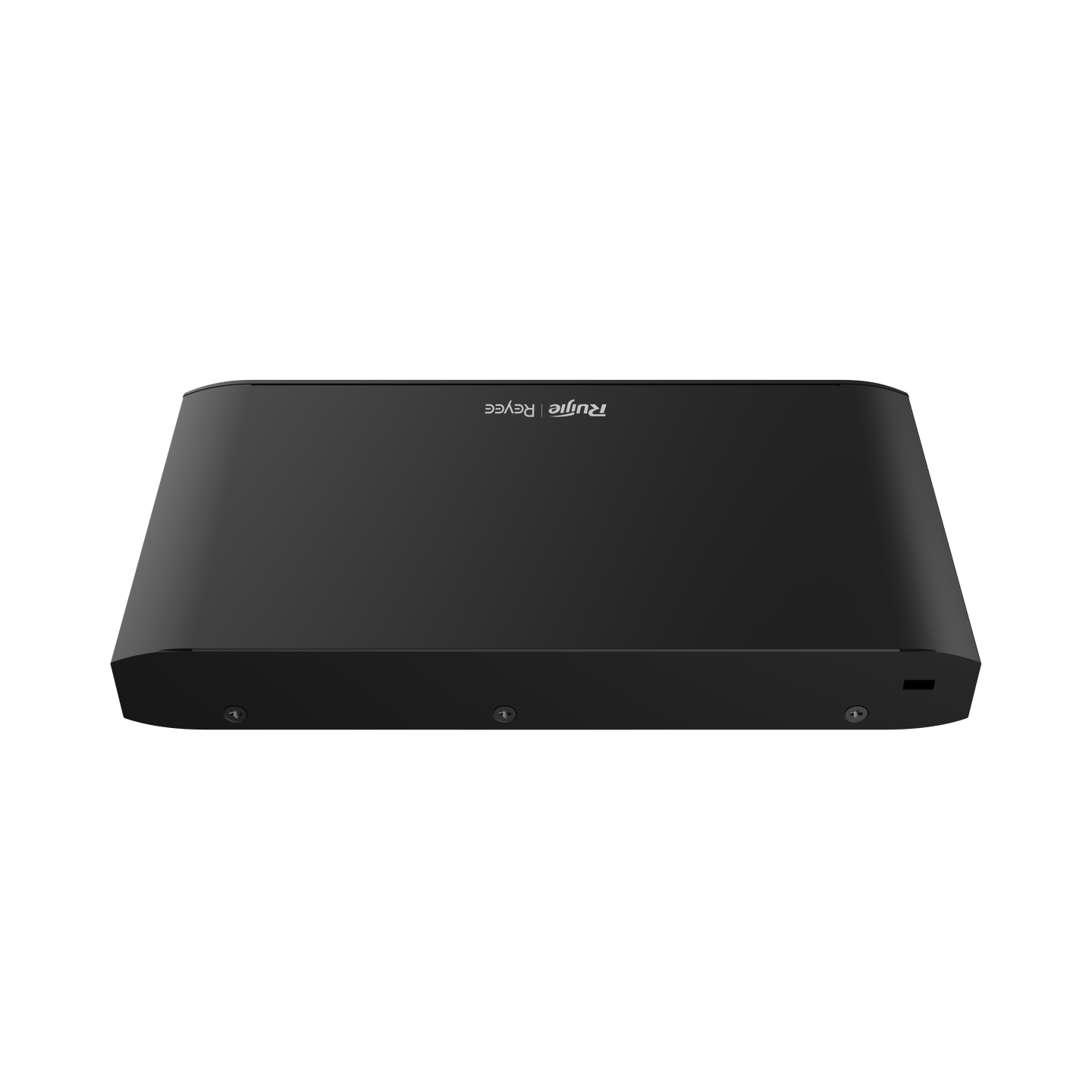

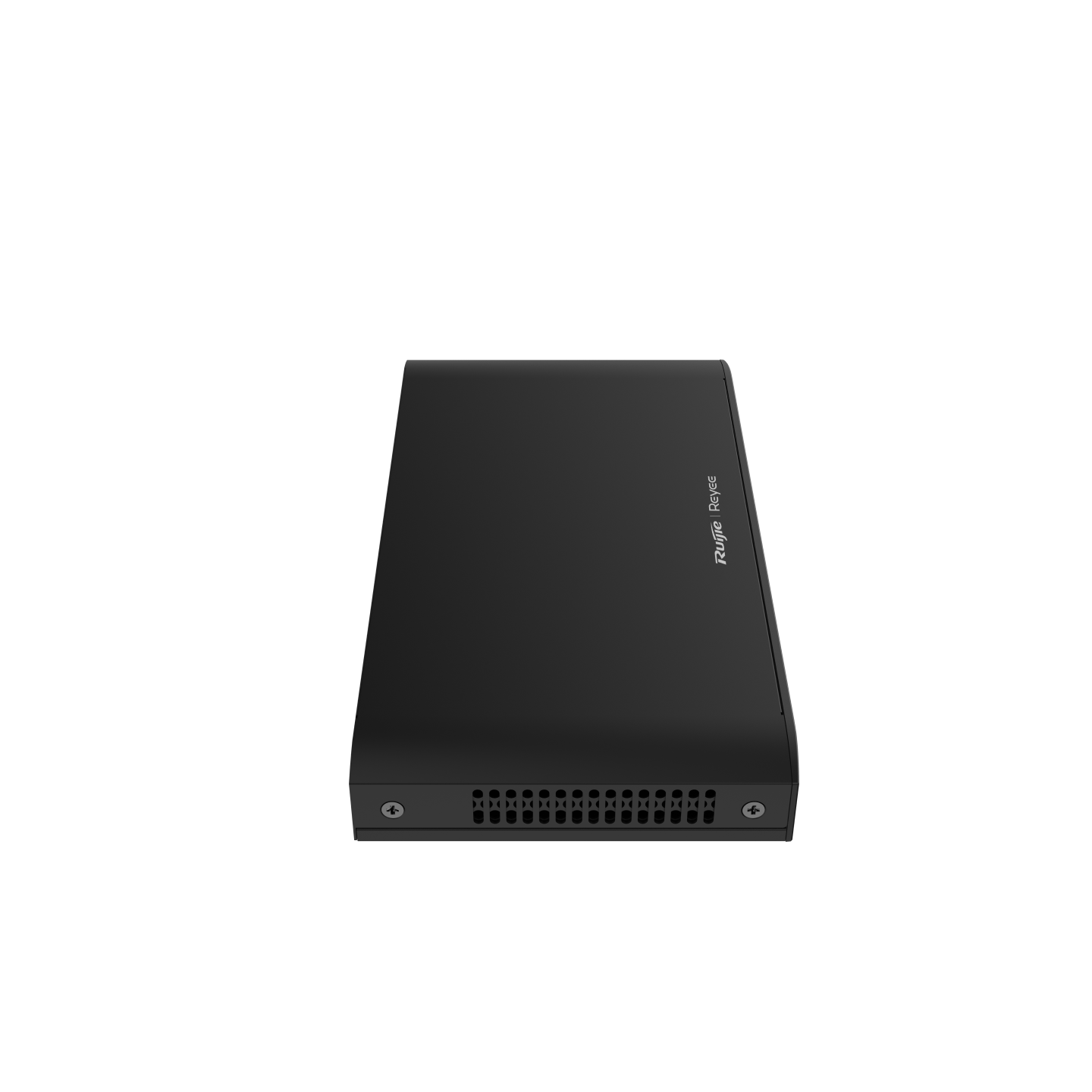

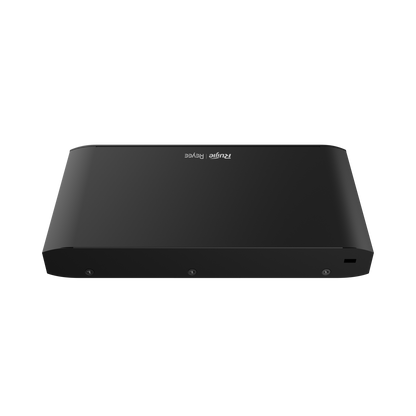

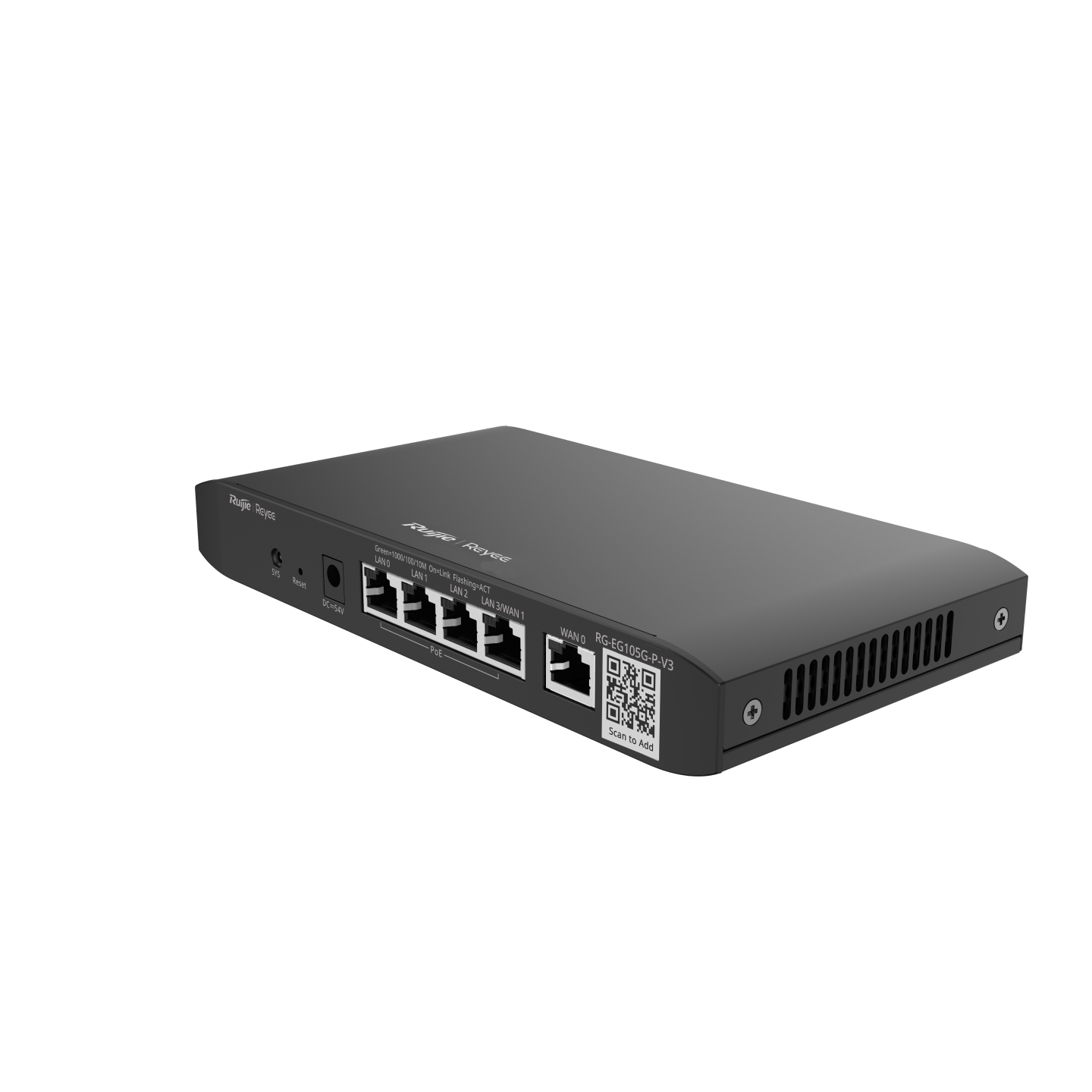

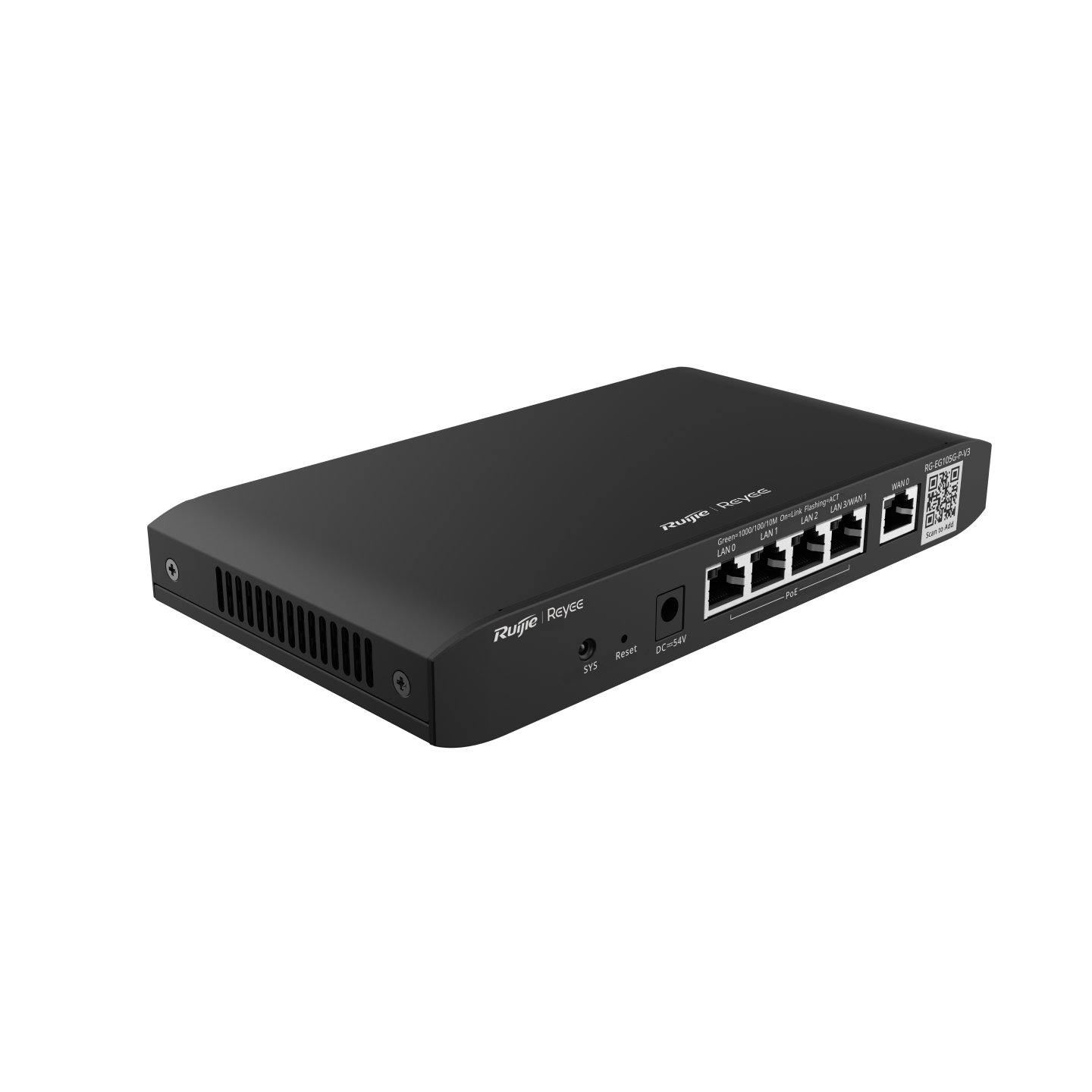

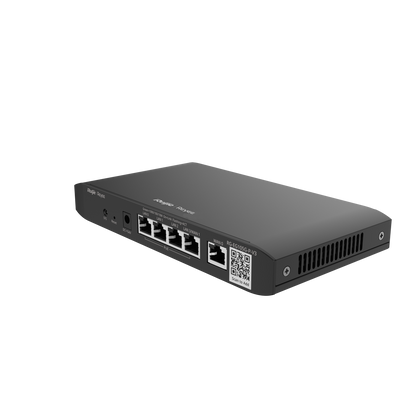

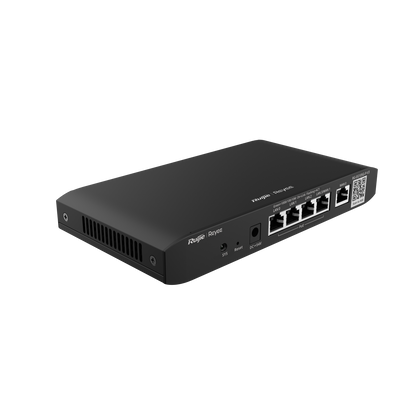

RG-EG105G-P-V3 Reyee Cloud Managed PoE Router | Gigabit Multi-WAN VPN Router with Cloud Management



The RG-EG105G-P-V3 Reyee Cloud Managed PoE Router is a powerful and cost-effective networking solution designed specifically for small businesses, retail stores, offices, hospitality venues, and branch networks. Combining enterprise-grade routing capabilities with simplified cloud-based management, this router enables organisations to deploy secure, reliable, and highly available network infrastructure with minimal configuration effort.

Featuring intelligent Multi-WAN load balancing, VPN support, integrated PoE functionality, captive portal authentication, and free cloud management, the RG-EG105G-P-V3 helps businesses maximise uptime while simplifying day-to-day network administration. Built around a dual-core processor and capable of throughput up to 1000Mbps in Turbo Mode, this router delivers dependable performance for demanding business applications while enabling remote management through the Ruijie Reyee App and Cloud Platform.

---

What's Included in the Box

• 1 × RG-EG105G-P-V3 Reyee Cloud Managed PoE Router

• 1 × Power Adapter

• 1 × Quick Installation Guide

• Product Documentation

---

Main Features

• Cloud-managed business router

• Integrated Power over Ethernet (PoE)

• 54W PoE power budget

• Gigabit Ethernet connectivity

• Multi-WAN load balancing

• WAN failover and link redundancy

• Bandwidth aggregation support

• VPN server and client support

• IPSec VPN support

• OpenVPN support

• PPTP support

• L2TP support

• Captive portal authentication

• Customisable portal pages

• Remote cloud management

• Self-Organising Network (SON) support

• Scenario-based deployment configuration

• Application control and filtering

• Remote monitoring and maintenance

• Free Ruijie Cloud management platform

• 3-Year Manufacturer Warranty

---

Detailed Specifications

Hardware Specifications

Ethernet Ports

• 5 × 10/100/1000BASE-T Gigabit Ports

• 3 × Fixed LAN Ports

• 1 × Fixed WAN Port

• Multi-WAN Support

Processor

• Dual-Core Processor

• 880MHz Clock Frequency Per Core

Memory

• RAM: 128MB

• Flash Memory: 32MB

PoE Specifications

• Total PoE Budget: 54W

Physical Specifications

• Dimensions: 206.5 × 108.5 × 28 mm

• Weight: 0.406kg

Installation

• Desktop Mounting

Environmental Specifications

• Operating Temperature:

  • 0°C to 40°C

  • 32°F to 104°F

---

Software Features

WAN & Internet Features

• Multi-WAN Load Balancing

• Intelligent Traffic Distribution

• WAN Failover

• Link Redundancy

• Aggregated Bandwidth Management

• Automatic WAN Configuration

• Customisable Link Weight Allocation

VPN Services

• IPSec VPN

• OpenVPN

• PPTP VPN

• L2TP VPN

Security & Authentication

• Captive Portal Authentication

• Cloud Portal Authentication

• Custom Portal Pages

• Application Control & Blocking

Cloud Management

• Ruijie Cloud Management

• Reyee App Management

• Remote Monitoring

• Remote Maintenance

• Centralised Network Management

• Self-Organising Networking (SON)

• Scenario-Based Configuration

---

Performance Capacity

Throughput

• Turbo Mode: Up to 1000Mbps

• Normal Mode: Up to 600Mbps

Recommended Client Capacity

• Up to 100 Concurrent Users

---

Practical Use Scenarios

Small Business Networks

The RG-EG105G-P-V3 provides reliable internet connectivity, traffic management, and cloud administration for small offices and growing businesses.

Retail Stores

Manage point-of-sale systems, guest Wi-Fi, security cameras, and business applications through a single cloud-managed platform.

Hospitality Environments

Deploy guest internet access with captive portal authentication and customised login pages for cafés, restaurants, hotels, and service venues.

Branch Office Connectivity

Utilise VPN connectivity and cloud management to securely connect remote branches and distributed business locations.

Surveillance Networks

Enable secure remote access to NVRs, IP cameras, and internal monitoring systems from anywhere.

Multi-Internet Environments

Use Multi-WAN load balancing and automatic failover to maximise uptime and improve internet reliability.

---

Warranty Information

• 3-Year Manufacturer Warranty

• Warranty support is provided through authorised distributors and manufacturer support channels.

• Access to firmware updates and cloud management services through the Ruijie ecosystem.

---

Brand Description

Reyee by Ruijie Networks

Reyee, a business networking brand from Ruijie Networks, delivers intelligent, cloud-managed networking solutions for small businesses, enterprises, hospitality, education, and commercial environments. Combining enterprise-grade performance with simplified deployment and management, Reyee products help organisations build reliable, scalable, and secure networks.

---

Datasheets & Resources

Available resources may include:

• Product Datasheet

• Installation Guide

• Compliance Documentation

• Configuration Guides

• Firmware Downloads

• Software Updates

• Deployment Guides

• Cloud Management Documentation

---

Excellence for the Australian and New Zealand Market

The RG-EG105G-P-V3 is ideally suited for Australian and New Zealand businesses seeking affordable cloud-managed networking with enterprise-grade reliability. Its combination of Multi-WAN redundancy, VPN functionality, PoE support, and cloud management makes it an excellent choice for modern business environments.

Key advantages for Australian and New Zealand customers include:

• Suitable for NBN, fibre, and business-grade internet services

• Enterprise-class routing and security features

• Cloud-based management for remote administration

• Multi-WAN redundancy for improved uptime

• VPN support for secure remote access

• Captive portal functionality for guest Wi-Fi deployments

• Genuine products sourced through authorised distribution channels

• Access to official firmware updates and manufacturer support

• Warranty support handled according to official manufacturer policies

• Designed for reliable operation in business environments

---

FAQs

Q1: What is the maximum throughput of the RG-EG105G-P-V3?

The RG-EG105G-P-V3 supports throughput up to 1000Mbps in Turbo Mode and up to 600Mbps in Normal Mode.

Q2: Does the RG-EG105G-P-V3 support Multi-WAN load balancing?

Yes, the RG-EG105G-P-V3 supports intelligent Multi-WAN load balancing, bandwidth aggregation, and WAN failover functionality.

Q3: Does the RG-EG105G-P-V3 support VPN connections?

Yes, the RG-EG105G-P-V3 supports IPSec, OpenVPN, PPTP, and L2TP VPN protocols.

Q4: What PoE budget does the RG-EG105G-P-V3 provide?

The RG-EG105G-P-V3 provides a total PoE power budget of 54W.

Q5: Can the RG-EG105G-P-V3 be managed remotely?

Yes, the RG-EG105G-P-V3 supports remote cloud management through the Ruijie Cloud platform and Reyee App.

Q6: Does the RG-EG105G-P-V3 support captive portal authentication?

Yes, the RG-EG105G-P-V3 includes captive portal functionality with customisable authentication and branded login pages.

Q7: How many Ethernet ports does the RG-EG105G-P-V3 include?

The RG-EG105G-P-V3 includes five Gigabit Ethernet ports, with three fixed LAN ports and one fixed WAN port.

Q8: How many users can the RG-EG105G-P-V3 support?

The RG-EG105G-P-V3 is recommended for networks with up to 100 concurrent users.

Q9: Can the RG-EG105G-P-V3 provide secure remote access to internal devices?

Yes, the RG-EG105G-P-V3 supports secure VPN-based remote access to internal devices, servers, NVRs, and IP cameras.

Q10: Does the RG-EG105G-P-V3 include free cloud management?

Yes, the RG-EG105G-P-V3 includes free Ruijie Cloud management for centralised monitoring, configuration, and maintenance.
