Resettable Emergency Door Release Break Glass with LED & Buzzer (Green) - CP-32GBZ-LB-ALM

Supplier SKU: CP-32GBZ-LB-ALM

Product Description

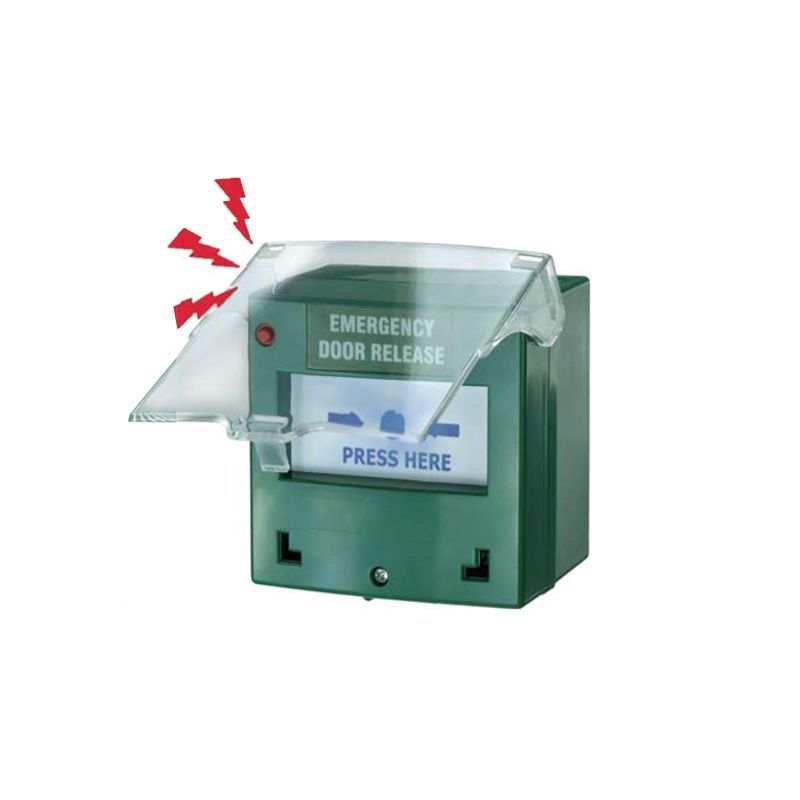

The CP-32GBZ-LB-ALM is a resettable emergency door release break glass device, designed to ensure safe, efficient, and easily accessible emergency exits. Featuring a clear "EMERGENCY DOOR RELEASE" text, it includes an integrated LED light, a built-in 80dB buzzer, and an alarm cover to prevent misuse or tampering. This device is ideal for high-traffic environments such as schools, shopping malls, and commercial buildings, providing users with a reliable, resettable solution for emergency exit control.

What's in the Box

• 1 x CP-32GBZ-LB-ALM Resettable Emergency Door Release
• 1 x Resettable Key
• 1 x Clear Plastic Protective Cover

Features

• Resettable Design: No dangerous glass shards, suitable for high-traffic areas.
• Text on Device: Clearly marked with "EMERGENCY DOOR RELEASE" for easy identification.
• LED & Buzzer: Built-in 80dB buzzer for immediate emergency alerts and backlit LED for easy nighttime operation.
• Trigger Alarm: Alarm is triggered when the protective cover is lifted, preventing misuse.
• Surface Mounted: Can be easily mounted on surfaces for quick installation.
• Vandal-Resistant: Protective clear cover prevents tampering and misuse.

Specifications

• Operating Voltage: 12/24VDC (Default 24VDC)
• Contact Rating: 5A 125/250 VAC
• Contact Resistance: 100 mΩ
• Output Type: 1 x DPDT Output (Double Pole Double Throw)
• Color: Green
• Triggering Mechanism: Activated when cover is opened
• Built-in Buzzer: 80dB sound output
• Mounting Type: Surface Mounted
• Backlit Model Option: Blue backlight for clear visibility in low light conditions
• Dimensions: Standard size for surface mounting
• Warranty: 12 Months

Additional Features

• Available in five color options: Green, Blue, Yellow, White, and Red.
• Detachable Terminal Blocks: Makes installation fast and easy without the need for re-termination.
• CE and Patent Approved: Complies with international standards for safety and performance.

Warranty

This product is backed by a 12-month warranty against defects in material and workmanship when used in normal service. The manufacturer reserves the right to alter specifications for continual improvement.

Applications

• Schools
• Shopping Malls
• Commercial Buildings
• Public Spaces
• Industrial Facilities

Note: The CP-32GBZ-LB-ALM is designed to ensure safety and compliance in emergency situations, providing both visual and audible alerts to guide individuals to safety during emergencies.
