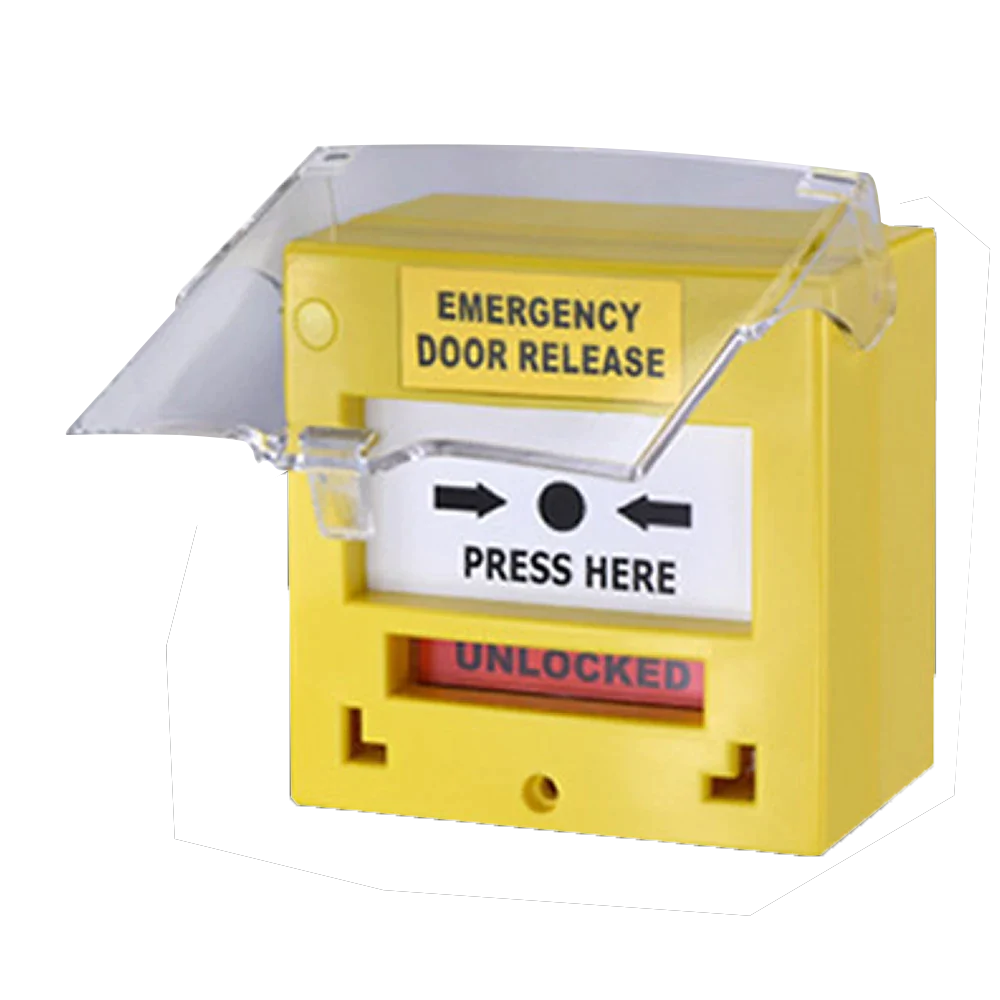

Resettable Emergency Door Release Break Glass (BGA) - Yellow - CP32Y

The SMART CP32Y Resettable Emergency Door Release Break Glass is a high-quality, safety-focused device designed for quick and easy access during emergencies. Featuring a clear "EMERGENCY DOOR RELEASE" text and yellow casing, this break glass unit is resettable, eliminating the need for replacement glass, which is ideal for high-traffic environments such as schools, shopping malls, or commercial buildings. With 1x DPDT output, this surface-mounted device is easy to install and provides reliable functionality for emergency exits, ensuring both safety and compliance.

What's in the Box

• 1 x CP32Y Resettable Emergency Door Release Break Glass
• 1 x Resettable Key
• 1 x Clear Plastic Protective Cover

Features

• Resettable Design: No glass shards, reducing the risk of injury in high-traffic environments.
• Text on Device: Clearly marked with "EMERGENCY DOOR RELEASE" to ensure quick identification in emergencies.
• Surface Mounted: Easy to install on any surface for efficient emergency access control.
• Vandal-Resistant: Protective cover prevents tampering and accidental misuse.
• Built-In LED Indicator: Allows for visibility in low-light conditions, enhancing safety.
• Detachable Terminal Blocks: Facilitates quick installation without the need for re-termination.

Specifications

• Operating Voltage: 12/24 VDC (Default 24VDC)
• Contact Rating: 5A 125/250 VAC
• Contact Resistance: 100 mΩ
• Output Type: 1 x DPDT Output (Double Pole Double Throw)
• Color: Yellow
• Mounting Type: Surface Mounted
• Built-in LED Indicator: For clear visibility, especially in dark or low-light environments.
• Trigger Mechanism: Activated when the cover is lifted, designed to prevent tampering.
• Resettable Key: Included for easy resetting of the device after activation.
• Dimensions: Standard size for surface mounting
• Warranty: 12 Months

Additional Features

• Available in five color options: Green, Blue, Yellow, White, and Red.
• CE and Patent Approved: Complies with international standards for safety and performance.
• Choice of Backlit Models: Optional blue backlight for easy identification in dark conditions.
• Built-in Buzzer Option: Available with a built-in 80db buzzer for emergency alerts (in selected models).

Warranty

This product is covered by a 12-month warranty against defects in material and workmanship, provided it is used in normal service conditions. GEM reserves the right to modify specifications for continuous product development.

Applications

• Schools
• Shopping Malls
• Commercial Buildings
• Public Spaces
• Industrial Facilities

The CP32Y Resettable Emergency Door Release Break Glass device offers a reliable and cost-effective solution for ensuring safety during emergencies, making it ideal for use in any high-traffic or commercial space. Its easy installation, resettable design, and clear visual cues help enhance security and emergency preparedness.
