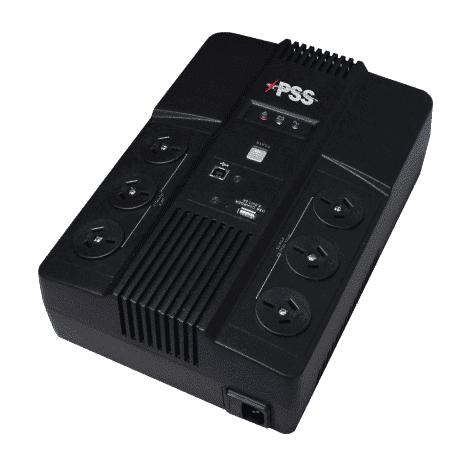

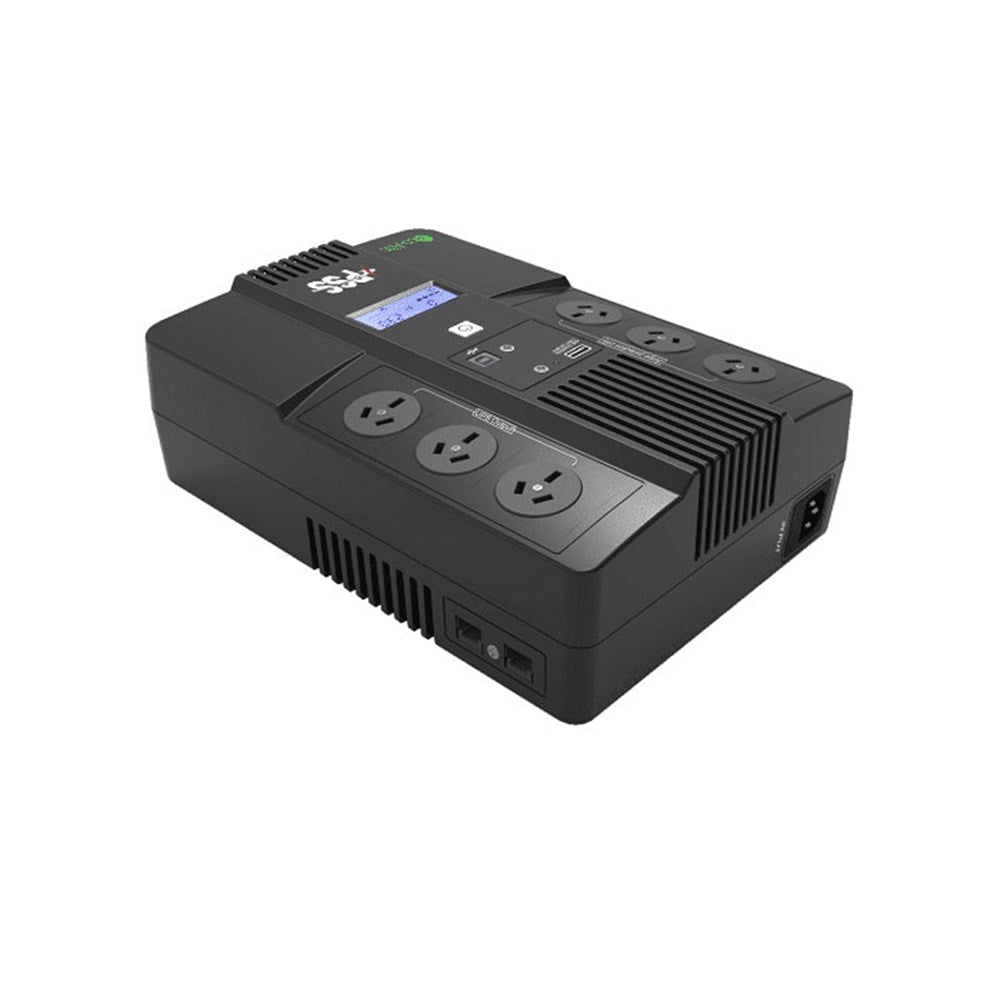

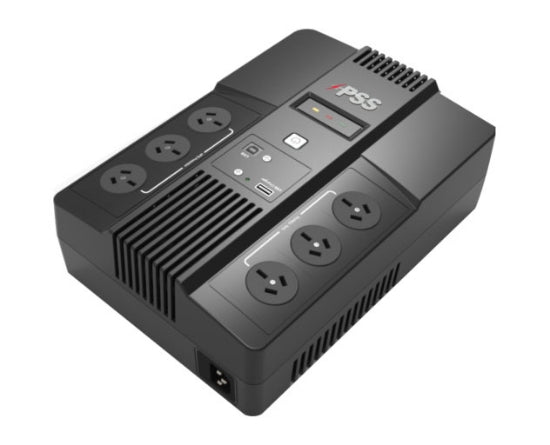

PSS Eco-Alto 800VA UPS with Internal 12V/9Ah Battery – Compact Power Protection with USB Charging and Smart AVR

Safeguard your critical electronics with the PSS Eco-Alto 800VA UPS, a versatile and compact uninterruptible power supply designed for both home and office environments. Featuring advanced microprocessor control and a user-friendly interface, the Eco-Alto 800 provides seamless protection against power outages, surges, and voltage fluctuations.

With an internal 12V/9Ah sealed lead-acid battery, this UPS offers reliable backup power, keeping essential devices running during unexpected interruptions. The built-in USB charging port allows you to conveniently charge mobile devices, while the smart USB communication port enables real-time power monitoring and management via compatible software.

Equipped with boost and buck AVR technology, the Eco-Alto 800 stabilizes voltage to safeguard sensitive electronics from harmful fluctuations. Additional features like cold start capability, auto-restart, and wall-mountable design ensure flexibility and ease of use. With three UPS outlets plus three surge-protected outlets, the Eco-Alto 800 is the perfect solution for powering your PCs, networking gear, and home entertainment systems.

What’s Included in the Box

• PSS Eco-Alto 800VA UPS Unit

• USB Communication Cable

• User Manual

• Wall-Mounting Kit (if applicable)

Main Features

✅ Smart Microprocessor Control – Ensures precise management of power delivery and efficient UPS operation.

✅ Built-in USB Charger – Conveniently charge smartphones, tablets, and other devices directly from the UPS unit.

✅ User-Replaceable Battery – Simplifies maintenance and extends the lifespan of your UPS investment.

✅ Boost and Buck AVR – Automatically regulates voltage to protect devices from under-voltage and over-voltage conditions.

✅ Cold Start Function – Powers your devices directly from battery even when AC mains power is unavailable.

✅ Auto-Restart Function – Automatically resumes normal operation after AC power returns.

✅ Compact Design with Wall Mount Option – Ideal for space-saving installations in home or office environments.

✅ Comprehensive Protection – Includes surge protection (720 Joules) and short circuit protection for ultimate safety.

✅ Quiet Operation – Generates less than 40 dB of noise for a peaceful working environment.

✅ C-Tick Certified (EN50091-2) – Meets Australian regulatory requirements for safety and electromagnetic compatibility.

Detailed Specifications

• Model: Eco-Alto 800

• Capacity: 800VA / 480W

• Battery Type: Sealed lead acid, maintenance-free, user-replaceable

• Battery Configuration: 1 x 12V/9Ah

• Recharge Time: 6-8 hours to 90% capacity after full discharge

• Maximum Charge Current: 1.2A

• Input Voltage: 230/240V

• Input Voltage Range (AVR): 162V – 290V

• Input Frequency Range: 40Hz – 70Hz

• Output Voltage (Battery Mode): 230V ± 10%

• Output Frequency (Battery Mode): 50Hz ± 1Hz

• Waveform: AC mode: Pure sinewave; Battery mode: Simulated sinewave

• Transfer Time: Typical 2–6ms

• Surge Protection Rating: 720 Joules / 30,000A

• Communication Interface: USB port for monitoring, RJ45 port for network protection

• LED Indicators:

  • Green: AC Mode

  • Yellow flashing: Battery Mode

  • Red: Fault Mode

• Noise Level: < 40 dB

• Operating Temperature: 0 – 40°C (non-condensing)

• Humidity: 0 – 90% (non-condensing)

• Australian Outlets: 3 x UPS + 3 x surge protection outlets

• Physical Dimensions: 270 x 190 x 90 mm (W x D x H)

• Net Weight: 4.9 kg

• Certifications: EN50091-2 (C-Tick)

Warranty Information

manufactures warranty applied

About PSS

PSS (Power System Solutions) specializes in dependable power protection products designed for modern environments. With a focus on quality, safety, and advanced engineering, PSS solutions deliver reliable performance for homes, offices, and commercial facilities.

SKU

TES-UPS800

Practical Use Scenarios

• Providing uninterrupted power to PCs, modems, routers, and VOIP systems in small office setups

• Protecting home entertainment systems against voltage fluctuations and blackouts

• Ensuring safe shutdown of desktop computers and workstations during power failures

• Securing small business point-of-sale systems from unexpected outages

• Charging mobile devices even during power loss with the built-in USB charger

Datasheets & Resources

• Download Eco-Alto Series Datasheet (PDF)


Excellence for the Australian and New Zealand Market

The PSS Eco-Alto 800VA UPS is designed and certified to meet the rigorous safety and performance requirements of the Australian and New Zealand markets. With C-Tick certification (EN50091-2) and locally compliant outlets, this UPS ensures seamless integration into regional electrical systems. All units are sourced through authorized distributors to guarantee genuine quality and reliable after-sales support. Local service ensures fast assistance with warranty claims, technical inquiries, and installation advice, providing total peace of mind for installers and end-users across Australasia.

FAQs – PSS Eco-Alto 800VA (TES-UPS800)

Q1: What type of battery does the PSS Eco-Alto 800VA (TES-UPS800) use?
A1: The PSS Eco-Alto 800VA (TES-UPS800) uses a sealed lead-acid, maintenance-free, user-replaceable battery rated at 12V/9Ah.

Q2: How many outlets are available on the PSS Eco-Alto 800VA (TES-UPS800)?
A2: The PSS Eco-Alto 800VA (TES-UPS800) provides a total of six Australian outlets: three with UPS protection and three with surge protection only.

Q3: Does the PSS Eco-Alto 800VA (TES-UPS800) support USB communication for power management?
A3: Yes, the PSS Eco-Alto 800VA (TES-UPS800) includes a smart USB interface for monitoring and managing power events via compatible software.

Q4: How long does it take to recharge the battery of the PSS Eco-Alto 800VA (TES-UPS800) after a complete discharge?
A4: The battery in the PSS Eco-Alto 800VA (TES-UPS800) recharges to 90% capacity within 6-8 hours after a complete discharge.

Q5: Is the PSS Eco-Alto 800VA (TES-UPS800) suitable for wall mounting?
A5: Yes, the compact design of the PSS Eco-Alto 800VA (TES-UPS800) includes options for wall mounting, making it ideal for space-constrained installations.
