Product Listing: Akuvox 2-Wire Intercom Kit – R20A-2 Door Station + C313W-2 Indoor Monitor

Akuvox 2-Wire IP Intercom Kit | R20A-2 Outdoor Station + C313W-2 7" Indoor Monitor – Legacy System Upgrade, 4 App Licenses, IP65, SIP Audio/Video

Product Description

The Akuvox 2-Wire IP Intercom Kit (Model: R20A-2/C313W-2) offers a seamless upgrade path for buildings with existing analog or 2-wire intercom systems. Designed for easy retrofitting, this complete kit includes a premium outdoor door station (R20A-2) and a 7" indoor touch monitor (C313W-2)—powered entirely over a 2-wire connection with long-distance signal transmission and no need to rewire.

Engineered for villas, apartments, and small commercial properties, the kit supports HD video, two-way SIP communication, and remote access via the SmartPlus mobile app, enabling residents to view, communicate, and unlock doors from anywhere.

With 4 free SmartPlus cloud accounts, IP65 weather protection, Bluetooth support, and compatibility with standard wall boxes, this system delivers advanced intercom features in a sleek, retrofit-friendly package.

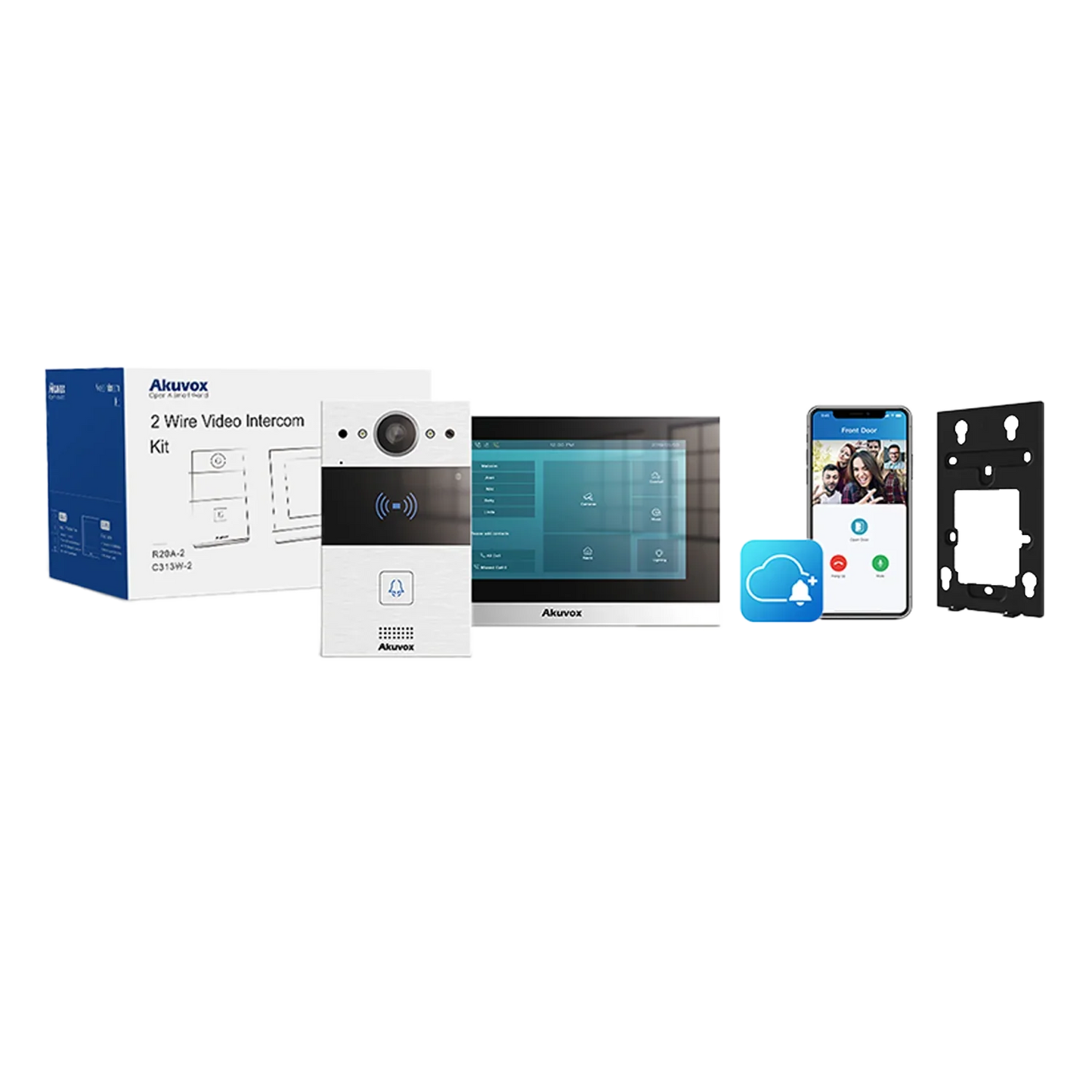

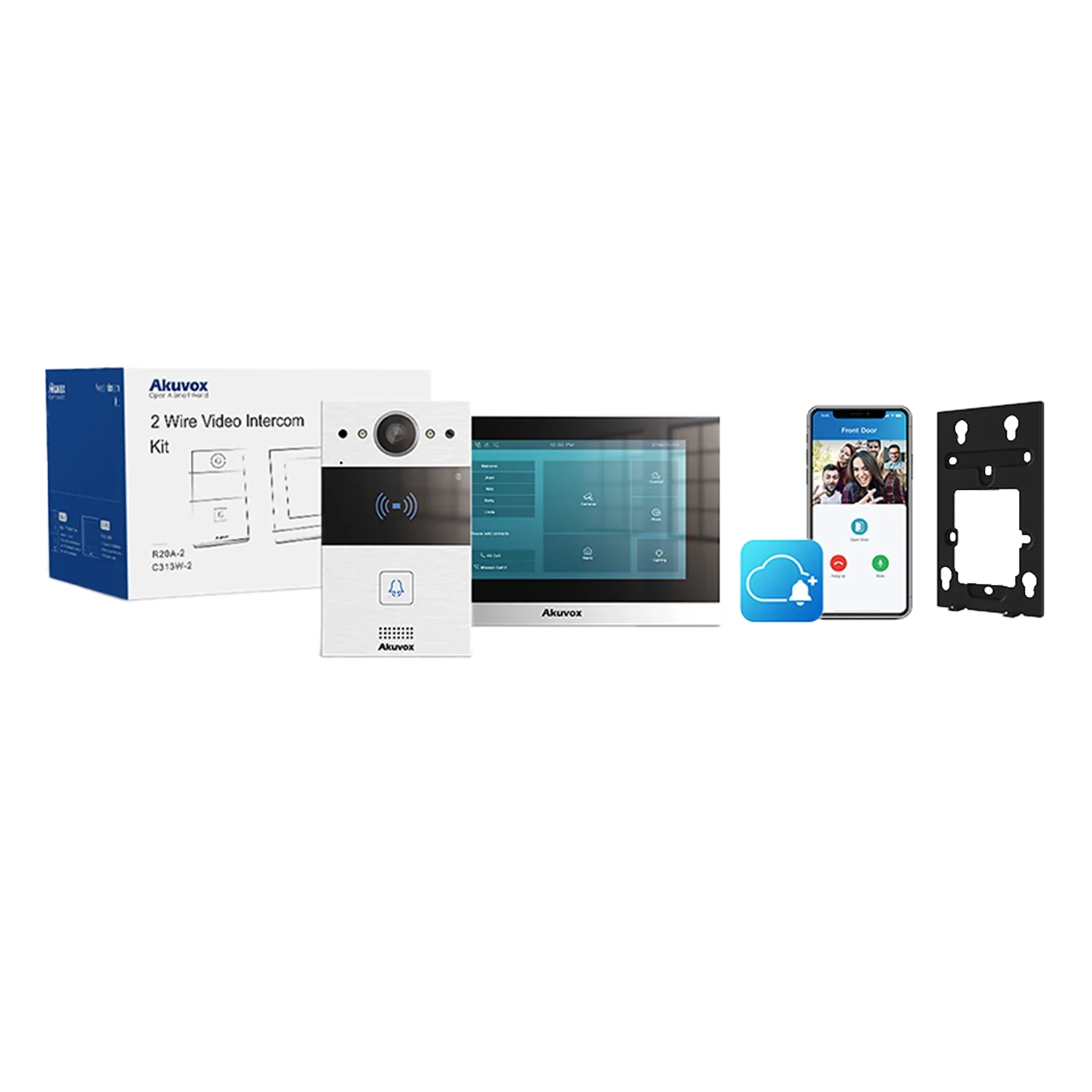

What’s Included in the Box

• 1 × Akuvox R20A-2 2-Wire Villa Outdoor Door Station

• 1 × Akuvox C313W-2 Indoor Touchscreen Monitor (7")

• 1 × Surface Mount Bracket (R20A-2)

• 1 × 24V Power Supply

• 4 × Free SmartPlus Cloud App Licenses

• Installation & Configuration Manual

Main Features

R20A-2 Outdoor Door Station

• Body Material: Durable Zinc Alloy construction

• Camera: 2MP camera with automatic lighting, wide 110° horizontal view

• RFID Reader: Supports 13.56MHz & 125kHz cards for dual-frequency compatibility

• Relay Outputs: 2 output relays for door or gate control

• Protection: IP65 water & dust resistance

• Mounting: Surface mount with included bracket

• Communication: Two-way SIP audio & video with echo cancellation

• Power Supply: Powered via C313W-2 or NS-2 unit

• Legacy Support: Connects to indoor units via 2-wire cabling

C313W-2 Indoor Monitor

• Display: 7" capacitive touch screen with energy-saving mode

• Video: Receives live HD video from the R20A-2 station

• Audio/Video Protocol: SIP v2.0 for stable two-way communication

• Power: Powered by NS-2 or external 24V source

• Connectivity: Includes Wi-Fi and Bluetooth support

• Mounting: Compatible with both US and EU standard electrical wall boxes

• Cable Compatibility: Communicates over 2-wire connection with R20A-2 or NS-2

SmartPlus Mobile App (x4 Accounts)

• Remote Live Viewing: Monitor front door in real time

• Two-Way Communication: Speak with visitors remotely

• Remote Unlocking: Open doors via mobile device from anywhere

• Cloud-Enabled: No complex server setup required

Detailed Specifications

Warranty Information

MANUFACTURES WARANTY APPLIED

Brand Description

Akuvox is a global innovator in IP intercom and smart security technologies. Trusted by professionals worldwide, Akuvox specializes in high-performance, future-proof communication systems designed for modern residential and commercial buildings. Its smart IP-based products are renowned for quality, flexibility, and seamless app integration.

SKU

R20A-2/C313W-2-KIT

Practical Use Scenarios

• Apartment Renovations: Upgrade legacy analog systems without replacing wiring.

• Residential Villas: Add modern video intercom, app access, and remote unlocking.

• Office Entrances: Secure entry points with visual confirmation and dual relays.

• Multi-Tenant Buildings: Provide tenants with mobile app access and door control.

• Medical or Aged Care Facilities: Enable remote communication and contactless entry monitoring.

Datasheets & Downloadable Resources

Akuvox 2-Wire Intercom Kit

Excellence for the Australian and New Zealand Market

The Akuvox 2-Wire IP Intercom Kit is purpose-built for compatibility with existing infrastructure across Australia and New Zealand:

• Retrofit Friendly: Perfect for older buildings where re-cabling is not feasible.

• Compliant Hardware: Meets ANZ standards for power, safety, and communication protocols.

• Sourced via Authorized Distributors: Ensures firmware support, warranty validity, and compatibility with local systems.

• Locally Supported: Easy access to technical support and replacements via ANZ-based channels.

• Ideal for Projects: Streamlined installation for building upgrades and NBN-ready deployments.

FAQs (Product Code: R20A-2/C313W-2-KIT)

1. Can this kit be installed using old 2-wire intercom wiring?
   Yes, the system is designed to work with legacy 2-wire cabling, making it ideal for upgrades.

2. What is included in the kit?
   The kit includes a R20A-2 outdoor station, C313W-2 indoor monitor, mounting hardware, power supply, and 4 free SmartPlus mobile app licenses.

3. Is the system compatible with mobile phones?
   Yes, through the SmartPlus app, users can view video, speak with visitors, and unlock doors remotely.

4. Does the system support access cards?
   Yes, the R20A-2 includes a dual-frequency RFID reader that supports 13.56MHz and 125kHz cards.

5. Can it be integrated into an existing IP network?
   Yes, while it runs over 2-wire connections, it supports IP-based SIP communication, making it compatible with modern systems.

   please contact CCTV TRADIE for stock availability
