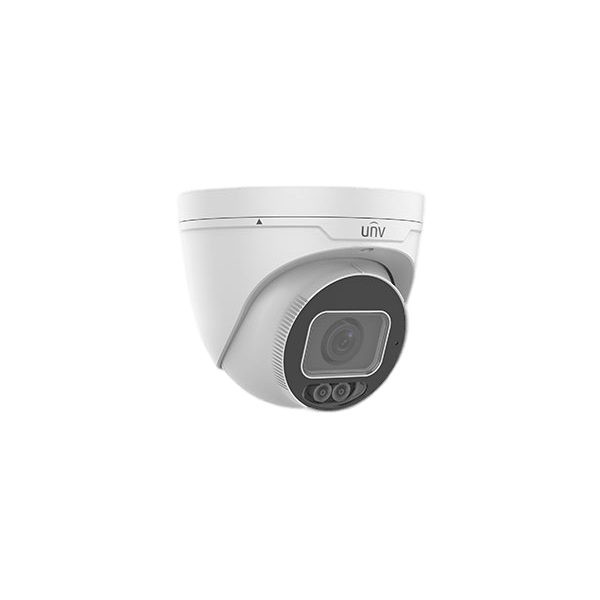

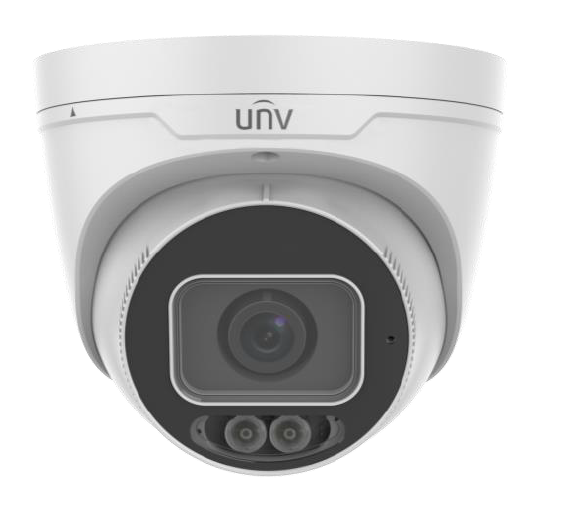

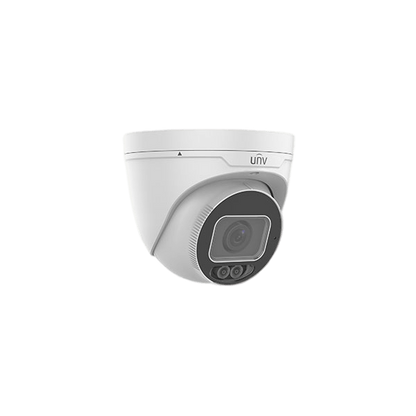

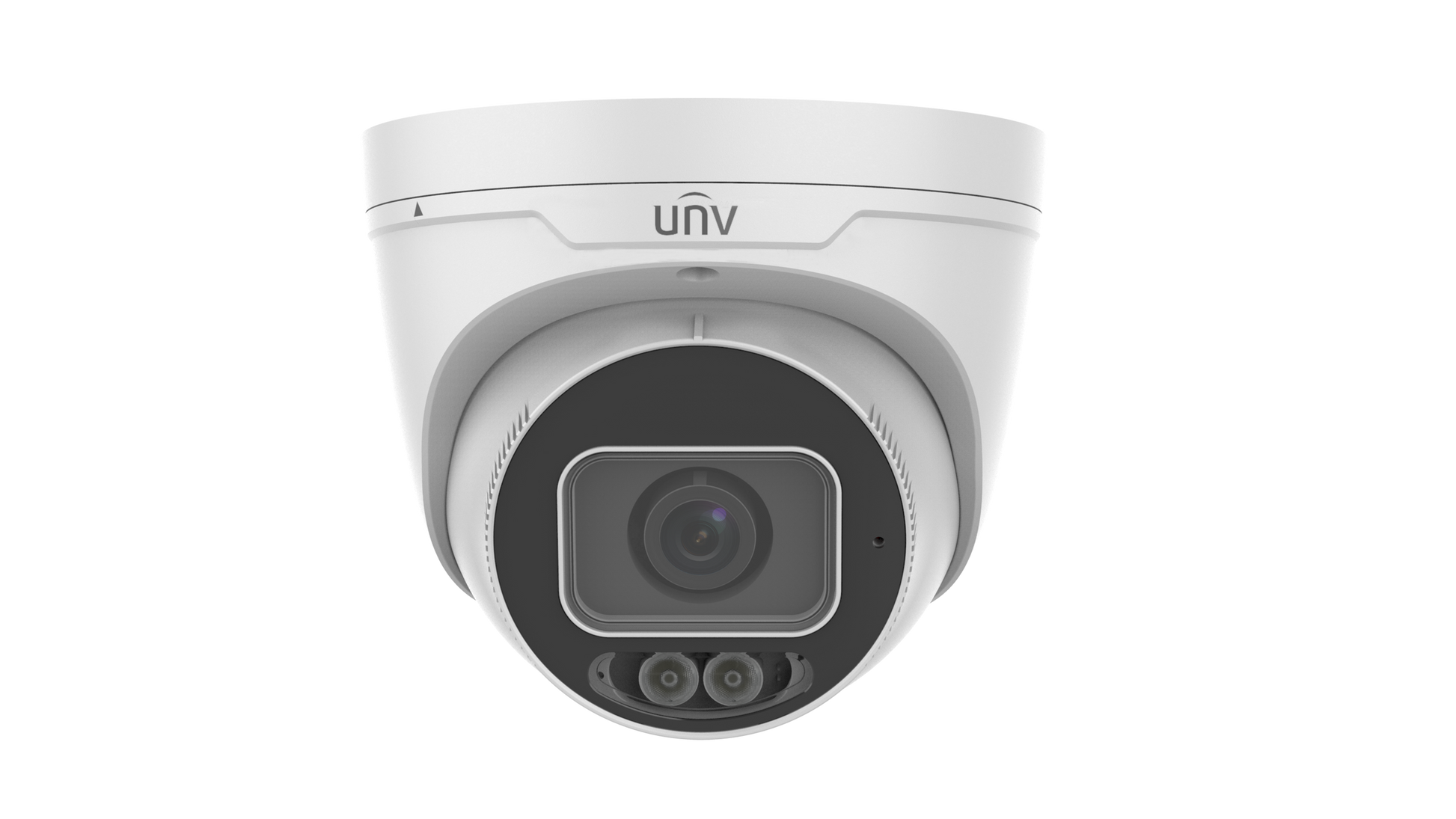

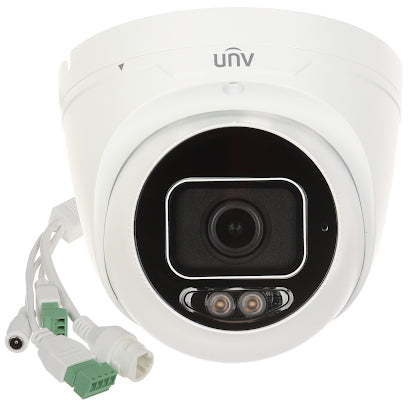

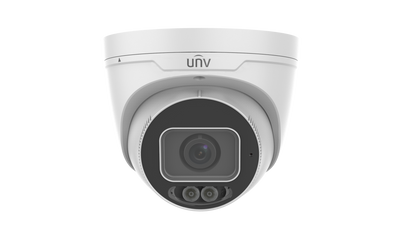

PRIME-III Series 8MP/4K IP CCTV Camera (White) - AI-Enhanced with Color Hunter IR IPC3638SE-ADF28K-WL-I0

Product Overview: The PRIME-III Series 8MP/4K IP Camera from UNIVIEW is a cutting-edge surveillance solution that delivers superior imaging and reliable performance. This turret-style IP camera combines Color Hunter IR technology, True WDR, and AI-powered detection features to provide 24/7 security with stunning image clarity. It is designed for high-demand environments, offering 8MP resolution and a range of smart features that make it an ideal choice for both commercial and residential applications.

Key Features:

• 8MP Ultra-High Resolution: Equipped with an 8MP (3840x2160) CMOS sensor, the camera captures incredibly sharp and detailed video, perfect for high-security installations.
• Color Hunter Technology: Provides 24/7 full-color surveillance, ensuring that clear and vivid images are captured even in low-light conditions, thanks to the F1.0 Super aperture.
• 120dB True WDR (Wide Dynamic Range): Delivers exceptional image clarity in both bright and dark scenes, ensuring that important details are visible regardless of lighting conditions.
• AI Smart Detection: Includes advanced perimeter protection features like Cross Line, Intrusion, and Area Detection, which use AI to differentiate between human, vehicle, and environmental movements, reducing false alarms.
• Two-Way Audio: Supports audio in and audio out, allowing for clear communication via built-in mic and speaker functionality.
• Vandal and Weatherproof: IK10 vandal-resistant and IP67-rated for protection against dust and water, ensuring durability in demanding outdoor environments.
• IR Illumination: Provides up to 30m (98ft) IR range with smart IR for night-time visibility, ensuring reliable monitoring in complete darkness.
• Triple Stream Video: Offers Ultra 265, H.265, H.264, and MJPEG video compression options to optimize bandwidth and storage. Supports resolutions up to 8MP at 30fps.
• Edge Storage Support: Includes a microSD card slot with support for up to 256GB of storage for local recording, with ANR (Automatic Network Replenishment) for backup storage.
• Alarm I/O: Features 1 alarm input and 1 alarm output, allowing integration with external alarm systems for enhanced security.
• Power over Ethernet (PoE): Simplifies installation by providing power and data transfer through a single Ethernet cable.

Camera Specifications:

• Sensor: 1/1.8" 8MP progressive scan CMOS
• Lens: 2.8mm @ F1.0 fixed lens
• Minimum Illumination: Color: 0.001Lux (F1.0, AGC ON)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• WDR: 120dB True WDR for superior image quality in challenging lighting.
• IR Range: Up to 30m (98ft) with Smart IR
• Field of View: 110.15° (horizontal), 59.06° (vertical), 143.19° (diagonal)
• Audio Compression: G.711, with two-way audio support
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Frame Rate:
  • Main Stream: 8MP (3840x2160) at 30fps, 5.3MP (3072x1728) at 30fps, 3.6MP (2560x1440) at 30fps
  • Sub Stream: 1080P, 720P, D1, CIF at 30fps
  • Third Stream: 1080P, 720P, D1, CIF at 30fps
• Video Bitrate: 128 Kbps to 16 Mbps
• Storage: MicroSD card support up to 256GB, Network Storage (ANR, NAS)

What's in the Box:

• 1 x PRIME-III Series 8MP/4K IP Camera (White)
• 1 x Mounting Bracket
• 1 x Screws Kit
• 1 x Quick Installation Guide

Warranty:

• 36-Month Warranty ensuring product longevity and peace of mind.

Certifications:

• EMC: FCC CFR 47 Part 15, EN 55032:2015, EN 55024:2010
• Safety: IEC 62368-1, UL 62368-1
• Environmental: CE-ROHS, WEEE, REACH compliance

General Specifications:

• Power Supply: DC 12V ±25% or PoE (IEEE 802.3af)
• Power Consumption: Max 11W
• Dimensions: Φ129 x 110mm (Φ5.1” x 4.3”)
• Weight: 0.64kg (1.41lb)
• Material: Robust metal construction for durability.
• Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH
• Surge Protection: 4KV for enhanced network reliability.

Applications: Ideal for a variety of high-security environments such as:

• Commercial properties (offices, retail spaces)
• Industrial facilities (warehouses, factories)
• Residential complexes
• Public spaces (parking lots, streets)

The UNIVIEW PRIME-III Series 8MP/4K IP Camera offers a top-tier surveillance solution, combining AI-powered features, superior image quality, and durability for round-the-clock protection.

Datasheet
