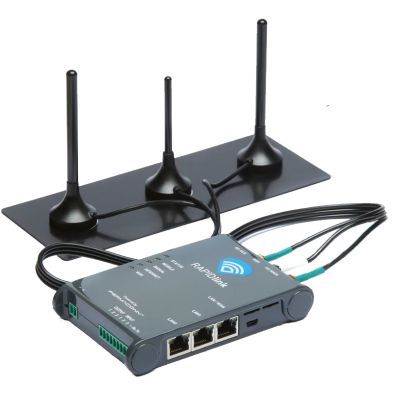

PERMACONN RL10 RAPIDLink RL10 4G LTE Router & Alarm Communicator

The PERMACONN RAPIDLink RL10 4G LTE Router & Alarm Communicator is a robust and versatile security device designed to provide reliable communication for alarm systems. Equipped with dual SIM support, 4G LTE connectivity, and advanced network features, the RL10 ensures seamless connectivity across multiple network conditions. This device offers dual SIM functionality for network redundancy, 10/100Mbps Ethernet ports, a 2.4 GHz Wi-Fi hotspot, and dedicated inputs and outputs for comprehensive control and monitoring.

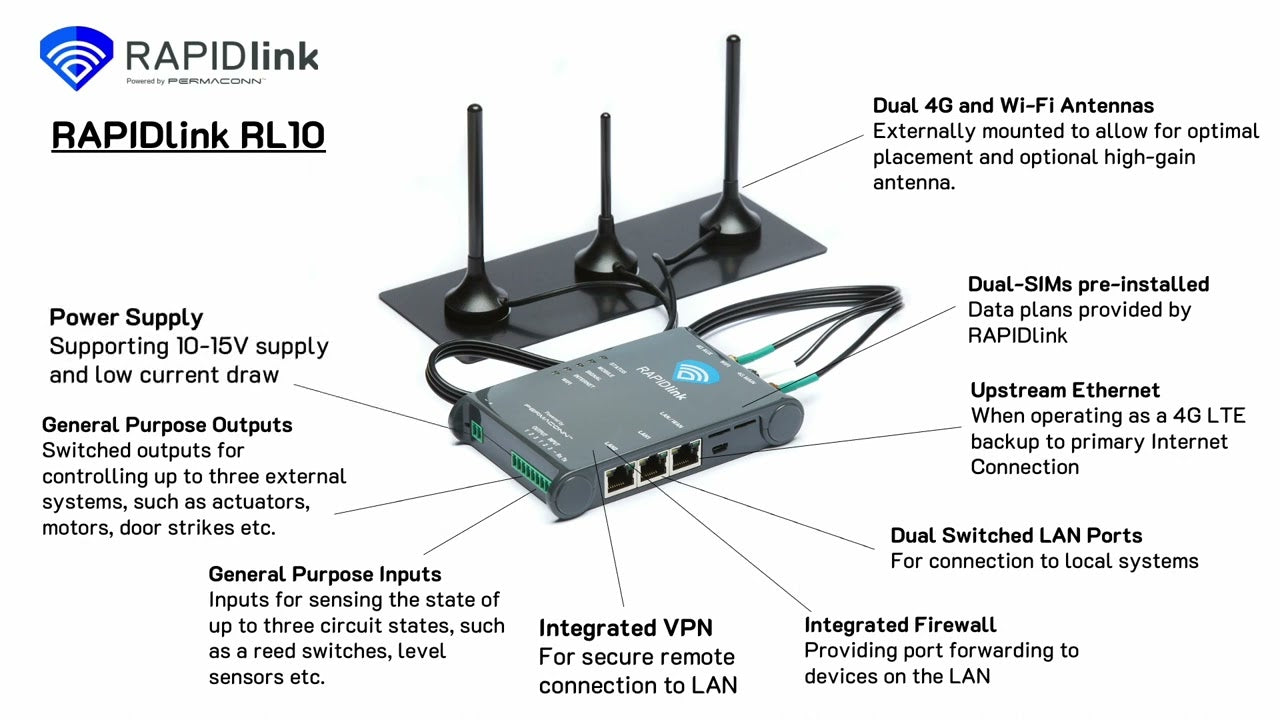

Key Features

• 4G LTE Connectivity: Dual SIM support with automatic failover and fallback between IP (WAN) and cellular (4G) for reliable, uninterrupted communication.
• Multi-Port Networking: Includes one WAN port and two LAN ports (10/100Mbps), allowing for flexible wired network configurations.
• Wi-Fi Hotspot: 2.4 GHz Wi-Fi capability provides local wireless access for setup and configuration.
• 3 Inputs & 3 Outputs: Supports three inputs (with state detection every second) and three open-collector outputs (50mA max) for alarm control and monitoring, configurable via RAPIDlink web portal, mobile app, or REST API.
• Advanced Security: Integrated AES256 encryption, VPN support (OpenVPN), and firewall configuration for secure data transmission.
• Remote Management: Configure and monitor the device remotely using the RAPIDlink portal, with support for over-the-air firmware updates that retain existing settings.

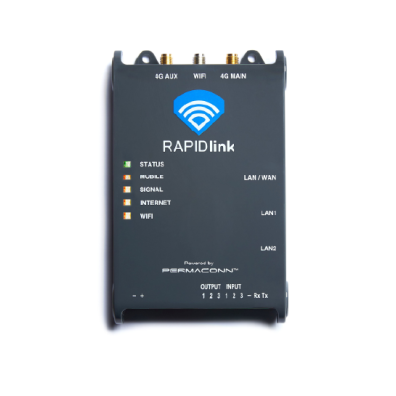

• User-Friendly Installation: Diagnostic LEDs, desktop and wall mounting options, and easy setup through the RAPIDlink web portal or mobile app.

Specifications

• Power Supply: 10-15V DC with a maximum power consumption of 0.35A at 13.8V DC.
• Ethernet Ports: 1x 10/100Mbps WAN/LAN and 2x 10/100Mbps LAN ports.
• Antennas: Includes 2x 4G LTE MIMO antennas and 1x 2.4 GHz Wi-Fi antenna, with detachable design for flexible placement.
• Network Protocols: Supports NAT, DHCP, DNS, IP passthrough, and port forwarding.
• VPN Capabilities: OpenVPN client support, with self-service certificates available through the RAPIDlink portal, and private static IP assignment.
• Operating System: Linux-based OpenWrt OS, supporting REST API for integration with other systems.
• Environmental Specs: Operating temperature range of 0-50°C, with a humidity range of 15% to 85% (non-condensing).

In the Box

• RAPIDLink RL10 Router
• Three-Antenna Set (2x 4G and 1x Wi-Fi)
• Euro-Style Terminal Plugs (1x 2-pin and 1x 9-pin)
• Three 3.3kΩ End-of-Line Resistors (for input monitoring)
• Metal Ground Plate (1mm height x 200mm x 80mm)
• Flathead Green Screwdriver
• Quick Installation Guide

Summary

The PERMACONN RAPIDLink RL10 4G LTE Router & Alarm Communicator is an ideal solution for secure, reliable communication in alarm monitoring and management. With dual SIM functionality, secure VPN capabilities, multiple input/output controls, and remote management options, the RL10 is designed to support critical communication needs in both residential and commercial applications.
