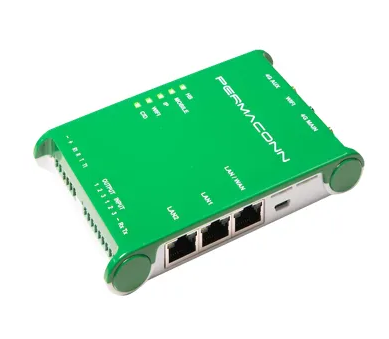

PERMACONN PM54-4G Dual SIM 4G IP Communicator with Wi-Fi Hotspot and Multi-LAN Connectivity

The PERMACONN Dual SIM 4G IP Communicator with Wi-Fi Hotspot and Multi-LAN Connectivity is a high-performance, secure communication solution designed to maintain reliable connections between alarm systems and central monitoring stations. With dual SIM support for both Optus and Telstra 4G networks, as well as three LAN ports and a 2.4 GHz Wi-Fi hotspot, this communicator ensures uninterrupted connectivity for critical alarm signaling even in challenging network environments.

Key Features

• Dual SIM 4G Connectivity: Supports both Optus and Telstra networks, automatically switching between them for continuous operation and network redundancy.
• Triple LAN Ports: Equipped with three LAN ports, this communicator provides versatile wired connectivity options for multiple devices, ensuring seamless integration into complex network setups.
• 2.4 GHz Wi-Fi Hotspot: Offers a local Wi-Fi hotspot for easy device access, ideal for setup, configuration, and local network connections in areas with limited Ethernet availability.
• Remote Programming and Monitoring: Enables over-the-air (OTA) remote programming and monitoring of alarm systems using the 4G or IP path, simplifying management and minimizing the need for onsite visits.
• 3 Inputs and 3 Outputs: Offers flexible control over alarms, gates, and lighting. Inputs detect state changes every second, and outputs are configurable via the Atlas web portal or the "Pocket Secure" smartphone app.
• AES Encryption: Data is secured with AES128 encryption, providing end-to-end security for transmitted signals and peace of mind for high-security applications.
• Plug and Play Installation: Quick and easy to install, with diagnostic LEDs for network status monitoring and automatic IP configuration via DHCP, making setup simple for both IT professionals and security installers.

Additional Features

• Compact Design: Fits neatly into most alarm panel enclosures, making it suitable for residential, commercial, and ATM/M2M applications.
• Network Reliability: Equipped with three dedicated communication paths (LAN, Wi-Fi, and 4G), ensuring over 99.9% uptime.
• Atlas Portal Support: Activate, configure, and diagnose the communicator remotely via the Atlas portal, enhancing management capabilities.
• Internal Watchdog: Automatically resets the device if connectivity issues arise, reducing downtime and maintenance calls.
• Compliant with Standards: Built to meet AS2201.5:2008 and other international security and communication standards, ensuring reliable performance in all installations.

Specifications

• Power Supply: 10–15V DC; powered directly from the alarm panel or approved DC supply.
• Power Consumption:
  • Standby: 0.12A at 13.8V DC
  • Maximum: 0.35A at 13.8V DC
• Housing Material: Durable ABS plastic
• Dimensions: 110mm (H) x 25mm (D) x 80mm (W)
• Weight: 120g
• Operating Temperature: 0°C to 50°C
• Humidity: 15% to 85% non-condensing
• Network Protocols Supported: DHCP, Static IP, and additional protocols for secure connectivity
• Antenna: Supports triple-band 4G and 3G for optimal connectivity
• Data Security: AES128 Encryption for secure alarm data transmission
• Wi-Fi Frequency: 2.4 GHz hotspot for local connectivity

Compliance and Certifications

• AS2201.5:2008
• EN 55022:2006/A1:2007
• AS/CA S042.1-2011, AS/CA S042.4-2011
• AS/NZS 60950.1-2011
• EN 301 489-1, EN 301 489-24, EN 301 908-1

In the Box

• PERMACONN Dual SIM 4G IP Communicator
• Mounting Kit (for panel installation)
• User Manual
• Diagnostic LEDs for status indicators

Warranty

The PERMACONN Dual SIM 4G IP Communicator includes a standard manufacturer’s warranty, covering any defects in materials or workmanship for reliable long-term use.

Summary

The PERMACONN Dual SIM 4G IP Communicator with Wi-Fi Hotspot and Triple LAN Ports is an advanced, flexible, and secure solution for alarm communications. With multi-path connectivity, AES128 encryption, remote configuration, and easy setup, this communicator is ideal for high-security, M2M, and critical alarm applications that demand reliable, continuous connectivity.
