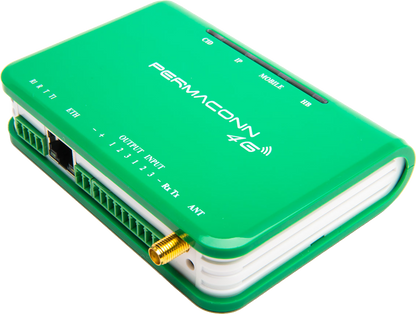

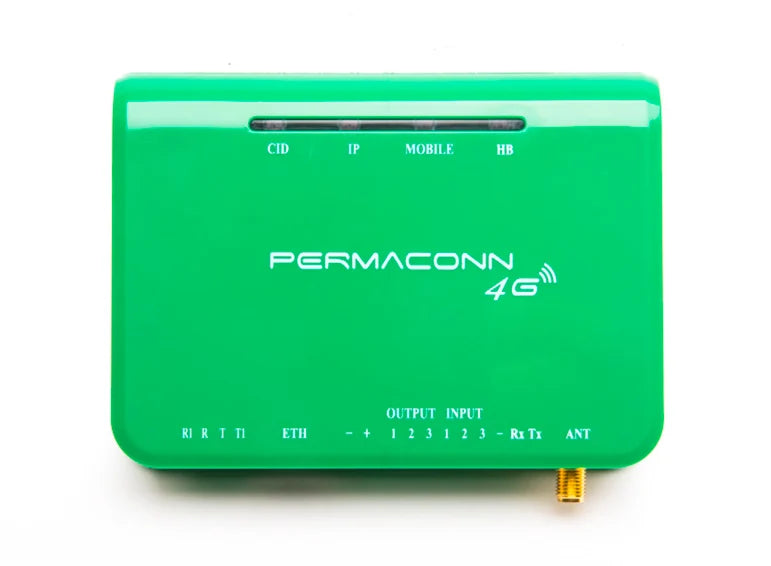

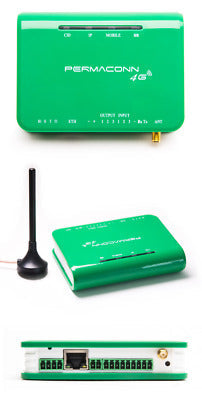

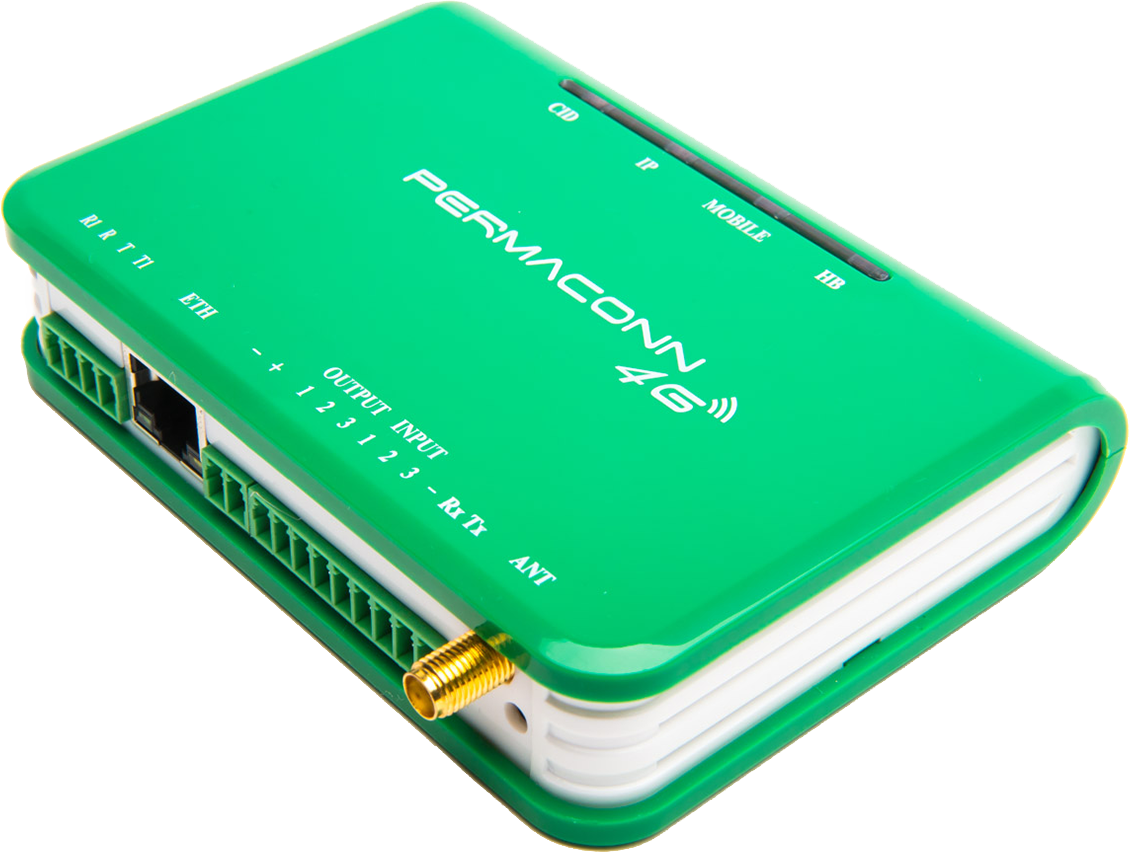

PERMACONN PM45-4G IP Communicator 3 inputs + 3 outputs

The PERMACONN PM45-4G IP Communicator is a state-of-the-art dual SIM, 4G-enabled alarm communicator designed to offer secure, reliable communication between alarm panels and the central monitoring station. This device supports 4G, 3G, and IP communication paths, providing seamless alarm reporting and ensuring uninterrupted connectivity. It is compatible with a range of alarm panels using the Contact ID format, making it a versatile solution for modern security applications.

Key Features

• Dual SIM + IP Communication: Supports both Optus & Telstra 4G networks, with automatic switching to 3G or IP as needed, ensuring continuous reporting even during network outages or failures.
• Remote Alarm Panel Programming: Allows for remote over-the-air programming of alarm panels using the 4G/3G or IP communication path.
• Low Power Consumption: The PM45-4G draws minimal current and can be easily powered directly from the alarm panel, with standby consumption at 0.08A and transmission at 0.19A (13.8V DC).
• Plug and Play Installation: Simplifies setup with automatic IP address acquisition through DHCP, eliminating the need for complicated IT configurations.
• Secure Communication: Utilizes AES128 encryption to ensure secure alarm data transmission over the public internet, safeguarding your security signals.
• Function Control: 3 inputs and 3 outputs allow control of alarm functions, gates, and lights, all accessible via the Atlas web portal or the 'Pocket Secure' smartphone app.
• High-Speed Communication: Features a high-speed RS232 serial interface for future scalability and improved performance.

Additional Features

• Compact Design: Small and lightweight, the PM45-4G fits easily within alarm panel enclosures and is suitable for a variety of applications, including ATMs and M2M systems.
• Reliable Connectivity: The communicator operates with three dedicated paths of communication and boasts an uptime of over 99.9%, ensuring reliable reporting at all times.
• Advanced Diagnostics: Various diagnostic LEDs provide quick visual feedback on device status and network connectivity, simplifying installation and troubleshooting.
• Internal Watchdog Reset Function: Automatically resets the module if needed, preventing unnecessary service call-outs.
• Compliant with Standards: Fully compliant with AS2201.5:2008, and various international standards for electromagnetic compatibility and safety.

Technical Specifications

• Housing Material: ABS plastic (green)
• Dimensions: 110mm (H) x 25mm (D) x 80mm (W)
• Weight: 120g
• Operating Temperature: 0°C to 50°C
• Humidity: 15% to 85% non-condensing

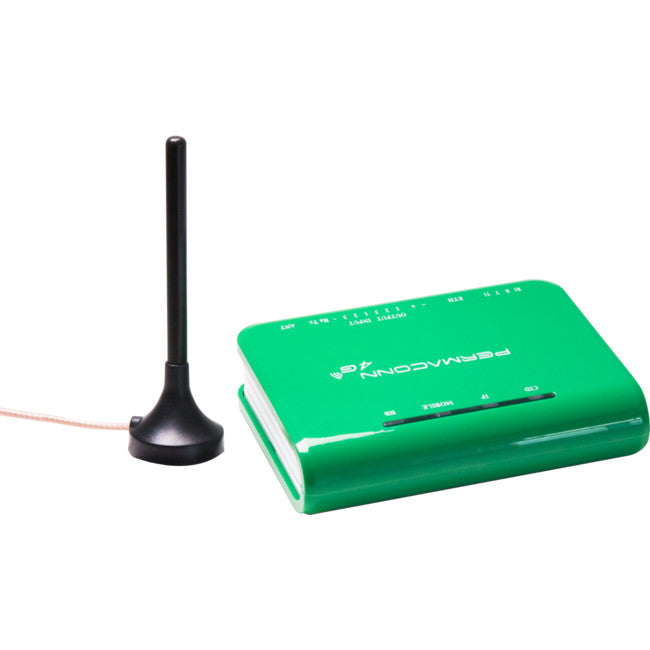

• Antenna: Triple band 3G & 4G antennas
• Modem: Quectel EC21
• Power Supply: 8-15V DC, powered directly from the alarm panel
• Power Consumption:
  • Standby: 0.08A at 13.8V DC
  • Transmitting: 0.19A at 13.8V DC
• Communication Protocols: Ethernet (10/100BASE-T), DHCP or Static IP
• Serial Port: High-Speed RS232 interface
• Inputs: 3 x 24-hour monitored inputs (state change detected every second)
• Outputs: 3 x Open Collector outputs (50mA max)
• Data Security: AES128 Encryption

Approvals and Certifications

• EN 55022:2006/A1:2007
• AS/CA S042.1-2011
• AS/CA S042.4-2011
• AS/NZS 60950.1-2011
• AES2201.5:2008
• EN 62311:2008
• EN 301 489-1
• EN 301 489-24
• EN 301 908-1
• EN60950-1

In the Box

• PM45-4G IP Communicator
• User Manual
• Mounting Accessories
• Diagnostic LEDs for easy setup

Warranty

The PERMACONN PM45-4G IP Communicator is backed by a standard manufacturer's warranty, offering support for any defects in materials or workmanship.

Summary

The PM45-4G IP Communicator is a versatile and secure solution for alarm monitoring, designed for seamless integration into existing alarm systems. With its dual SIM functionality, AES encryption, and automatic switching between communication paths, it ensures reliable, cost-effective alarm signaling. Whether for residential, commercial, or M2M applications, this communicator offers enhanced security and flexibility with minimal maintenance and easy installation.
