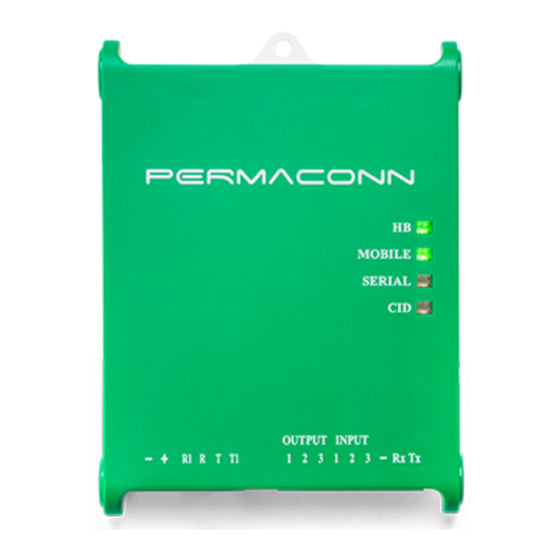

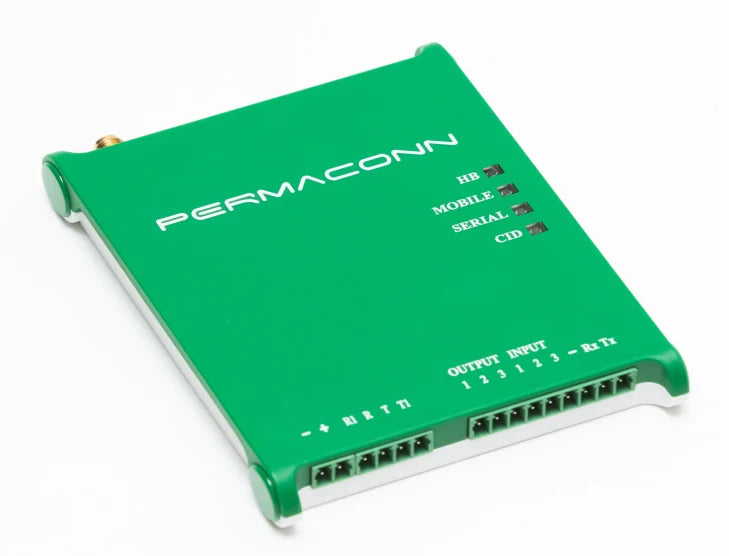

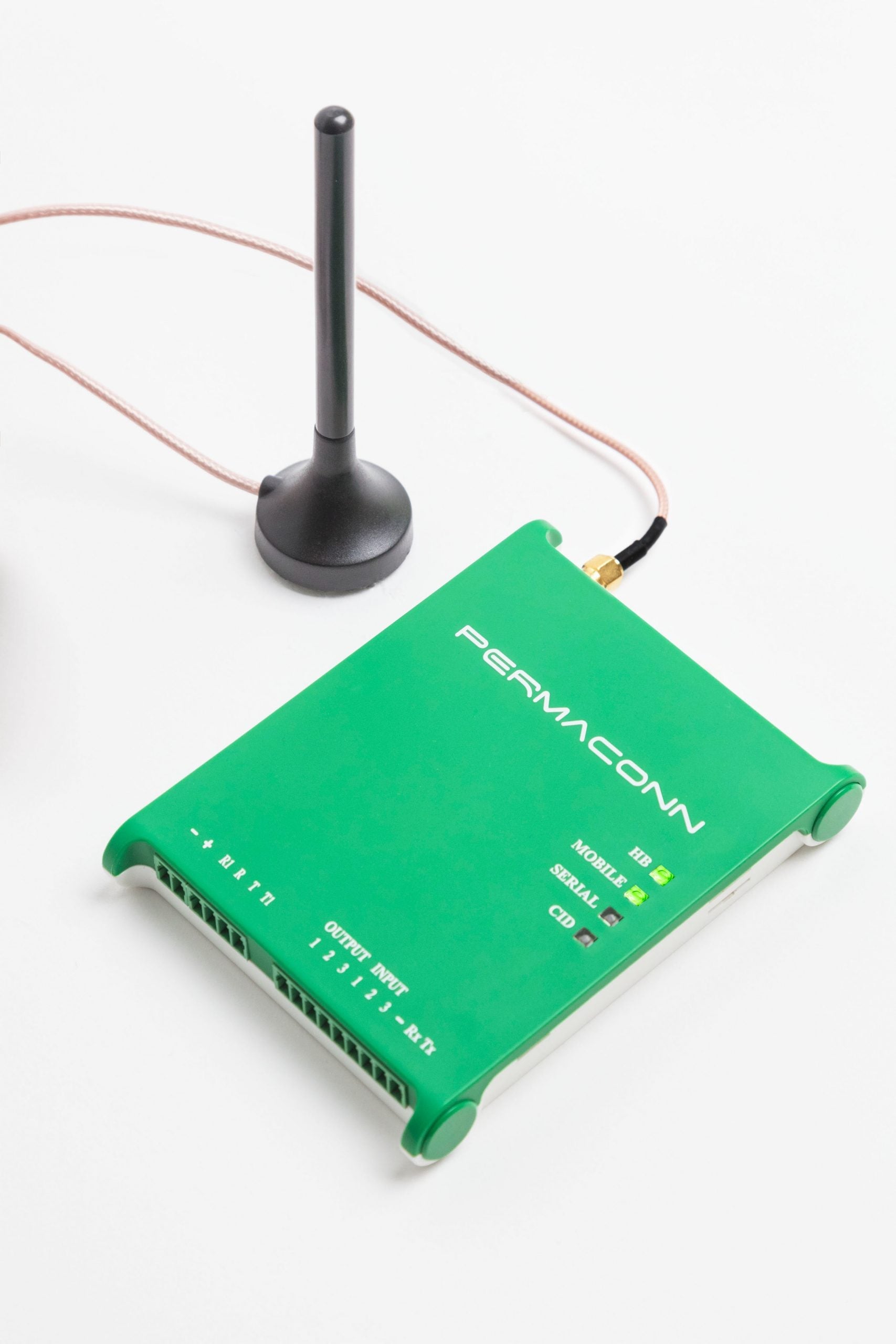

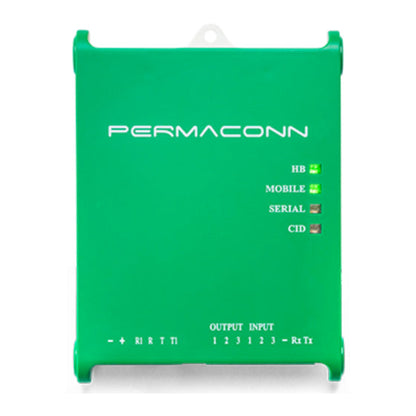

PERMACONN PM24-4G IP Communicator LTE - CATM1

The PERMACONN PM24-4G IP Communicator is a compact, cost-effective, and advanced alarm communication device designed for reliable connectivity across Telstra's 4G LTE Cat M1 IoT network. This single SIM communicator serves as a secure communication link between alarm systems and monitoring centers, ideal for ATM, M2M, and general security applications. With a plug-and-play design and a small footprint that fits seamlessly into alarm panel enclosures, the PM24-4G provides a robust and versatile security solution.

Key Features

• Secure, Dual-Path Communication: The PM24-4G utilizes Telstra’s Cat M1 IoT network, ensuring reliable alarm signal transmission and offering two communication paths (pending Vodafone network availability).
• High-Level Security: Data is encrypted with AES128, ensuring secure transmission between the premises and control rooms.
• Flexible Alarm Integration: Supports Contact ID or RS232 serial connections, enabling compatibility with a wide range of alarm panels.
• Input/Output Control: Features 3 configurable inputs and 3 outputs, enabling control over alarm arming, gate operation, and lighting through the "Pocket Secure" app or Atlas web portal.
• Low Power Consumption: Draws minimal power directly from the alarm panel (8-15V DC), eliminating the need for an external power supply.
• User-Friendly Installation: Magnetic mounting simplifies installation, and multiple diagnostic LEDs provide instant status feedback.

Additional Features

• Telstra VPN Access: Operates within a secure VPN dedicated to Permaconn events, ensuring an exclusive communication channel.
• Remote Control & Diagnostics: Users can activate, control, and troubleshoot the PM24 through the Atlas portal, reducing the need for onsite visits.
• Internal Watchdog Reset: Provides automatic device recovery, reducing potential downtime and service interruptions.

Specifications

• Dimensions: 108 mm (H) x 15.5 mm (D) x 80 mm (W)
• Weight: 80g
• Housing: Durable ABS plastic (green)
• Modem: Quectel BG96
• Power Requirements: 8-15V DC (0.04A standby, 0.19A transmitting at 13.8V DC)
• Inputs: 3x 24-hour monitored inputs with 3.3K end-of-line resistors
• Outputs: 3x open collector outputs (50mA max), controllable via app/portal
• Certifications: Includes EN62311:2008, AS/NZS, ETSI, and other relevant standards for safety and electromagnetic compatibility

In the Box

• PM24-4G IP Communicator
• User Manual
• Mounting Magnets (pre-fitted, no additional screws required)

Warranty

The PERMACONN PM24-4G IP Communicator is covered by a standard manufacturer’s warranty, providing support against any defects in materials or workmanship.

The PM24-4G combines cutting-edge technology with simplicity, making it the ideal choice for alarm communication needs in various security applications where reliable, secure, and low-power connectivity is essential.
