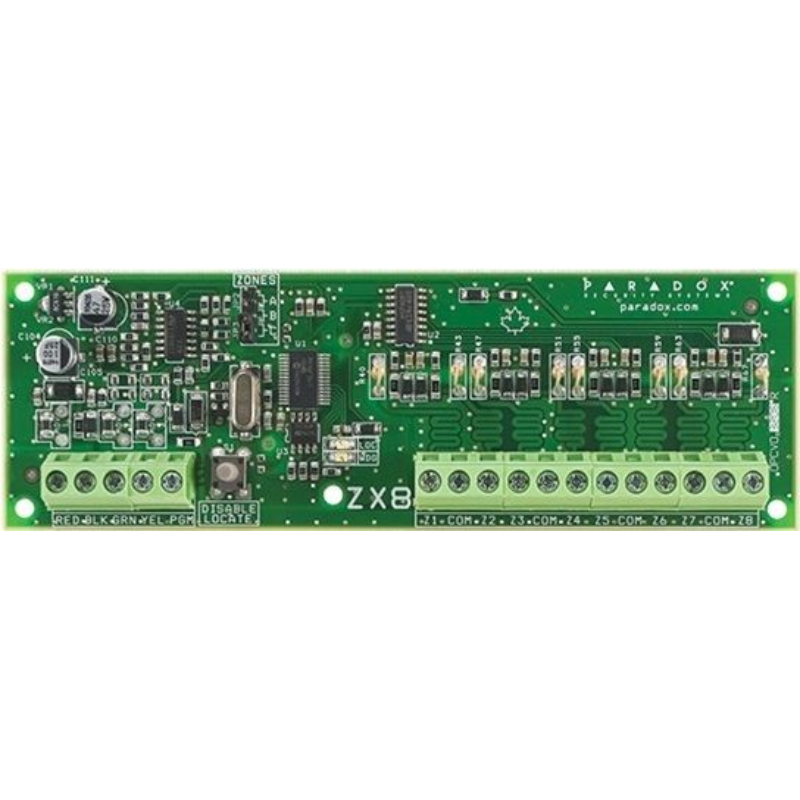

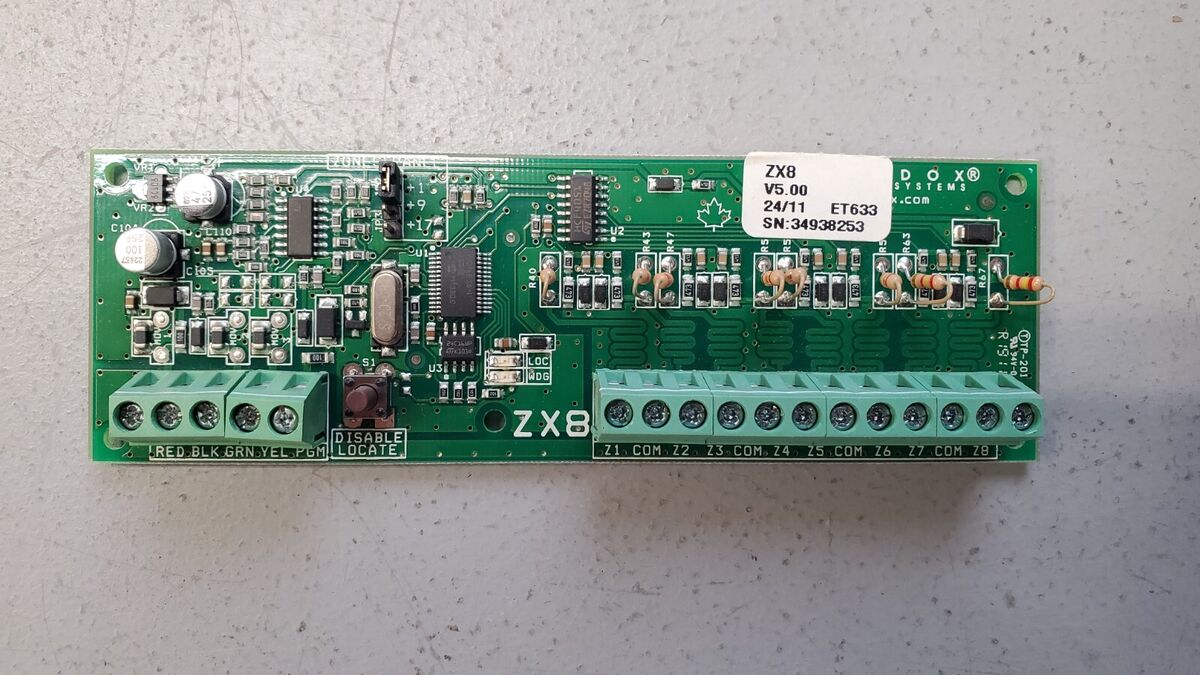

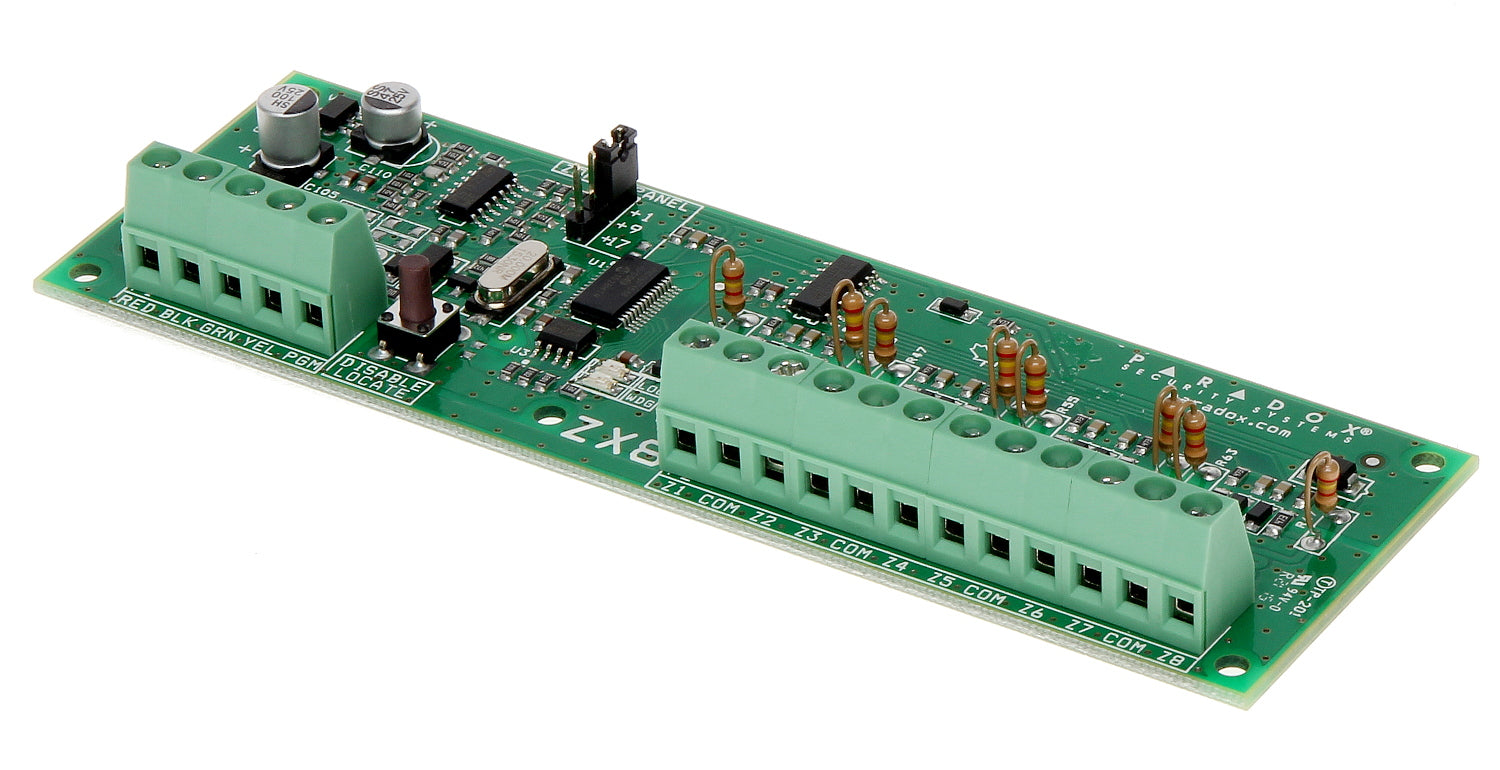

Paradox ZX8SP 8-Zone Expansion Module PCB - PDX-ZX8SP V5.0 | For Spectra SP Series Security Panels

The Paradox ZX8SP Expansion Module (Model: PDX-ZX8SP V5.0) is a professional-grade 8-zone wired expander designed exclusively for the Paradox Spectra SP Series control panels. Ideal for installations requiring additional detection zones, this module provides seamless integration with the control panel’s combus and supports up to eight additional hardwired zones plus one 50mA on-board PGM output.

Engineered with simplicity and performance in mind, the ZX8SP does not support ATZ or fire zones, streamlining configurations for installers who require standard input expansion without advanced wiring complexities.

What's Included

• 1 x Paradox ZX8SP Expansion Module PCB (V5.0)

• Instruction Manual

• Jumper Setting Guide

Main Features

• Adds 8 hardwired detection zones to SP Series panels

• One on-board 50mA programmable output (PGM)

• Simple integration via control panel’s combus

• Tamper switch input via zone Z1 (configurable)

• LED indicators for module status and diagnostics

• Easy jumper configuration for zone assignment

• Compatible with up to 3 modules per system (SP Series)

Detailed Specifications

Warranty Information

Warranty details are available via the Paradox Warranty Terms. All claims must be processed through official Paradox distributors or directly with the manufacturer under their stated conditions.

About the Brand

Paradox Security Systems Ltd. is a renowned global manufacturer of advanced security solutions, including intrusion detection systems and control panels. With decades of experience, Paradox products are synonymous with reliability and integration flexibility for both residential and commercial applications.

SKU: PDX-ZX8SP

Practical Use Scenarios

• Expanding an SP6000 or SP7000 system with additional wired sensors

• Adding door contacts, motion detectors, or glass break sensors in larger zones

• Utilizing the PGM output for external relays, sirens, or automation triggers

• Enhancing detection coverage in retail, industrial, or home environments

Datasheets / Downloads

• ZX8SP Installation Manual (PDF)

• Paradox Spectra SP Panel Compatibility Guide

Excellence for the Australian and New Zealand Market

The Paradox ZX8SP 8-Zone Expansion Module (PDX-ZX8SP) is built to comply with stringent Australian and New Zealand electrical and installation standards. All modules are exclusively sourced through certified Paradox representatives, ensuring local warranty support and reliable availability. Ideal for NDSS-compliant installations, the ZX8SP is optimized for local power conditions and operating temperatures, supporting seamless integration with SP Series control panels widely used across ANZ.

FAQs

Q1: What panels are compatible with the Paradox ZX8SP Expansion Module PDX-ZX8SP?
A1: The PDX-ZX8SP is compatible with all Spectra SP Series panels version 2.0 or higher.

Q2: Does the Paradox PDX-ZX8SP V5.0 support ATZ or fire zone configurations?
A2: No, the ZX8SP does not support ATZ or fire zone input configurations.

Q3: How many PDX-ZX8SP modules can I connect to an SP6000 panel?
A3: You can connect up to three ZX8SP modules to an SP6000 panel.

Q4: Can I use the Z1 terminal on the PDX-ZX8SP for tamper detection?
A4: Yes, input Z1 can be configured as a tamper switch input using the control panel's programming.

Q5: What is the maximum current load for the PGM output on PDX-ZX8SP?
A5: The PGM output supports up to 50mA. For higher loads, a 12VDC relay must be used
