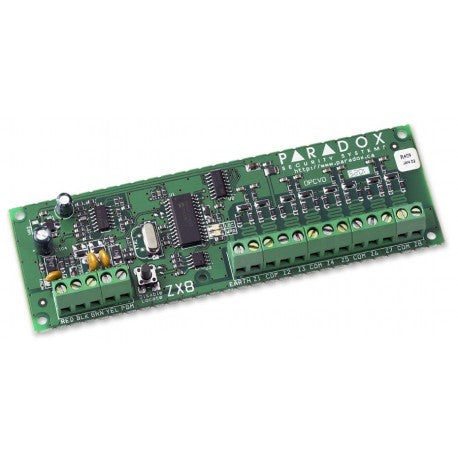

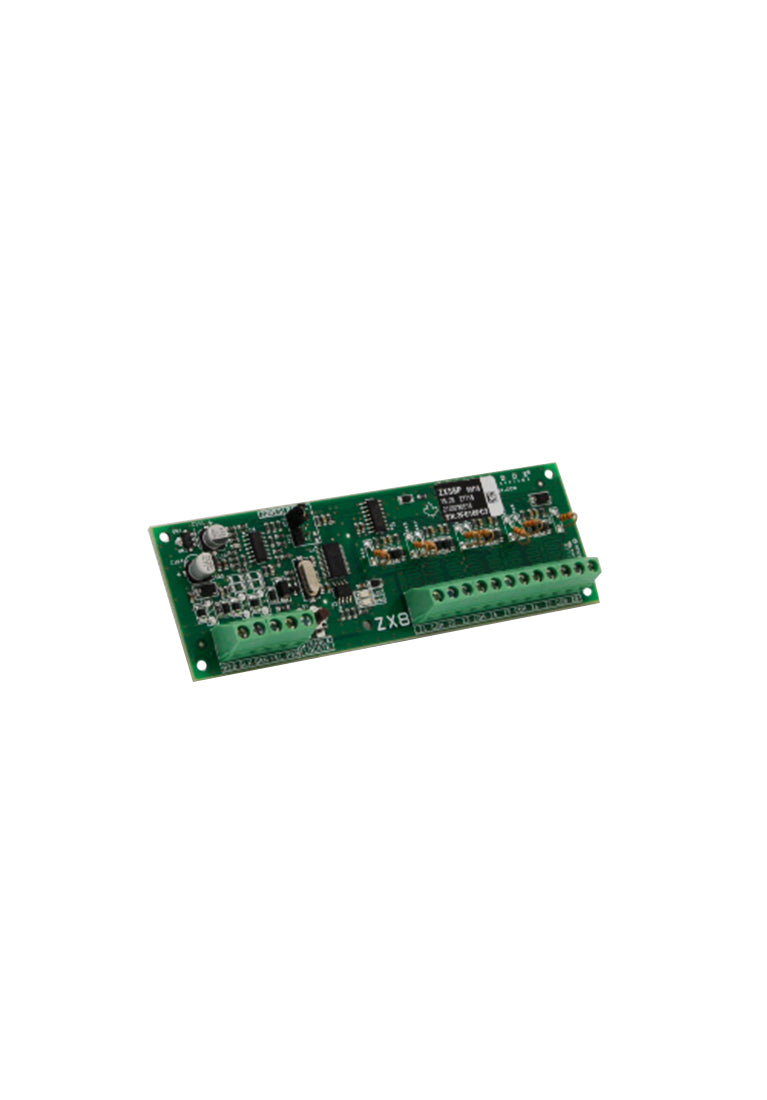

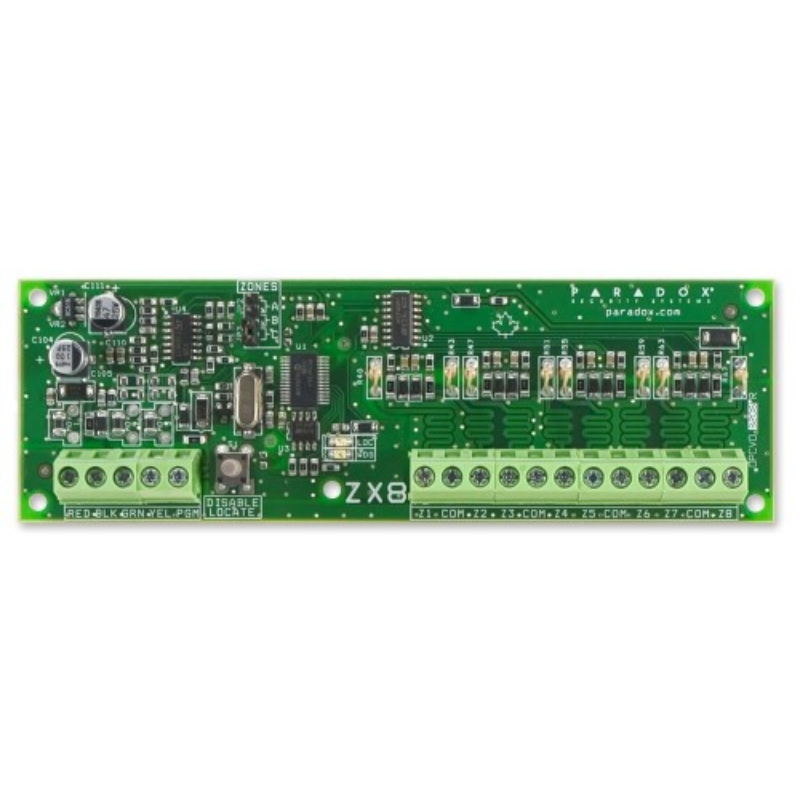

Paradox ZX8 8-Zone Expansion Module PCB - PDX-ZX8 V6.0 | Compatible with Digiplex, EVO, MG5000, MG5050, SP Series Panels

The Paradox ZX8 8-Zone Expansion Module (Model: PDX-ZX8 V6.0) offers seamless expansion of your Paradox security system by adding eight additional hardwired zones and a dedicated 50mA on-board PGM output. Designed for both residential and commercial installations, this module connects effortlessly to the control panel's combus and integrates with various Paradox platforms, including Digiplex, Digiplex EVO, MG5000, MG5050, and SP Series panels (v2.0 or higher).

Its compact, PCB-only design is ideal for installers seeking flexibility and easy integration into custom enclosures. The ZX8 ensures tamper protection and programmable behavior through dedicated jumper settings, allowing it to meet diverse security needs.

What's Included

• 1 x Paradox ZX8 Expansion Module PCB (V6.0)

• Installation Guide

• Connection Diagram

Main Features

• Adds 8 additional hardwired input zones to Paradox panels

• 1 on-board 50mA programmable output (PGM)

• Compatibility with Digiplex, EVO, MG/SP series (v2.0+)

• Tamper switch input on Z1/Z8 with enable options

• Compact PCB-only form factor for custom mounting

• LED indicators for "Locate" (LOC) and watchdog (WDG)

• Supports EOL and ATZ wiring configurations

Detailed Specifications

Warranty Information

Please refer to the official Paradox Warranty Terms for complete coverage details. Warranty claims must be processed through authorized Paradox representatives or directly with the brand.

About the Brand

Paradox Security Systems Ltd. is a global leader in innovative security systems, known for their cutting-edge intrusion detection technologies. With decades of industry experience, Paradox delivers reliable, scalable solutions for residential and commercial environments.

SKU: PDX-ZX8

Practical Use Scenarios

• Expanding zone capacity on existing Digiplex or EVO panels for large properties

• Integrating multiple detection points such as motion sensors, reed switches, or glass-break detectors

• Utilizing the PGM output to trigger automation devices like lights or alarms

• Enhancing perimeter protection in retail, industrial, or residential installations

Datasheets / Downloads

• ZX8 Installation Manual (PDF)

• Paradox Product Catalogue

Excellence for the Australian and New Zealand Market

The Paradox ZX8 8-Zone Expansion Module (PDX-ZX8) is fully optimized for the Australian and New Zealand markets. It complies with local standards, and all units are sourced through authorized Paradox distributors. The module supports direct communication for warranty claims with Paradox, ensuring peace of mind for installers and end-users. Ideal for ANZ-certified security installations, it integrates seamlessly with NDSS-approved panels and is designed to meet local voltage and operating conditions.

FAQs

Q1: What control panels are compatible with the Paradox ZX8 Expansion Module PDX-ZX8?
A1: The PDX-ZX8 is compatible with Digiplex, EVO, MG5000, MG5050, and SP Series control panels (v2.0 or higher).

Q2: Can the Paradox PDX-ZX8 V6.0 be used to add more zones to an SP6000 panel?
A2: Yes, the PDX-ZX8 can be connected to the SP6000 panel to expand its zone capacity by eight hardwired inputs.

Q3: What is the power requirement for the PDX-ZX8 Expansion Module?
A3: The module requires a typical input voltage of 12 to 16 VDC and consumes 28mA.

Q4: Does the PDX-ZX8 Expansion Module include tamper detection?
A4: Yes, tamper detection can be enabled via jumper settings on input terminals Z1 (MG/SP) or Z8 (Digiplex/EVO).

Q5: How many PDX-ZX8 modules can I connect to a single MG5000 or MG5050 panel?
A5: You can connect up to three ZX8 modules to MG5000 or MG5050 panels
