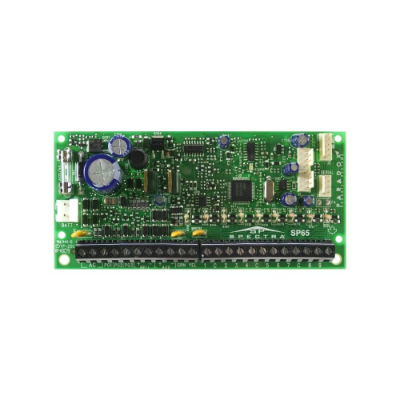

Paradox SP65 9 to 32 Zone Control Panel

The Paradox SP65 is a versatile and highly customizable security control panel designed to handle 9 to 32 zones, making it ideal for both residential and commercial security systems. Its compatibility with both wired and wireless setups, combined with advanced features like StayD™ Mode and app-based control, offers comprehensive protection with the flexibility to adapt to diverse security needs.

Key Features and Specifications:

• Zone Capacity: Supports up to 32 zones:
  • 9 on-board zones
  • Expandable up to 32 zones via hardwired expansion (using ZX82, ZX8SP, or ZX8 modules) or wirelessly (using RTX3 or RX1 modules)
• StayD™ Mode: Enhanced security mode for constant system protection even while partially disarmed.
• 16 Programmable Outputs (PGMs):
  • 3 PGMs on-board
  • Additional wireless PGMs supported with compatible modules
• 2 Partitions: Allows the system to be split into two independent areas, each with separate control.
• User Codes: Up to 32 unique user codes for individual access.
• 4-Wire Expansion Bus: Connects up to 15 keypads for extensive control options.
• Wired and Wireless Sirens: Compatible with Paradox SR130 and SR150 sirens (wireless functionality with RTX3 module).
• Communication and Control Modules:
  • PCS Series: Cellular modules for GSM communication
  • IP150 Internet Module: Allows remote access via the internet
  • VDMP3 Voice Dialer: Enables voice-based alerts (via PCS250 module)
  • Insite GOLD App: Provides app-based system control for remote monitoring and management
• Menu-Driven Programming: Intuitive menu setup for installers and administrators, including Master and Maintenance codes.
• Multi-Channel Communication:
  • 3 phone numbers for monitoring station alerts
  • 5 personal numbers for direct notification
  • 1 pager number (GSM via PCS250)
• Remote Controls: Compatible with a range of remote controls:
  • RAC1, REM15, REM1, REM101 (requires RX1)
  • REM2, REM3, REM25 (requires RTX3)
• Firmware Upgrades: Field-upgradable firmware using BabyWare software.
• Automatic Daylight Savings: Ensures time accuracy for scheduled events and logs.
• Push Button Reset: Convenient button for software reset to default values.

Applications:

Designed for both small and large-scale security needs, the Paradox SP65 is suitable for:

• Residential properties requiring customizable partitioning and remote control options
• Commercial buildings needing expanded zone control, reliable alert systems, and app-based access
• Office spaces that benefit from multi-user access codes and dual partitions for controlled access

What's in the Box:

• Paradox SP65 Control Panel
• Installation and programming guide
• Mounting accessories

Warranty:

• Comes with a 1-year limited warranty

The Paradox SP65 offers a blend of advanced technology, scalability, and ease of use, making it an ideal choice for flexible, high-security installations where both wired and wireless options are essential.
