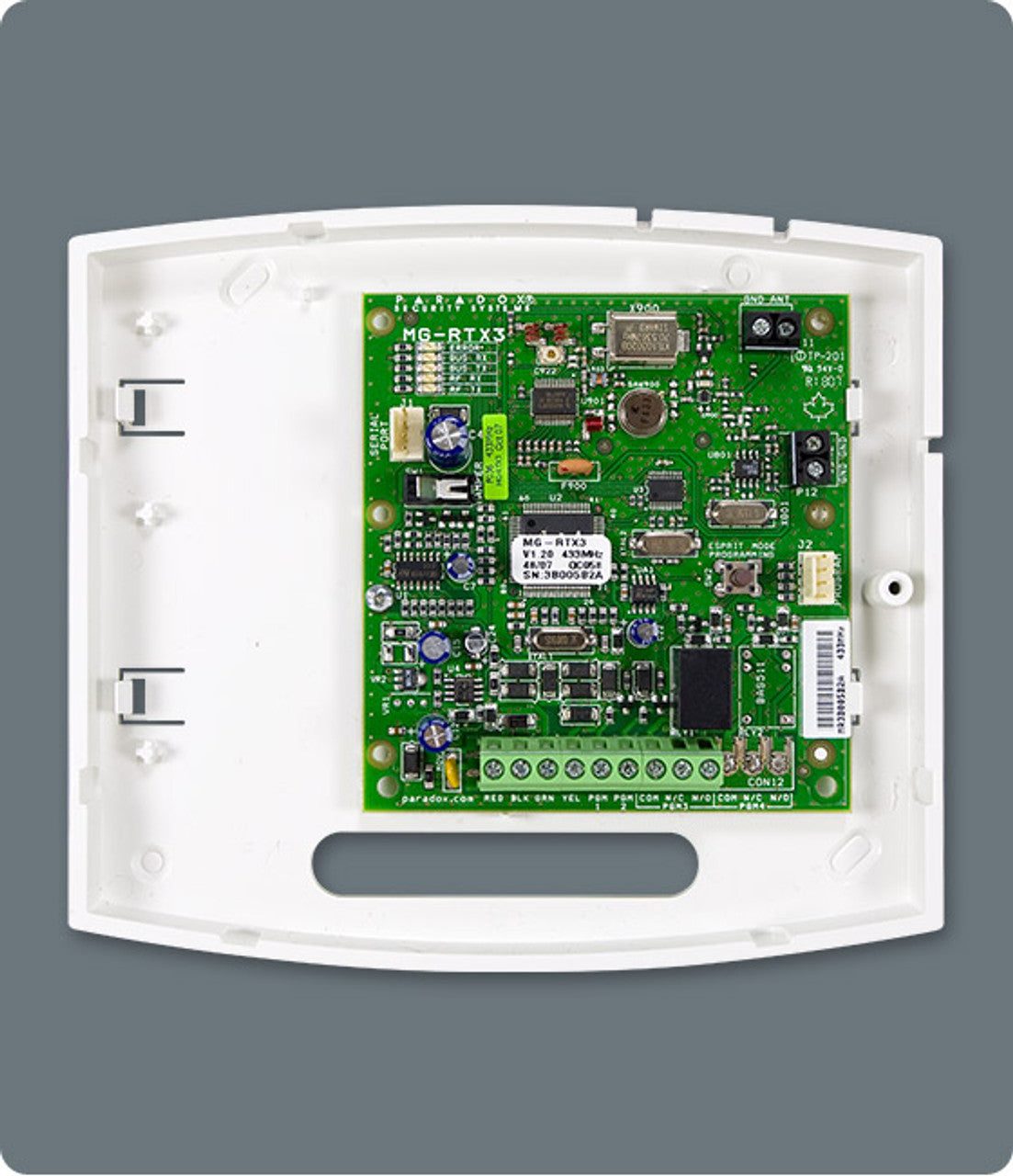

Paradox RTX3 Wireless 2-Way Transceiver Module – For EVO192, SP7000, SP6000, SP5500 Panels | Advanced Wireless Expansion for Paradox Security Systems

The Paradox RTX3 Wireless 2-Way Transceiver Module is a powerful wireless expansion module that seamlessly integrates with Paradox EVO and Spectra SP series panels, enabling the addition of wireless zones, keypads, sirens, PGMs, and remote controls. This transceiver supports up to 32 wireless zones and is essential for expanding wired systems to accommodate wireless devices without compromising performance or reliability.

Operating at 433MHz or 868MHz, the RTX3 ensures robust signal strength and long-range coverage. It features RF jamming detection, low battery supervision, and two-way signal feedback, providing system integrity and enhanced user awareness. The module includes 3 onboard PGM outputs (including a Form C relay output), and supports in-field firmware upgrades using BabyWare software.

Equipped with a di-pole antenna and easy panel connection, the RTX3 is the ideal solution for sites transitioning from wired to hybrid or fully wireless systems.

What’s in the Box

• 1 x Paradox RTX3 Wireless Transceiver Module

• 1 x 433MHz/868MHz Antenna

• Installation and Programming Manual

• Mounting Clips and Hardware

Main Features

• 2-Way Wireless Expansion: Supports up to 32 wireless zones

• Compatible Panels: EVO192, SP7000, SP6000, SP5500

• Remote Control Support: REM1, REM2, REM3, REM15, RAC1, RAC2

• Wireless Device Support: Magellan transmitters, SR130/SR150 sirens, K32RF/K37 keypads, 2WPGMs

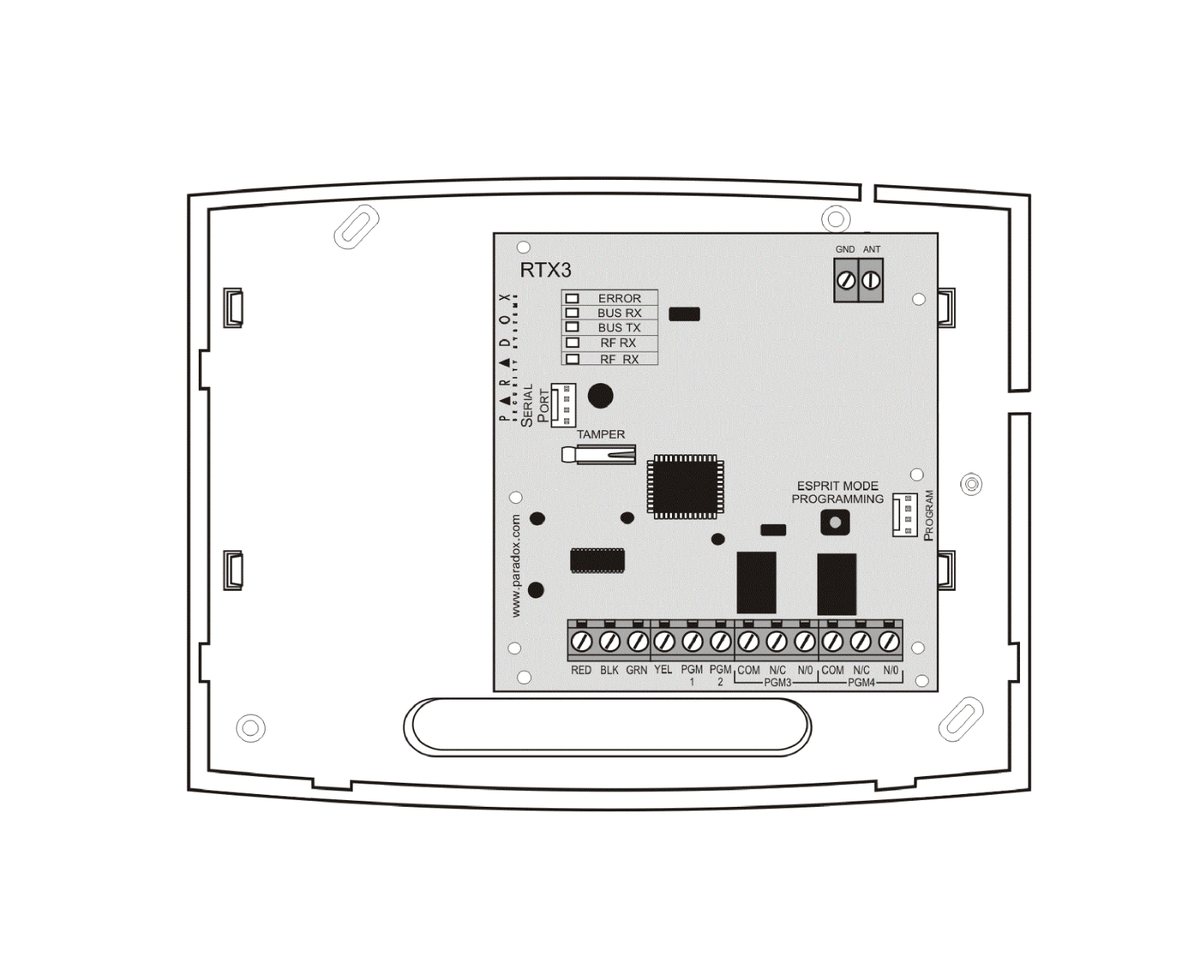

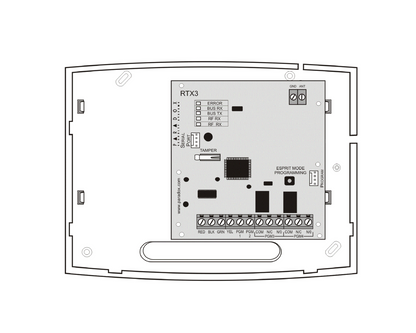

• 3 PGM Outputs:

  • PGM1 & PGM2 – Transistor outputs (150mA max)

  • PGM3 – Form C relay output (5A/28VDC)

• RF Signal Strength Display

• Error Correction Algorithm for enhanced data accuracy

• Firmware Upgradeable: Via BabyWare (serial or 4-wire connection)

• Anti-Tamper Supervision and LED status indicators

• Low Battery & RF Jamming Supervision

• Support for up to 8 wireless sirens and 2 repeaters (SP Series)

• Multiple Mode Operation: Works with EVO/SP panels or as a stand-alone module (with PX8)

Specifications

• Frequency: 433MHz or 868MHz

• Power Input: 12VDC

• Current Draw: 50mA

• Sensitivity: -120 dBm

• Dimensions: 15cm x 16cm x 3cm (6" x 6.5" x 1.1")

• Weight: 24g

• Operating Temperature: 0°C to 49°C

• Humidity Range: 5–90%

• Certifications: EN50131-3, Grade 2, Environmental Class II

• PGM Outputs:

  • PGM1/PGM2: 150mA transistor outputs

  • PGM3: Form C relay (5A/28VDC, N.O./N.C.)

  • PGM4 (optional)

Warranty Information

The Paradox RTX3 comes with a 1-year manufacturer’s warranty, ensuring coverage against material or manufacturing defects under standard use.

About the Brand – Paradox Security Systems

Paradox Security Systems is a global leader in security innovation, delivering advanced detection and control technologies trusted by professionals across residential, commercial, and industrial applications. Paradox’s products are known for high performance, intuitive operation, and long-term reliability.

SKU

PDX-RTX3

Practical Use Scenarios

• Home Security Upgrades: Expand existing wired SP panels with wireless zones and keypads

• Commercial Retrofits: Add wireless sirens or detectors in spaces where wiring is impractical

• Gatehouses or Outbuildings: Use standalone mode for wireless remote control management

• Large Facilities: Centralize wireless communication through one RTX3 module linked to multiple EVO partitions

Datasheets / Downloadable Resources

• Paradox RTX3 Installation & Reference Manual (PDF)

Excellence for the Australian and New Zealand Market

The Paradox RTX3 is tailored to support compliance with Australian and New Zealand security standards, including EN50131 Grade 2 certification. It is exclusively sourced via authorized distributors, ensuring optimal compatibility and direct manufacturer support for all warranty and technical queries. Designed for reliability even in high-RF environments, the RTX3 is a powerful backbone for scalable wireless security across AU/NZ properties.

Frequently Asked Questions (FAQs)

Q1: What control panels is the PDX-RTX3 compatible with?
A1: The Paradox RTX3 (PDX-RTX3) is compatible with EVO192, SP7000, SP6000, and SP5500 panels. It can also operate in stand-alone mode with PX8.

Q2: How many wireless zones can the PDX-RTX3 support?
A2: The RTX3 supports up to 32 wireless zones, depending on the control panel used.

Q3: What is the maximum current draw for PGM outputs on the PDX-RTX3?
A3: PGM1 and PGM2 support up to 150mA each, while PGM3 (Form C relay) can handle up to 5A at 28VDC.

Q4: Can the RTX3 operate in outdoor environments?
A4: The RTX3 is designed for indoor installation but can be used to support outdoor wireless devices (e.g., PMD85) as long as it’s installed in a sheltered location.

Q5: Is firmware upgrade possible for the PDX-RTX3?
A5: Yes, firmware upgrades can be performed using Paradox BabyWare software via serial or 4-wire connections.
