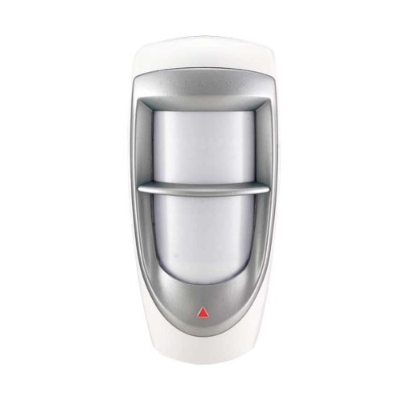

Paradox PMD85 Wireless Outdoor Quad PIR Detector – EVO Bus & Relay Compatible, IP54 Rated, 40kg Pet Immune with Mounting Bracket

The Paradox PMD85 Wireless Outdoor Quad PIR Detector is a high-performance wireless motion sensor purpose-built for robust outdoor protection in residential, commercial, and industrial applications. Designed with dual-opposed PIR elements, the PMD85 ensures highly accurate detection while maintaining immunity to pets up to 40kg (90lbs)—ideal for larger animals and active outdoor environments.

Encased in a durable, impact-resistant housing with rubber gasket lining and UV-protected optics, the PMD85 is engineered for all-weather reliability. It operates effectively between -35°C to +50°C, making it suitable for use across Australia and New Zealand's varied climate zones. Its horizontal and vertical curtain beam configuration provides versatile detection coverage, including fences, balconies, and narrow pathways.

This model is compatible with EVO Bus systems and also supports relay mode, allowing for integration with a wide range of Paradox security panels. Multi-level sensitivity adjustment and the inclusion of Alive software ensure optimal battery conservation and real-time feedback, while wireless ranges up to 70m with RTX3 provide installation flexibility.

What’s in the Box

• 1 x Paradox PMD85 Wireless Outdoor Quad PIR Detector

• 1 x Outdoor Mounting Bracket

• 3 x AAA Batteries

• Mounting Hardware

• Quick Start Installation Guide

Main Features

• Quad PIR Detection: Two dual-opposed sensors enhance motion detection precision

• Pet Immunity: Immune to animals up to 40kg (90lbs)

• Dual Curtain Beam Technology: Horizontal and vertical beams ideal for perimeter and wall protection

• Weather-Resistant Casing:

  • IP54-rated

  • UV-protected lens

  • Rubber gasket seal for moisture and dust resistance

• Operating Range: -35°C to +50°C

• Wireless Range:

  • 35m with MG6250

  • 70m with MG5050 and RTX3

• Alive Software: Maintains LED visibility in energy-saving mode without compromising battery life

• Energy Efficiency: Enters a 3-minute energy save mode after two detections within five minutes

• Multi-Level Sensitivity Adjustment: Customize detection response to environmental conditions

• EVO Bus & Relay Compatible: Works seamlessly with both advanced and legacy Paradox systems

Specifications

• Sensor Type: Dual-Element PIR x 2 (Quad Technology)

• Detection Area: Horizontal and vertical curtain beams

• Pet Immunity: Up to 40kg (90lbs)

• Wireless Frequency: 433MHz

• Power Supply: 3 x AAA alkaline batteries

• Battery Life: Up to 3 years (typical usage)

• Operating Temperature: -35°C to +50°C

• RF Range:

  • 35m with MG6250

  • 70m with MG5050 or RTX3

• Casing: UV-protected plastic with injected rubber gasket

• IP Rating: IP54

• Certifications: EN50131-2-2 Grade 2, Class IV

Warranty Information

The Paradox PMD85 is supported by a 1-year manufacturer’s warranty, ensuring reliable performance and protection against manufacturing defects under normal use.

About the Brand – Paradox Security Systems

Paradox Security Systems, based in Canada, has set global standards in the design and manufacture of advanced intrusion detection systems. Their product range blends innovation, durability, and ease of use, earning the trust of installers and end users alike. The PMD85 reflects Paradox’s commitment to high-quality outdoor motion detection.

SKU

PDX-PMD85

Practical Use Scenarios

• Residential Outdoor Spaces: Driveways, patios, and side paths needing pet-friendly motion coverage

• Balconies and Verandas: Vertical curtain beams ideal for multi-story access protection

• Commercial Perimeters: Detects movement along fences, loading docks, and warehouses

• Gated Communities or Farms: Versatile detection with high wireless range and pet tolerance

Datasheets / Downloadable Resources

• Paradox PMD85 Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The Paradox PMD85 is built for superior performance in Australia and New Zealand, offering IP54 weatherproofing, pet immunity, and EN50131 Grade 2 certification. This detector is distributed exclusively via authorized regional suppliers, ensuring compliance with local standards and seamless integration into NDSS-compliant systems. Warranty support is handled directly by Paradox's official network, providing reliable after-sales service across the region.

Frequently Asked Questions (FAQs)

Q1: What pet weight is the PDX-PMD85 rated for?
A1: The PMD85 (PDX-PMD85) is pet immune for animals up to 40kg (90lbs), suitable for most dogs, including large breeds.

Q2: What types of motion does the PDX-PMD85 detect?
A2: The PMD85 uses dual curtain beam detection—horizontal and vertical—ideal for pathways, balcony doors, and narrow spaces.

Q3: Is the PDX-PMD85 suitable for outdoor use?
A3: Absolutely. It is rated IP54 and includes UV protection, a rubber gasket, and operates effectively in temperatures from -35°C to +50°C.

Q4: What Paradox systems are compatible with the PDX-PMD85?
A4: The PDX-PMD85 works with MG6250, MG5050, and RTX3, and can be configured for both EVO Bus (Combus) or relay-based systems.

Q5: How is battery life managed on the PDX-PMD85?
A5: The detector features Alive software and an energy-save mode, extending battery life to up to 3 years under typical usage conditions.
