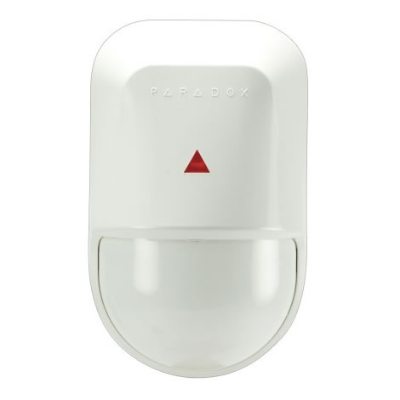

Paradox NV5 / DG55 Dual Element PIR Motion Detector – Pet Immune with 3D Fresnel Lens and Bracket | High-Precision Indoor Security Sensor

The Paradox NV5 / DG55 Dual Element PIR Detector is a next-generation infrared motion detector from Paradox's acclaimed ENVY series. Engineered for superior detection and reliability, this compact yet powerful sensor combines cutting-edge digital optics with user-centric features to ensure premium indoor security for both residential and commercial environments.

At its core, the NV5 utilizes a Hybrid Cylindrical-Spherical 1.0-inch lens embedded with 3rd generation 3D Lodiff® Fresnel segments, a technology that elevates detection accuracy by refining IR energy collection across a wide 10m x 10m coverage area. It delivers uniform sensitivity through its “Equalized” detection pattern, reducing detection gaps and ensuring consistent performance throughout the protected space.

Designed with practicality in mind, this model includes pet immunity up to 16 kg (35 lb)—perfect for pet-friendly homes and businesses. Installation is made effortless with the included mounting bracket, and the detector is enhanced further with Auto Pulse Signal Processing (APSP), offering advanced false alarm rejection and dual/single edge processing options.

What’s in the Box

• 1 x Paradox NV5 / DG55 Dual Element PIR Detector

• 1 x Mounting Bracket (Wall/Ceiling Compatible)

• Installation Manual

• Screws and Mounting Hardware

Main Features

• Full Authority Digital Electronics Control (FADEC) for precise motion detection

• 3D Lodiff® Fresnel Lens Technology for accurate IR energy collection

• 10x10m Detection Coverage with a 90° field of view

• Pet Immunity for pets weighing up to 16 kg (35 lb)

• Auto Pulse Signal Processing (APSP) with enhanced RF interference rejection

• Dual/Single Edge Processing Modes

• Digital Sensitivity Adjustment with LED feedback and five range levels

• Optional Super Creep Zone Mirror for straight-down detection

• Compact Design for unobtrusive installation

• CE and EN50131 Grade 2 Certified

Specifications

• Detection Technology: Dual Element Passive Infrared (PIR)

• Lens Type: Hybrid Cylindrical/Spherical with 3D Lodiff® Fresnel segments

• Coverage: 10m x 10m @ 90°

• Pet Immunity: Up to 16 kg (35 lb)

• Mounting: Wall or ceiling (bracket included)

• Signal Processing: Auto Pulse Signal Processing (APSP)

• Sensitivity Levels: 5-level adjustment with LED feedback

• Operating Voltage: 9 to 16 VDC

• Current Draw: 12 mA typical

• Certifications: CE, EN50131 Grade 2

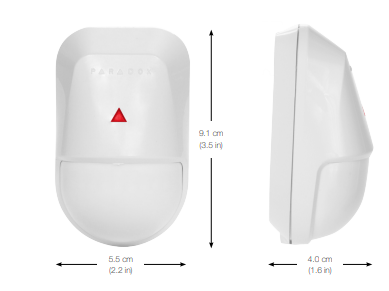

• Dimensions: 9.5 x 6 x 4 cm (approx.)

• Weight: Approx. 100g

Warranty Information

This product is backed by a 1-year manufacturer’s warranty, covering any defects in materials or workmanship under normal use.

About the Brand – Paradox Security Systems

Paradox Security Systems is a global leader in advanced security technology. Known for their innovation and reliability, Paradox products are engineered in Canada and trusted by professionals worldwide. With a strong commitment to quality, Paradox blends cutting-edge technology with user-friendly designs.

SKU

PDX-NV5

Practical Use Scenarios

• Ideal for securing living rooms, hallways, and entry points in homes with small pets

• Excellent for office and retail space motion detection with minimal false triggers

• A perfect fit for high-traffic indoor areas requiring precise movement monitoring

• Suitable for small business security systems with integration needs

Datasheets / Downloadable Resources

• • PDX-NV5 Datasheet.pdf

Excellence for the Australian and New Zealand Market

The Paradox NV5 / DG55 is fully compliant with Australian and New Zealand quality standards, including EN50131 Grade 2 certification. Sourced exclusively through authorized distributors, it’s optimized for performance in Australasian climate conditions. Local customers benefit from direct brand-supported warranty service, ensuring fast and reliable support when needed. This unit is ideal for NDSS-compliant installations and integrates seamlessly with most professional-grade alarm systems available across AU and NZ.

Frequently Asked Questions (FAQs)

Q1: Does the PDX-NV5 detector support pet immunity for animals larger than 16 kg?
A1: No, the Paradox NV5 / DG55 (PDX-NV5) is designed for pet immunity up to 16 kg (35 lb). For larger pets, consider alternative Paradox models with higher pet tolerance.

Q2: Can the PDX-NV5 be ceiling-mounted?
A2: Yes, the PDX-NV5 includes a universal bracket suitable for both wall and ceiling installations, offering flexible placement options.

Q3: Is the PDX-NV5 compatible with all alarm panels?
A3: The PDX-NV5 is compatible with most standard wired alarm systems. Please verify voltage and interface compatibility with your existing panel before installation.

Q4: How does the PDX-NV5 reduce false alarms?
A4: The PDX-NV5 uses patented Auto Pulse Signal Processing (APSP), dual/single edge processing, and digital sensitivity adjustment to minimize false triggers.

Q5: Where is the best place to install the PDX-NV5 for optimal performance?
A5: Install the PDX-NV5 in a central indoor location, at a height of approximately 2.1m, avoiding direct sunlight or airflow from vents for best coverage and accuracy
