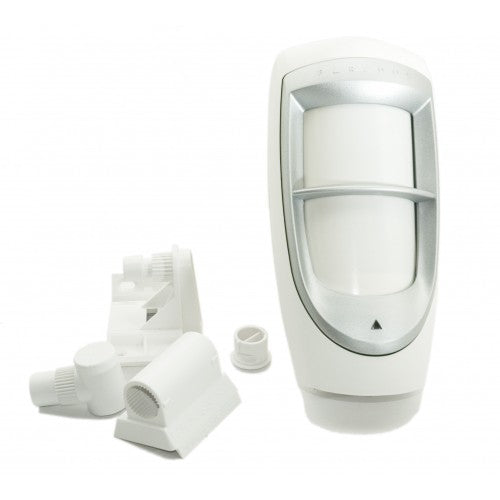

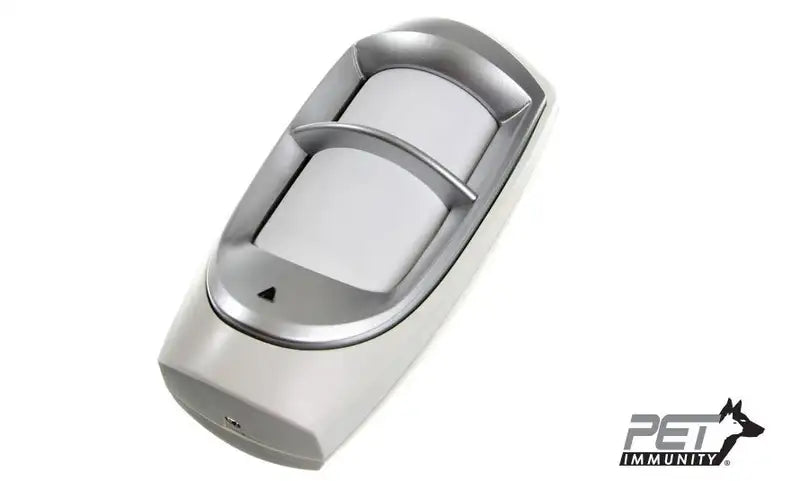

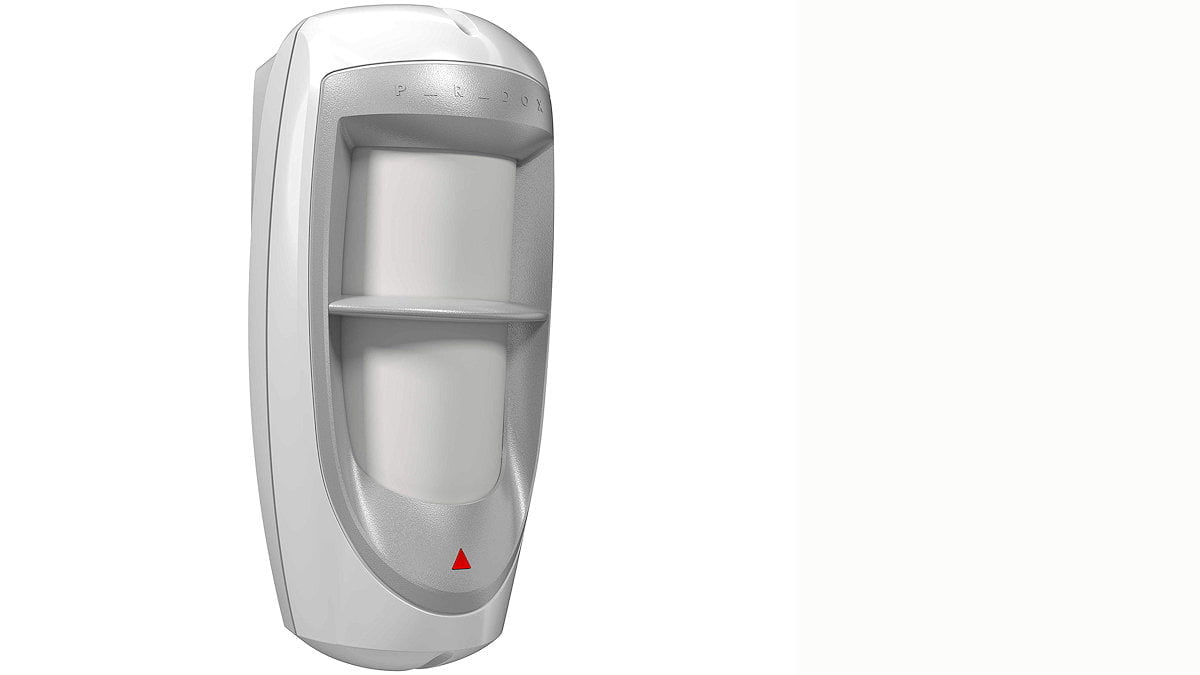

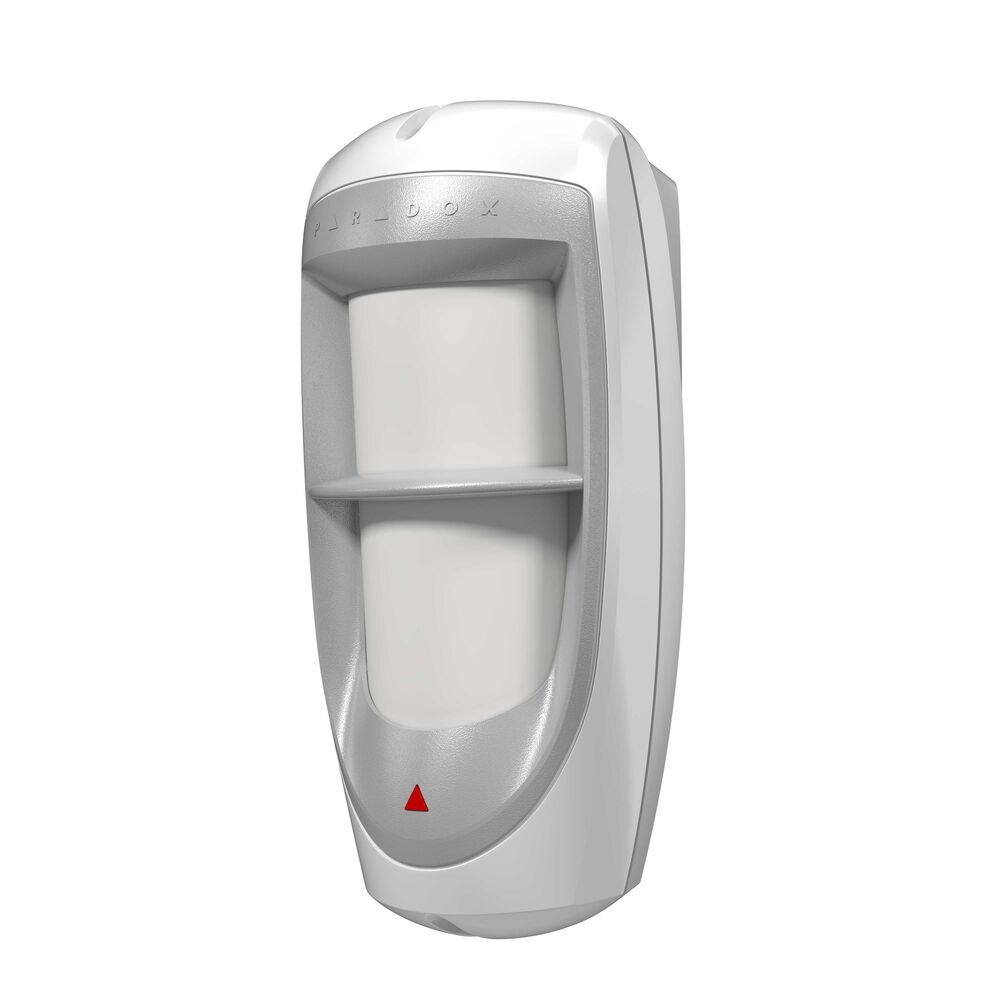

Paradox DG85 Outdoor Quad Element PIR Detector – EVO Bus & Relay Compatible, IP54 Rated, Pet Immune with Mounting Bracket

The Paradox DG85 Outdoor Quad Element PIR Detector delivers professional-grade motion detection in rugged outdoor environments. Engineered for long-lasting performance, the DG85 merges double-opposed dual-element infrared sensors with a robust weatherproof IP54-rated enclosure, making it a standout solution for perimeter protection, entrances, and high-risk external zones.

With pet immunity up to 40kg, it reliably ignores small to large pets while maintaining high detection accuracy. The DG85 is compatible with both relay and EVO bus (Combus) systems, offering flexible integration with modern Paradox security infrastructures. Its beam pattern coverage of 11m x 11m (90°) ensures wide-area monitoring, and optional lenses are available for vertical or curtain detection setups.

The detector also supports advanced features such as Auto Pulse Signal Processing (APSP) with adjustable sensitivity via trimpot and dual/single edge processing modes for refined customization. Included is a heavy-duty swivel bracket (SB85), allowing precise placement and alignment on flat surfaces, corners, or adjustable mounts.

What’s in the Box

• 1 x Paradox DG85 Outdoor Quad Element PIR Detector

• 1 x Swivel Mounting Bracket (SB85)

• Mounting Screws and Accessories

• Installation Guide

Main Features

• Quad Infrared Sensor Design: Dual-element PIR x2 for superior outdoor motion detection

• Pet Immunity: Effectively ignores animals weighing up to 40kg (90lbs)

• Detection Coverage: 11m x 11m with 90° wide-angle view

• Mounting Options: Corner, flat surface, or swivel mount with the included SB85 bracket

• Relay and EVO Bus (Combus) Compatibility: DIP-switch selectable operational modes

• Weatherproof Design: IP54-rated enclosure resists dust, rain, and outdoor conditions

• Auto Pulse Signal Processing (APSP): Adjustable via DIP switch to normal or high sensitivity levels

• LED Feedback and Movement Memory: Visual signal indicator and stored low-signal events

• Sensitivity Trimpot: Fine-tune detection with five sensitivity levels

• Anti-Tamper Protection: Sends alert if the detector is opened or tampered with

Specifications

• Sensor Type: Dual Element Infrared x 2 (Quad PIR)

• Coverage: 11m x 11m (35ft x 35ft), 90° field of view

• Pet Immunity: Up to 40kg (90lbs)

• Detection Speed: 0.2 – 3.5m/s

• Voltage Input: 9 – 16VDC

• Current Consumption: 30mA standby, 40mA in alarm

• Alarm Output:

  • DG85: Form A Relay (100mA/28VDC, N.C.)

  • DG85C: Form C Relay (200mA/28VDC, N.C./N.O.)

• RF/EMI Rejection: 10V/m up to 2000 MHz

• Operating Temperature: -35°C to +50°C

• Tamper Switch: 150mA/28VDC, N.C.

• Lens: 2nd generation Fresnel lens with LODIFF® segments

• Ingress Protection: IP54

• Certifications: EN50131-2-2 Grade 2, Class IV

Warranty Information

The Paradox DG85 is backed by a 1-year limited manufacturer's warranty, covering defects in materials and craftsmanship under standard installation and operating conditions.

About the Brand – Paradox Security Systems

Paradox Security Systems is a leading developer of cutting-edge security technology, trusted by professionals around the world. With a commitment to innovation, quality, and user-centric design, Paradox products like the DG85 detector are engineered in Canada to meet the highest performance and reliability standards.

SKU

PDX-DG85

Practical Use Scenarios

• Residential Yards: Secure perimeters and outdoor access points while allowing pet movement

• Commercial Sites: Ideal for warehouse gates, loading docks, and fenced zones

• Parking Areas: Detect human presence without being triggered by vehicles or animals

• Agricultural Settings: Protect sheds, barns, or equipment areas from intrusion

Datasheets / Downloadable Resources

• Paradox DG85 Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The Paradox DG85 is engineered to meet Australian and New Zealand security and environmental standards, certified to EN50131 Grade 2 Class IV. With exclusive sourcing through authorized regional distributors, the DG85 is tailored to endure harsh Australasian weather conditions. Backed by direct manufacturer-supported warranty handling, and suitable for NDSS-compliant systems, it provides high-performance outdoor security for residential and commercial sites across AU and NZ.

Frequently Asked Questions (FAQs)

Q1: What pet size is supported by the PDX-DG85 outdoor PIR detector?
A1: The DG85 (PDX-DG85) provides pet immunity for animals weighing up to 40kg (90lbs), making it ideal for homes or properties with large dogs.

Q2: Can the PDX-DG85 be integrated into EVO control panels?
A2: Yes, the DG85 supports EVO Bus (Combus) mode, allowing seamless communication with Paradox EVO series panels.

Q3: What mounting methods are available for the PDX-DG85?
A3: The PDX-DG85 can be mounted on corners, flat surfaces, or using the included heavy-duty SB85 swivel mount bracket for more flexible placement.

Q4: Is the PDX-DG85 weatherproof for outdoor use?
A4: Yes, the DG85 is IP54-rated, designed to withstand rain, dust, and extreme outdoor conditions.

Q5: How do I adjust the sensitivity of the PDX-DG85 detector?
A5: Sensitivity can be adjusted using the onboard trimpot, which offers five levels (1–5). Always follow up adjustments with a walk-test to ensure optimal performance.
