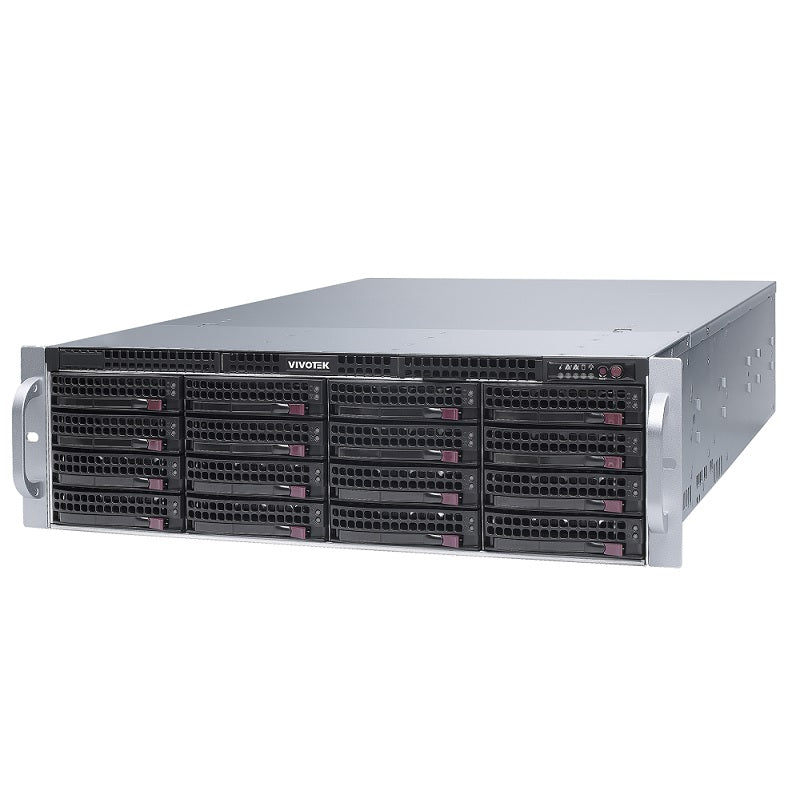

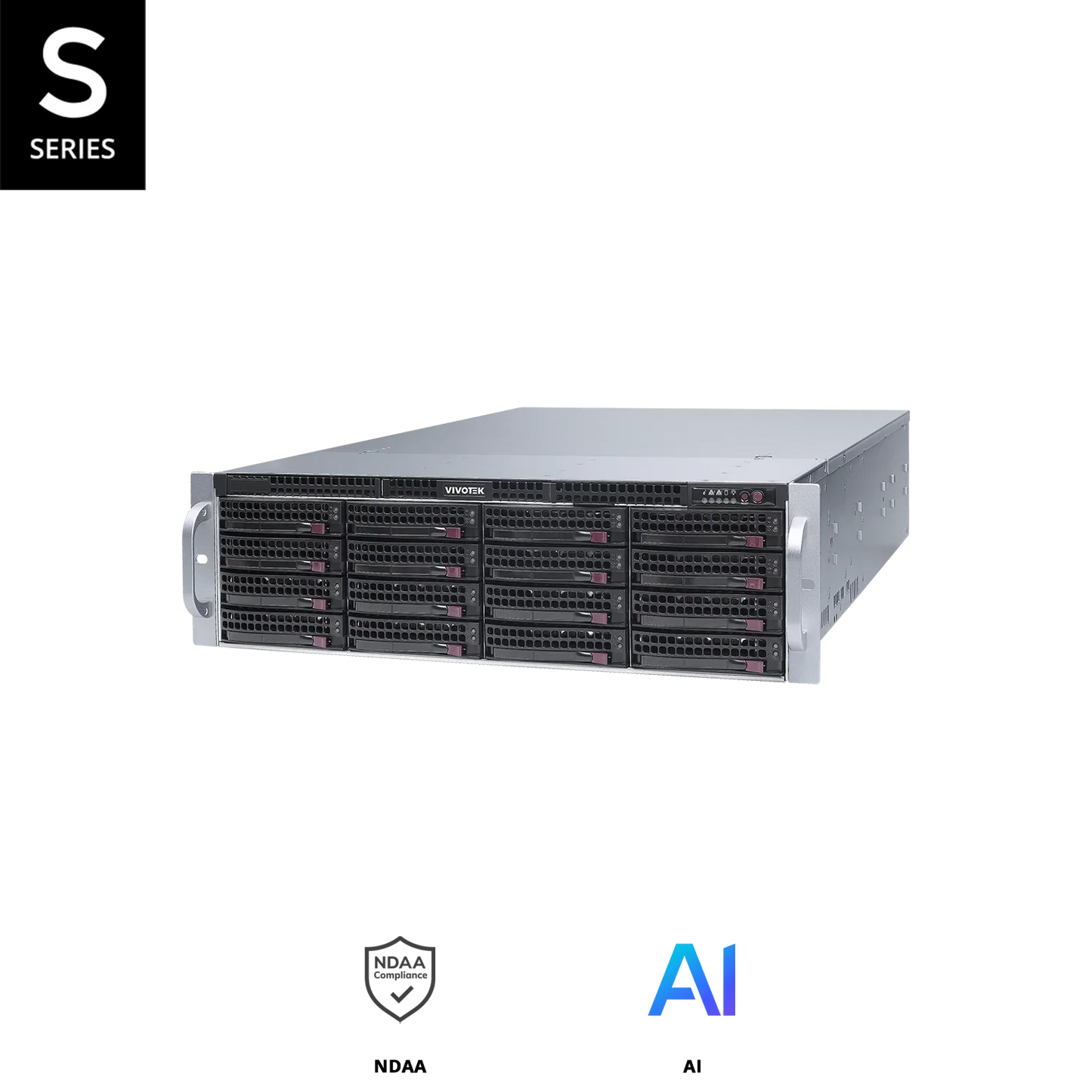

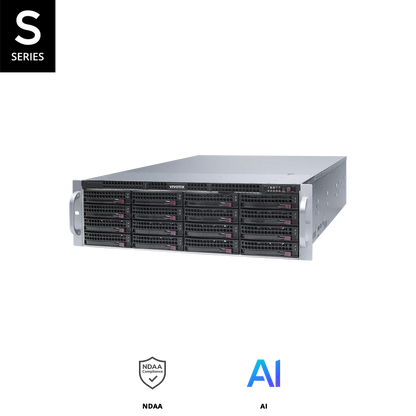

NR9682-V3 64-Channel 16-Bay Network Video Recorder Server | VSS Pro Inside | RAID 0/1/5/6/10/50/60 | 920W Redundant Power | 2.5GbE Dual LAN | 8K Display

The VIVOTEK NR9682-V3 is a next-generation, enterprise-level 64-channel NVR server designed for scalable video surveillance infrastructure. Pre-installed with VSS Pro on an embedded Windows 10 OS, it features a high-capacity 16-bay hot-swappable storage chassis, RAID 0/1/5/6/10/50/60, 2.5GbE Dual LAN, and redundant 920W power for fault-tolerant operation. Supporting up to 192 channels (via license), advanced Smart VCA, Deep Search, Smart Tracking, and Fisheye Dewarping, the NR9682-V3 is purpose-built for critical deployments like smart cities, transportation networks, and large-scale commercial surveillance systems.

What’s in the Box

• 1x NR9682-V3 64-Channel 16-Bay Recording Server

• 1x Power Cable

• 1x HDMI Cable

• 1x USB Mouse

• 1x User Manual

• HDD tray keys and installation accessories

Main Features

• Supports 64 IP channels by default, expandable to 192 channels via licensing

• Built-in VSS Pro video management software on embedded Windows 10 OS

• 16 Hot-Swap HDD Bays, supporting up to RAID 60 for massive storage and redundancy

• 512 Mbps recording throughput, 650 Mbps remote client throughput

• Redundant dual 920W power supplies with 80 Plus Platinum certification

• Multi-monitor output via HDMI, DP, DVI, and VGA with up to 8K resolution

• Smart VCA, Deep Search, Facial Recognition, Crowd Detection, LPR, and more

• Full support for POS, UPS, and I/O box integrations

• Failover support, watermarking, video encryption, and metadata overlays

• Dual 2.5GbE LAN ports for high-speed network resilience

Detailed Specifications

Model: NR9682-V3
OS: Embedded Windows 10
Max Camera Channels: 64 (expandable to 192 via license)
Live View Layouts: Equal (1x1 to 8x8), Panorama, Focus, Vertical, Custom
Video Output Ports: HDMI x1 (4096x2160), DP x1 (7680x4320), DVI x1, VGA x1
Dual Monitor Support: Yes
Video Format: MJPEG, MPEG-4, H.264, H.265
Decoding Capability:

• H.264: 1080p @ 360fps

• H.265: 1080p @ 180fps
  Audio Formats: G.711, G.726, AMR, AAC-LC
  2-Way Audio: Supported
  Recording Throughput: 512 Mbps
  Playback Throughput (Remote): 650 Mbps
  Recording Stream: Single
  Storage Bays: 16x Hot-Swap 3.5” bays
  RAID Levels Supported: 0, 1, 5, 6, 10, 50, 60
  USB Ports:

• Rear: 2x USB 2.0, 4x USB 3.2
  Audio I/O:

• Mic In x1

• 3.5mm Line In x1

• 3.5mm Line Out x1

• SPDIF x1

• 7.1 Surround Out support
  Network Interface: 2x 2.5GbE
  Alarm/Event Integration: POS, UPS, external DI/DO, smart analytics, cyber threat detection
  Failover Support: Yes
  Fisheye Dewarping: Supported
  Smart Analytics: Smart VCA, Deep Search, LPR, Crowd Detection, Smart Tracking, Zone Monitoring
  I/O Box Integration: MOXA ioLogik, Advantech ADAM, CHIYU CYT-133SC
  Camera Integration: ONVIF Profile S
  Operating Temperature: 5°C to 35°C
  Humidity: 5% to 95%
  Power Input: Redundant 100~240V AC
  Power Consumption: Max 920W
  Dimensions: 132 (H) x 437 (W) x 647 (D) mm
  Weight: 33 kg (without HDDs)
  Certifications: CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS

Warranty Information

• Manufacturer’s Warranty Applied

Brand Information

VIVOTEK Inc. is a globally trusted provider of IP-based surveillance systems and AI-driven video analytics. With powerful VMS platforms, robust NVRs, and strong cybersecurity integration, VIVOTEK empowers smart surveillance solutions for government, enterprise, and critical infrastructure worldwide.

SKU: NR9682-V3

Practical Use Scenarios

• Smart City Monitoring: Integrates with transport, traffic, and public safety systems to monitor and analyze data across hundreds of locations.

• Airports & Transit Terminals: Supports multiple terminals, gates, runways, and security areas under a single video platform.

• Enterprise & Industrial Sites: Protect data centers, manufacturing floors, and logistics zones with redundant storage and AI event detection.

• Stadiums & Event Arenas: Monitor thousands of guests and identify crowd anomalies in real-time.

• University & Multi-Campus Surveillance: Centralized control for academic institutions with multiple buildings and access zones.

Datasheets / Downloadable Resources

• NR9682-V3 Datasheet (PDF)


Excellence for the Australian and New Zealand Market

• Certified for C-Tick, UL, CB, and BIS, ensuring regional compliance

• Fully optimized for high-demand, data-heavy surveillance use in the ANZ environment

• Warranty service and technical support offered locally through authorized ANZ partners

• Compatible with NDSS-compliant systems for seamless integration into government and commercial deployments

• Redundant design and compliance-ready for critical infrastructures across Australia and New Zealand

FAQs – NR9682-V3

Q1: How many channels does the NR9682-V3 support?
It supports 64 channels by default and can be expanded up to 192 channels via additional licenses.

Q2: Is the NR9682-V3 capable of handling RAID 60 configurations?
Yes, it supports RAID 0, 1, 5, 6, 10, 50, and 60 for advanced storage redundancy and performance.

Q3: Can I connect the NR9682-V3 to external devices such as I/O boxes or POS systems?
Yes, it integrates with devices from MOXA, CHIYU, Advantech, and supports POS and UPS systems.

Q4: What are the display output resolutions of the NR9682-V3?
It supports resolutions up to 7680x4320 via DisplayPort, and 4096x2160 via HDMI.

Q5: Does the NR9682-V3 include redundant power?
Yes, it features dual redundant 920W power supplies with 80 Plus Platinum certification.

Q6: Is Deep Search and Smart VCA supported?
Absolutely. It includes Smart VCA, Deep Search, Face Detection, Crowd Analysis, Smart Tracking, and more.

Q7: Is the NR9682-V3 certified and optimized for Australia and New Zealand?
Yes, it holds all necessary certifications including C-Tick, and is locally supported and optimized for the ANZ region.
