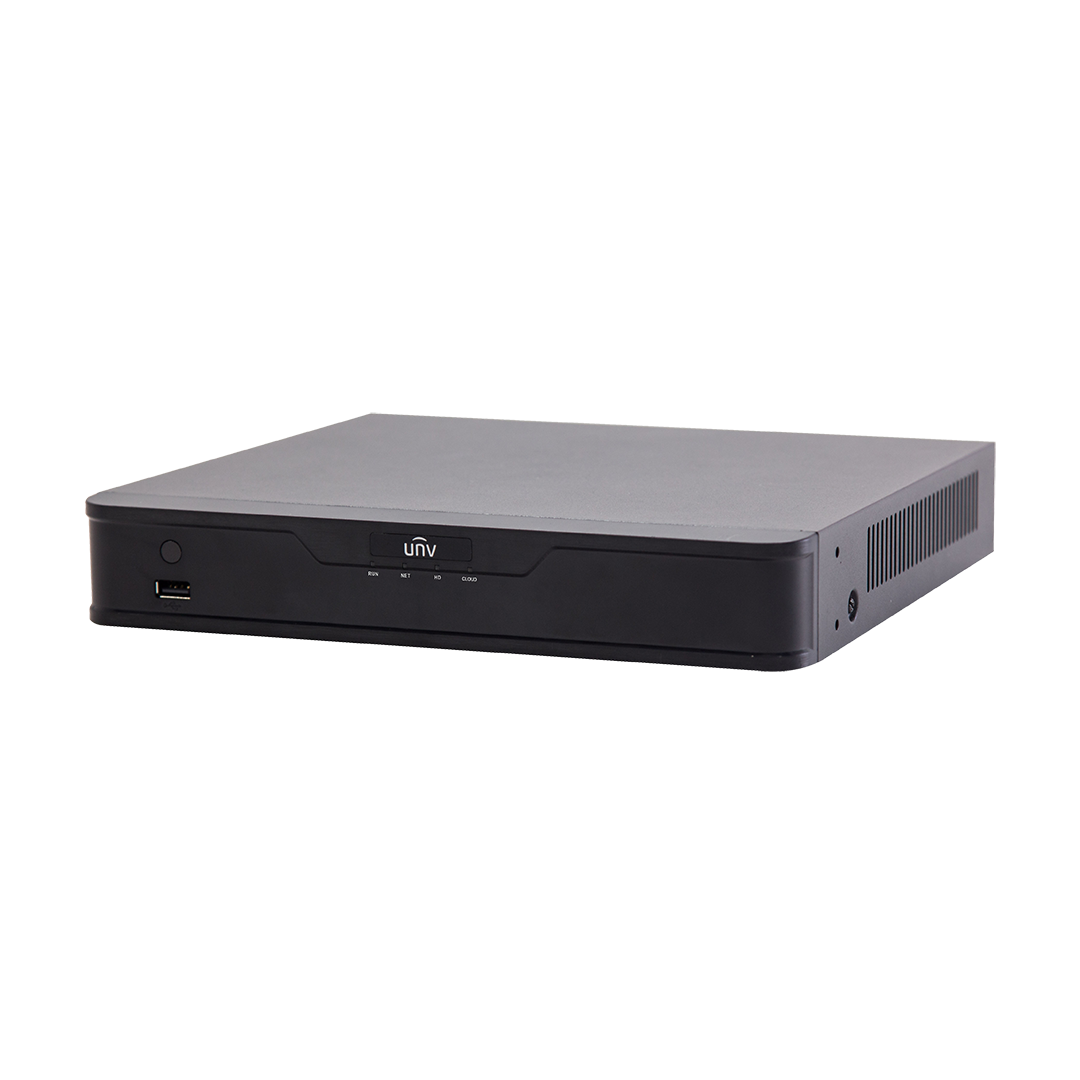

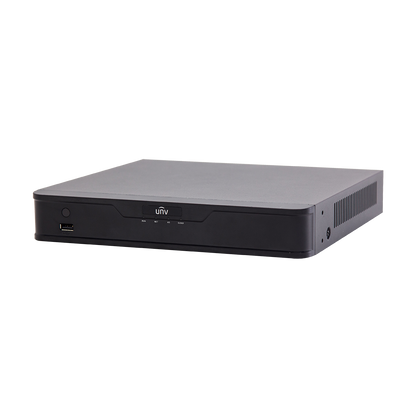

*NEW Uniview NVR301-08B-P8-IQ: Advanced 8 Channel Network Video Recorder NVR with Ultra 265 Compression

The Uniview NVR301-08B-P8-IQ is a high-performance 8-channel network video recorder designed to meet the demands of modern surveillance systems. Supporting Ultra 265, H.265, and H.264 video formats, this NVR ensures efficient storage utilization without compromising video quality. Its plug-and-play functionality, combined with eight independent PoE network interfaces, simplifies installation and integration with compatible IP cameras.

Product Description

Engineered for both small and medium-sized surveillance applications, the NVR301-08B-P8-IQ offers robust performance and user-friendly features. With support for up to 12-megapixel resolution recording, it captures detailed footage suitable for various security needs. The device provides simultaneous HDMI and VGA outputs, allowing flexible display configurations. Additionally, ANR (Automatic Network Replenishment) technology enhances storage reliability by buffering video data on the camera storage when the network is disconnected, ensuring continuous recording.

What's Included in the Box

• 1 x Uniview NVR301-08B-P8-IQ Network Video Recorder

• 1 x Power Adapter

• 1 x USB Mouse

• 1 x Quick Start Guide

• 1 x Warranty Card

Main Features

• Multi-Format Support: Compatible with Ultra 265, H.265, and H.264 video formats for versatile integration.

• 8-Channel Input: Manages up to eight IP camera inputs simultaneously.

• Plug & Play: Equipped with eight independent PoE network interfaces for straightforward camera connections.

• ONVIF Conformance: Supports mainstream cameras adhering to ONVIF profiles S, G, and T, as well as RTSP protocols.

• High-Resolution Recording: Records video at resolutions up to 12 megapixels.

• ANR Technology: Enhances storage reliability during network interruptions.

• Cloud Upgrade Support: Facilitates easy firmware updates via the cloud.

• (Choose your own HDD below)

Detailed Specifications

• Decoding Format: Ultra 265, H.265, H.264

• Decoding Capability:

  • Smart Off: 2 x 12MP@30fps, 2 x 4K@30fps, 4 x 4MP@30fps, 8 x 1080P@30fps

  • Smart On: 2 x 4K@30fps, 4 x 4MP@30fps, 8 x 1080P@30fps

• Audio Compression: G.711A, G.711U

• Network Bandwidth:

  • Incoming: 80Mbps

  • Outgoing: 80Mbps

• Remote Users: Supports up to 128 simultaneous users

• Protocols: TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4

• Browser Compatibility: Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)

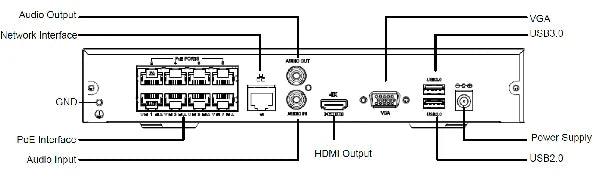

• Video/Audio Input:

  • IP Video Input: 8 channels

  • RCA Audio Input: 1 channel

• Video/Audio Output:

  • HDMI Output: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

  • VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

  • RCA Audio Output: 1 channel

• Live View Display Options: 1/4/6/8/9

• Corridor Mode Screen Options: 3/4/5/7/9

• Two-Way Audio: 1 channel, RCA (using the audio input and output)

• Recording Resolution: Supports 12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF

• Concurrent Playback: Up to 16 channels

SKU

• Product SKU: NVR301-08B-P8-IQ

Warranty Information

• Manufacturer Warranty: 2 years

• Warranty Coverage: Covers manufacturing defects and hardware failures under normal usage

• Support & Service: Warranty claims are handled through authorized service centers

Datasheets & Resources

• Datasheet of NVR301-B-IQ Series

Excellence for the Australian and New Zealand Market

• Compliance with Australian Standards: Fully meets Australian and New Zealand regulatory requirements.

• NDSS Approval: Ensures reliability and safety for use in commercial and residential settings.

• Optimized for Local Network Infrastructure: Seamlessly integrates with Australian and New Zealand ISPs and network providers.

• Sourced from Authorized Distributors: Ensures genuine products with full manufacturer support.

• Local Warranty Support: Warranty handled directly through authorized service centers in Australia and New Zealand.

FAQs

Q: Does the Uniview NVR301-08B-P8-IQ support remote access?
A: Yes, it supports remote access through a web browser and mobile apps, allowing users to monitor footage from anywhere.

Q: What is the maximum storage capacity of this NVR?
A: It supports a single SATA hard drive with a capacity of up to 10TB.

Q: Can this NVR be integrated with third-party IP cameras?
A: Yes, it supports ONVIF-compliant IP cameras, making it compatible with a wide range of third-party brands.

Q: Does this NVR include AI-based video analytics?
A: Yes, it supports AI-based features such as face detection, vehicle detection, and people counting.

Q: What warranty is provided with this NVR?
A: It comes with a 2-year manufacturer’s warranty.
