*NEW Uniview NVR301-04B-P4-IQ NVR Prime Series | 4 Channel NVR301-B-P-IQ Series Network Video Recorder
*NEW Uniview NVR301-04B-P4-IQ NVR Prime Series | 4 Channel NVR301-B-P-IQ Series Network Video Recorder
Regular price
$234.60 AUD
Regular price
$304.98 AUD
Sale price
$234.60 AUD
Duties and taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Uniview NVR301-04B-P4-IQ is a high-performance 1U 4-channel Network Video Recorder (NVR) designed for small to medium-sized surveillance systems. Part of the NVR301-B-P-IQ Series, this NVR supports advanced video formats like Ultra 265, H.265, and H.264, ensuring efficient storage and high-quality video playback. With 4 independent PoE interfaces, it offers plug-and-play functionality, making it easy to connect and power compatible IP cameras. Whether you're monitoring a home, office, or retail space, this NVR delivers reliable performance with features like 12MP resolution recording, ANR technology, and cloud upgrade support.

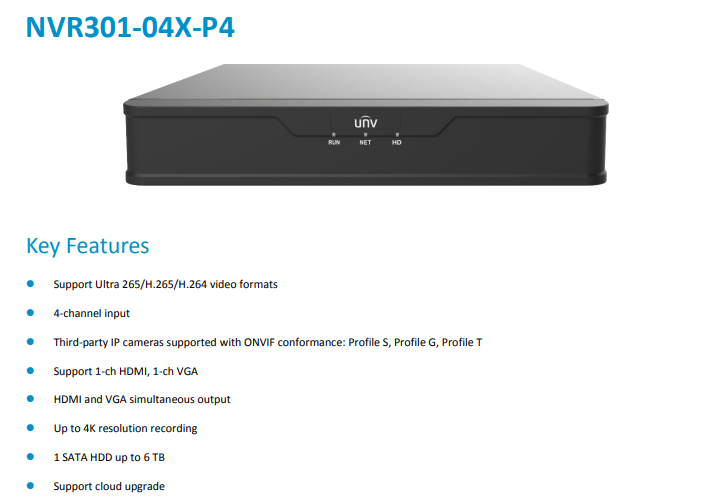

Key Features
-
Ultra 265/H.265/H.264 Video Formats: Reduces bandwidth and storage requirements without compromising video quality.
-
4/8-Channel Input: Supports up to 4 or 8 IP cameras, depending on the model.
-
Plug & Play PoE Interfaces: 4 or 8 independent PoE ports for easy camera connectivity and power supply.
-
ONVIF Conformance: Compatible with mainstream cameras supporting Profile S, Profile G, Profile T, and RTSP protocols.
-
HDMI & VGA Simultaneous Output: Allows dual monitoring with resolutions up to 4K@30Hz.
-
Up to 12MP Resolution Recording: Captures ultra-high-definition video for crystal-clear footage.
-
ANR Technology: Ensures storage reliability even during network disconnections.
-
Cloud Upgrade Support: Enables remote firmware updates for enhanced functionality.
- (Choose your own HDD below)
Specifications
| Model | NVR301-04B-P4-IQ | NVR301-08B-P8-IQ |
|---|---|---|
| Decoding Format | Ultra 265, H.265, H.264 | |
| Decoding Capability | Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30 Smart On: 2 x 4K@30, 4 x 4MP@30 |
|
| Incoming Bandwidth | 80 Mbps | |
| Outgoing Bandwidth | 80 Mbps | |
| Remote Users | 128 | |
| IP Video Input | 4-ch | 8-ch |
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz | |
| VGA Output | 1920 × 1080/60 Hz | |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF | |
| Smart Features | Face Detection, Vehicle Detection, Intrusion Detection, People Counting, Traffic Monitoring | |
| PoE Interface | 4 RJ45 10/100 Mbps | 8 RJ45 10/100 Mbps |
| Max PoE Power | 30W per port, 50W total | 30W per port, 75W total |
| Working Temperature | -10 ℃ ~ +55 ℃ (+14 ℉ ~ +131 ℉) | |
| Power Consumption | ≤ 12W (without HDD) | |
| Dimensions | 260mm × 222mm × 47mm (10.2"×8.7"×1.8") | |
| Weight | ≤ 2.7Kg (6.0lb) |
Warranty
The Uniview NVR301-04B-P4-IQ comes with a 2-year warranty, ensuring peace of mind and reliable performance for your surveillance system.
SKU
-
NVR301-04B-P4-IQ: 4-channel PoE NVR
Datasheets
For detailed technical information, download the Uniview NVR301-B-P-IQ Series Datasheet
FAQs
Q1: What video formats does the Uniview NVR301-04B-P4-IQ support?
The NVR supports Ultra 265, H.265, and H.264 video formats, ensuring efficient storage and high-quality video playback.
Q2: How many cameras can I connect to the NVR301-04B-P4-IQ?
The NVR301-04B-P4-IQ supports 4 IP cameras, while the NVR301-08B-P8-IQ supports 8 IP cameras.
Q3: Does the NVR support PoE cameras?
Yes, the NVR features 4 or 8 independent PoE interfaces, allowing you to connect and power compatible IP cameras directly.
Q4: What is the maximum recording resolution?
The NVR supports recording resolutions of up to 12MP, ensuring ultra-high-definition video capture.
Q5: Can I monitor the footage remotely?
Yes, the NVR supports remote access for up to 128 users, enabling you to monitor your surveillance system from anywhere.
Q6: What smart features does the NVR offer?
The NVR supports Face Detection, Vehicle Detection, Intrusion Detection, People Counting, and Traffic Monitoring for advanced surveillance capabilities.
Q7: What is ANR technology?
ANR (Automatic Network Replenishment) technology ensures storage reliability by saving video footage locally when the network is disconnected.
Q8: What is the warranty period for the NVR301-04B-P4-IQ?
The NVR comes with a 2-year warranty, providing reliable support for your investment.
Upgrade your surveillance system with the Uniview NVR301-04B-P4-IQ and experience advanced features, reliable performance, and seamless integration with your IP cameras.
