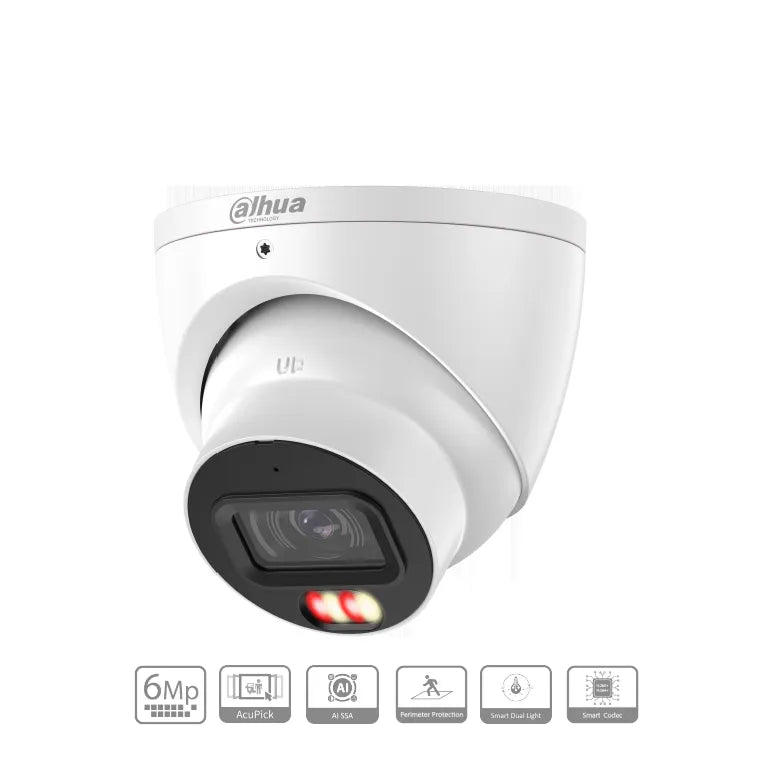

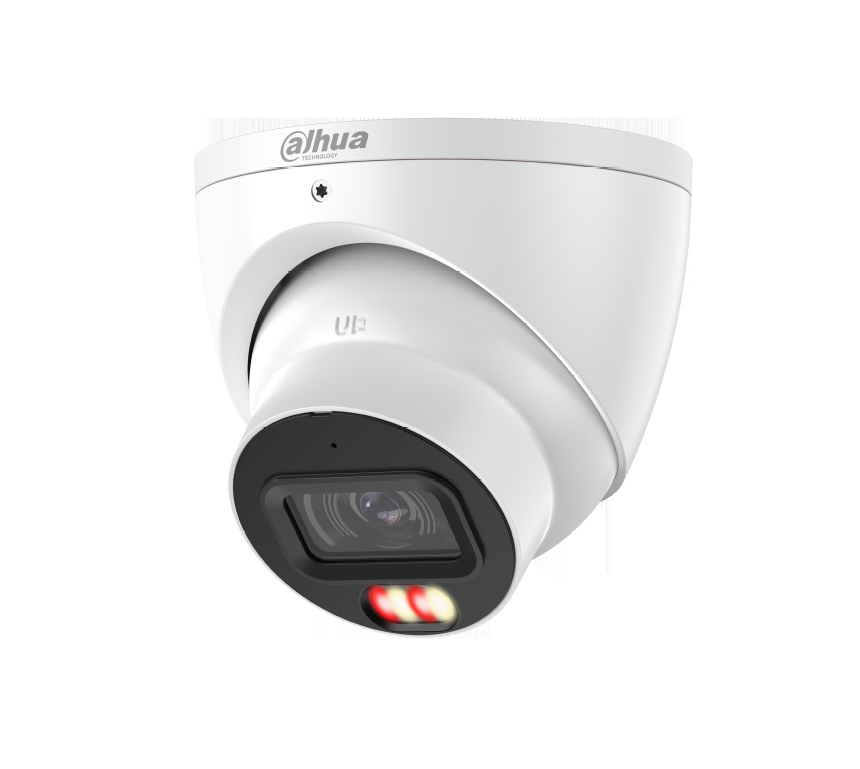

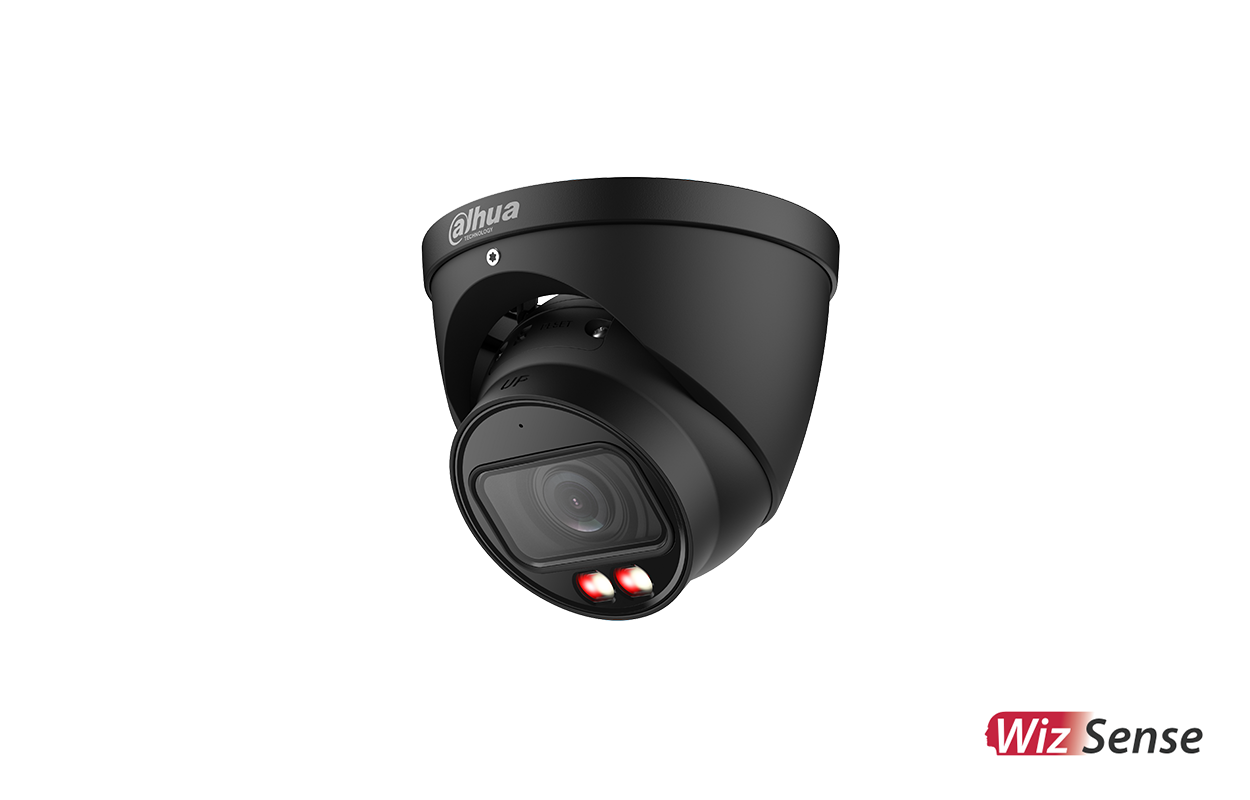

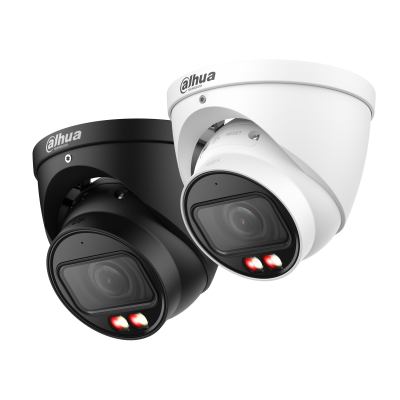

NEW* Dahua IPC‑HDW3667EM‑S‑IL‑ANZ 6MP Smart Dual‑Light Fixed‑Focal Eyeball WizSense Network Camera with ACUPICK CCTV

The Dahua IPC‑HDW3667EM‑S‑IL‑ANZ is a premium 6 MP network camera featuring advanced WizSense AI algorithms, dual smart lighting (IR + warm light), and superior image quality across all lighting conditions. Designed for indoor and outdoor use, it delivers crisp 3288 × 1850 resolution at up to 30 fps, with super-efficient H.265 encoding and robust analytics for intrusion, tripwire, and human/vehicle detection. With IP67-rated durability, this eyeball-style camera provides flexible, reliable security surveillance that meets demanding Australian–New Zealand standards.

What’s in the Box

• 1 × Dahua IPC‑HDW3667EM‑S‑IL‑ANZ Camera

• 1 × Quick Start Guide

• 1 × Mounting Template

• 1 × Mounting Screws & Anchors

• 1 × Power Supply Bracket / Cover

Main Features

• 6 MP High-Definition Imaging – Achieves 3288 × 1850 at 25/30 fps for crystal-clear visuals.

• Dual Smart Lighting – Built-in multi-core IR and warm white light (up to 30 m each) for secure color imaging in total darkness.

• WizSense AI – Includes SMD 4.0 (Smart Motion Detection) and AI-based intrusion & tripwire detection with human/vehicle classification.

• Advanced Compression – Supports H.265, H.264+/H.265+, and ROI, minimizing bandwidth and storage needs.

• Robust Image Enhancements – Features WDR (120 dB), 3D noise reduction, BLC/HLC, defog, digital watermarking, and SSA.

• Flexible Environment Use – IP67-rated metal housing, operating from –40 °C to +60 °C, ensuring resilience in extreme conditions.

• Onboard Storage & Audio – Accepts up to 512 GB Micro SD and includes a built-in microphone for audio monitoring.

• Versatile Mounting & Power – Eyeball design with 360° rotation and 80° tilt; supports 12 VDC or PoE (802.3af).

Detailed Specifications

• Image Sensor: 1/2.7" CMOS

• Resolution & Frame Rate: Up to 6 MP (3288×1850) at 25/30 fps

• Lens Options: 2.8 mm (110° HFOV), 3.6 mm (86° HFOV); Fixed iris, F1.4

• Minimum Illumination: 0.005 lux (Color), 0.0005 lux (B/W), 0 lux with illuminator on

• IR & Warm Light Reach: Max. 30 m (98.4 ft) each

• Pan/Tilt/Rotation: 0–360° pan, 0–80° tilt, 0–360° rotation

• DORI Range (2.8 mm Lens): Detect: 84.8 m | Observe: 33.9 m | Recognize: 17.0 m | Identify: 8.5 m

• Compression & Streams: 3 streams, H.265/H.264/MJPEG, AI H.265/H.264+, SmartCodec support

• WDR, BLC, HLC, 3D‑NR, Defog, SSA, Smart Illumination

• Detection & Alerts: Motion, tampering, audio, scene change, SD card status, network issues, SMD, intrusion, tripwire

• Networking: RJ‑45 (10/100 Base‑T), IPv4/IPv6, ONVIF Profile S/G/T/M, HTTPS, 802.1x, X.509 SSL

• Storage: Micro SD up to 512 GB, NAS, FTP/SFTP

• Power Supply & Consumption: 12 VDC or PoE (802.3af); 3.7 – 9.5 W depending on mode

• Weather & Operating Environment: IP67; –40 °C to +60 °C, ≤95% RH

• Physical Dimensions & Weight: Ø122 mm × 105.5 mm; 0.53 kg (1.17 lb)

Warranty Information

• Standard Manufacturer Warranty: 3-year warranty covering defects in materials and workmanship under normal use.

• Support Channels: Direct access to Dahua-authorized support in ANZ, with fast turnaround from certified service centers.

Brand Description

Dahua Technology is a global leader in video surveillance solutions, renowned for delivering high-quality, reliable security products. Emphasizing innovation and AI, Dahua’s WizSense line focuses on accuracy, simplicity, and cost-effective performance suitable for integrators and end-users alike.

SKU

IPC-HDW3667EM-S-IL-ANZ

Practical Use Scenarios

• Retail & Commercial Premises: High-resolution detection of intruders or suspicious activity at entry and exit points.

• Parking Stations & Driveways: Reliable vehicle detection in low-light conditions, with built-in warm light to deter trespassers.

• Warehouse & Industrial Sites: Wide-area coverage with clear facial and pallet identifying capability, even in harsh environments.

• Residential Security: Discreet and powerful eyeball design offering 24/7 monitoring, color footage at night, and robust alarm intelligence.

• Urban Street Surveillance: Weatherproof and vandal-resistant camera delivering consistent footage day and night.

Datasheets & Resources

• Downloadable PDF Datasheet: Includes full spec tables, wiring diagrams, preparation charts, and installation proposal toolkit.

• User Manual & Quick Installation Guide: Step-by-step instructions for configuration, app setup, and maintenance.

Excellence for the Australian and New Zealand Market

• Full compliance with Australian electrical and EMC standards (CE-LVD EN62368‑1, CE‑EMC).

• NDSS-grade reliability and secure firmware updates for privacy and security.

• Specifically configured for ANZ networks, with localized support and warranty handled directly by Dahua’s authorized representation.

• Sourced exclusively from Dahua-authorized distributors in ANZ – ensures authenticity, timely stock, and premium after-sales service.

Frequently Asked Questions (FAQs)

1. What is the resolution and frame rate of the IPC‑HDW3667EM‑S‑IL‑ANZ?
   The camera delivers up to 3288×1850 resolution at 25/30 fps, ensuring detailed surveillance video.

2. Can IPC‑HDW3667EM‑S‑IL‑ANZ operate without external power cables?
   Yes—this model supports PoE (802.3af), allowing it to receive data and power over a single Ethernet cable.

3. What lighting does the IPC‑HDW3667EM‑S‑IL‑ANZ use for night vision?
   It includes built-in IR and warm-white LEDs, each with a maximum range of 30 m. The warm light assists color imaging in total darkness.

4. Does the IPC‑HDW3667EM‑S‑IL‑ANZ support edge storage?
   Absolutely—this camera accepts up to 512 GB Micro SD cards for onboard recording.

5. Is IPC‑HDW3667EM‑S‑IL‑ANZ suitable for outdoor installations?
   Yes—it is IP67-rated and operates reliably in temperatures ranging from –40 °C to +60 °C.

6. What type of intelligence analytics are built into the IPC‑HDW3667EM‑S‑IL‑ANZ?
   The camera supports intrusion and tripwire detection with human/vehicle classification, SMD 4.0, AcuPick search, AI SSA, and smart search features.

7. How can I integrate IPC‑HDW3667EM‑S‑IL‑ANZ with third‑party systems?
   It is ONVIF Profile S/G/T/M compliant and offers open APIs and SDK for integration with platforms like Smart PSS, DSS, and major VMS systems.

8. What warranty comes with the IPC‑HDW3667EM‑S‑IL‑ANZ?
   This product includes a 3-year manufacturer warranty, with remote and in-country technical support provided by Dahua's authorised ANZ partners.
