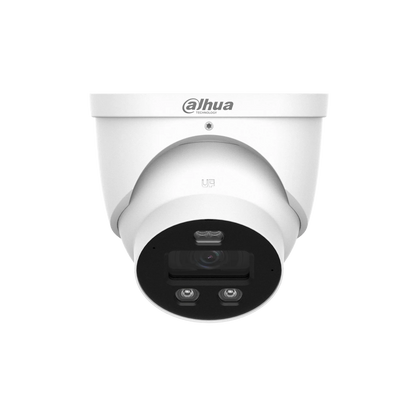

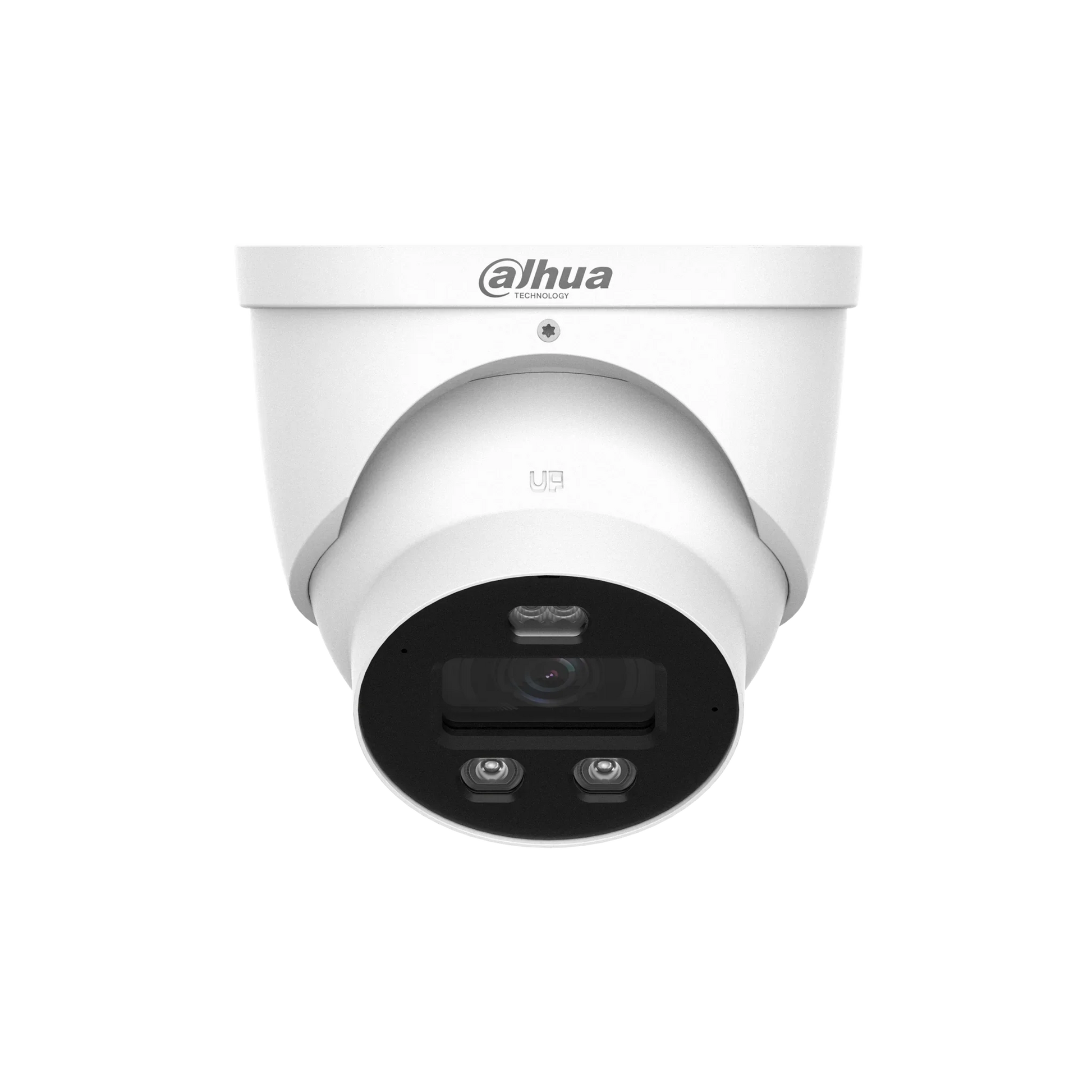

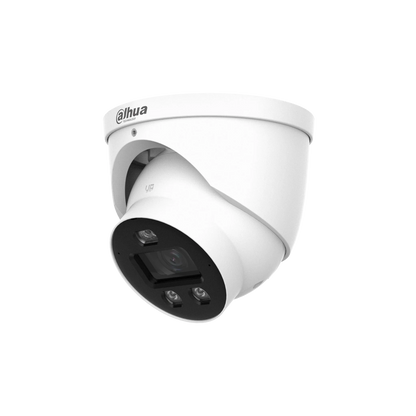

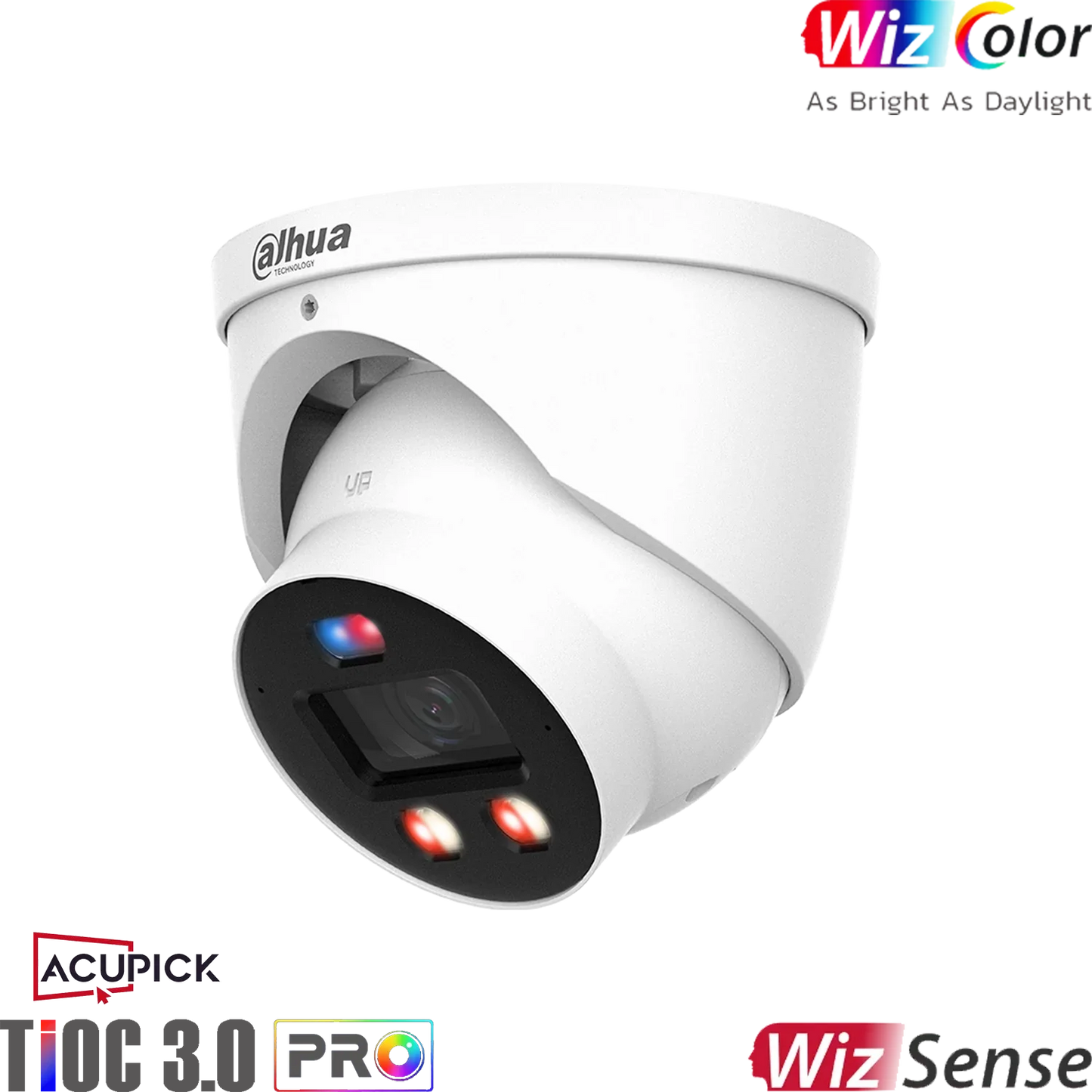

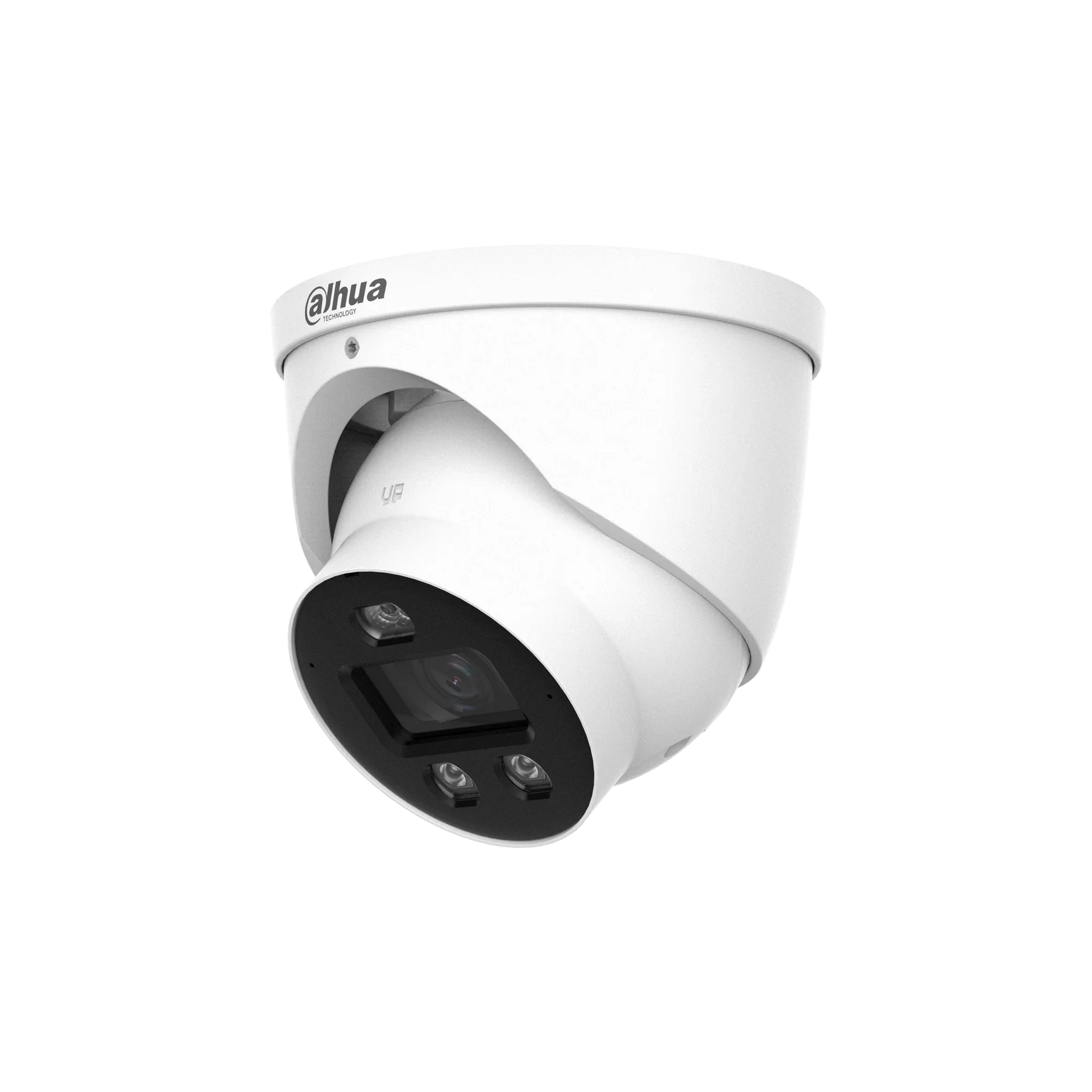

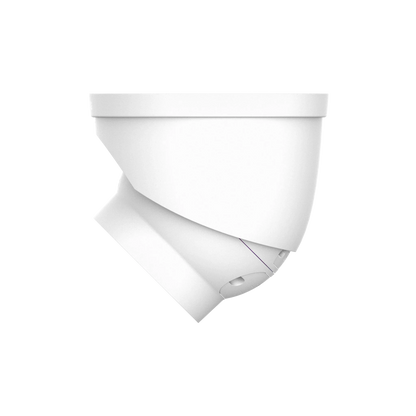

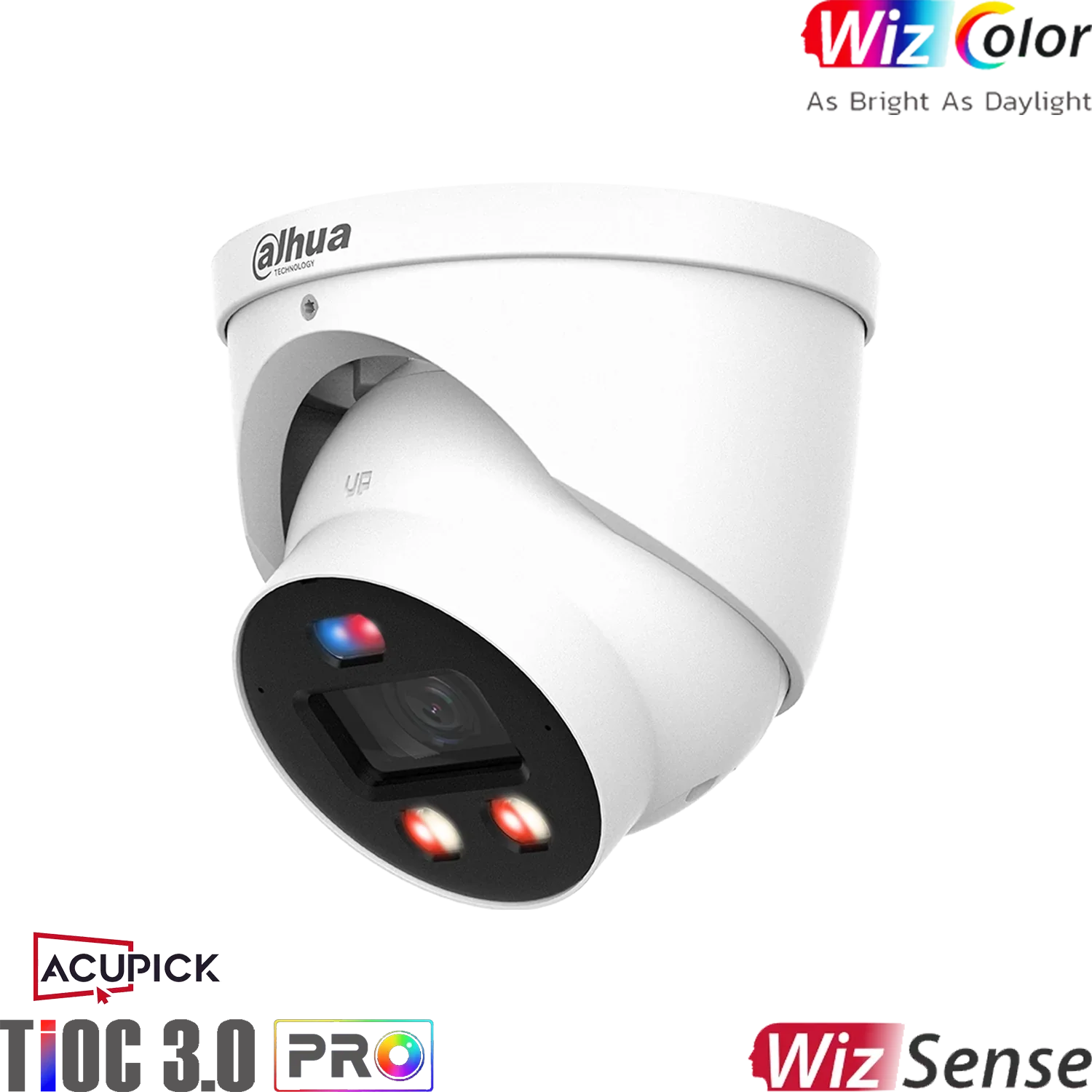

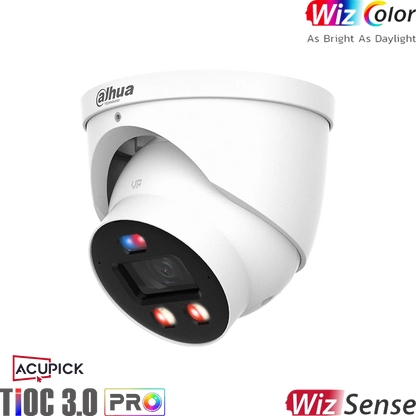

NEW* DAHUA 6MP TIOC Wizcolor ACUPICK DH-IPC-HDW3649H-AS-PV-PRO-ANZ Smart Dual Light Active Deterrence Fixed-Focal Eyeball WizSense Network IP CCTV Camera

The Dahua DH-IPC-HDW3649H-AS-PV-PRO 6MP Smart Dual Light Active Deterrence Network Camera delivers ultra-clear 6MP resolution, advanced AI-powered human and vehicle detection, and proactive sound and light deterrence for professional-grade surveillance. Powered by WizSense deep learning technology, Smart Dual Light (IR + Warm Light), and SMD 4.0, this IP67-rated eyeball camera ensures reliable perimeter protection, accurate event filtering, and vivid full-colour recording even in low-light conditions — making it ideal for residential, commercial, and industrial security installations across Australia and New Zealand.

Launched under Dahua’s WizSense 3 Series, this model integrates AI Scene Self-Adaptation (AI SSA), one-tap arming/disarming, and active siren-light warning to provide intelligent, efficient, and bandwidth-optimised surveillance.

---

What’s Included in the Box

• 1 × Dahua DH-IPC-HDW3649H-AS-PV-PRO 6MP Network Camera

• Mounting hardware

• Installation guide

• Waterproof connector

• Warranty documentation

---

Key Features

🔹 6MP High-Definition Clarity

• 1/1.8" CMOS image sensor

• Maximum resolution: 3288 × 1850 @ 25/30fps

• Exceptional low-light performance:

  • 0.0005 Lux (Colour)

  • 0 Lux with illuminator

🔹 Smart Dual Light Technology

• IR range up to 30m

• Warm light range up to 30m

• Automatically switches from IR to full-colour white light when a target is detected

• Reduces light pollution while preserving critical colour evidence

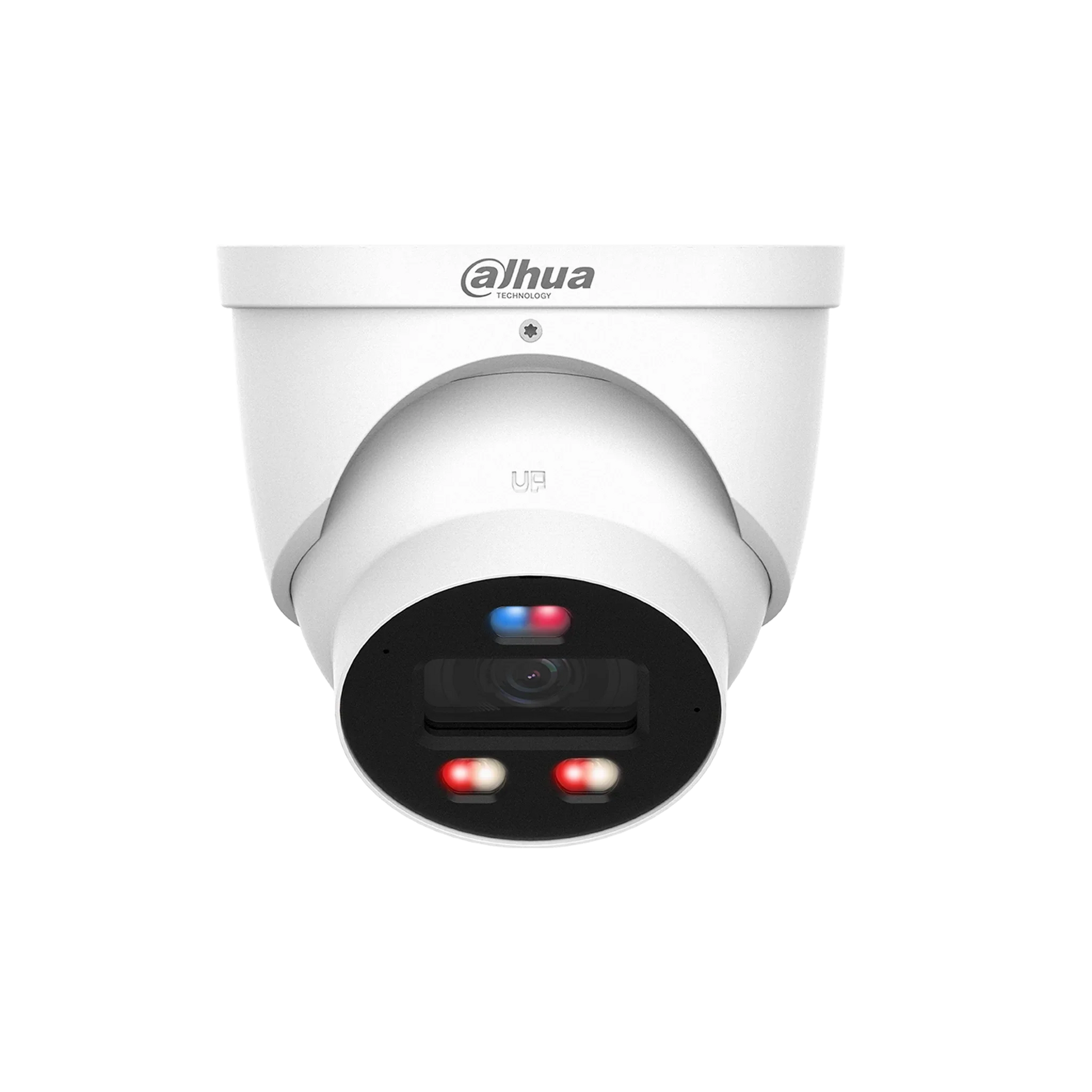

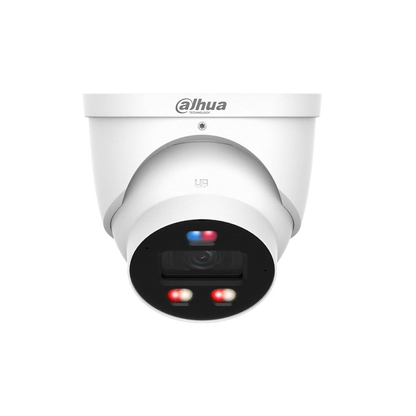

🔹 Active Deterrence (Siren & Light)

• Red and blue flashing warning lights

• Built-in speaker with selectable voice alerts

• Custom voice import supported

• Immediate response to perimeter events

🔹 Intelligent AI Monitoring (WizSense)

• Intrusion detection

• Tripwire protection

• Human & vehicle classification

• SMD 4.0 for accurate smart motion detection

• AcuPick for fast target retrieval

• AI Scene Self-Adaptation (AI SSA)

🔹 Advanced Video Technology

• H.265 / H.264 compression

• AI Coding (≥25% compression efficiency improvement)

• Smart H.265+ / H.264+

• 120dB WDR

• 3D Noise Reduction

• ROI (4 areas)

• Defog & Image rotation

🔹 Audio & Alarm Interface

• Built-in dual microphones

• Built-in speaker (two-way talk supported)

• 1 × Alarm input / 1 × Alarm output

• 1 × Audio input / 1 × Audio output

🔹 Secure & Reliable

• Cyber security encryption & authentication protocols

• HTTPS, 802.1x, IP/MAC filtering

• Trusted boot & firmware encryption

• IP67-rated weather protection

• Wide voltage tolerance (±30%)

---

Detailed Technical Specifications

Camera

• Image Sensor: 1/1.8" CMOS

• Resolution: 3288 × 1850

• ROM: 256MB

• RAM: 2GB

• Electronic Shutter: 1/3s–1/100,000s

• S/N Ratio: >56dB

Lens Options

• Aperture: F1.0

• Mount: M16

Video

• Triple Stream support

• Bit Rate: 3kbps–16384kbps

• Compression: H.265 / H.264 / MJPEG

• Max Streams: 3

Storage

• Micro SD support up to 512GB

• FTP / SFTP / NAS

Network

• RJ-45 (10/100 Base-T)

• ONVIF Profile S / G / T

• Supports IPv4 / IPv6

Power

• 12V DC or PoE

• Max Power Consumption:

  • 8.2W (DC)

  • 10W (PoE)

Environmental

• Operating Temperature: -40°C to +60°C

• Humidity: ≤95%

• Protection: IP67

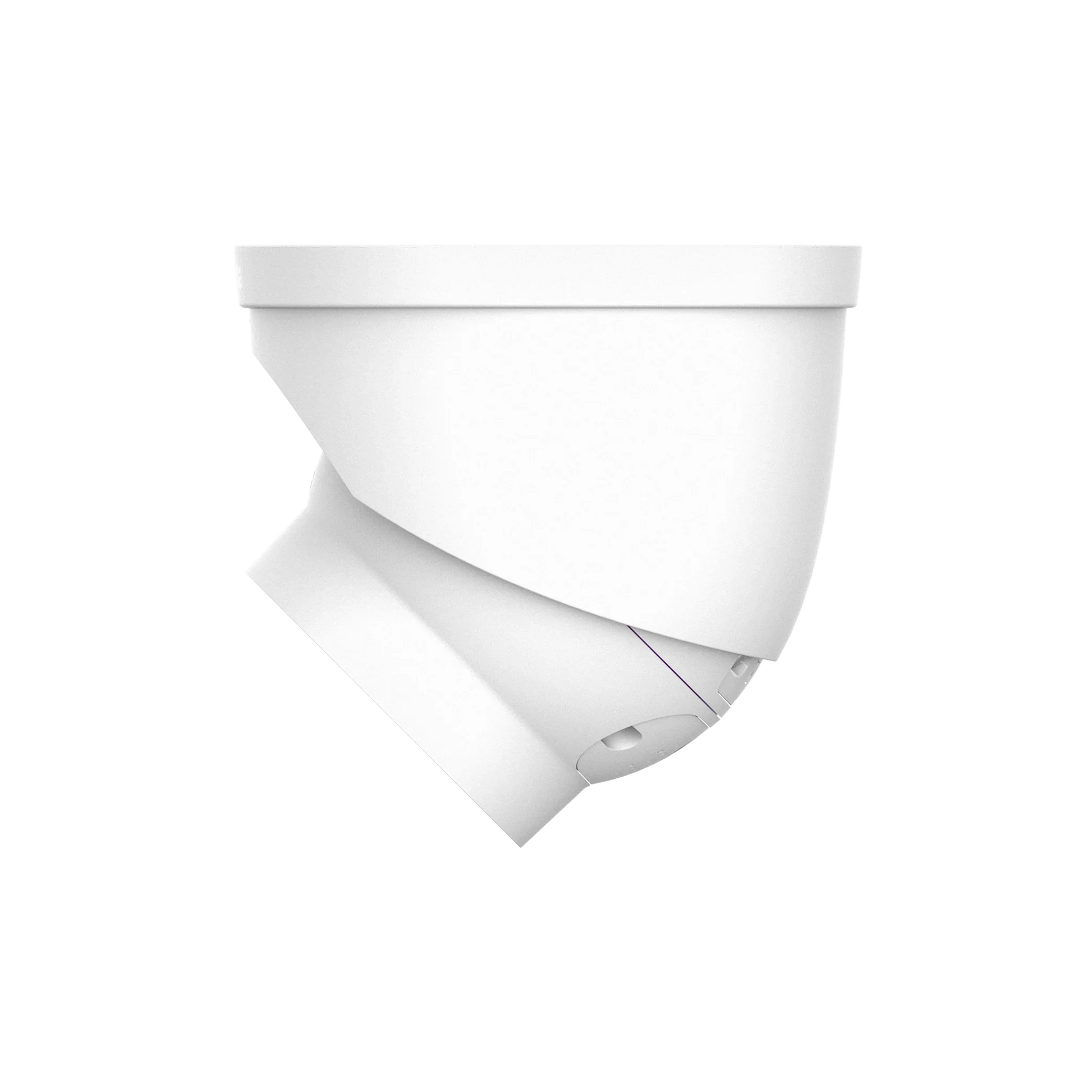

Physical

• Metal housing

• Dimensions: Ø122.0mm × 116.1mm

• Net Weight: 0.8kg

---

Optional Accessories

• PFA137 Junction Box

• PFB205W-E Wall Mount Bracket

• PFA109 Mount Adapter

• PFB220C Ceiling Mount Bracket

• PFA152-E Pole Mount Bracket

• PFM321-EN / PFM321D-EN DC12V1A Power Adapter

• PFM320D-EN 12V 2A Power Adapter

• PFM900-E Mount Tester

• TF-P100 MicroSD Card

---

Practical Use Scenarios

✔ Residential home perimeter protection
✔ Retail store entrance monitoring
✔ Warehouse and logistics facilities
✔ Car parks and driveways
✔ Schools and commercial buildings
✔ Industrial site perimeter detection

The Smart Dual Light + Active Deterrence combination makes it especially effective in areas requiring both evidence recording and real-time threat prevention.

---

Warranty Information

• Manufacturer-backed 3 year warranty

• Warranty serviced in accordance with Dahua Australia & New Zealand distribution standards

• Full technical support available

---

About the Brand – Dahua Technology

Dahua Technology is a globally recognised leader in AIoT-based smart video surveillance solutions. The WizSense series adopts independent AI chips and advanced deep learning algorithms, delivering highly accurate human and vehicle detection while significantly reducing false alarms and bandwidth usage.

---

Datasheets & Resources

• Datasheet

  User Manual

---

Excellence for the Australian and New Zealand Market

This product is supplied through authorised distribution channels and is optimised for deployment across Australian and New Zealand surveillance environments.

• Meets applicable electrical and safety standards

• CE-LVD (EN 62368-1) and CE-EMC compliant

• Suitable for harsh Australian outdoor climates (-40°C to +60°C)

• IP67 weatherproof protection

• Wide voltage tolerance for unstable power conditions

• Local warranty handling aligned with official brand support

Engineered for reliability in demanding ANZ conditions, this model ensures long-term operational stability and regulatory compliance.

---

Frequently Asked Questions (FAQs)

1. Does DH-IPC-HDW3649H-AS-PV-PRO support full-colour night vision?

Yes, DH-IPC-HDW3649H-AS-PV-PRO features Smart Dual Light technology, which switches from IR to warm light to capture full-colour video when a human or vehicle is detected.

2. What is the maximum resolution of DH-IPC-HDW3649H-AS-PV-PRO?

DH-IPC-HDW3649H-AS-PV-PRO outputs up to 6MP resolution (3288 × 1850) at 25/30fps.

3. Does DH-IPC-HDW3649H-AS-PV-PRO support two-way audio?

Yes, DH-IPC-HDW3649H-AS-PV-PRO includes built-in dual microphones and a speaker, enabling two-way talk functionality.

4. Is DH-IPC-HDW3649H-AS-PV-PRO suitable for outdoor use?

Yes, DH-IPC-HDW3649H-AS-PV-PRO is IP67-rated and operates in temperatures from -40°C to +60°C, making it ideal for outdoor installations.

5. What storage options are available on DH-IPC-HDW3649H-AS-PV-PRO?

DH-IPC-HDW3649H-AS-PV-PRO supports Micro SD cards up to 512GB, as well as FTP, SFTP, and NAS storage.

6. Does DH-IPC-HDW3649H-AS-PV-PRO reduce false alarms?

Yes, DH-IPC-HDW3649H-AS-PV-PRO uses SMD 4.0 with AI human and vehicle classification to significantly reduce false motion alerts.
