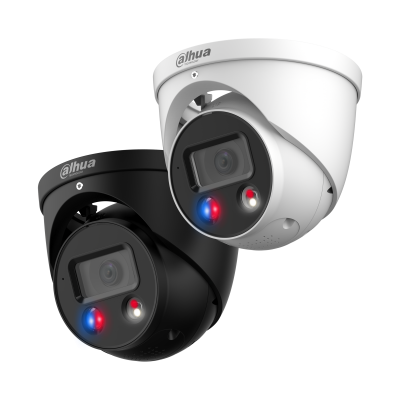

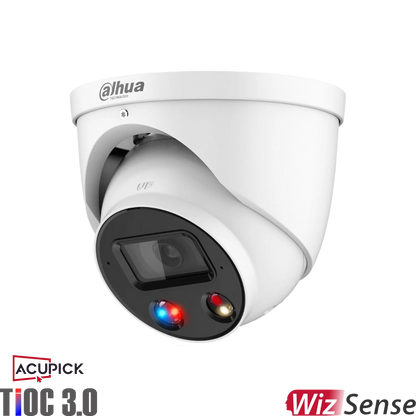

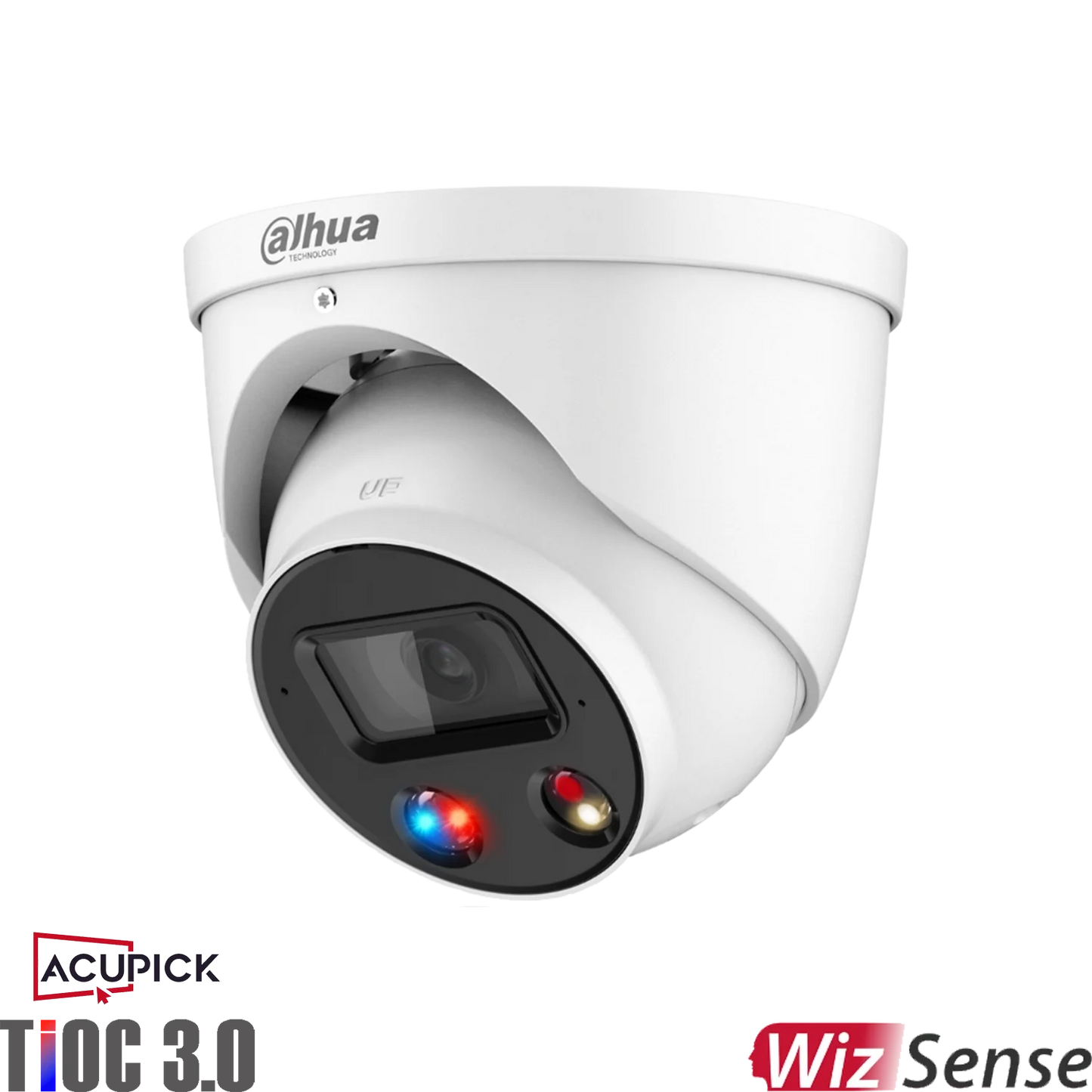

*NEW Dahua 6MP TiOC 3.0 Camera Full-Color Active Deterrence Three in One DH-IPC-HDW3649H-AS-PV-ANZ-S2 with ACUPICK CCTV IP Camera

*NEW Dahua 6MP TiOC 3.0 Camera Full-Color Active Deterrence Three in One DH-IPC-HDW3649H-AS-PV-ANZ-S2 with ACUPICK CCTV IP Camera

$290.70 AUD
$406.98 AUD $290.70 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

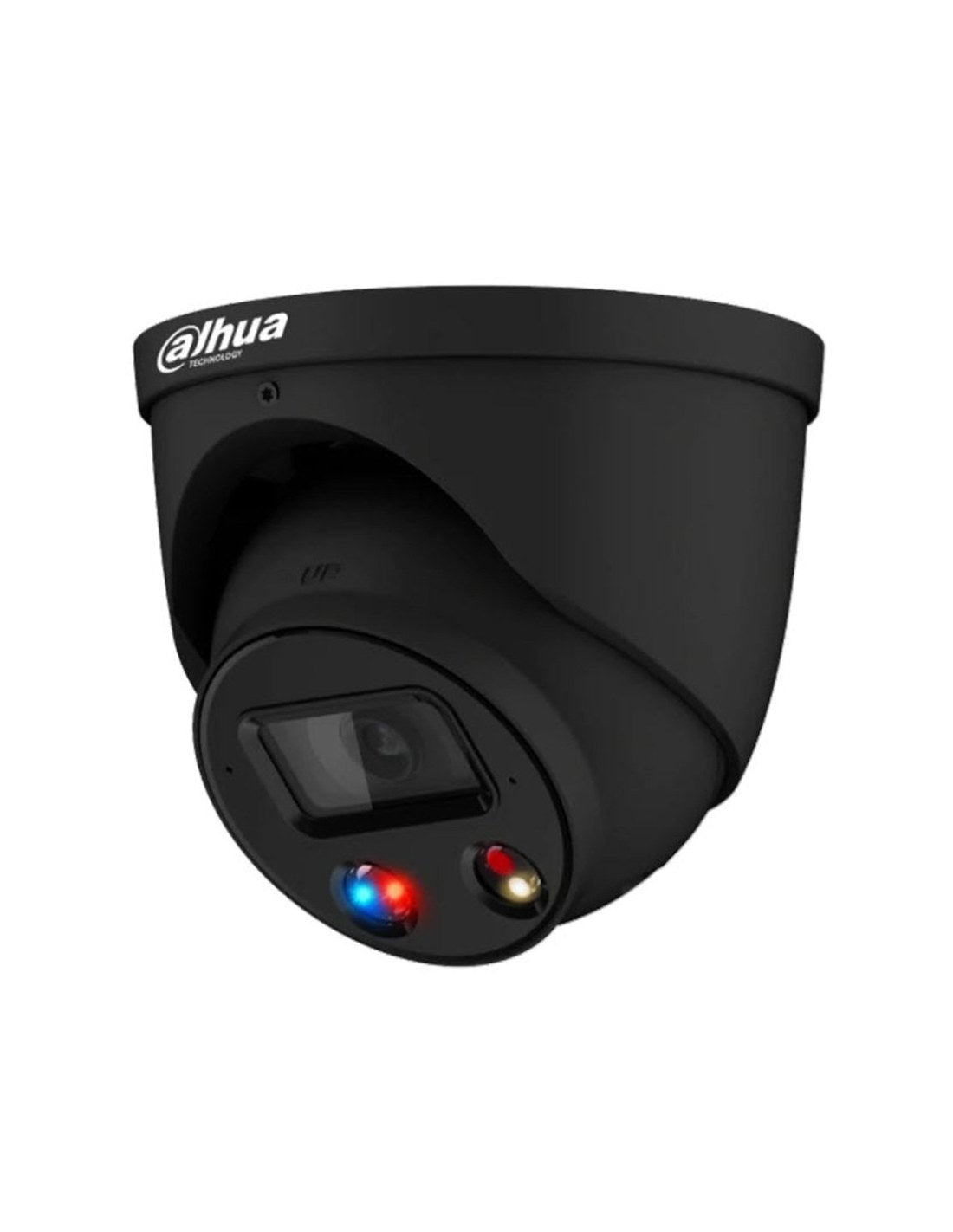

Color

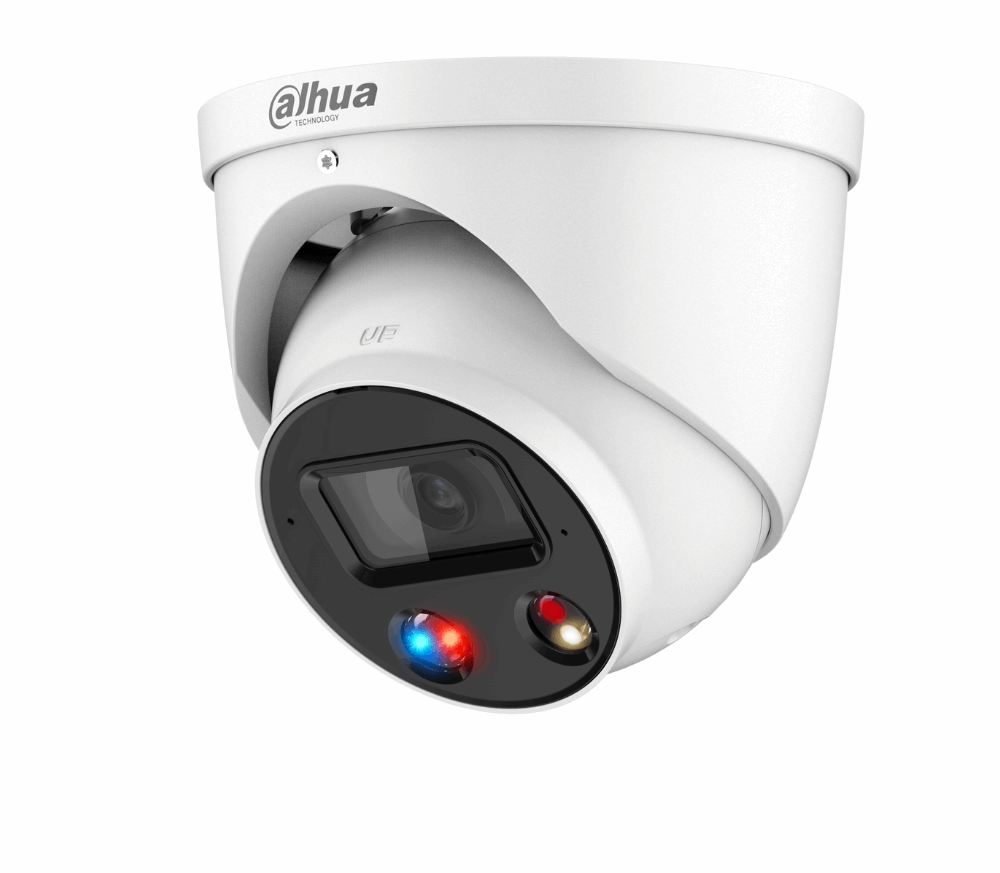

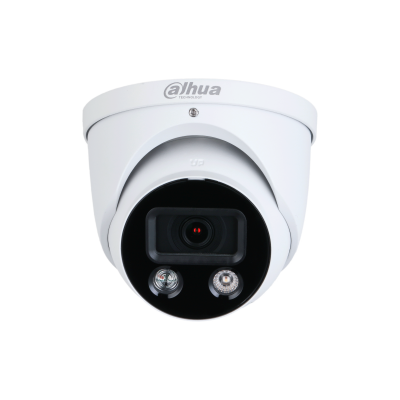

The Dahua IPC-HDW3649H-AS-PV-ANZ-S2 is a high-performance 6MP network camera, designed for advanced security monitoring with smart features, dual illumination, and AI capabilities. Combining cutting-edge technology with robust design, it offers superior image quality, intelligent detection, and active deterrence features, making it ideal for diverse security applications.

Key Features:

Superior Image Quality:

  • 6MP CMOS Sensor: 1/2.7" sensor delivers high-definition images even in low-light conditions.
  • Max. Resolution: Outputs up to 3072 × 2048 @ 25/30 fps for sharp, detailed video.
  • Dual Illumination: Built-in IR and warm light LEDs provide illumination up to 30m, ensuring clear images in complete darkness.

Advanced Video Compression & Coding:

  • H.265+ Codec: High compression rate for reduced bandwidth and storage requirements.
  • AI H.265/H.264: Advanced AI-driven video compression reduces bit rates by at least 25%.

Intelligent Monitoring:

  • AI Detection: Supports intrusion and tripwire detection with human/vehicle classification.
  • Smart Motion Detection (SMD 4.0): Filters out irrelevant objects for precise alerts.
  • AcuPick Technology: Simplifies target searches in live and recorded footage using AI algorithms.

Enhanced Image Optimization:

  • WDR (120 dB): Balances light and dark areas for clear visuals in challenging lighting.
  • 3D Noise Reduction: Reduces noise for a cleaner image.
  • Smart Scene Adaptation (SSA): Dynamically adjusts image settings based on conditions.

Active Deterrence:

  • Sound & Light Alarms: Built-in red/blue lights and siren provide proactive deterrence.
  • Two-Way Audio: Built-in dual microphones and speaker enable real-time communication.

Comprehensive Alarm and Security:

  • Alarm Input/Output: Supports external alarm integration for enhanced security.
  • Cybersecurity: Features such as video encryption, account lockout, and trusted boot ensure data safety.

Flexible Storage & Connectivity:

  • Storage Options: MicroSD card support up to 256GB, FTP, NAS.
  • Network Protocols: Compatible with IPv4/IPv6, ONVIF (Profiles S, G, T), and more.

Durable Build:

  • Weatherproof Design: IP67-rated metal casing ensures protection against harsh weather.
  • Wide Operating Range: Functions reliably in temperatures from -40°C to +60°C.

Technical Specifications:

  • Lens Options: Fixed 2.8mm or 3.6mm, offering wide-angle or focused views.
  • DORI Distances: Detect, Observe, Recognize, Identify distances tailored for both lens options.
  • Power Supply: Operates on 12V DC or PoE with maximum power consumption of 8.8W.
  • Dimensions: Φ122.0 mm × 110.9 mm; Weight: 0.75 kg (Net).

What's in the Box:

  1. Dahua IPC-HDW3649H-AS-PV-ANZ-S2 Camera
  2. Installation Manual
  3. Mounting Accessories

Warranty:

  • Backed by a 3-year limited warranty covering hardware defects and technical support.

The Dahua IPC-HDW3649H-AS-PV-ANZ-S2 is a powerful, versatile solution for businesses, homes, and public spaces requiring top-tier security with intelligent monitoring and deterrence capabilities.







Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3072 (H) × 2048 (V)

ROM

256 MB

RAM

1 G

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 97°; V: 70°; D: 128°

3.6 mm: H: 78°; V: 58°; D: 102°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

66.0 m

(216.54 ft)

26.4 m

(86.61 ft)

13.2 m

(43.31 ft)

6.6 m

(21.65 ft)

3.6 mm

78.0 m

(255.91 ft)

22.2 m

(102.36 ft)

15.6 m

(51.18 ft)

7.8 m

(25.59 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)

Video Frame Rate

Main stream: 3072 × 2048 @(1 fps–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

6M (3072 × 2048; 5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2304×1296/2048

× 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p

(1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×

480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR/ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes

Built-in Speaker

Yes

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S; Profile G;Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP;SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE 9/11
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encrypton;Firmware encrypton;Confguraton

encrypton;Digest;WSSE;Account lockout;Security logs;IP/

MAC fltering;Generaton and importng of X.509 ce

rtfcaton;syslog;HTTPS;802.1x;Trusted boot;Trusted

executon;Trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC; PoE

Power Consumption

Basic: 3.7 W (12 VDC); 4.8 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.3 W (12 VDC); 8.8 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")

Net Weight

0.75 kg (1.65 lb)

Gross Weight

0.92 kg (2.03 lb)


Datasheets
Class Date Title Language Type Download
Datasheet 2023-12-01 IPC-HDW3649H-AS-PV-ANZ-S2_datasheet English pdf




Accessories

Optional:


PFB205W-E
Wall Mount Bracket


PFA152-E
Pole Mount Bracket


PFM900-E
Integrated Mount Tester


PFA109
Mount Adapter


PFM321D
12 VDC 1A Power Adapter


TF-P100
Integrated Mount Tester


PFA137
Junction Box


PFB220C
Ceiling Mount Bracket
