Experience seamless integration of high-end automation with rock-solid security using the NESS M1 GOLD 14" KIT, now bundled with the sleek Navigator Touchscreen Keypad. Designed for demanding residential and commercial applications, this hybrid control system combines voice alerting, advanced automation scripting, robust expansion, and IP connectivity in a 14” steel enclosure.
Whether you're automating lighting, climate, irrigation, or managing access and intrusion detection, the M1 GOLD platform delivers unmatched reliability, control, and customizability through Ness’s intelligent “Whenever/And/Then” programming.

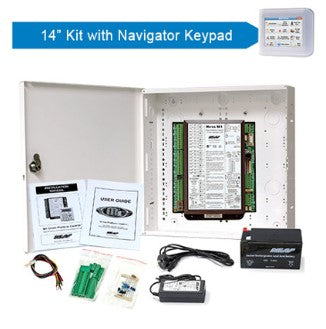

What’s Included in the Box
-
1 × Ness M1 Gold Control Module
-
1 × M1 Navigator 3.5” Touchscreen Keypad
-
1 × Power Assembly Kit (17VDC power supply, 12V 7Ah battery, tamper switch, brackets, dialler lead)
-
1 × 14” Tamper Kit
-
1 × 14” Steel Metal Housing
-
1 × Accessory Kit
-
Installation & User Manuals
Main Features
-
Expandable Security Zones – 16 onboard zones, expandable to 208 with input expanders.
-
Navigator Keypad – Elegant 3.5” LCD touchscreen with intuitive icons and RS-485 communication.
-
Integrated Voice Dialler – Built-in voice announcements using a 500+ word vocabulary or custom phrases.
-
Hybrid Connectivity – Combines hardwired and wireless options (via optional Air2 or TWR transceivers).
-
Powerful Automation Engine – “Whenever/And/Then” rules logic for lights, HVAC, doors, irrigation, and more.
-
Remote Access – Connect via RS-232, PSTN, or optional Ethernet (SmartLAN) for PC/mobile control.
-
Multi-Area Control – Supports 8 fully partitioned areas with individual user codes and authority levels.
-
Comprehensive Event Logging – 512 time/date stamped event history log.
-
Voice & Digital Reporting – Contact ID, SIA, and pager protocols with optional 2-way voice communication.
Detailed Specifications
| Specification | Details |
|---|---|
| SKU | K-1002-NAV |
| Zones | 16 onboard, expandable to 208 |
| Outputs | 13 onboard (1 voice, 1 siren, 1 relay, 10 programmable) |
| Areas (Partitions) | 8 |
| User Codes | 199 (4 or 6-digit, assignable authorities) |
| Event Memory | 512 events, time/date stamped |
| Keypad Display | M1 Navigator Touchscreen, 3.5” color LCD |
| Automation Engine | Rule-based logic “Whenever/And/Then” |
| Voice Dialler | 500+ words, 10 custom phrases |
| Communication | PSTN (standard), RS-232 (included), Ethernet (optional) |
| Power Supply | 2.5A heavy-duty with 1.5A continuous output |
| Housing | 14” steel cabinet with tamper switch |
Warranty Information
Backed by a 2-year manufacturer’s warranty, this kit is covered for material and manufacturing defects when installed and used in compliance with Ness guidelines. Ness provides direct support across Australia and New Zealand.
Brand Description – Ness Corporation
Ness Corporation, founded in 1972, is a leading Australian manufacturer of security and automation solutions. Known for innovative design and uncompromising quality, Ness products are used across homes, businesses, and government sectors throughout Australia and New Zealand.
SKU
K-1002-NAV
Practical Use Scenarios
-
Smart Home Automation – Control lighting, temperature, and appliances with intelligent triggers and schedules.
-
Security Integration – Monitor motion, smoke, glass break, and environmental sensors across large properties.
-
Office and Retail Management – Automate signage, access control, alarms, and energy savings.
-
Remote Holiday Homes – Remotely control and monitor via telephone or internet using optional modules.
-
Multi-Zone Access – Partition premises into secure, separately managed zones for tenants or departments.
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The NESS M1 GOLD 14" KIT with Navigator Keypad (SKU: K-1002-NAV) is designed, manufactured, and supported in Australia, ensuring compliance with local regulations and standards. With compatibility for NDSS certified components, robust warranty coverage, and exclusive distribution through authorized Australian and New Zealand partners, it delivers high-performance automation and security tailored to local market demands.
FAQs – NESS M1 GOLD 14" KIT with Navigator (SKU: K-1002-NAV)
Q1: What is the main benefit of the Navigator Touchscreen Keypad in SKU K-1002-NAV?
A1: It offers an intuitive, modern 3.5” touchscreen interface for managing security, automation, lighting, and more.
Q2: Can I expand the system to support more zones and outputs?
A2: Yes, the M1 Gold supports up to 208 zones and 208 outputs with expansion modules.
Q3: Does the system include voice alerting features?
A3: Yes, it includes a built-in voice dialler with a 500+ word vocabulary and custom recording options.
Q4: Is remote access available for K-1002-NAV?
A4: Yes, via optional SmartLAN module for IP-based remote control and mobile interface.
Q5: Is the M1 GOLD 14" KIT compliant with Australian standards?
A5: Absolutely. Made by Ness Corporation in Australia, it is designed to meet all relevant standards and is fully supported locally.
