NESS D16XCEL4G NAVIGATOR LUX KIT – 4G Alarm Panel with Touchscreen Keypad & SIM | 16 Zone Professional Security System – SKU: NESS-K-9220

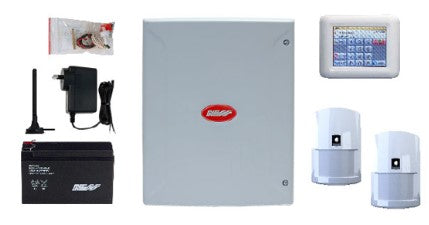

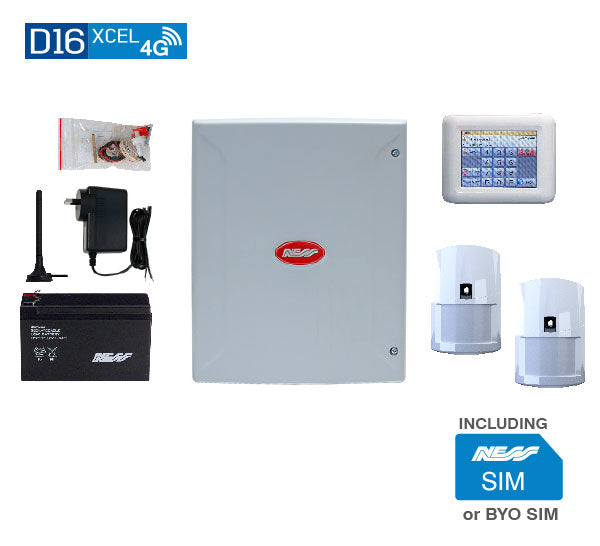

📦 What’s Included in the Box

• 1 × D16XCEL4G Control Panel with onboard 4G Communicator

• 1 × Ness Navigator 3.5" Touchscreen Keypad

• 1 × 12V 7A/H Sealed Lead Acid Backup Battery

• 1 × Ness SIM card (unlocked) – bring your own or activate the included SIM

• Power supply, housing enclosure, mounting accessories

• Comprehensive installation & user manuals

🌟 Main Features

• Expandable to 16 Zones – Secure large residential and commercial sites

• Supports 4 Navigator Keypads – Seamless integration with up to 3 mixed or 4 Navigator keypads

• Up to 56 User Codes – Set access via PIN, radio key, or proximity access card

• Onboard 4G Communicator – Dual-path communication via SMS, voice dialling, and remote app access

• Advanced Partitioning – Divide the system into two fully independent areas plus a common zone

• Navigator Keypad – Intuitive colour touchscreen for full system control and automation features

• 3-Door Access Control – Native support for Wiegand fingerprint or prox readers

• Wireless-Ready – Supports up to 16 wireless zones and 55 radio keys with optional interface

• Remote Access – Control and view system status via Ness iComms/aComms apps and optional Ethernet adapter

• Flexible Scheduling – Real Time Clock with AutoTime for automatic arming, disarming, and output control

• Day & Home Modes – Day Mode for temporary alerts, Home Mode for perimeter-only arming

📐 Technical Specifications

📡 Communications

• Built-in 4G communicator with SMS, voice dialling, and programming features

• SMS-based operation – Arm/disarm, output control, and system programming via mobile

• Alarm event reporting via Central Station (CID or ARMOR IP) or direct to user

• Remote app access via NessXCEL SMS App, Ness iComms or aComms apps

• Direct connect for PC setup and firmware management with NessComms™ software

🛡️ Warranty Information

All Ness systems are backed by a 12-month manufacturer’s warranty. Support and warranty claims are processed directly through Ness Corporation in Australia for fast and reliable service.

🏢 Brand Overview

Ness Corporation is a leading Australian security manufacturer renowned for its high-reliability control panels, detectors, and automation solutions. All products are engineered to meet and exceed national compliance standards, providing peace of mind to installers and end-users across ANZ.

🔧 Practical Use Scenarios

• Residential Protection – Ideal for securing homes with up to 16 zones

• Business Security – Split offices into secure partitions with access control

• Multi-Tenant or Duplex Buildings – Dual area partitioning for independent control

• Warehouse Monitoring – Large zone capacity plus vibration sensor support

• Remote Access Properties – Monitor & control security systems via smartphone anywhere

📄 Datasheets & Downloadable Resources

• D16XCEL4G System Datasheet

• Programming & User Manuals


🇦🇺 Excellence for the Australian and New Zealand Market

• ✅ Designed and Made in Australia by Ness Corporation

• ✅ Fully compliant with Australian RCM and electrical standards

• ✅ Works on all major 4G networks across ANZ

• ✅ Local support and direct warranty processing through Ness

• ✅ Tested and optimized for Australian/New Zealand homes and commercial applications

❓ Frequently Asked Questions (SKU: NESS-K-9220)

Q1: Can I use my own SIM with the Ness D16XCEL4G kit (NESS-K-9220)?
Yes, the system is not SIM-locked. You can activate the included Ness SIM or insert your own.

Q2: How many keypads can I install on this system (NESS-K-9220)?
It supports up to 3 mixed keypad types or 4 Navigator touchscreens.

Q3: Does SKU NESS-K-9220 allow remote app control?
Yes, the system is compatible with Ness iComms/aComms apps and supports SMS control and alerts.

Q4: Can I integrate the system with fingerprint readers?
Yes. It includes 3 Door Access Controllers supporting Wiegand prox and biometric readers.

Q5: What happens during a power outage with NESS-K-9220?
The system uses a 12V 7Ah SLA backup battery and performs dynamic battery tests hourly and during arming.
