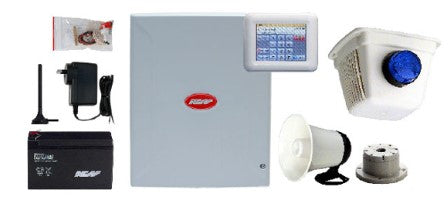

NESS D16XCEL4G Alarm Kit with Navigator Touchscreen Keypad & Siren – 16 Zone 4G Security System with SIM – SKU: NES-K-9313

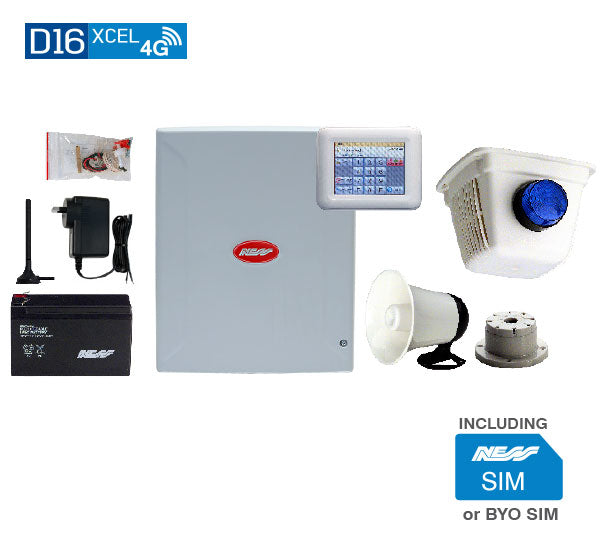

📦 What’s Included in the Box

• 1 × D16XCEL4G Control Panel with onboard 4G Communicator

• 1 × Navigator Touchscreen Keypad

• 1 × Combo Siren with strobe and horn speaker

• 1 × 12V 7A/H Sealed Lead Acid Backup Battery

• 1 × Unlocked Ness SIM Card (optional activation)

• Mounting enclosure, power supply, and installation accessories

• Instruction manuals

🌟 Main Features

• Expandable to 16 Zones – Customise to suit large homes or small business applications

• Up to 56 User Codes – Access via PIN, radio key, or access card

• Navigator Touch Keypad – 3.5" colour LCD with intuitive graphical interface

• Two Area Partitioning – Secure two independent zones, with shared common area

• Built-in 4G Communicator – SMS notifications, voice reporting, and remote control via phone or app

• Wireless Ready – Optional Ness Radio Interface supports up to 55 radio keys and 16 wireless zones

• Door Access Integration – Control up to 3 doors with proximity card or biometric readers

• Programmable Outputs – 4 onboard auxiliary outputs (expandable to 8), ideal for lights, gates, and automation

• Real Time Clock with AutoTime – Schedule automatic arming/disarming and output control

• Home, Day & Vacation Modes – Adapt to varying security needs, day or night

📐 Technical Specifications

📡 Communications

• Onboard 4G Communicator with voice dialler and SMS alerts

• Remote control of arming/disarming and output triggering via phone or app

• SMS-based reporting, programming, and user commands

• Central station reporting via Contact ID and ARMOR IP formats

• Compatible with NessComms™ for installer setup and monitoring

🛡️ Warranty Information

The Ness D16XCEL4G system is backed by a 12-month manufacturer’s warranty, serviced directly through Ness Corporation in Australia. All components are built and tested to Australian quality standards.

🏢 Brand Overview

Ness Corporation is Australia’s most trusted security brand, manufacturing premium alarm and automation products locally. With decades of innovation, their products meet the toughest reliability and compliance benchmarks across ANZ.

🔧 Practical Use Scenarios

• Residential Home Security – 16 zones to protect all entrances, windows, and internal areas

• Retail or Office Premises – Secure entry points with integrated access control

• Remote Property Management – Use 4G and app control for off-site system management

• Multi-Tenant Buildings – Two area partitioning for independent unit-level security

• Installer-Friendly – Quick programming, auto defaults, surge protection, flexible output mapping

📄 Datasheets & Downloadable Resources

• D16XCEL4G Panel Datasheet

• User & Installer Manuals

🇦🇺 Excellence for the Australian and New Zealand Market

• ✅ Proudly Made in Australia by Ness Corporation

• ✅ Complies with all Australian RCM and electrical safety standards

• ✅ Factory-direct warranty support across Australia and New Zealand

• ✅ Optimised for Australian 4G networks

• ✅ Officially sourced from authorized distributors only

❓ Frequently Asked Questions (SKU: NES-K-9313)

Q1: Is the Ness D16XCEL4G kit (NES-K-9313) compatible with third-party SIM cards?
Yes. The included SIM is not locked. You may use the supplied Ness SIM or any local 4G SIM.

Q2: How many keypads can I connect to the NES-K-9313?
You can connect up to 3 mixed keypad types or 4 Navigator keypads.

Q3: Can I control the NES-K-9313 system remotely?
Yes. Use the Ness iComms or aComms app or send SMS commands via mobile for remote control.

Q4: What types of sirens are supported by SKU NES-K-9313?
It supports up to 3 × 8 Ohm horn speakers, 2 × 1W strobes, and 3 × 12V piezo screamers.

Q5: Can SKU NES-K-9313 integrate with my existing automation system?
Yes. The panel includes programmable outputs, RS232 support, and powerful automation logic via NessComms™.
