NESS D16XCEL Alarm Panel with Navigator Touchscreen Keypad & SIM | 16-Zone Security System with 4G & Access Control – SKU: NESSK-9323

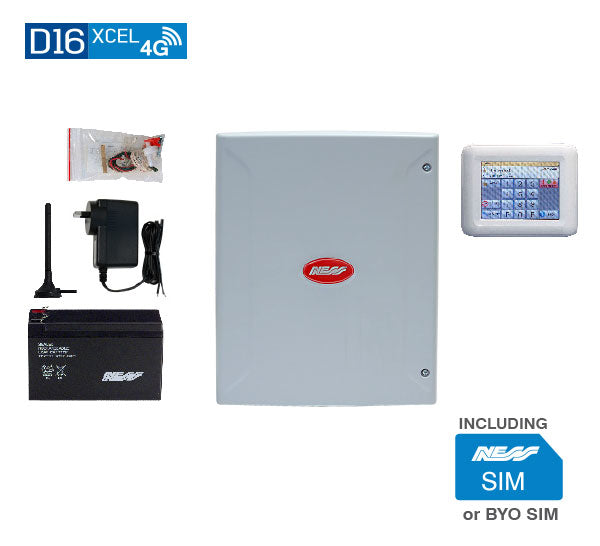

📦 What’s Included in the Box

• 1 × Ness D16XCEL Alarm Panel with onboard 4G Communicator

• 1 × Ness Navigator 3.5” Touchscreen Keypad

• 1 × Ness SIM Card (unlocked – bring your own SIM compatible)

• 1 × 12V 7Ah Rechargeable Backup Battery

• Power Supply, Housing, Mounting Accessories

• Complete User & Installer Manuals

🌟 Main Features

• Expandable Security: 8 or 16 programmable alarm zones for flexible protection

• Multiple Keypad Support: Connect up to 3 mixed keypads (Navigator/Saturn/LCD) or 4 Navigator keypads

• User Access Control: 56 programmable user codes via PIN, radio key, or proximity access card

• Two-Area Partitioning: Independently control and manage two separate zones + common area

• Onboard 4G Communicator: Built-in dialler supports voice, SMS, and central station communication

• Touchscreen Navigation: Sleek Navigator keypad with intuitive controls and plain-English prompts

• Wireless Integration: Optional Ness Radio Interface for up to 16 wireless zones and 55 radio keys

• Access Control Ready: Built-in 3 Door Controller supports Wiegand fingerprint or proximity readers

• Remote Access: Use Ness iComms/aComms mobile apps or SMS for remote arm/disarm and system status

• Automated Scheduling: RTC with AutoTime functions for automatic arming/disarming and output control

📐 Technical Specifications

📡 Communications

• Voice & SMS: Report and control via SMS messaging, voice prompts, and keypad tones

• Internet & App Control: Optional Ethernet adapter enables remote control via apps

• Self-Monitoring or Central Station: Supports both CID and ARMOR IP monitoring formats

• Direct Connect Programming: Use NessComms™ software for advanced configuration

🛡️ Warranty Information

Covered by a 12-month manufacturer’s warranty. All claims and service are handled directly through Ness Corporation for reliable local support.

🏢 Brand Overview

Ness Corporation is a pioneer in Australian-designed electronic security. Offering robust, field-tested alarm systems with integrated automation, Ness products are widely trusted by professional installers and security integrators nationwide.

🔧 Practical Use Scenarios

• Large Homes – Customizable 16-zone coverage and partial arming via Home Mode

• Commercial Sites – Dual partitioning and access control for shared spaces

• Multi-Occupancy Buildings – Allow independent operation between tenants

• Remote Access Premises – Full control via smartphone or SMS wherever you are

• Wireless-Ready Expansions – Easily integrate PIRs, reed switches, and key fobs

📄 Datasheets & Downloadable Resources

• D16XCEL System Datasheet

• Installation Manual


🇦🇺 Excellence for the Australian and New Zealand Market

• ✅ 100% Australian-Made by Ness Corporation

• ✅ Compliant with RCM standards and Australian building codes

• ✅ Fully certified for 4G networks in Australia & New Zealand

• ✅ Optimised for ANZ residential and commercial sites

• ✅ Supported by Ness-authorised warranty and service network

❓ Frequently Asked Questions (SKU: NESSK-9323)

Q1: Can I use a non-Ness SIM card with this system (NESSK-9323)?
Yes, the system is not SIM-locked. You may use your own SIM or activate the included Ness SIM.

Q2: How many users can be programmed into the system (NESSK-9323)?
The panel supports up to 56 user codes for PIN, proximity access, or radio key operation.

Q3: Can the D16XCEL panel be programmed remotely (NESSK-9323)?
Yes, you can configure the system via NessComms™ software or control it via mobile apps with optional Ethernet.

Q4: Does the system support wireless accessories (NESSK-9323)?
Yes. With the optional Ness Radio Interface, the system supports wireless PIRs, door sensors, and key fobs.

Q5: Is the Navigator keypad included with SKU NESSK-9323 a touchscreen?
Yes, it includes the 3.5” Navigator Touchscreen Keypad with plain-English display and intuitive controls.
