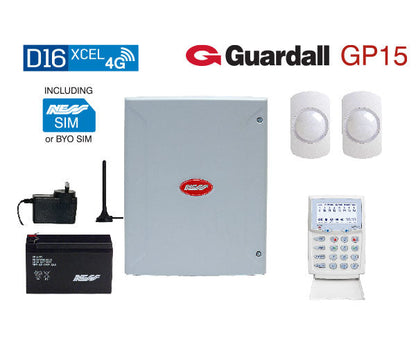

Ness D16XCEL 4G Alarm Kit with KPX+ Keypad & Guardall GP15 PIRs | 16-Zone Security System – SKU: NASS-K-9414

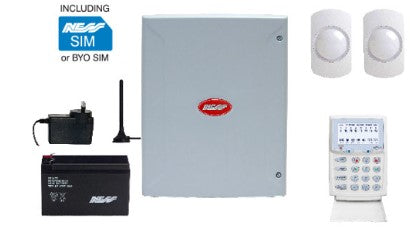

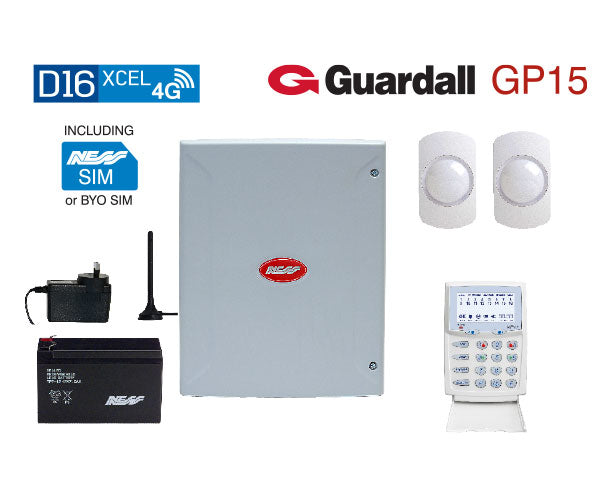

📦 What’s Included in the Box

• 1 × Ness D16XCEL 4G Control Panel (with Power Supply & 12V 7Ah Backup Battery)

• 1 × 106-310 Ness KPX+ White LCD Keypad

• 2 × 122-001 Guardall GP15 PIR Motion Detectors (15m range)

• 1 × Ness SIM Card (unlocked, optional use)

• User Manuals & Mounting Hardware

🌟 Main Features

• 16-Zone Advanced Control Panel – Scalable and suitable for small to medium installations

• Integrated 4G Communicator – Reliable alarm reporting via SMS, voice, or monitoring centre

• SIM-Unlocked Flexibility – Compatible with any network, including the included Ness SIM

• KPX+ LCD Keypad – Modern design with backlit display and intuitive menu navigation

• Guardall GP15 PIR Sensors – Premium UK-manufactured motion detectors with 15m range

• Two-Area Partitioning – Ideal for separating residential or commercial zones

• Up to 56 User Codes – Configurable for keypad PINs, radio keys, or access cards

• Remote Access Capability – Control via Ness iComms/aComms apps or SMS

📐 Detailed Specifications

📡 Communication & Remote Control

• Onboard 4G module for voice and SMS-based reporting

• Arm/disarm, check status, and control outputs via SMS

• Optional connection to monitoring stations

• Remote access via NessComms™, iComms, and aComms apps

• Supports central station monitoring (CID, ARMOR IP formats)

🛡️ Warranty Information

Includes a 12-month manufacturer’s warranty from Ness Corporation. Warranty claims are handled locally through authorized ANZ distributors.

🏢 Brand Overview

Ness Corporation is a leading Australian designer and manufacturer of high-quality security and automation products. With a proven track record in residential, commercial, and government applications, Ness delivers reliable, certified solutions that meet the strict demands of Australian and New Zealand standards.

🔧 Practical Use Scenarios

• Home Security – Protect entry points, garages, and indoor zones

• Retail Stores – Secure back office and customer areas independently

• Warehouses – Reliable detection in large indoor areas with wide PIR coverage

• Professional Installations – Ideal for installers needing flexible SIM and app-based control

• Split-Zone Monitoring – Manage front and back areas as separate security zones

🇦🇺 Excellence for the Australian and New Zealand Market

• ✅ Designed and manufactured in Australia by Ness Corporation

• ✅ Fully compliant with RCM and ANZ industry standards

• ✅ Optimised for Australian 4G networks: Telstra, Optus, Vodafone

• ✅ All products sourced via authorised channels in Australia/New Zealand

• ✅ Warranty support handled directly through Ness-authorised partners

❓ Frequently Asked Questions (SKU: NASS-K-9414)

Q1: Is the D16XCEL 4G panel (SKU: NASS-K-9414) locked to a specific carrier?
No. It comes with a Ness SIM card but is unlocked for use with any compatible 4G provider.

Q2: Can I expand the system beyond the included PIRs (SKU: NASS-K-9414)?
Yes, the D16XCEL supports up to 16 zones and can be expanded with additional PIRs and inputs.

Q3: Is remote access available for SKU: NASS-K-9414?
Yes. You can control the system via Ness iComms/aComms mobile apps or SMS commands.

Q4: Are the Guardall GP15 PIRs (SKU: NASS-K-9414) pet-friendly?
These PIRs are not specifically rated pet-friendly but offer high immunity to small movement noise. Consider upgrading to pet-immunity models if needed.

Q5: How many user codes can I set on SKU: NASS-K-9414?
Up to 56 user codes are available, suitable for both personal and business applications.
