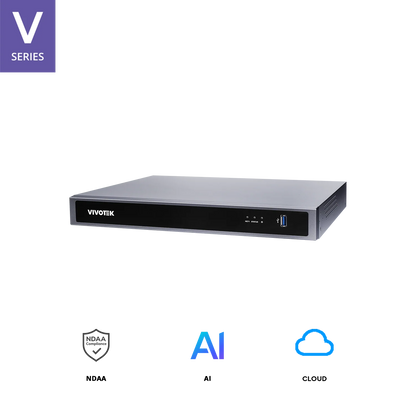

ND9426P Core+ AI 16-Channel Network Video Recorder with Embedded PoE | 4K UHD Display | Deep AI Search | H.265 Compression | RAID 0/1 | VIVOTEK

The VIVOTEK ND9426P Core+ AI 16-Channel NVR is an enterprise-grade surveillance solution designed for advanced AI-powered video analytics and robust multi-channel performance. Featuring 16 embedded PoE ports, 4K HDMI display, deep learning-based object and attribute search, and support for RAID 0/1, this NVR delivers efficient video management for growing commercial and industrial surveillance systems. Enhanced with Trend Micro Cybersecurity, smart VCA support, and seamless integration with ONVIF Profile S devices, the ND9426P is ideal for multi-site deployment, high-traffic environments, and security teams that demand rapid video retrieval and actionable intelligence.

What’s in the Box

• 1x ND9426P Core+ AI 16-Channel NVR

• 1x Power Cord

• 1x HDMI Cable


• 1x Quick Installation Guide

• Mounting Accessories for HDD Installation

Main Features

• 16-Channel 4K NVR with HDMI (3840x2160) and VGA (1920x1080) video output

• Embedded 16-Port PoE Switch (802.3af/at, Max 200W)

• AI Deep Search: Identify people, vehicles, scene activity, and object attributes

• Supports RAID 0/1 for HDD redundancy

• Real-time decoding: Up to 4K @ 120fps or 1080p @ 480fps

• Event-driven recording and smart alerts (motion, tampering, intrusion, cyber attack)

• Remote access via iViewer, VIVOCloud, VORTEX (Android & iOS)

• USB 3.0 front port for quick video export, FTP backup support

• Smart Search II, VCA event search, and object counting features

• Hardened with Trend Micro IoT Security & Cybersecurity Management

Detailed Specifications

Model: ND9426P
Video Output: HDMI x1 (up to 3840x2160), VGA x1 (up to 1920x1080)
Display Layouts: 1x1, 2x2, 3x3, 4x4, 1M+12, 3V, etc.
PoE Ports: 16x (802.3af/at), Max Total Power 200W
HDD Support: 2x 3.5" SATA Bays (RAID 0/1 supported, HDDs sold separately)
Recording Throughput: 192 Mbps
Video Format Support: H.265, H.264, MJPEG
Decoding Resolution: Up to 7680x2560
Audio I/O: 3.5mm Jack Input x1, Output x1
Alarm I/O: 4 In / 1 Out
Network Ports: 2x RJ-45 10/100/1000 Mbps
USB Ports: Front x1 (USB 3.0), Back x2 (USB 2.0)
Remote Client Support: VAST Security Station (VSS), Shepherd
Browser Support: Chrome
Languages: Multi-language support including English, French, Japanese, and more
Power Input: 100–240V AC, 50/60Hz
Power Consumption: Max. 270W
Dimensions: 365 x 315 x 44 mm
Weight: 2.78 kg
Operating Temp: -10°C to 55°C
Certifications: CE, FCC, UL, C-Tick, CB, VCCI, BSMI, BIS

Warranty Information

• manufactures warranty applied

Brand Information

VIVOTEK Inc. is a global surveillance technology leader, providing world-class IP cameras, NVRs, video analytics, and cybersecurity-enhanced surveillance systems. Trusted worldwide, VIVOTEK solutions are deployed in government, retail, transportation, and enterprise sectors.

SKU: ND9426P

Practical Use Scenarios

• Corporate Campuses & Offices: Monitor multiple building zones, entrances, and carparks simultaneously with real-time alerts.

• Retail Chains & Warehousing: Detect customer flow, monitor deliveries, and track suspicious behaviors across locations.

• Public Infrastructure: Ideal for councils and transport hubs needing multi-channel coverage with deep search capability.

• Hospitality & Accommodation: Maintain guest safety and protect operational assets with centralized AI surveillance.

• Educational Institutions: Record campus activity and access areas while retrieving critical footage quickly via timeline explorer.

Datasheets / Downloadable Resources

• ND9426P Datasheet (PDF)


Excellence for the Australian and New Zealand Market

• Certified with C-Tick, UL, and other global standards, ensuring local compliance

• Tailored for ANZ operational temperatures and environmental conditions

• Offered via authorized Australian & New Zealand distributors only

• Warranty managed through local VIVOTEK partners for rapid support

• Fully compatible with NDSS-certified security frameworks used across the region

FAQs – ND9426P

Q1: Does the ND9426P support deep learning-based AI search?
Yes, the ND9426P supports AI Deep Search for identifying people, vehicles, clothing, gender, and more.

Q2: Can I connect third-party IP cameras to the ND9426P?
Yes, ND9426P is ONVIF Profile S compliant, supporting third-party integration.

Q3: What is the total PoE output capacity of the ND9426P?
The NVR supports up to 200W total output across 16 PoE ports.

Q4: Does the ND9426P provide local video output in 4K resolution?
Yes, HDMI output supports up to 3840x2160 resolution for live view and playback.

Q5: Is RAID supported on the ND9426P?
Yes, both RAID 0 and RAID 1 are supported with two internal 3.5” SATA drives (not included).

Q6: Can I manage the ND9426P remotely via smartphone?
Yes, it supports iViewer, VIVOCloud, and VORTEX apps for remote monitoring and playback.

Q7: Is the ND9426P certified and optimized for the Australian market?
Absolutely. The ND9426P is fully compliant with C-Tick and is optimized for Australian/NZ voltage, climate, and regulatory requirements.
