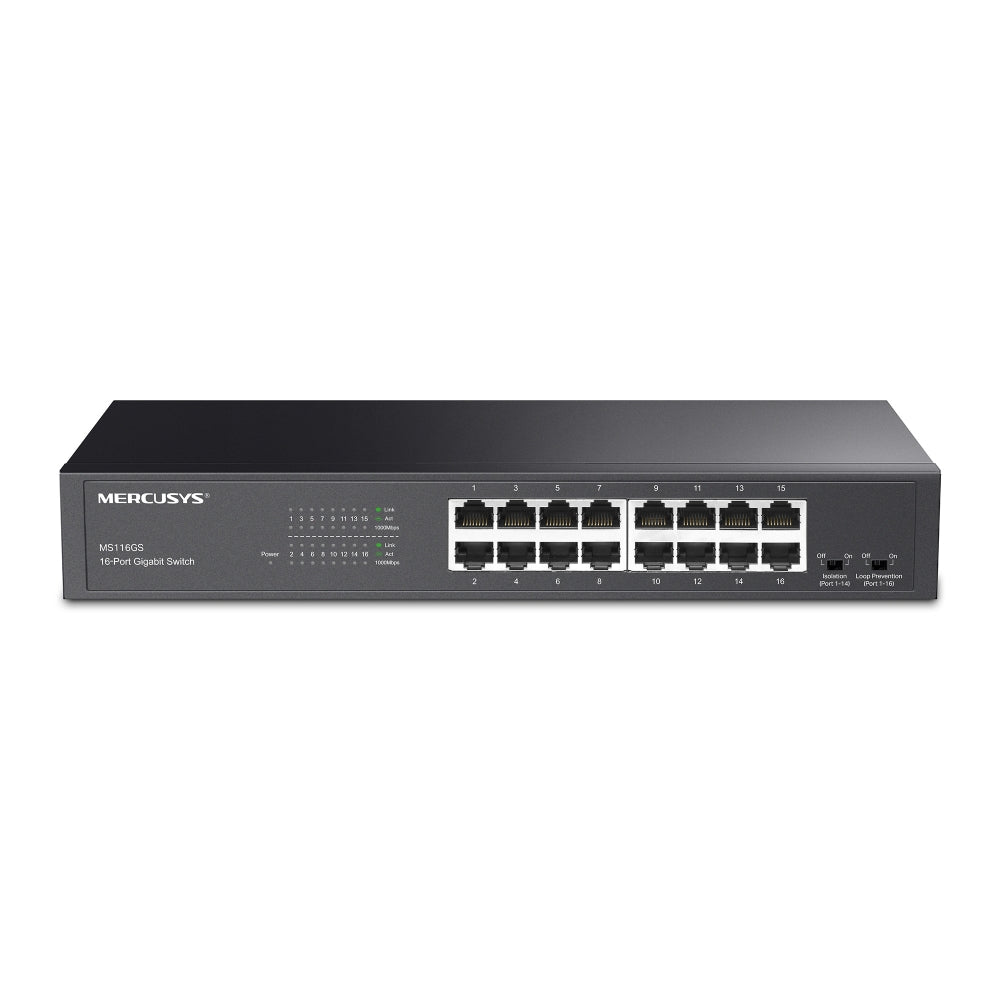

MS116GS | 16-Port Gigabit Desktop/Rackmount Switch | MERCUSYS

The MERCUSYS MS116GS is a powerful 16-port Gigabit switch engineered to deliver high-speed connectivity and seamless performance for growing home, office, and small business networks. With 16× 10/100/1000 Mbps auto-negotiation RJ45 ports, it ensures ultra-fast wired connections and supports Auto-MDI/MDIX for easy cabling.

Featuring Plug-and-Play installation, Loop Prevention, and a convenient Isolation Mode, the MS116GS provides both simplicity and enhanced network security. Encased in a durable metal chassis for excellent heat dissipation, this switch offers long-lasting reliability whether placed on a desktop or mounted in a rack.

What's Included in the Box

• 1× MERCUSYS MS116GS 16-Port Gigabit Switch

• 1× Power Adapter

• 1× Installation Guide

• 1× Mounting Kit (for rack installation)

Main Features

• 🔌 16× Gigabit Ports – High-performance 10/100/1000 Mbps RJ45 ports with auto-negotiation and Auto-MDI/MDIX

• ⚙️ Plug and Play – No configuration required; quick deployment saves time and effort

• 🔐 Isolation Mode – One-click separation of client traffic improves security and reduces broadcast interference

• 🔄 Loop Prevention – Protects network performance by detecting and preventing switching loops

• 🧊 Durable Metal Housing – Ensures heat efficiency and long-term operation in demanding environments

• 📊 8K MAC Address Table – Supports stable data handling in larger networks

• ✅ IEEE Compliance – Standards: IEEE 802.3i/u/ab/x, IEEE 802.1p

• 💡 LED Indicators – For power, link/activity, and 1000 Mbps status per port

Detailed Specifications

Standards and Protocols

• IEEE 802.3i, 802.3u, 802.3ab (Gigabit Ethernet)

• IEEE 802.3x (Full Duplex Flow Control)

• IEEE 802.1p (QoS)

Interface

• 16× 10/100/1000 Mbps RJ45 Ports

• Auto-Negotiation and Auto MDI/MDIX support

Switching Capacity

• 32 Gbps

MAC Address Table

• 8K entries

Transfer Method

• Store-and-Forward

Advanced Features

• Loop Prevention

• Isolation Mode

• IEEE 802.3x Flow Control

• 802.1p/DSCP QoS

Hardware Overview

• Dimensions: 294 × 140 × 44 mm (11.6 × 5.5 × 1.7 in)

• LED Indicators: Power, Link/Act, 1000 Mbps

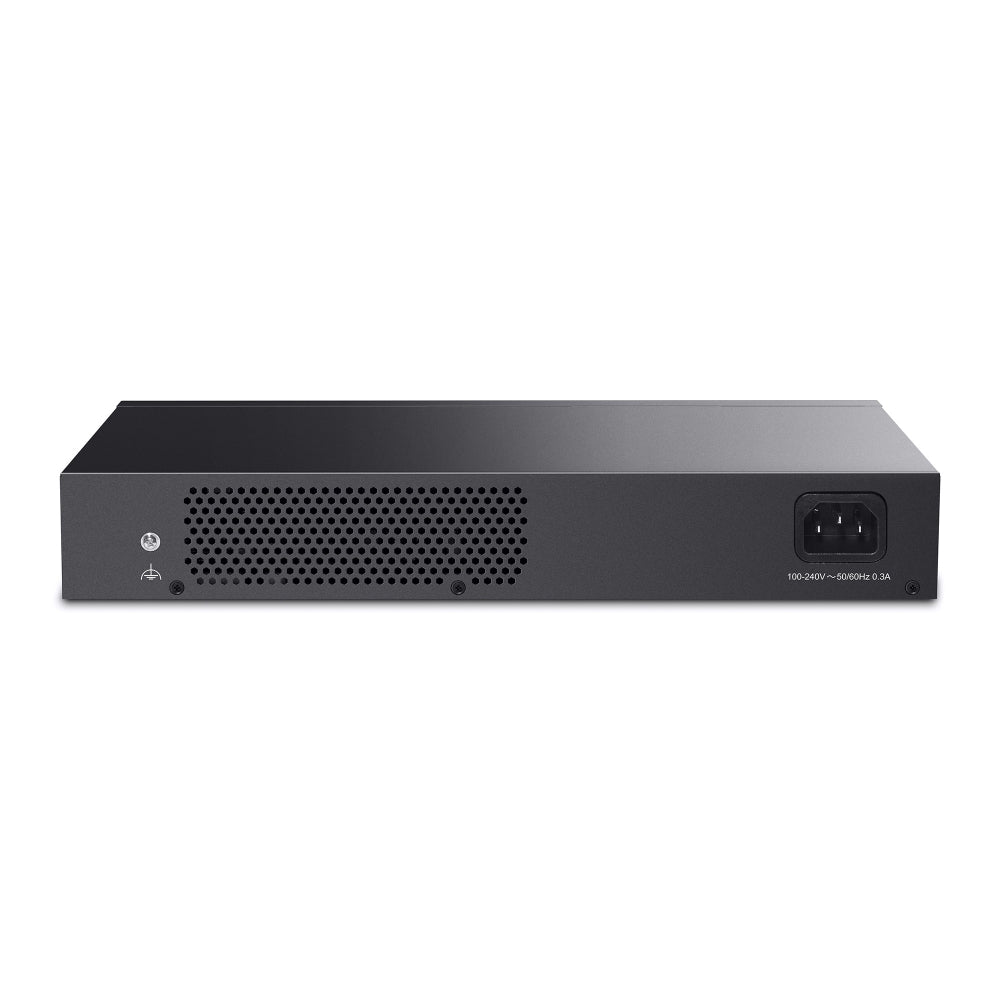

• External Power Supply: 100–240V AC, 50/60Hz

• Mounting Options: Desktop or Rackmount

Certifications

• CE

• RoHS

Warranty Information

Manufactures warrenty applied .

Brand Description

MERCUSYS is committed to providing high-quality networking solutions for everyday users, from home offices to business setups. Designed with performance and simplicity in mind, MERCUSYS products deliver reliable connectivity at outstanding value.

SKU

MS116GS

Practical Use Scenarios

• 🏢 Small Office Networks – Connect multiple workstations, printers, and VoIP phones

• 🏠 Home Networking – Reliable wired backhaul for smart TVs, NAS devices, and gaming consoles

• 🛡️ Secure Guest Networks – Use Isolation Mode to segment network access for guests or IoT

• 🖧 Surveillance Systems – Ideal for IP camera connectivity without bottlenecks

• 🛠️ Rack-Based IT Installations – Durable design fits standard racks for professional network setups

Datasheets / Downloadable Resources

• MERCUSYS MS116GS Datasheet (PDF)


Excellence for the Australian and New Zealand Market

The MS116GS Gigabit Switch is designed and certified for full compatibility with Australian and New Zealand power and network standards. MERCUSYS guarantees authentic products distributed through approved ANZ channels, offering local warranty, compliance with electrical safety requirements, and dedicated technical support.

 FAQs

Q1: Can I use the MS116GS in a rackmount setup? (MS116GS)
Yes, the MS116GS includes hardware for rackmount installation, making it ideal for structured IT environments.

Q2: Does the MS116GS support Plug-and-Play functionality? (MS116GS)
Absolutely. The MS116GS requires no configuration—just plug in your devices and you're ready to go.

Q3: What is Isolation Mode used for on the MS116GS? (MS116GS)
Isolation Mode allows one-click client traffic separation, improving network security and reducing broadcast interference.

Q4: How does Loop Prevention work in the MS116GS? (MS116GS)
Loop Prevention detects and manages switching loops, helping prevent network disruptions or broadcast storms.

Q5: Is the MS116GS compatible with 100 Mbps and 10 Mbps devices? (MS116GS)
Yes, each port supports Auto-Negotiation for 10/100/1000 Mbps, allowing backward compatibility with legacy Ethernet devices.
