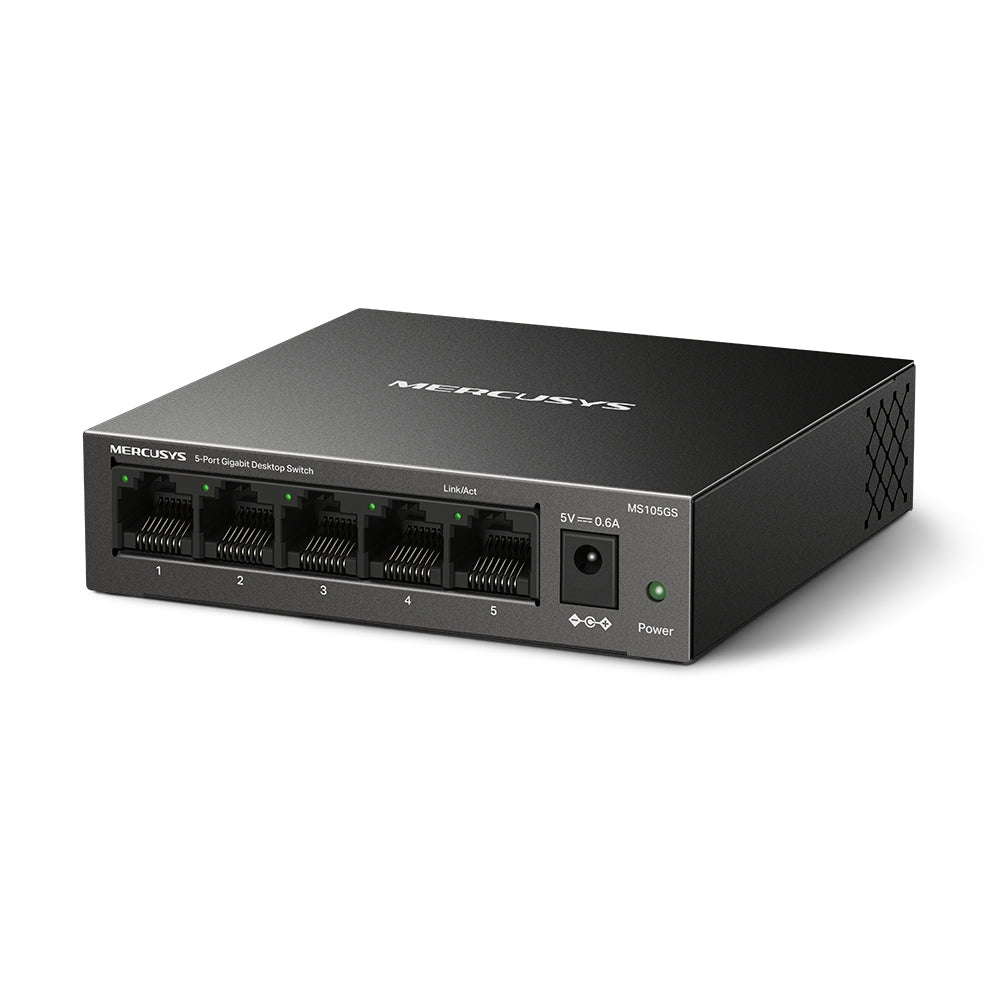

MS105GS | 5-Port Gigabit Desktop Switch | MERCUSYS

Upgrade your wired network with the MERCUSYS MS105GS, a compact yet robust 5-Port Gigabit Desktop Switch designed for high-speed connectivity and effortless deployment. With 5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports, the MS105GS supports Auto-MDI/MDIX, allowing hassle-free integration into any Ethernet-based environment.

Built with a durable metal casing and capable of desktop or wall-mounted installation, this switch is perfect for home offices, small businesses, and multimedia setups. Plug-and-Play functionality, combined with Green Ethernet technology, makes it a reliable, energy-efficient networking solution.

What's Included in the Box

• 1× MERCUSYS MS105GS 5-Port Gigabit Desktop Switch

• 1× Power Adapter

• 1× Quick Installation Guide

Main Features

• ⚡ Full Gigabit Connectivity – 5× 10/100/1000 Mbps RJ45 ports with Auto-Negotiation and Auto-MDI/MDIX

• 🔌 Effortless Plug-and-Play – No software setup or configuration required

• 🧱 Durable Steel Housing – Long-lasting design with superior heat dissipation

• 🧰 Flexible Mounting Options – Desktop placement or wall-mount supported

• 🌿 Energy-Saving – Green Ethernet technology intelligently reduces power consumption

• 🧠 Advanced Traffic Management – Includes IGMP Snooping for optimized multicast traffic and 802.1P/DSCP QoS for prioritized data flows

Detailed Specifications

Standards and Protocols

• IEEE 802.3, IEEE 802.3u, IEEE 802.3x (Flow Control), CSMA/CD

Interfaces

• 5× 10/100/1000 Mbps RJ45 Ports

• Auto-Negotiation and Auto-MDI/MDIX

Data Rates

• Half Duplex: 10/100/1000 Mbps

• Full Duplex: 20/200/2000 Mbps

Performance

• Transfer Method: Store-and-Forward

• Buffer Capacity: 1 Mbit

• Jumbo Frame Support: 9 KB

Advanced Features

• 802.3x Flow Control

• IGMP Snooping v1/v2/v3

• 802.1P/DSCP QoS

• Green Ethernet Technology

LED Indicators

• Power

• Link/Activity Indicators for each Ethernet port (1 to 5)

Hardware Overview

• Dimensions: 3.92 × 3.86 × 0.99 in (99.6 × 98 × 25.2 mm)

• External Power Supply: 5V/0.6A

• Mounting Options: Desktop / Wall-Mount

Warranty Information

Manufactures warrenty applied .

Brand Description

MERCUSYS empowers users with innovative, affordable, and performance-driven networking solutions. Whether at home or in a professional environment, MERCUSYS switches offer dependable connectivity with thoughtful design.

SKU

MS105GS

Practical Use Scenarios

• 🏠 Home Office Setup – Connect PCs, VoIP phones, and printers for a reliable wired workspace

• 🖥️ Small Business Networking – Expand your LAN easily and securely with up to 5 wired devices

• 📡 IP Camera Systems – Power multiple cameras in security setups for fast and stable data transfer

• 🎮 Gaming Consoles and Streamers – Reduce lag by connecting consoles directly for uninterrupted gaming

• 📺 Media Center Connectivity – Integrate smart TVs, streaming boxes, and NAS systems for seamless media sharing

Datasheets / Downloadable Resources

• MERCUSYS MS105GS Datasheet


Excellence for the Australian and New Zealand Market

The MS105GS is engineered with the Australian and New Zealand network environment in mind. Features include:

• ✅ Compatibility with regional voltage and safety standards

• ✅ Compliant with NDIS/NDSS certification frameworks where applicable

• ✅ Products sourced via authorized Australian and New Zealand distributors

• ✅ Direct support and warranty processing with the official brand channel

• ✅ Plug-and-Play simplicity aligned with local ISP and infrastructure expectations

 FAQs

Q1: Can the MS105GS be wall-mounted? (MS105GS)
Yes, the MS105GS supports wall-mount installation in addition to desktop use for flexible deployment.

Q2: Does the MS105GS require any configuration? (MS105GS)
No. It features Plug-and-Play functionality — simply connect your devices and power on.

Q3: Is the MS105GS compatible with smart TVs and gaming consoles? (MS105GS)
Absolutely. The Gigabit ports ensure fast, stable connections ideal for streaming and gaming.

Q4: What energy-saving features does the MS105GS offer? (MS105GS)
It includes Green Ethernet technology, which adjusts power usage based on the link status and cable length.

Q5: Does the MS105GS support multicast traffic? (MS105GS)
Yes, it supports IGMP Snooping v1/v2/v3, optimizing multicast traffic like IPTV streaming.
