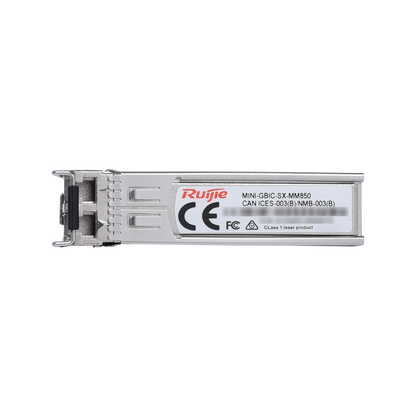

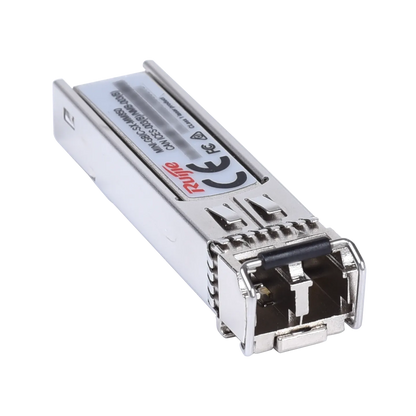

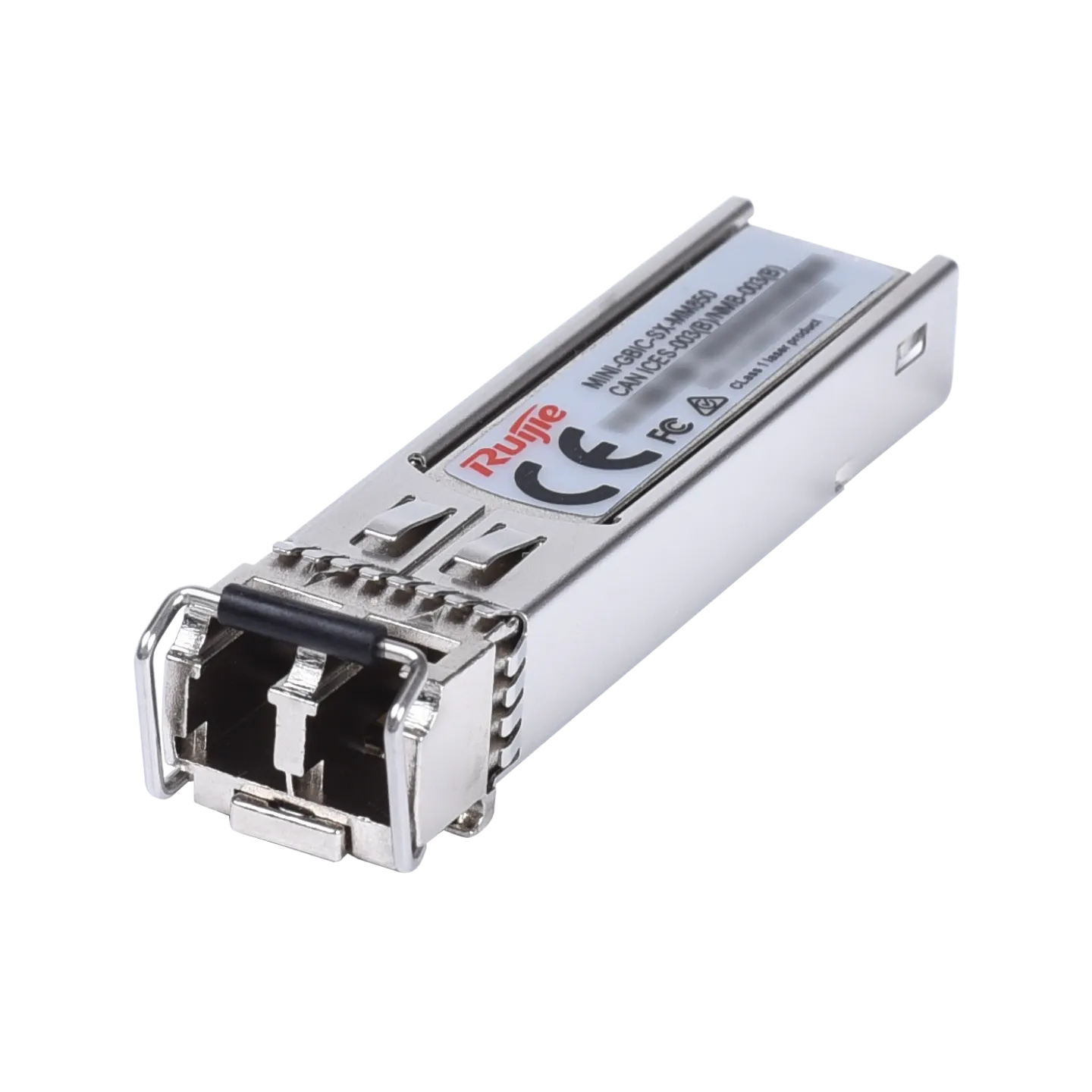

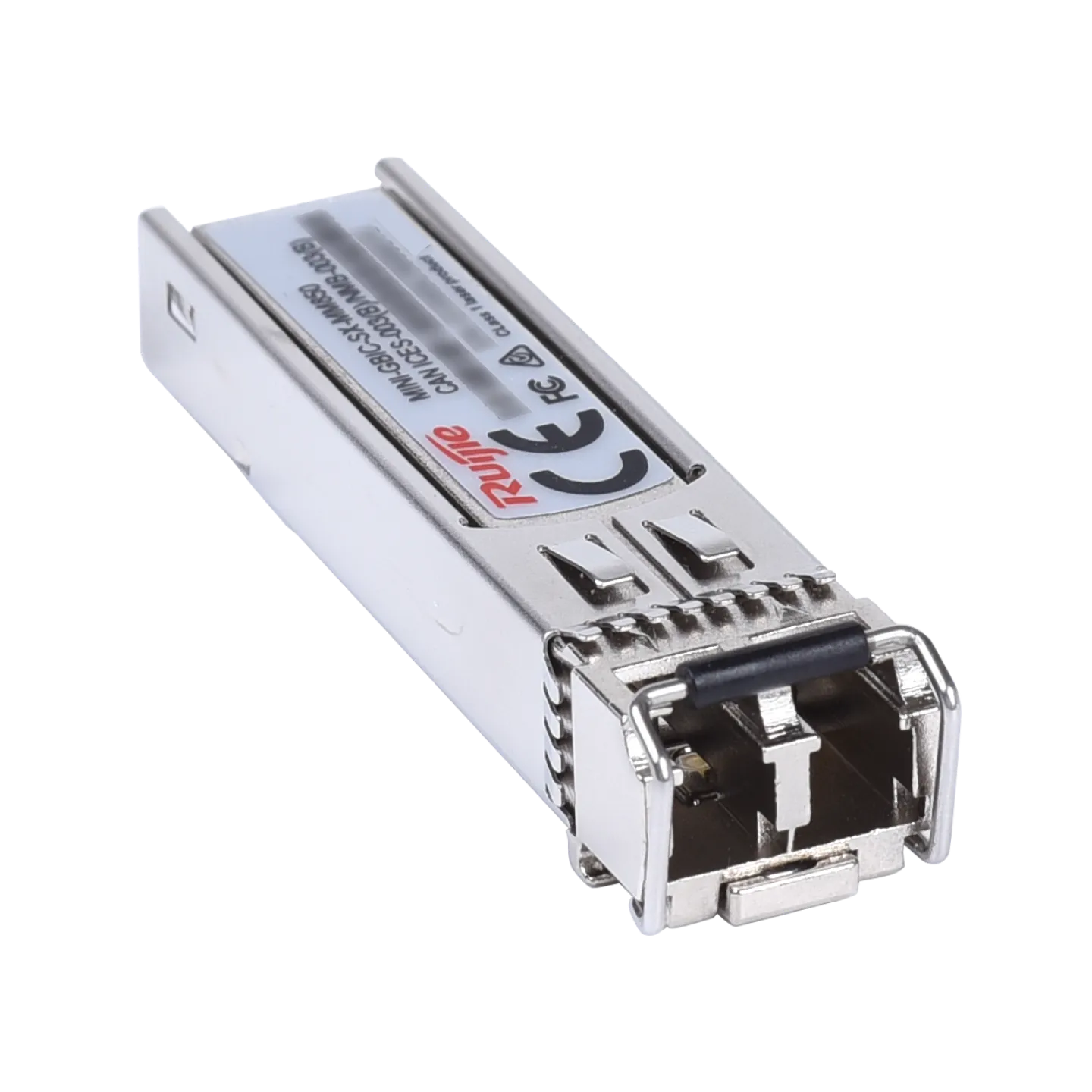

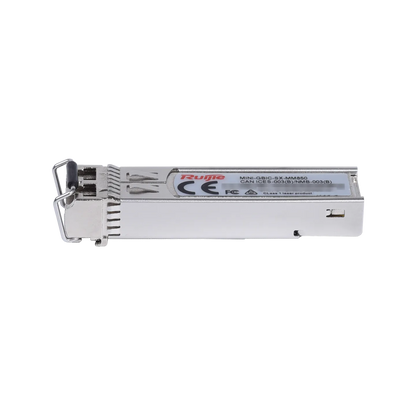

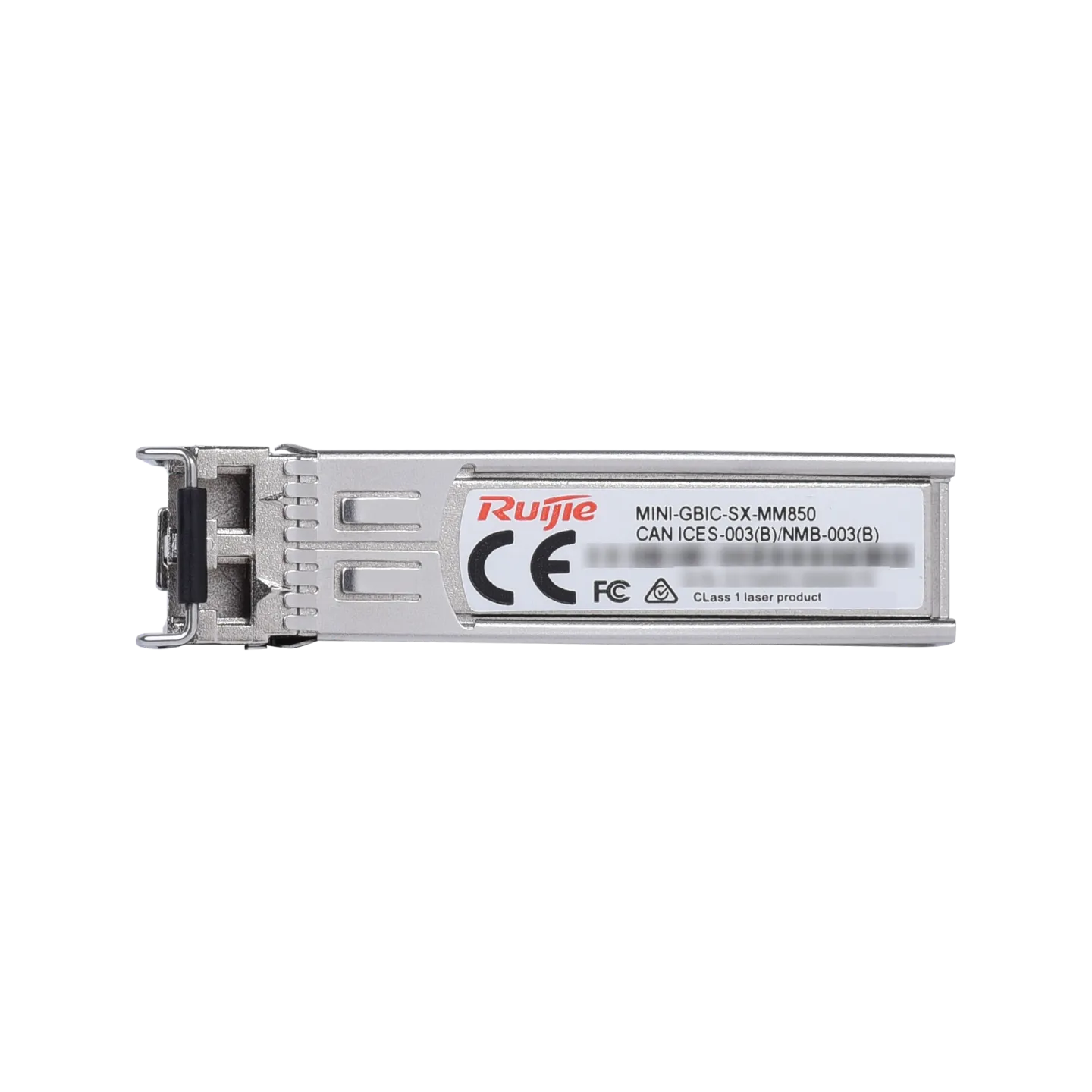

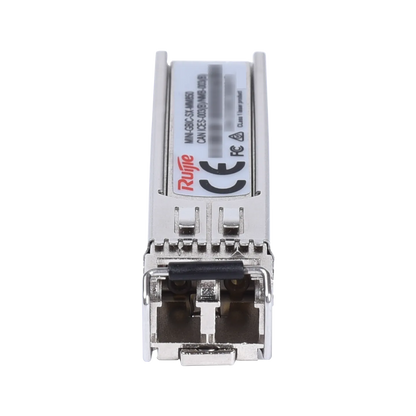

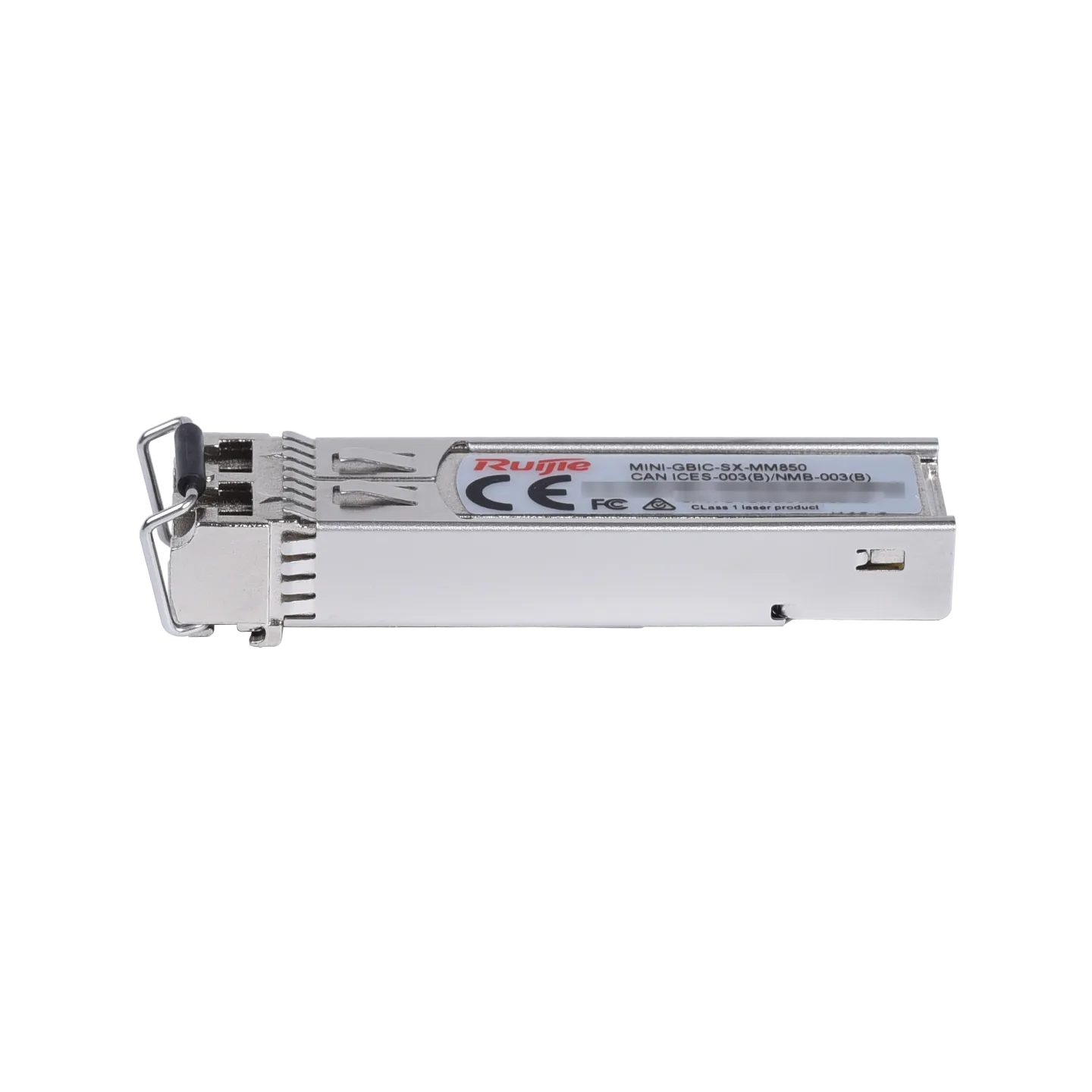

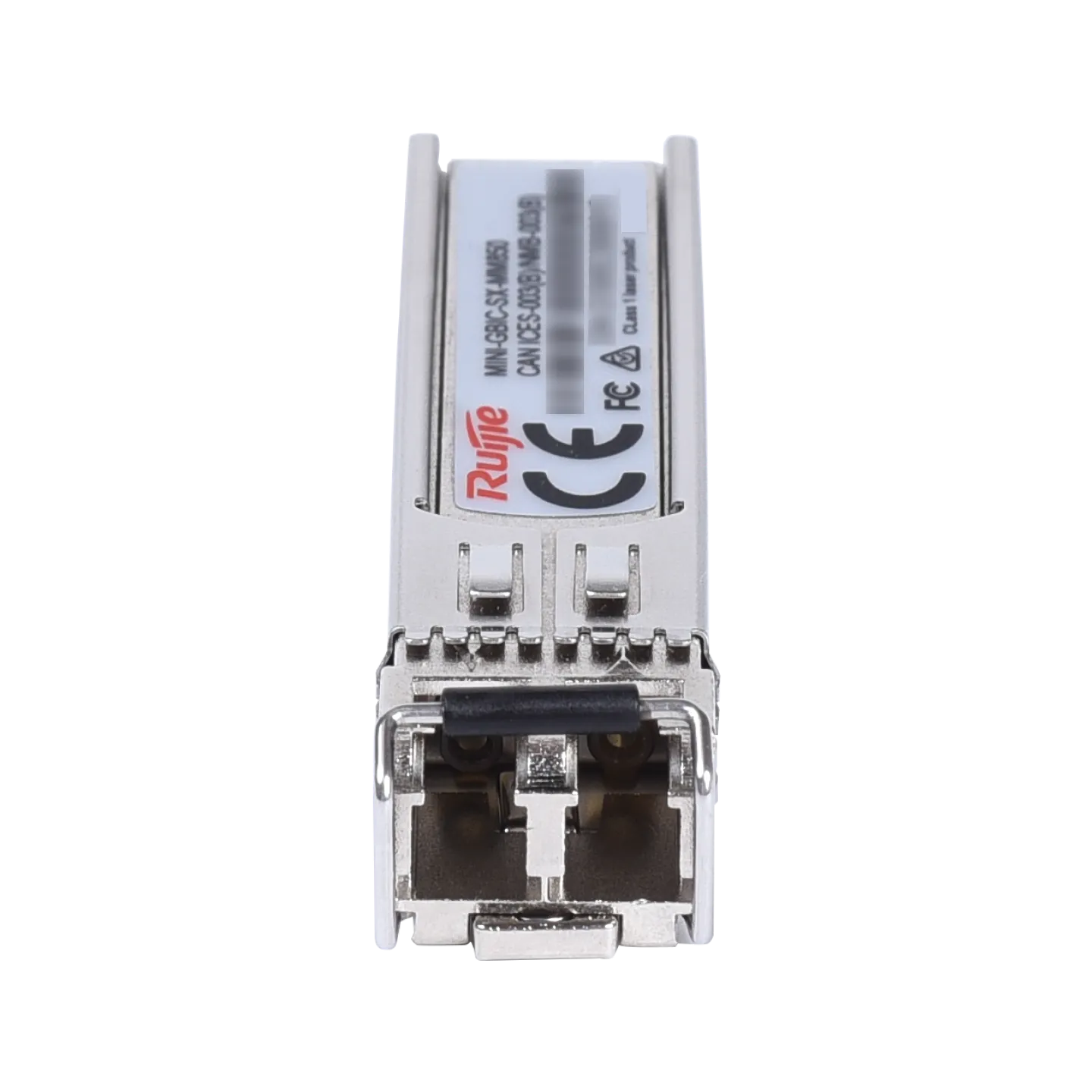

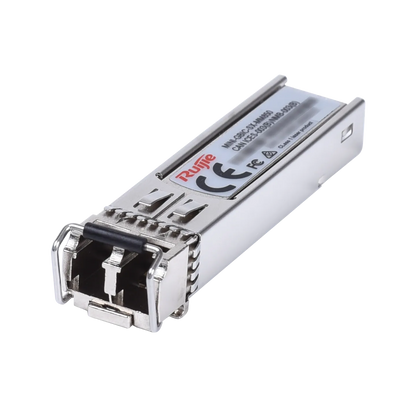

MINI-GBIC-SX-MM850 1000BASE-SX SFP Optical Transceiver Module – 850nm, 550m, DDM, Duplex LC MMF

MINI-GBIC-SX-MM850 1000BASE-SX SFP Optical Transceiver Module – 850nm, 550m, DDM, Duplex LC MMF

$78.09 AUD
$120.36 AUD $78.09 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The MINI-GBIC-SX-MM850 is a hot-pluggable SFP optical transceiver module designed for high-speed 1G interconnection in data center and campus networks. Supporting 1000BASE-SX over multimode fiber (MMF) with a reach of up to 550 meters, this module is ideal for switches, routers, servers, and network interface controllers (NICs).

Compliant with IEEE 802.3z Gigabit Ethernet, SFP MSA standards, and RoHS, the MINI-GBIC-SX-MM850 provides reliable performance with digital diagnostic monitoring (DDM/DOM) for real-time optical monitoring. The module is Class 1 Laser safe, low-power (≤1.5 W), and ensures cost-effective, high-speed interconnections for enterprise networks.

What’s Included

  • MINI-GBIC-SX-MM850 SFP Optical Transceiver Module

  • User Guide / Quick Installation Instructions

Key Features

  • Data Rate: 1.25 Gbps for Gigabit Ethernet networks.

  • Hot-Pluggable SFP: Easy installation and replacement without powering down equipment.

  • Digital Diagnostic Monitoring (DDM/DOM): Real-time monitoring of optical output, input, temperature, and voltage.

  • Compliant Standards: IEEE 802.3z, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, RoHS.

  • Optical Reach: Up to 550 meters over MMF with LC duplex connector.

  • Wavelength: 850 nm with VCSEL transmitter and PIN receiver.

  • Low Power Consumption: ≤1.5 W for energy-efficient operation.

  • Class 1 Laser Safety: Ensures safe operation for users and equipment.

  • Compact Dimensions: 56.5 × 13.5 × 8.5 mm; lightweight at 35 g.

Technical Specifications

Specification MINI-GBIC-SX-MM850
Data Rate 1.25 Gbps
Form Factor SFP

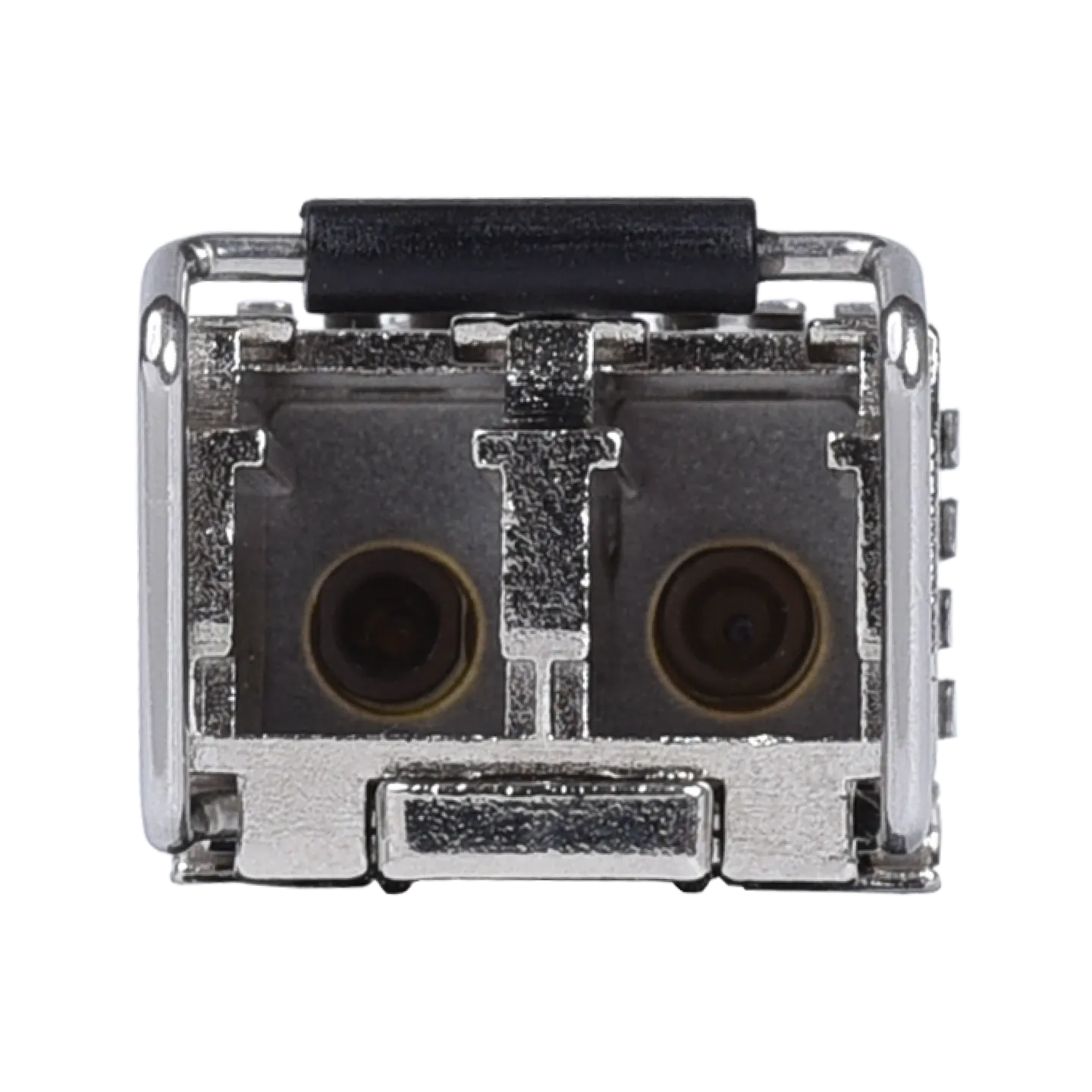

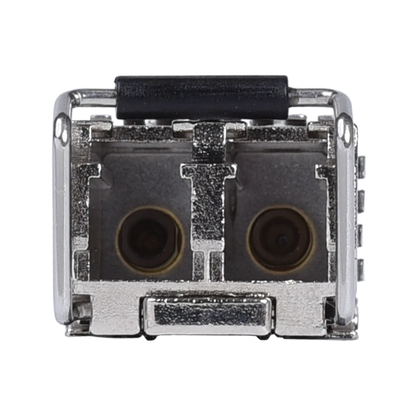

Connector Type Duplex LC
Cable Type Multimode Fiber (MMF)
Fiber End Face Ultra Physical Contact (UPC)
Transmitter Type VCSEL
Receiver Type PIN
Optical Wavelength 850 nm
Max Optical Output (AVG) 0 dBm
Min Optical Output (AVG) –9.5 dBm
Min Extinction Ratio ≥ 9 dB
Receiver Sensitivity (OMA) < –17 dBm
Overload Optical Power (AVG) 0 dBm
Reach 550 m (1,804 ft.)
Digital Diagnostic Monitoring Yes
Power Consumption ≤1.5 W
Operating Temperature 0°C to 70°C (32°F to 158°F)
Operating Humidity 10% RH to 90% RH
Storage Temperature –40°C to +85°C (–40°F to +185°F)
Storage Humidity 10% RH to 90% RH
Dimensions (W×D×H) 56.5 × 13.5 × 8.5 mm (2.22 × 0.53 × 0.33 in.)
Weight 35 g (0.08 lbs)

Practical Applications

  • Data Centers: High-speed interconnection between switches, servers, and storage.

  • Campus Networks: Cost-effective, reliable Gigabit links over multimode fiber.

  • Enterprise Networks: Fast, low-power connectivity for switches, routers, and NICs.

  • Network Diagnostics: Real-time optical monitoring with DDM/DOM.

Models in the Series

  • MINI-GBIC-SX-MM850 – 550m MMF, 850 nm

  • MINI-GBIC-LX-SM1310 – 10 km SMF, 1310 nm

  • MINI-GBIC-LH40-SM1310 – 40 km SMF, 1310 nm

  • MINI-GBIC-ZX80-SM1550 – 80 km SMF, 1550 nm

  • MINI-GBIC-GT – RJ45, 100 m

  • GE-SFP-LX20-SM1310-BIDI – 20 km, BIDI

  • GE-SFP-LX20-SM1550-BIDI – 20 km, BIDI

  • GE-SFP-LX03-SM1310-BIDI-I – 3 km, BIDI

  • GE-SFP-LX03-SM1550-BIDI-I – 3 km, BIDI

Datasheet

A full technical datasheet for the MINI-GBIC-SX-MM850 and other SFP modules is available for download:
MINI-GBIC-SX-MM850 Datasheet

SKU / Product Info

  • Model: MINI-GBIC-SX-MM850

  • Brand: Ruijie

  • Warranty: As per manufacturer

  • Series: 1000BASE SFP Series
