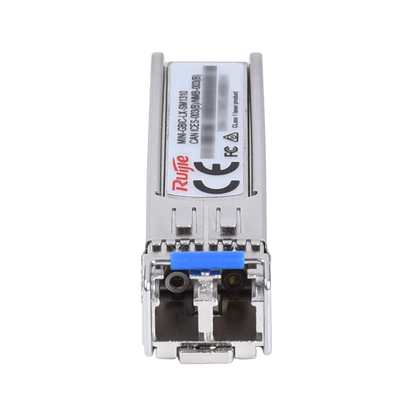

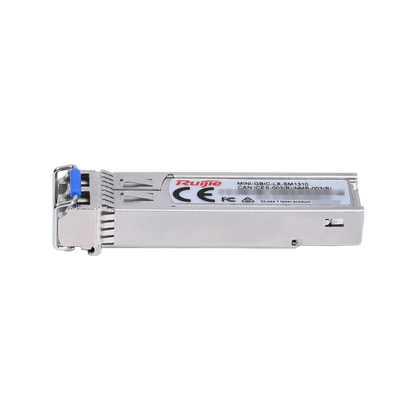

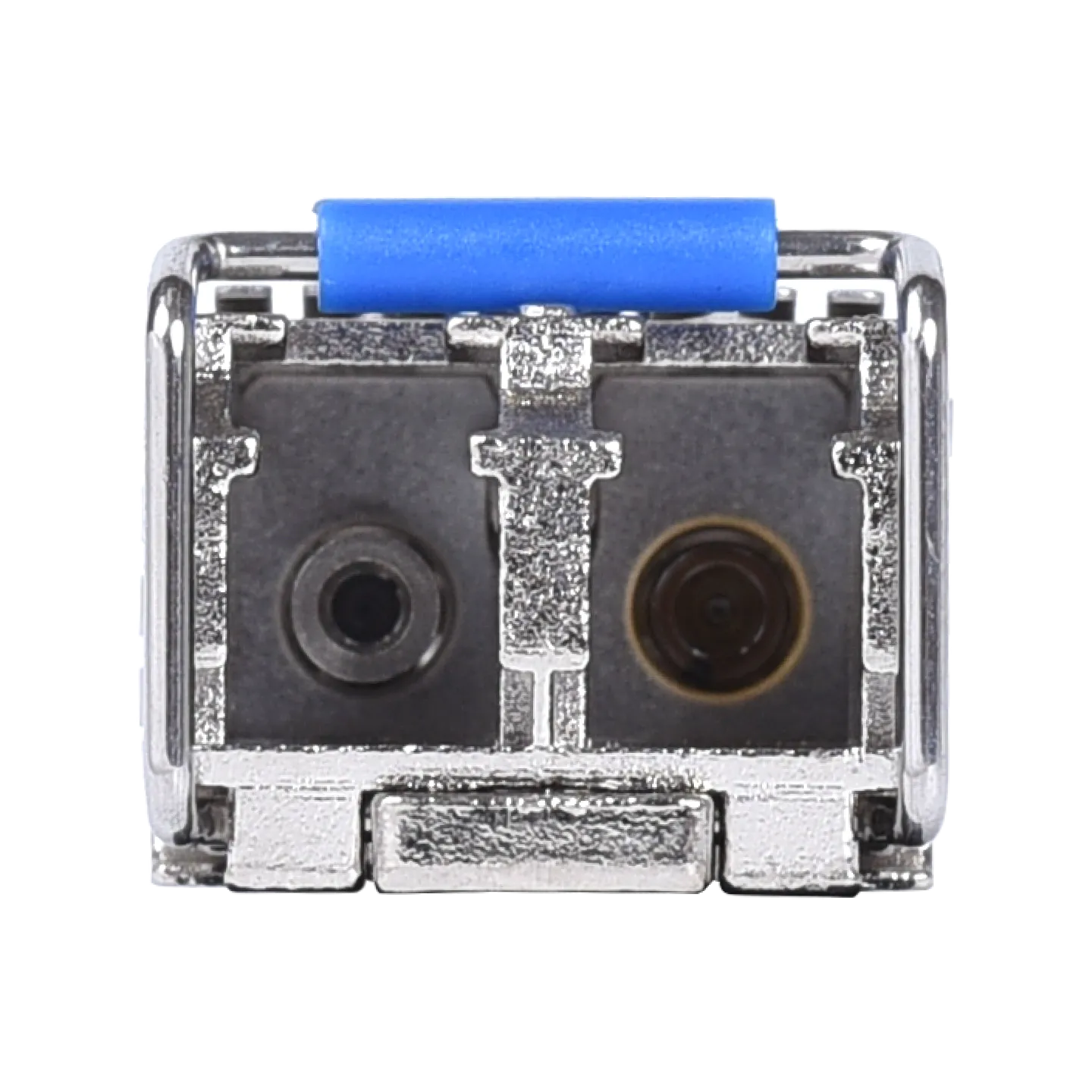

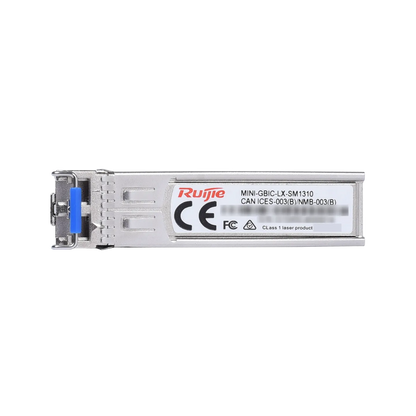

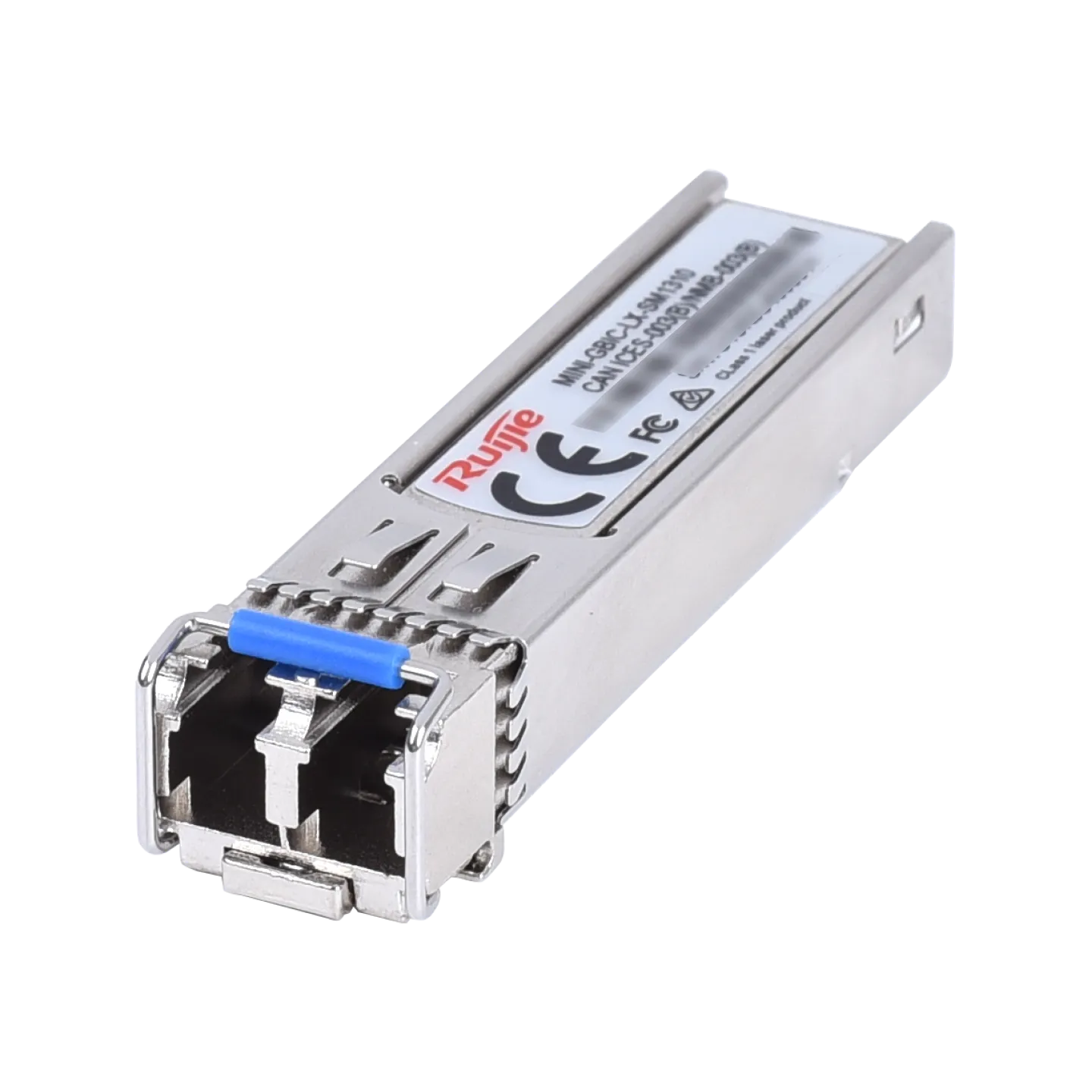

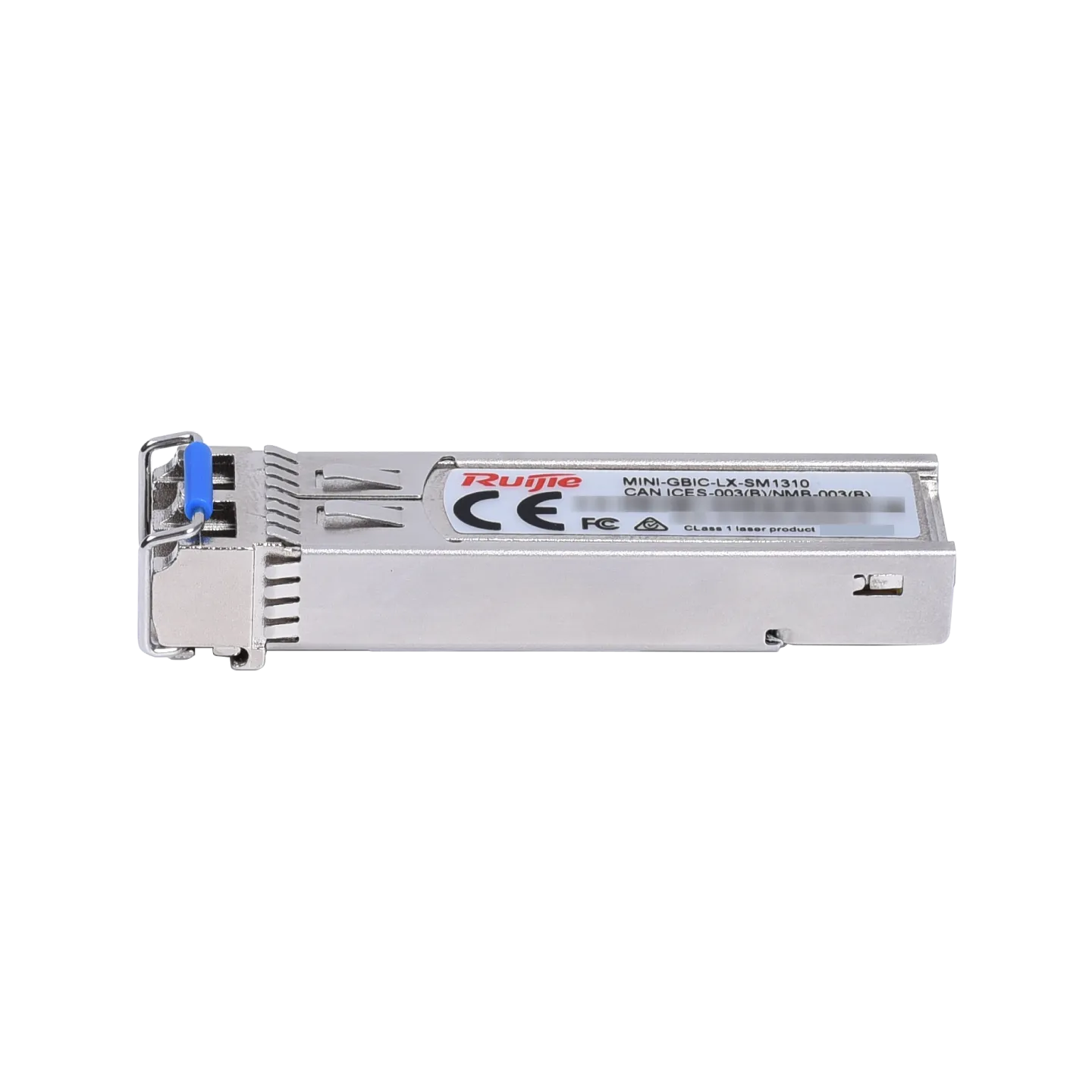

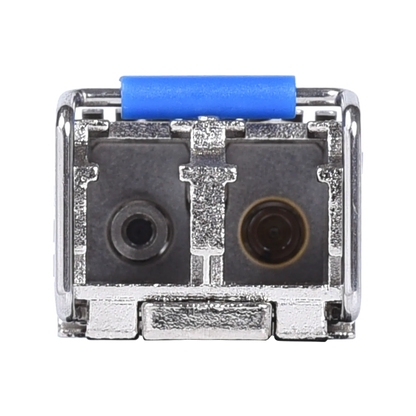

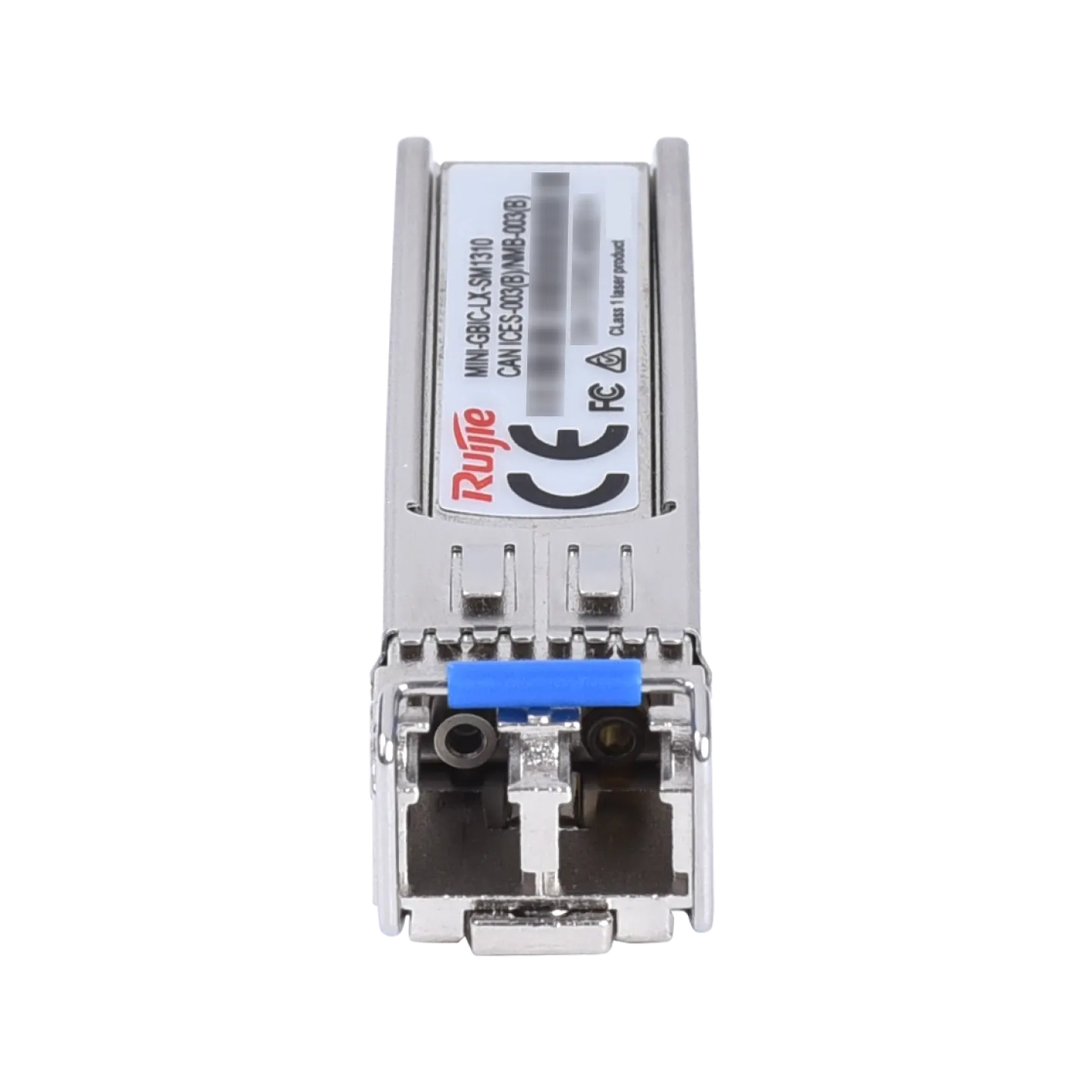

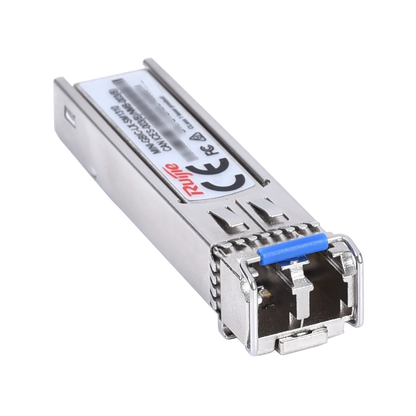

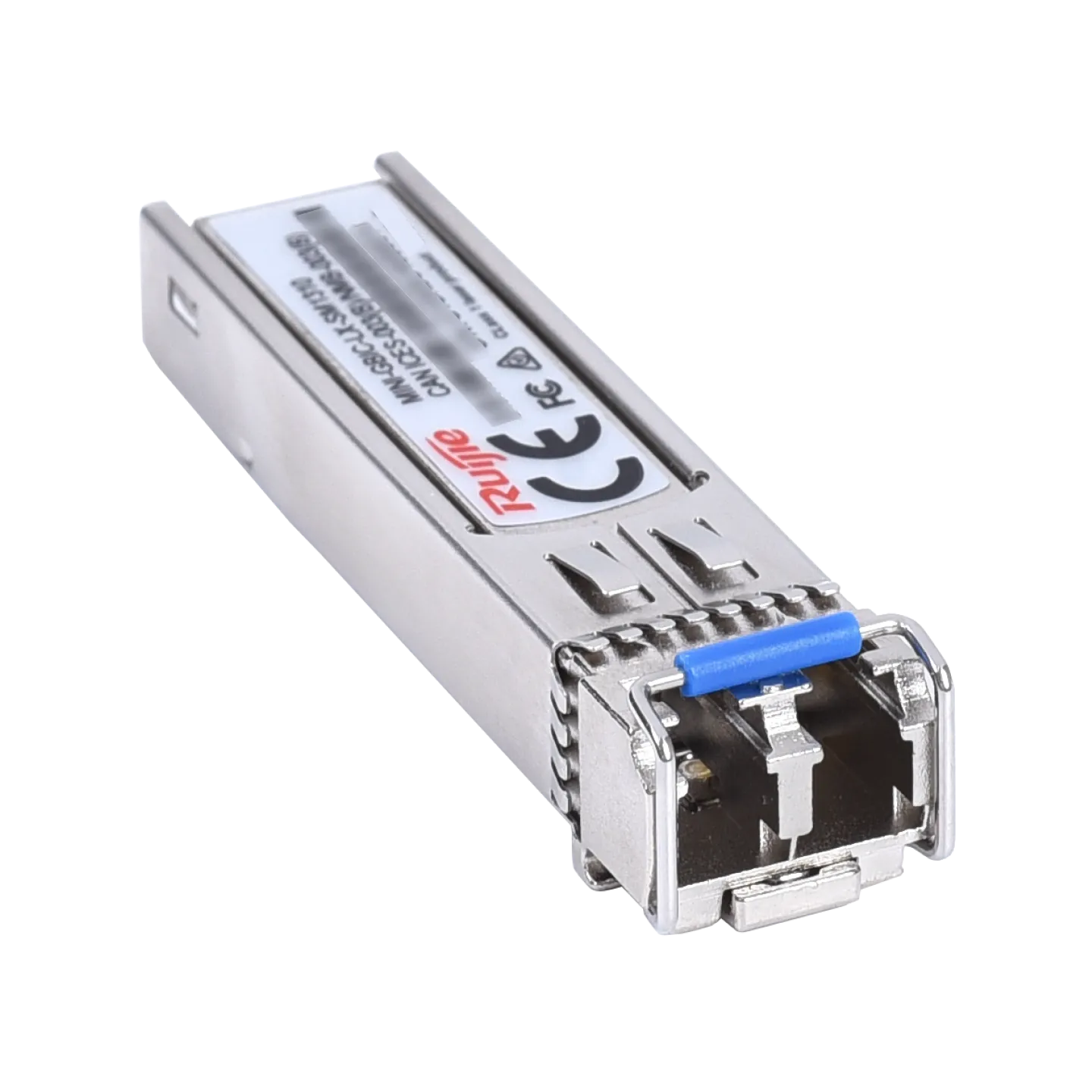

MINI-GBIC-LX-SM1310 1000BASE-LX SFP Optical Transceiver Module – 1310nm, 10 km, DDM, Duplex LC SMF

MINI-GBIC-LX-SM1310 1000BASE-LX SFP Optical Transceiver Module – 1310nm, 10 km, DDM, Duplex LC SMF

$87.85 AUD
$159.12 AUD $87.85 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The MINI-GBIC-LX-SM1310 is a hot-pluggable SFP optical transceiver module designed for high-speed 1G interconnection in data centers, enterprise networks, and campus environments. Supporting 1000BASE-LX over single-mode fiber (SMF) with a reach of up to 10 kilometers, this module enables cost-effective, efficient, and reliable interconnection among switches, routers, servers, and NICs.

Compliant with IEEE 802.3z Gigabit Ethernet, SFP MSA, and RoHS, the MINI-GBIC-LX-SM1310 provides stable performance with digital diagnostic monitoring (DDM/DOM) for real-time optical monitoring. The module is Class 1 Laser safe, energy-efficient (≤1.5 W), and ideal for long-distance fiber links in enterprise and campus networks.

What’s Included

  • MINI-GBIC-LX-SM1310 SFP Optical Transceiver Module

  • User Guide / Quick Installation Instructions

Key Features

  • Data Rate: 1.25 Gbps for Gigabit Ethernet networks.

  • Hot-Pluggable SFP: Easy installation without powering down equipment.

  • Digital Optical Monitoring (DDM/DOM): Real-time monitoring of optical output, input, temperature, and voltage.

  • Compliant Standards: IEEE 802.3z, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, RoHS.

  • Optical Reach: Up to 10 km over SMF with duplex LC connector.

  • Wavelength: 1310 nm with DFB transmitter and PIN receiver.

  • Low Power Consumption: ≤1.5 W for energy-efficient operation.

  • Class 1 Laser Safety: Ensures safe operation for personnel and equipment.

  • Compact Dimensions: 68 × 14 × 8.5 mm; lightweight at 35 g.

Technical Specifications

Specification MINI-GBIC-LX-SM1310
Data Rate 1.25 Gbps
Form Factor SFP
Connector Type Duplex LC
Cable Type Single-Mode Fiber (SMF)
Fiber End Face Ultra Physical Contact (UPC)
Transmitter Type DFB
Receiver Type PIN
Optical Wavelength 1310 nm
Max Optical Output (AVG) –3 dBm
Min Optical Output (AVG) –11 dBm
Min Extinction Ratio ≥ 9 dB
Receiver Sensitivity (OMA) < –19 dBm
Overload Optical Power (AVG) –3 dBm
Reach 10 km (32,808 ft.)
Digital Diagnostic Monitoring Yes
Power Consumption ≤1.5 W
Operating Temperature 0°C to 70°C (32°F to 158°F)
Operating Humidity 10% RH to 90% RH
Storage Temperature –40°C to +85°C (–40°F to +185°F)
Storage Humidity 10% RH to 90% RH
Dimensions (W×D×H) 68 × 14 × 8.5 mm (2.68 × 0.55 × 0.33 in.)
Weight 35 g (0.08 lbs)

Practical Applications

  • Data Centers: Reliable interconnection between switches, servers, and storage devices.

  • Campus Networks: Cost-effective long-distance Gigabit fiber links.

  • Enterprise Networks: High-speed connections for routers, switches, and NICs.

  • Network Monitoring: DDM/DOM for optical diagnostics and link health monitoring.

Models in the Series

  • MINI-GBIC-SX-MM850 – MMF, 550 m, 850 nm

  • MINI-GBIC-LX-SM1310 – SMF, 10 km, 1310 nm

  • MINI-GBIC-LH40-SM1310 – SMF, 40 km, 1310 nm

  • MINI-GBIC-ZX80-SM1550 – SMF, 80 km, 1550 nm

  • MINI-GBIC-GT – RJ45, 100 m

  • GE-SFP-LX20-SM1310-BIDI – 20 km, BIDI

  • GE-SFP-LX20-SM1550-BIDI – 20 km, BIDI

  • GE-SFP-LX03-SM1310-BIDI-I – 3 km, BIDI

  • GE-SFP-LX03-SM1550-BIDI-I – 3 km, BIDI

Datasheet

A full technical datasheet for the MINI-GBIC-LX-SM1310 and other SFP modules is available for download:
MINI-GBIC-LX-SM1310 Datasheet

SKU / Product Info

  • Model: MINI-GBIC-LX-SM1310

  • Brand: Ruijie

  • Warranty: As per manufacturer

  • Series: 1000BASE SFP Series
