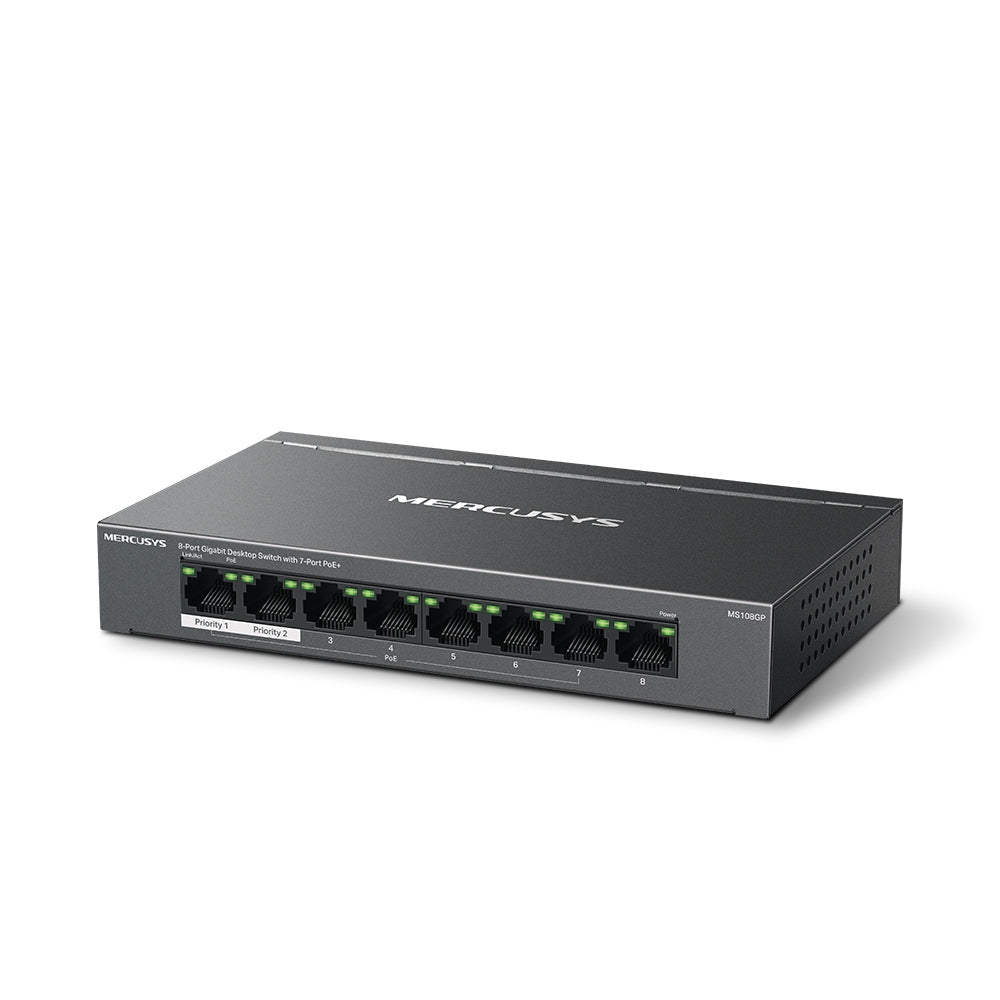

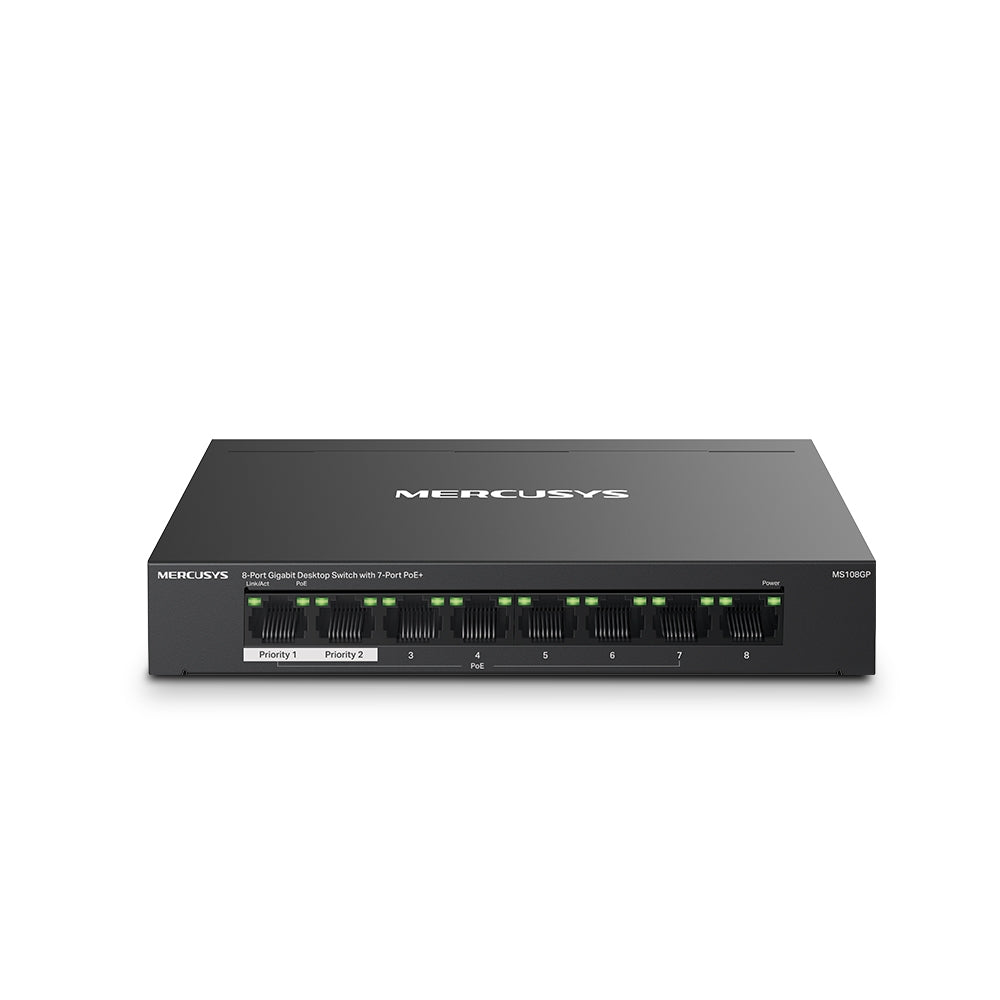

MERCUSYS MS108GP | 8-Port Gigabit PoE+ Desktop Switch | 65W Total PoE Budget, Long-Range Mode, Plug-and-Play

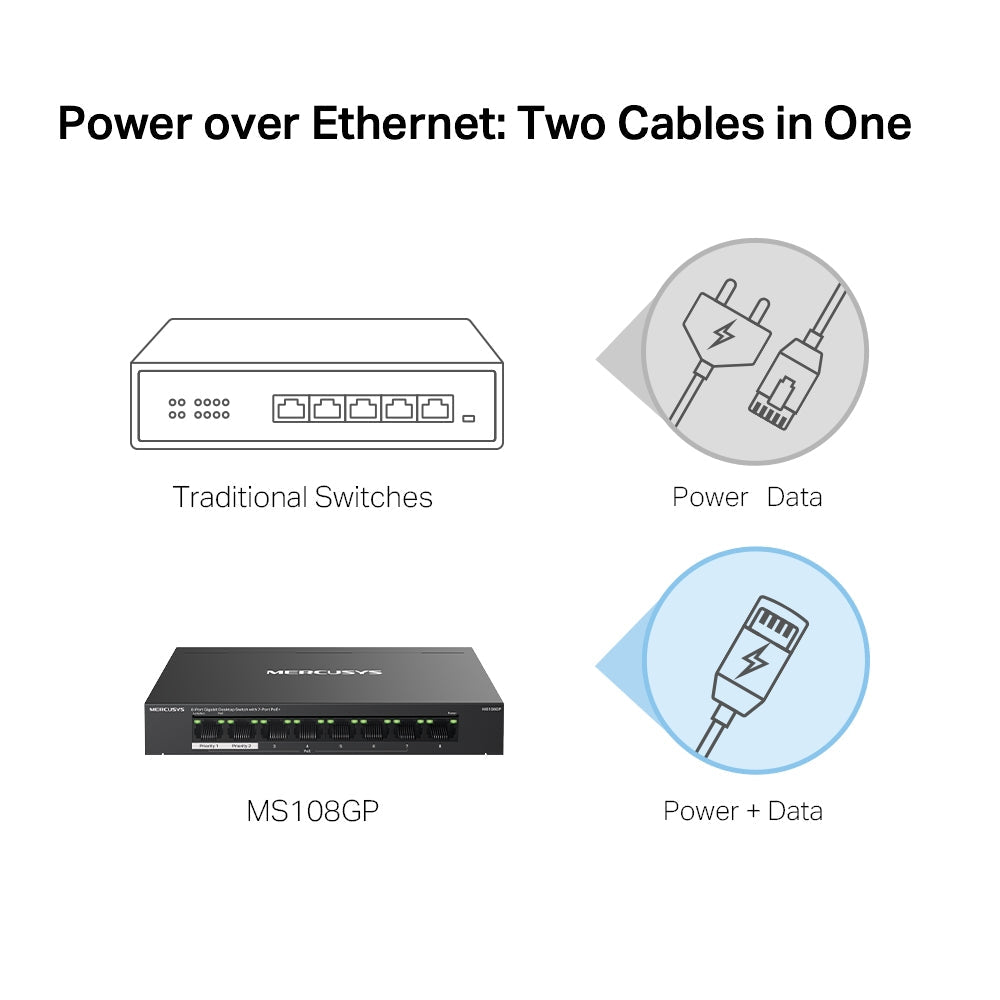

Upgrade your business or home network with the MERCUSYS MS108GP, a reliable and energy-efficient 8-Port Gigabit Desktop Switch featuring 7 PoE+ ports. Ideal for surveillance setups, VoIP systems, and office environments, this compact switch combines data and power into one cable for seamless deployment of IEEE 802.3af/at-compliant devices such as IP cameras, wireless access points, and VoIP phones.

Each PoE+ port delivers up to 30W, with a total power budget of 65W, providing robust support for high-power devices. Featuring Extend Mode, the switch can stretch PoE transmission distance up to 250 meters, and Isolation Mode helps secure and stabilize network traffic between ports.

Durably housed in metal for optimal heat dissipation, this plug-and-play switch is easy to install, supports wall-mount or desktop placement, and is designed to perform reliably in demanding environments.

What's Included in the Box

• 1 × 8-Port Gigabit Desktop Switch with 7-Port PoE+ (MS108GP)

• 1 × External Power Adapter

• 1 × Quick Installation Guide

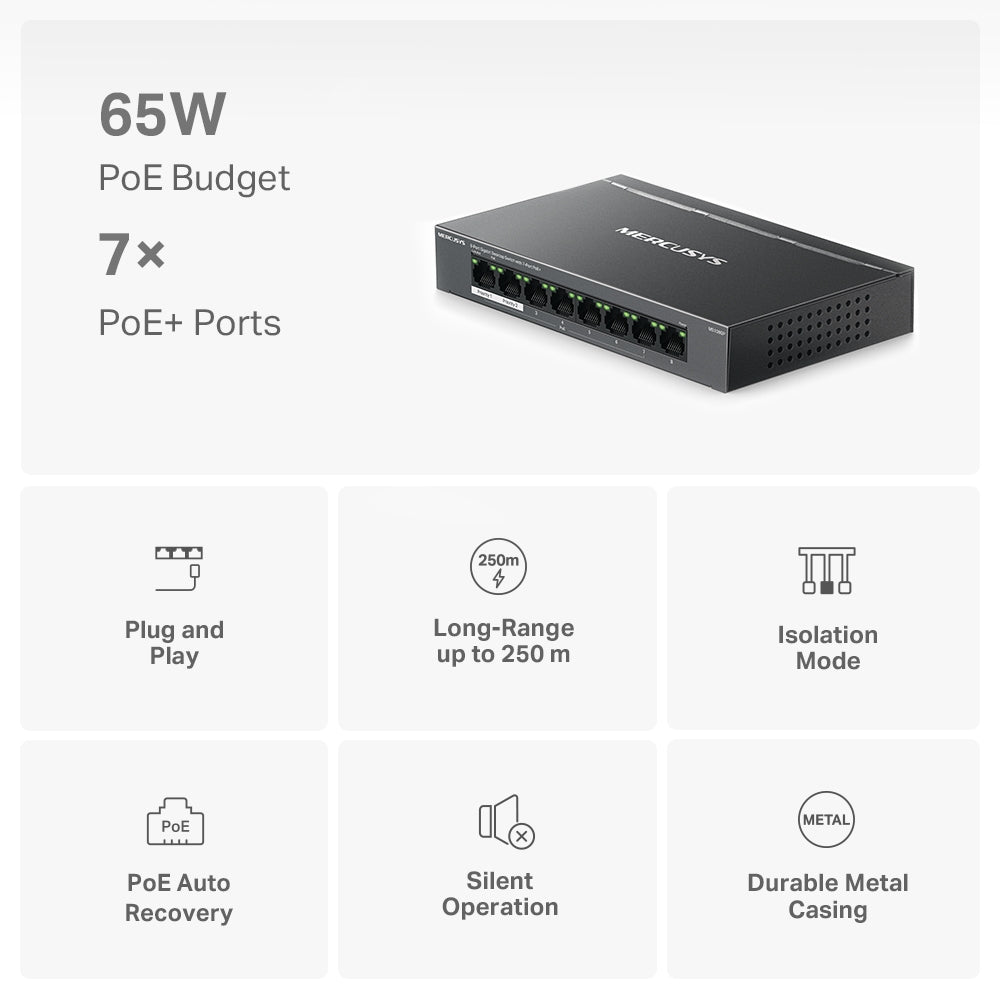

Main Features

• ⚡ 7× PoE+ Ports (30W each, 65W total) – Transmit power and data over a single Ethernet cable

• 🌐 8× Full Gigabit Ports – Supports 10/100/1000 Mbps speeds for all ports

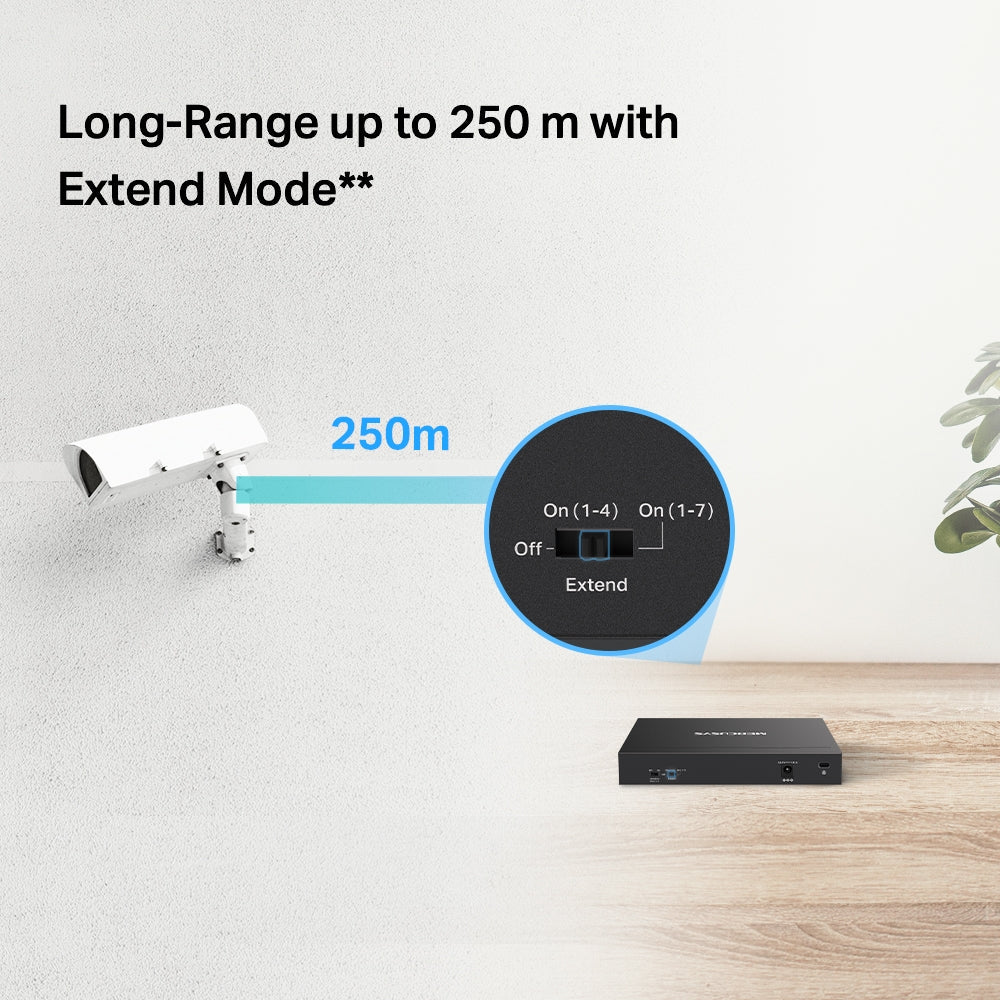

• 🔧 Extend Mode (Up to 250m) – Ideal for distant devices like IP cameras

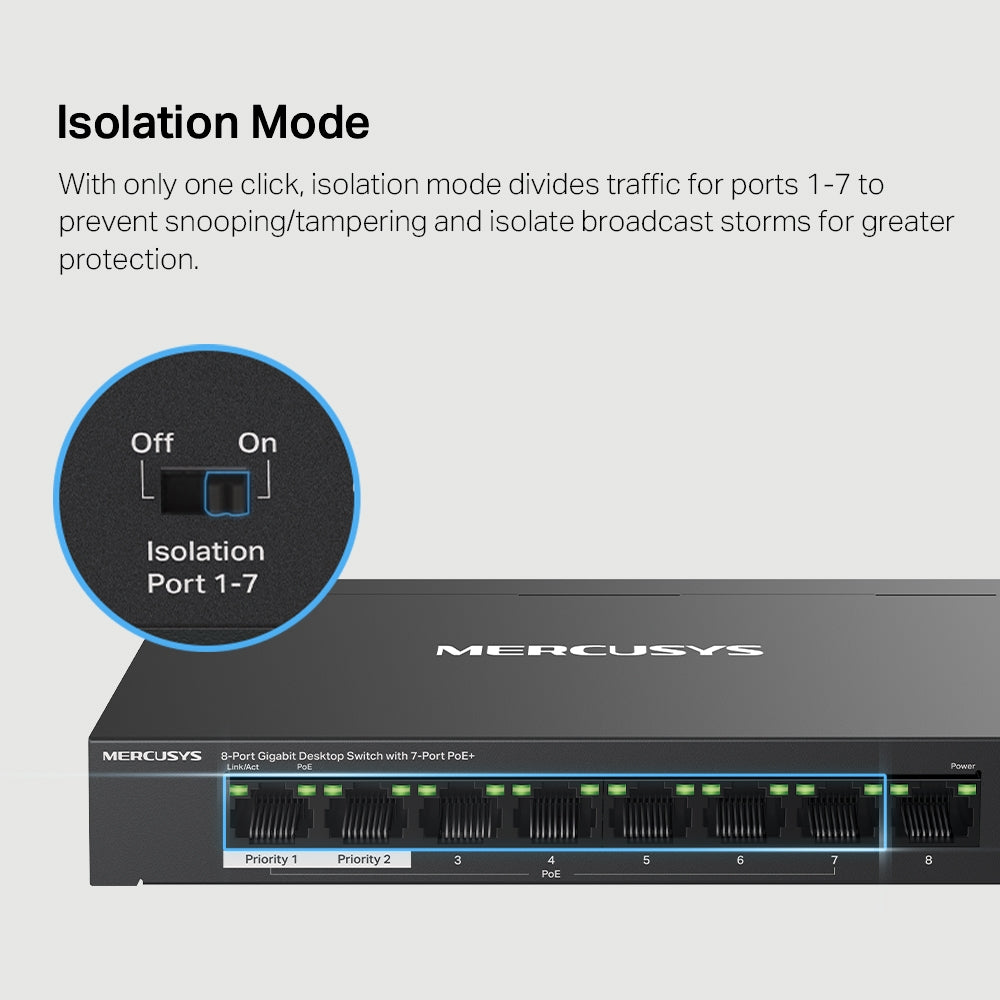

• 🔒 Isolation Mode – Enhanced security and traffic control for specific port groups

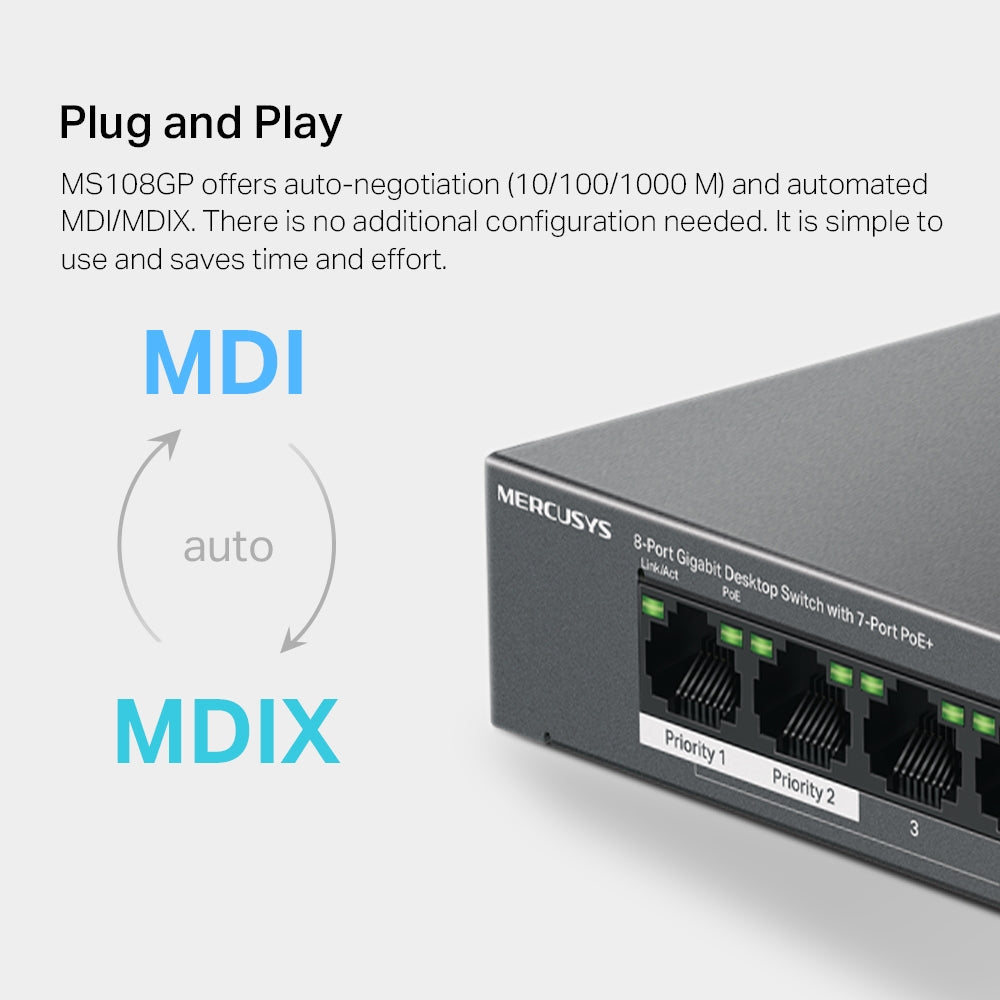

• 🛠️ Plug-and-Play – No configuration required, saves setup time

• 💪 Metal Housing – Durable and heat-efficient design

• ✔ IEEE 802.3af/at Compliance – Works with all standard PoE devices

Detailed Specifications

Standards and Protocols

• IEEE 802.3x Flow Control

• IEEE 802.3af / 802.3at (PoE standard)

Interfaces

• 8 × 10/100/1000 Mbps RJ45 Ports

• PoE on Ports 1–7

PoE Power Budget

• Up to 30W per PoE port

• 65W total PoE budget

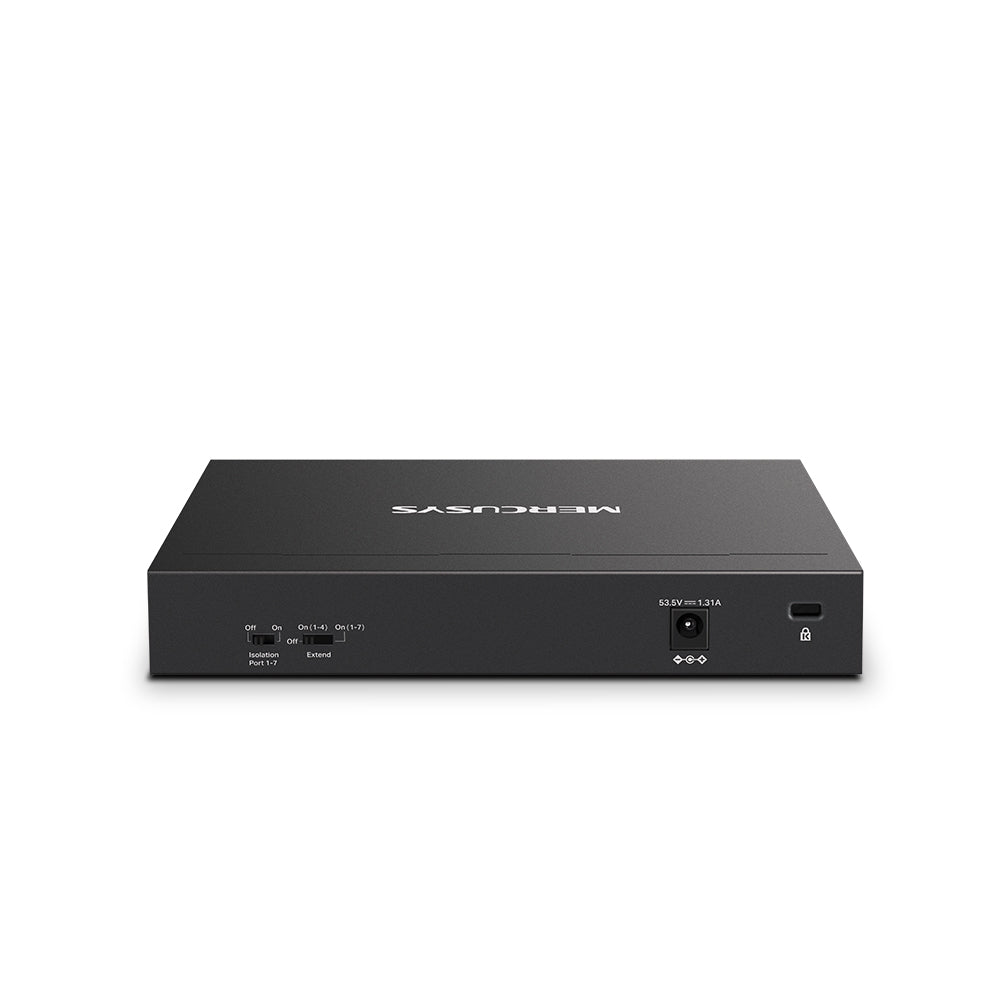

External Power Supply

• Output: 53.5V / 1.31A

Data Rates

• Half Duplex: 10/100/1000 Mbps

• Full Duplex: 20/200/2000 Mbps

MAC Address Table

• 8K entries

Jumbo Frame

• 9 KB

Max Power Consumption

• 5.07W (no PD connected)

• 77.33W (with 65W PD connected)

Max Heat Dissipation

• 17.238 BTU/h (no PD)

• 262.922 BTU/h (with 65W PD)

Hardware Overview

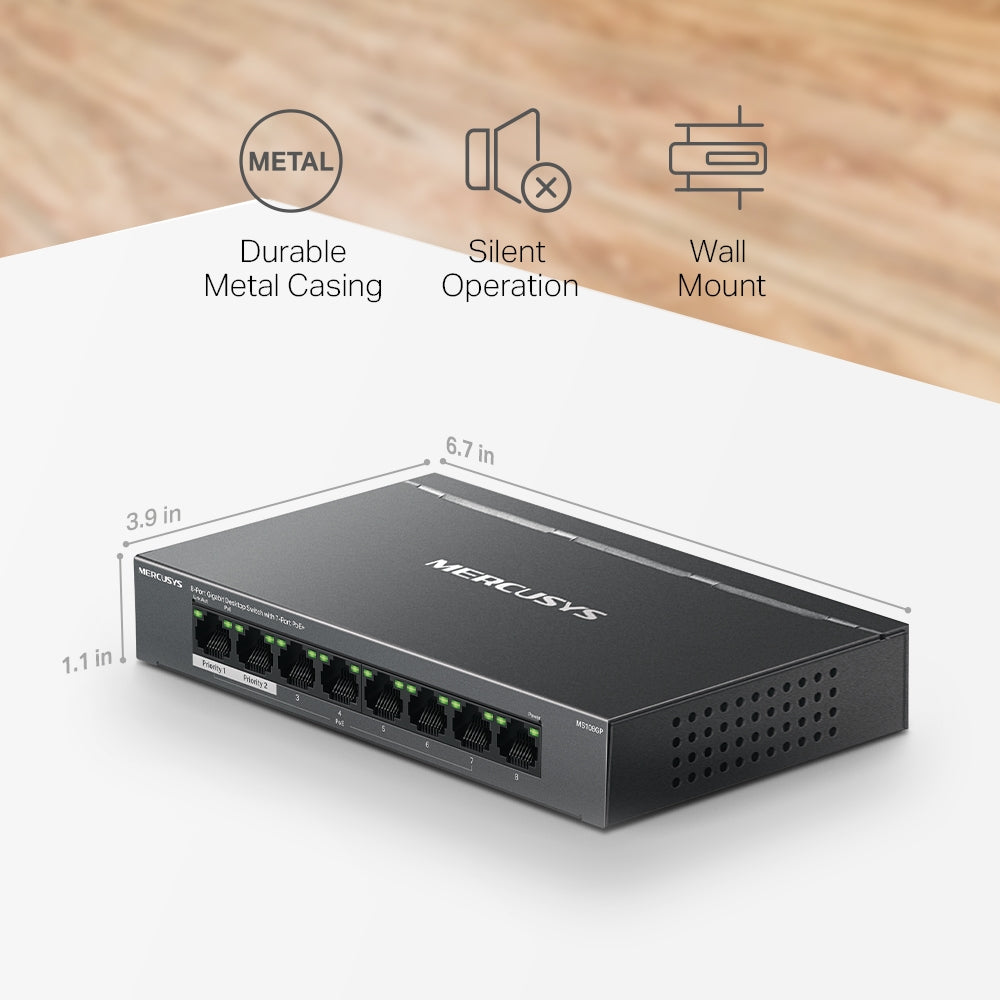

• Dimensions: 171 × 98 × 27 mm

• Installation: Desktop / Wall Mount

• LED Indicators: Power, Link/Activity for all ports

Warranty Information

Manufactures warrenty applied .

Brand Description

MERCUSYS designs affordable, high-performance networking equipment tailored to homes, small businesses, and professional setups. Their product range blends cutting-edge features with simplicity and reliability.

SKU

MS108GP

Practical Use Scenarios

• 🎥 Surveillance Systems – Connect and power up to 7 PoE IP cameras

• 📞 VoIP Telephony – Efficient deployment of power-hungry VoIP phones

• 🏢 Business Networking – Great for office environments with high-bandwidth devices

• 🏠 Smart Homes – Expand and power smart hubs, Wi-Fi extenders, and IoT devices

• 🏫 Educational Institutions – Distribute network to multiple access points and classroom tech

Datasheets / Downloadable Resources

• Product Datasheet – MS108GP


Excellence for the Australian and New Zealand Market

• ✅ Fully compliant with Australian and New Zealand safety and EMC standards

• ✅ Optimized for NDIS and enterprise-grade deployments in the ANZ region

• ✅ Distributed and supported by authorized partners within AU & NZ

• ✅ All warranty and technical claims handled locally with rapid response

• ✅ Designed for compatibility with standard power regulations in AU/NZ

Optimized FAQs

Q1: Can the MS108GP power all 7 PoE+ ports simultaneously? (MS108GP)
Yes, the switch supports up to 30W per PoE port, with a total budget of 65W, enough to power multiple devices concurrently.

Q2: What happens in Extend Mode on the MS108GP? (MS108GP)
Extend Mode enables long-range PoE transmission up to 250 metres, perfect for remote surveillance installations.

Q3: Is the MS108GP plug-and-play? (MS108GP)
Yes, simply plug in Ethernet cables and the power adapter—no configuration required.

Q4: Does the MS108GP support wall mounting? (MS108GP)
Yes, the compact metal casing allows both desktop and wall-mount installations.

Q5: What types of devices are compatible with the MS108GP PoE ports? (MS108GP)
Any IEEE 802.3af/at-compliant Powered Device (PD) such as IP cameras, VoIP phones, and wireless access points.
