MERCUSYS MS108G | 8-Port Gigabit Desktop Switch | Compact, Plug-and-Play Network Expansion

Expand your wired network instantly with the MERCUSYS MS108G, an ultra-compact and energy-efficient 8-Port Gigabit Desktop Switch designed for homes, offices, and small businesses. Each of the eight 10/100/1000 Mbps auto-negotiation RJ45 ports supports Auto-MDI/MDIX, eliminating the need for crossover cables and simplifying setup.

Built with Green Ethernet technology, the MS108G reduces power consumption by up to 82%, making it both eco-friendly and cost-efficient. Its compact form factor allows for easy placement in any environment, while the plug-and-play design means no configuration is needed—just connect and go.

What's Included in the Box

• 1 × MERCUSYS MS108G 8-Port Gigabit Desktop Switch

• 1 × Power Adapter

• 1 × Quick Installation Guide

Main Features

• ⚡ 8× Full Gigabit Ports – High-speed 10/100/1000 Mbps RJ45 ports with Auto-Negotiation and Auto-MDI/MDIX

• 🖧 Seamless Wired Expansion – Instantly add more Ethernet ports for devices like computers, smart TVs, NAS systems, and more

• 🔌 Plug and Play – No setup or configuration needed

• 🌿 Green Ethernet Technology – Saves power by detecting unused ports or short cable lengths, cutting energy usage by up to 82%

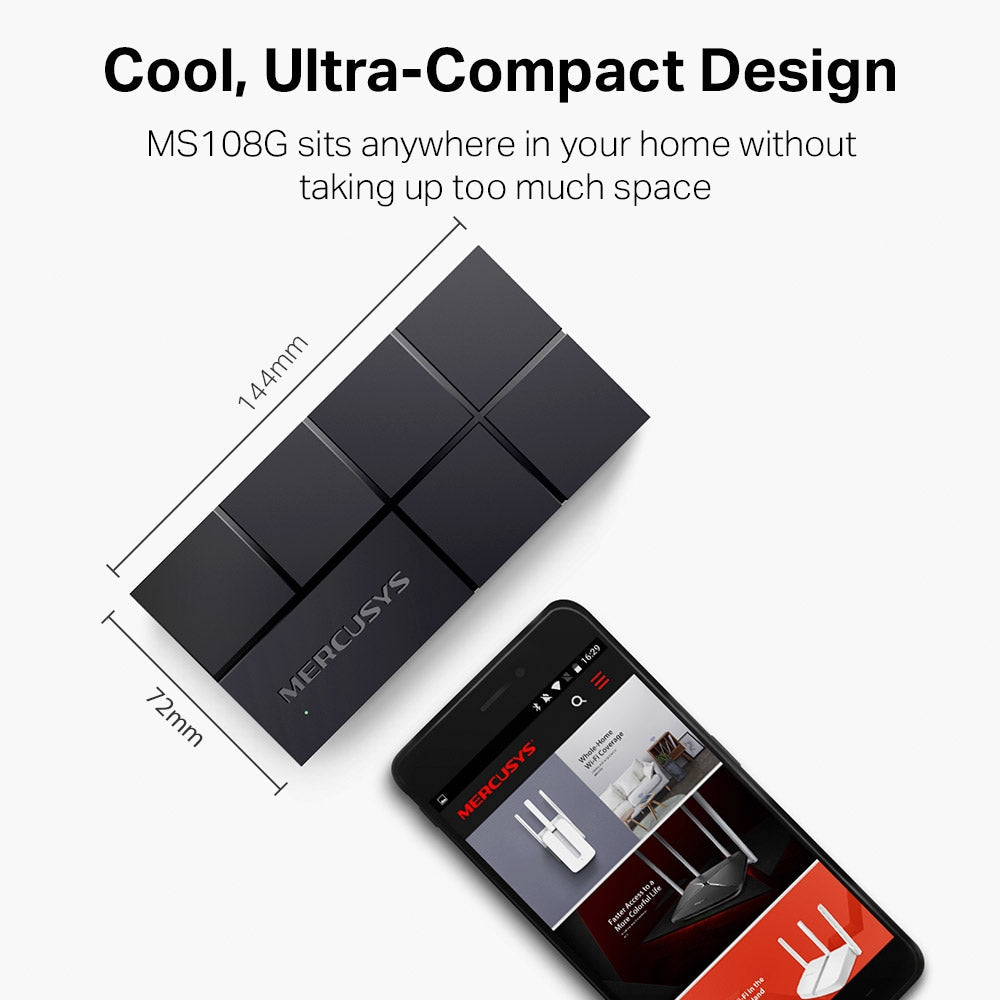

• 🧱 Compact Design – Space-saving for desktop deployment

Detailed Specifications

Standards and Protocols

• IEEE 802.3

• IEEE 802.3u

• IEEE 802.3x

• CSMA/CD

Interfaces

• 8× 10/100/1000 Mbps RJ45 Ports

• Auto-Negotiation

• Auto-MDI/MDIX

Data Rates

• Half Duplex: 10/100/1000 Mbps

• Full Duplex: 20/200/2000 Mbps

Buffer Capacity

• 64 KB

Jumbo Frame

• 9 KB

LED Indicators

• 8× Ethernet Port Activity LEDs

• 1× Power LED

Hardware Overview

• Dimensions: 127 × 60.3 × 22 mm

• External Power Supply: 9V/0.6A

Warranty Information

Manufactures warrenty applied .

Brand Description

MERCUSYS delivers robust, easy-to-use, and cost-effective networking equipment, ideal for households and small businesses that value connectivity and efficiency.

SKU

MS108G

Practical Use Scenarios

• 🏠 Home Networking – Connect smart TVs, game consoles, and PCs without rewiring

• 🏢 Small Office Network Expansion – Add more devices to your LAN without upgrading your main router

• 📶 Media Streaming – Ensure smooth streaming on high-bandwidth devices

• 🖨️ Shared Office Equipment – Connect printers, scanners, and servers to your network

• 🎮 Gaming Setup – Enable fast, wired multiplayer sessions across multiple consoles or PCs

Datasheets / Downloadable Resources

• MERCUSYS MS108G Product Datasheet


Excellence for the Australian and New Zealand Market

• ✅ Fully compliant with ANZ electrical safety and quality standards

• ✅ Distributed via authorized Australian and New Zealand channels

• ✅ Supports regional warranty service through direct brand representatives

• ✅ Ideal for residential and commercial deployments in the ANZ market

• ✅ Meets NDIS/NDSS compatibility and network requirements where applicable

 FAQs

Q1: Is the MS108G compatible with other brands of routers and modems? (MS108G)
Yes, the MS108G works seamlessly with all routers and modems that support Ethernet connections.

Q2: Does the MS108G require software or configuration? (MS108G)
No, it is a plug-and-play device that requires no additional configuration.

Q3: How much power does the MS108G save with Green Ethernet? (MS108G)
The Green Ethernet technology in the MS108G can reduce power usage by up to 82%, depending on traffic and cable length.

Q4: Can I use the MS108G to connect Smart TVs and streaming devices? (MS108G)
Absolutely. The MS108G’s gigabit ports are ideal for media streaming and home entertainment systems.

Q5: Is the MS108G suitable for gaming? (MS108G)
Yes, the low-latency gigabit connections make it perfect for online gaming and high-performance networking.
