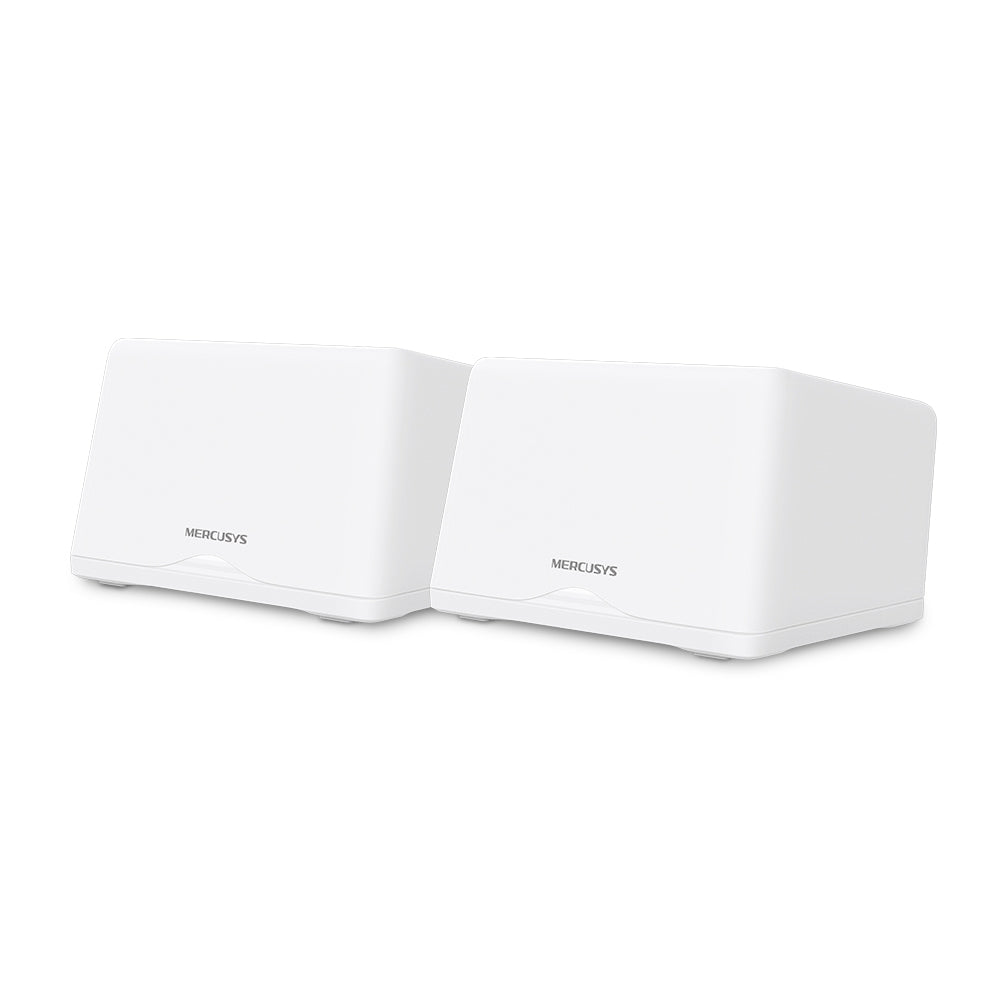

MERCUSYS BE9300 Whole Home Mesh Wi-Fi 7 System | Tri-Band 9.3Gbps Seamless Coverage with 2.5G Ports – 2-Pack

Experience the power of next-generation wireless connectivity with the MERCUSYS BE9300 Whole Home Mesh Wi-Fi 7 System. Designed for modern smart homes, this cutting-edge mesh system delivers lightning-fast tri-band speeds of up to 9.3Gbps, covering up to 550m² (6,000 ft²) with seamless roaming and ultra-low latency.

Powered by Wi-Fi 7 technology, including 320 MHz channels, 4K-QAM, Multi-Link Operation (MLO), and the newly opened 6 GHz band, the BE9300 ensures the highest performance for 8K streaming, AR/VR gaming, and simultaneous device use. With three 2.5 Gbps auto-sensing WAN/LAN ports per unit, this system crushes gigabit bottlenecks, propelling your smart home or office into the multi-gig era.

Whether you're streaming, gaming, or working remotely, the BE9300 provides buffer-free performance, easy setup via the MERCUSYS app, and enterprise-grade security—all in a sleek and compact design.

What's Included in the Box

• 2× Halo H47BE Units

• 2× Power Adapters

• 1× RJ45 Ethernet Cable

• Quick Installation Guide

Main Features

✅ Blazing 9.3 Gbps Wi-Fi 7 Speeds – Enjoy 5760 Mbps (6 GHz), 2880 Mbps (5 GHz), and 688 Mbps (2.4 GHz)†
✅ Tri-Band Architecture + 320 MHz Channels – High bandwidth, reduced congestion, faster throughput
✅ Multi-Link Operation (MLO) – Simultaneous multi-band connections for lower latency and improved reliability
✅ 3× 2.5G WAN/LAN Auto-Sensing Ports – Break the 1G barrier with full-speed wired connections
✅ Whole Home Coverage – Up to 6,000 ft² / 550 m² (2-pack) of seamless roaming†
✅ WPA3 Security + Mesh Roaming (802.11k/v/r) – Safe and uninterrupted connectivity
✅ Router & Access Point Modes – Flexible deployment options

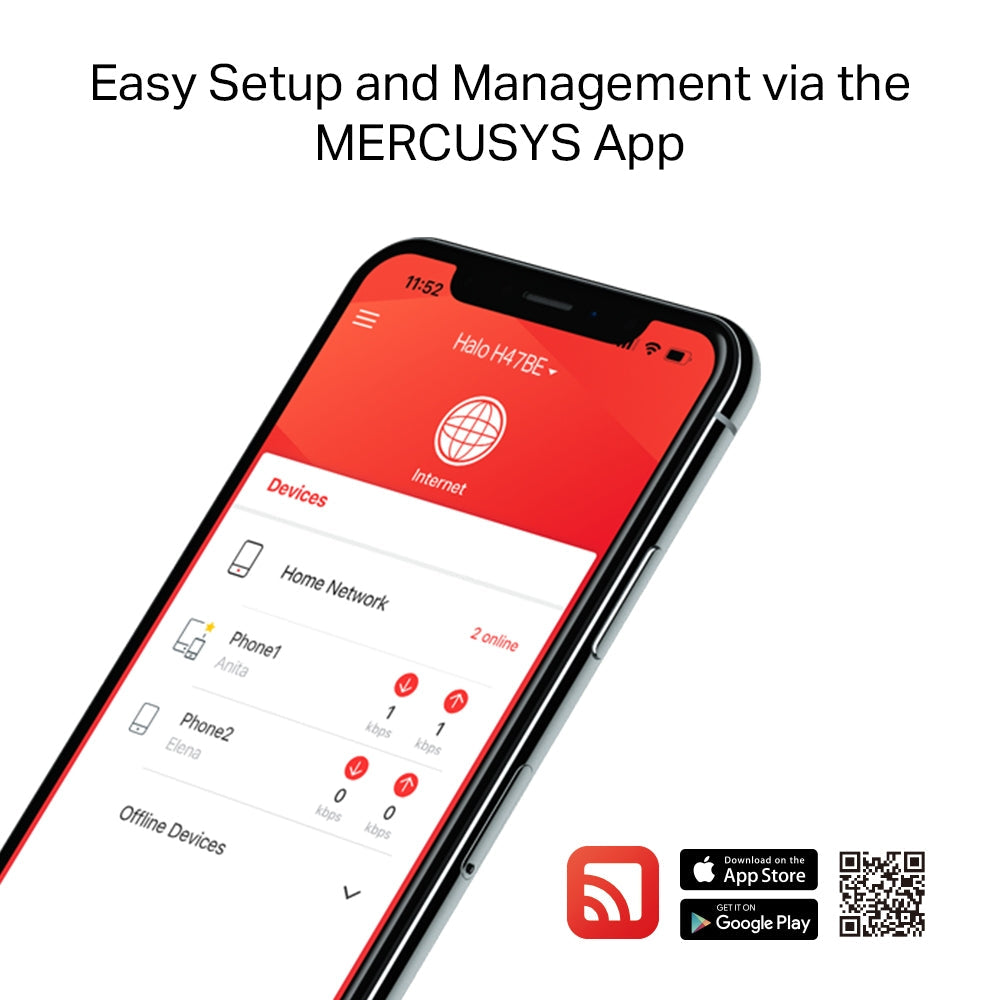

✅ Easy Setup with MERCUSYS App – Guided installation and intuitive management
✅ Guest Wi-Fi on All Bands – 2.4 GHz, 5 GHz, and 6 GHz guest networks supported
✅ IPv6 Ready + SPI Firewall – Future-proof protocols and network protection

Detailed Specifications

Wireless Standards

• 6 GHz: IEEE 802.11be

• 5 GHz: IEEE 802.11a/n/ac/ax/be mixed

• 2.4 GHz: IEEE 802.11b/g/n/ax/be mixed

Wi-Fi Speeds

• 6 GHz: 5760 Mbps

• 5 GHz: 2880 Mbps

• 2.4 GHz: 688 Mbps

Wireless Security

• WPA-PSK, WPA2-PSK, WPA3-SAE

Wireless Features

• Mesh protocol: 802.11k/v/r

• Reception Sensitivity: 2.4G -96dBm / 5G -95dBm / 6G -96dBm

• Transmission Power: Up to 30dBm depending on band

Hardware

• Dimensions: 170 × 122.4 × 103.5 mm (6.69 × 4.82 × 4.07 in)

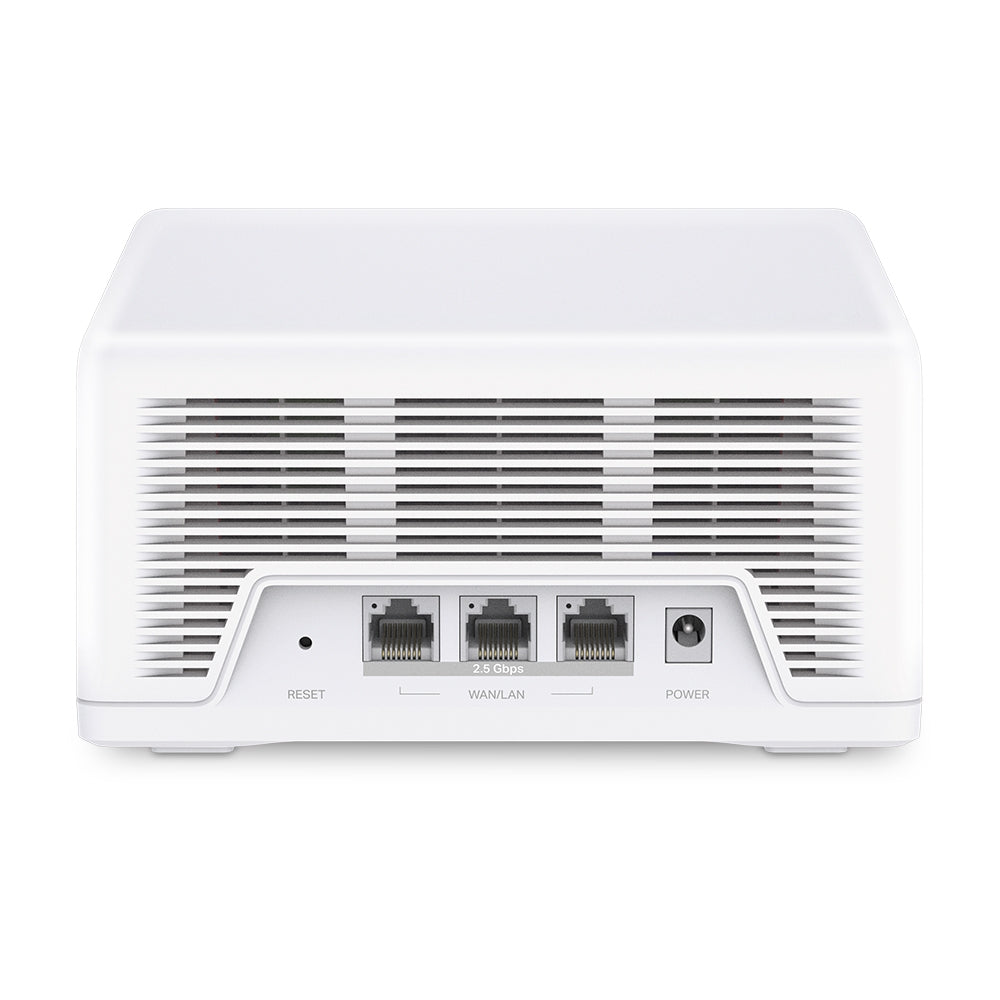

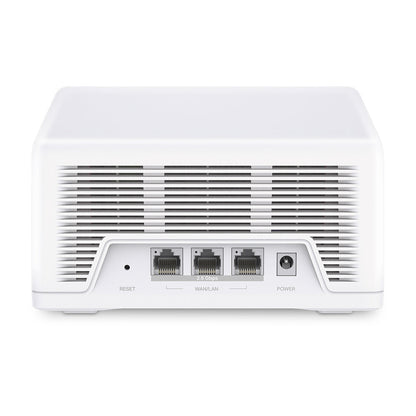

• Ports: 3× 2.5G WAN/LAN auto-sensing ports per unit

• Buttons: Reset

Software

• Operation Modes: Router, Access Point

• Quality of Service: WMM

• WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP

• Firewall: SPI

• Protocols: IPv4, IPv6

• Guest Networks: Available on 2.4 GHz, 5 GHz, and 6 GHz

• DHCP Support: Server and Client

• Management: Local, Remote, Multi-manager capable

Warranty Information

Manufactures warrenty applied

Brand Description

MERCUSYS is a leading provider of affordable, high-performance networking gear for homes and small businesses. The BE9300 Mesh Wi-Fi 7 System reflects MERCUSYS’ commitment to cutting-edge innovation, offering industry-leading speeds and reliable mesh networking at competitive value.

SKU

BE9300

Practical Use Scenarios

🏡 Smart Homes – Simultaneously stream 8K video, control smart lights, and host Zoom calls—lag-free.
🏢 Modern Office Spaces – Enjoy uninterrupted Wi-Fi for teams using cloud apps, VoIP, and remote collaboration tools.
🎮 Gaming Zones – Minimize latency with MLO for immersive VR and online gaming without frame drops.
📶 Large Multi-Level Residences – Blanket up to 550 m² with stable multi-gig Wi-Fi 7 coverage, no dead zones.
📱 Mobile-First Users – Seamless roaming across devices as you move from room to room.

Datasheets / Downloadable Resources

Excellence for the Australian and New Zealand Market

The MERCUSYS BE9300 is engineered for ANZ regional requirements, featuring local regulatory compliance, RSM/FCC/CE certifications, and warranty support through authorized distributors. It meets or exceeds NDIS and NBN compatibility standards where applicable and ensures optimal performance with regional ISPs. Firmware support, language localization, and customer care channels are tailored for the Australian and New Zealand end-user experience.

 FAQs

Q1. What is the Wi-Fi coverage range for BE9300? (BE9300)
The BE9300 2-pack delivers coverage up to 550 m² (6,000 ft²), eliminating dead zones across multi-level homes or large floor plans.

Q2. Does the BE9300 support Multi-Link Operation (MLO)? (BE9300)
Yes, the BE9300 supports MLO, enabling simultaneous multi-band transmission for enhanced speed and lower latency.

Q3. Can I use wired backhaul between BE9300 units? (BE9300)
Yes, with 2.5G auto-sensing LAN ports, BE9300 supports multi-gig wired backhaul for ultimate mesh performance.

Q4. Is BE9300 compatible with Halo H or S series units? (BE9300)
No, BE9300 is not compatible with Halo H or S series models. It is part of a separate Wi-Fi 7 ecosystem.

Q5. Can BE9300 work with Australian ISPs and NBN? (BE9300)
Yes, BE9300 is fully compatible with NBN and leading ISPs across Australia and New Zealand, when used in Router or Access Point mode.
