MC220L | TP-Link Gigabit SFP to RJ45 Media Converter

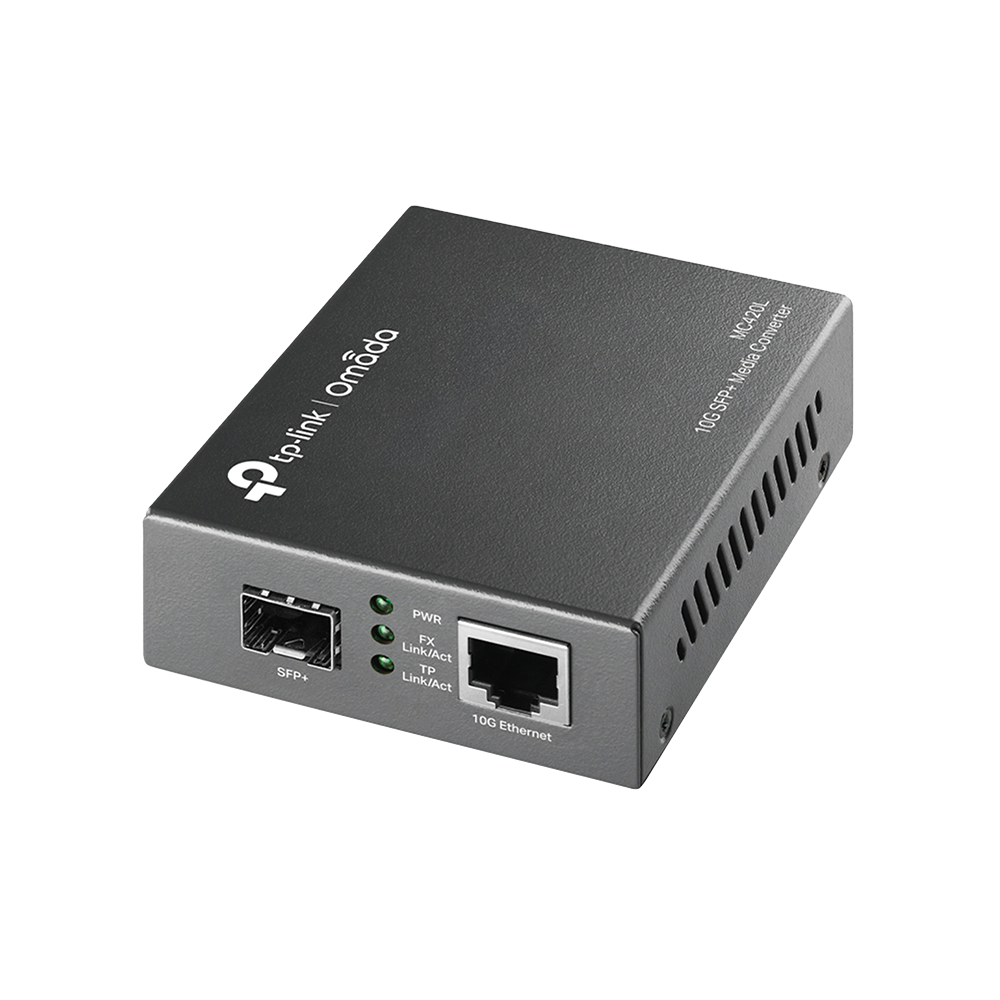

The TP-Link MC420L is a next-generation 10G SFP+ Media Converter, engineered to bridge high-speed optical fiber networks and copper-based Ethernet infrastructure. With its SFP+ port and a multi-gigabit RJ45 port supporting speeds from 1G to 10G, the MC420L enables seamless media conversion between fiber and twisted pair cabling—ideal for network backbones, data centers, or ultra-fast enterprise environments.

This compact and powerful device complies with IEEE 802.3an/ae/aq standards and ensures auto-negotiation between duplex modes and link speeds. It features hot-swappable SFP+ capability, offering flexible optical module deployment and maximized transmission distance based on the SFP used. With robust construction and plug-and-play installation, the MC420L is the ideal solution for expanding high-performance networks.

What's in the Box

• TP-Link MC420L Media Converter

• Power Adapter

• Installation Guide

Main Features

✅ 1× SFP+ Port and 1× 1G/2.5G/5G/10G RJ45 Port for fiber-to-Ethernet conversion
✅ Auto-Negotiation for Half-Duplex/Full-Duplex transfer modes
✅ Hot-swappable SFP+ interface for flexible deployment
✅ Compact, fanless design with low power consumption
✅ Complies with IEEE 802.3an, 802.3ae, 802.3aq, 802.3ab, 802.3z, 802.3x
✅ Plug-and-Play, no configuration needed

Detailed Specifications

Standards and Protocols

• IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x

Interface

• 1× SFP+ Port

• 1× RJ45 Port (1G/2.5G/5G/10Gbps Auto-Negotiation with Auto-MDI/MDIX)

Network Media Compatibility

• 10GBASE-T: UTP Cat.6 (max. 55m), STP Cat.6 or higher (max. 100m)

• 5G/2.5G/1GBASE-T: Cat.5e or higher (max. 100m)

• 10GBASE-R: Depends on inserted SFP+ module (multi-mode/single-mode)

Power

• External Power Adapter

• Max. Power Consumption: 4.12W

Indicators

• LED Indicators: Power (PWR), Link/Activity (Link/Act)

Dimensions

• 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)

Environmental Conditions

• Operating Temp: 0°C–50°C (32°F–122°F)

• Storage Temp: -40°C–70°C (-40°F–158°F)

• Operating Humidity: 10%–90% RH non-condensing

• Storage Humidity: 5%–90% RH non-condensing

Certifications

• UL, RoHS

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link Omada is a leader in scalable and intelligent networking solutions. Designed for professional deployment in enterprise, hospitality, education, and industrial sectors, the MC420L is part of a trusted portfolio offering high-performance media conversion for next-gen network expansion.

SKU

MC420L

Practical Use Scenarios

🏢 Enterprise Network Backbones – Integrate fiber links into copper-based switch architecture
📶 Data Centers – Extend fiber connectivity to high-speed 10G copper servers
🏗 Campus Networks – Bridge distant buildings via fiber while connecting to existing Ethernet
📡 ISPs and WISPs – Convert high-throughput optical uplinks to access switches
🔧 Rack-to-Desktop Connectivity – Use where mixed cabling (fiber/copper) is needed

Datasheets / Downloadable Resources

MC420L datasheet

Excellence for the Australian and New Zealand Market

The MC420L is designed and certified to meet the operational demands and safety compliance requirements of the Australian and New Zealand markets. This includes full RoHS and UL certification, support for 100–240V AC electrical standards, and compatibility with structured cabling types commonly used in ANZ infrastructure. All units are distributed through authorized ANZ channels and supported locally with warranty coverage and expert customer service.

FAQs

Q1. What SFP modules can I use with the MC420L? (MC420L)
The MC420L supports hot-swappable SFP+ modules, including 1G, 2.5G, 5G, and 10G SFPs depending on your desired transmission distance and media type.

Q2. Does the MC420L support 10G copper connectivity? (MC420L)
Yes, the RJ45 port on the MC420L supports 1G/2.5G/5G/10GBASE-T over Cat.5e/Cat.6 cables.

Q3. Is any configuration needed to use the MC420L? (MC420L)
No, the MC420L is a plug-and-play device—no configuration or software is required.

Q4. Can I use the MC420L for long-distance fiber transmission? (MC420L)
Yes, transmission distance depends on the inserted SFP module, supporting both multi-mode and single-mode fiber solutions.

Q5. What is the power consumption of the MC420L? (MC420L)
The maximum power consumption is 4.12W, making it energy-efficient even in 24/7 deployment environments.
