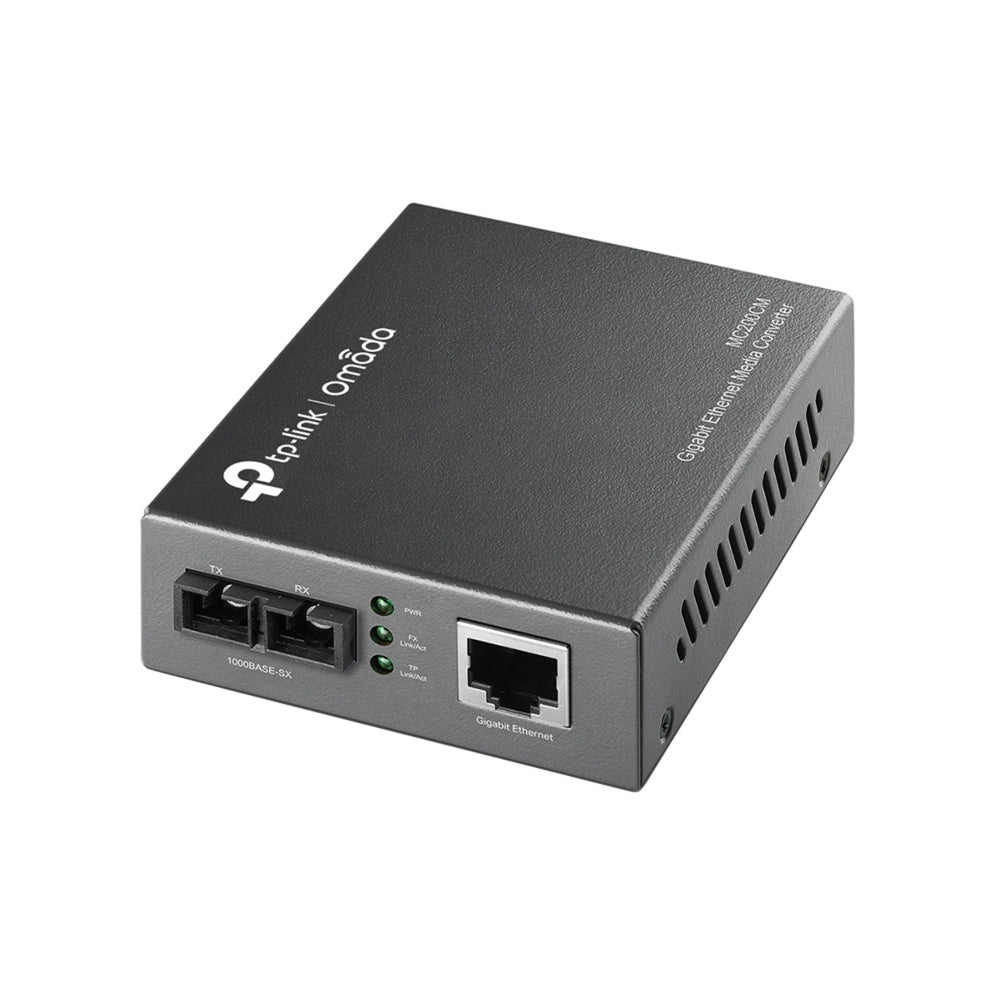

MC200CM | TP-Link Gigabit Multi-Mode SC Fiber Media Converter – Up to 550m

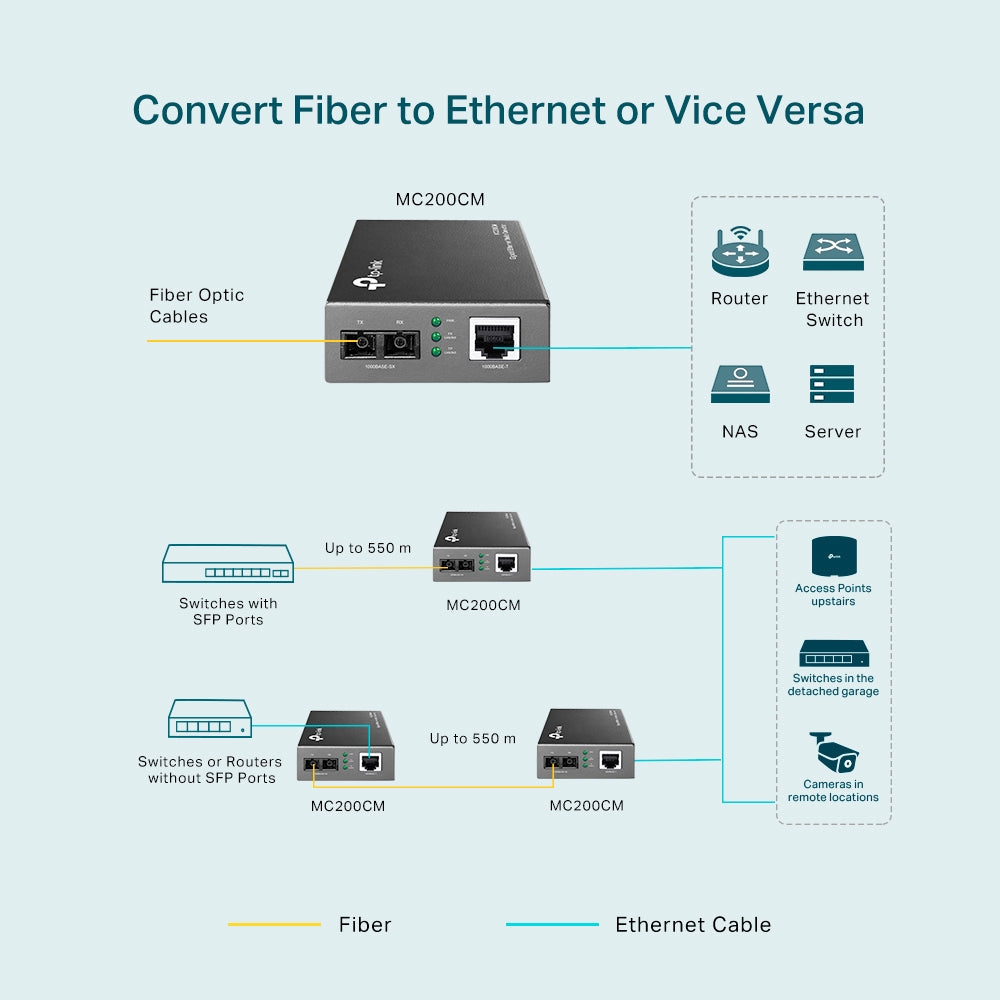

The TP-Link MC200CM is a high-performance Gigabit Multi-Mode Media Converter that provides seamless fiber-to-Ethernet integration, ideal for short to mid-range fiber deployments. Designed to convert 10/100/1000Mbps Ethernet to 1000BASE-SX fiber, it supports dual SC/UPC connectors and extends network distances up to 550 meters using 50/125µm fiber, or 220 meters with 62.5/125µm fiber.

Featuring IEEE 802.3ab and 802.3z compliance, this media converter supports auto-negotiation between half- and full-duplex modes, ensuring compatibility and efficient performance in a wide variety of deployment scenarios. Its compact, fanless, and plug-and-play design makes it ideal for desktop or wall-mounted installations in corporate networks, campus environments, and surveillance systems.

What's in the Box

• TP-Link MC200CM Media Converter

• External Power Adapter

• Installation Guide

Main Features

✅ Converts Gigabit Ethernet to Gigabit SC multi-mode fiber
✅ Extends fiber connections up to 550 meters (50/125µm) or 220 meters (62.5/125µm)
✅ Auto-negotiation for Half-/Full-Duplex mode
✅ Dual SC/UPC fiber interface with 850nm wavelength
✅ Plug-and-play operation – no configuration required
✅ LED indicators for power and link status

Detailed Specifications

Standards and Protocols

• IEEE 802.3i, 802.3u, 802.3ab, 802.3z

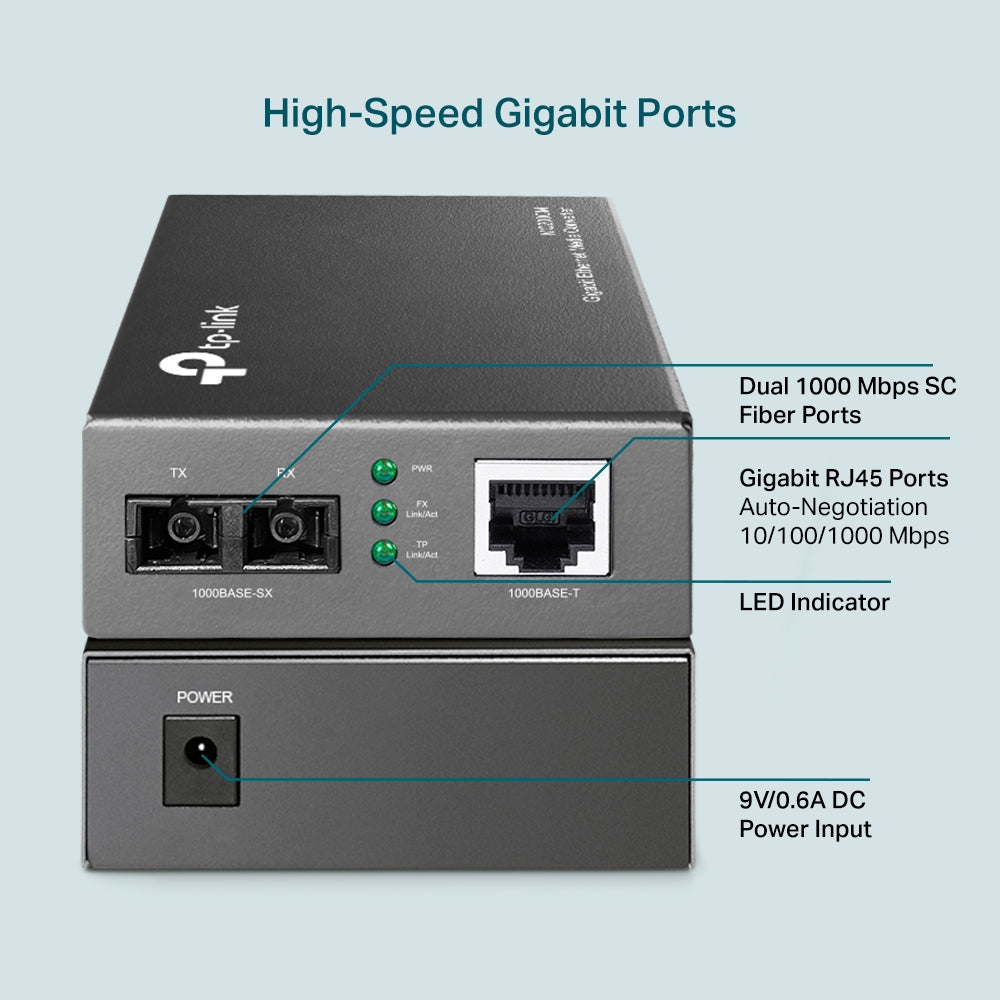

Interfaces

• 1× 1000M SC/UPC dual-mode fiber port

• 1× 10/100/1000Mbps RJ45 port with Auto MDI/MDIX

Wavelength

• 850nm

Network Media

• 1000BASE-SX: Multi-mode fiber

• 1000BASE-T: UTP Cat.5/5e (max. 100m), EIA/TIA-568 100Ω STP

Transmission Distance

• Up to 550m with 50/125µm fiber

• Up to 220m with 62.5/125µm fiber

LED Indicators

• Power (PWR)

• Link/Activity (Link/Act)

Power Supply

• External Power Adapter

• Max. Power Consumption: 1.66W

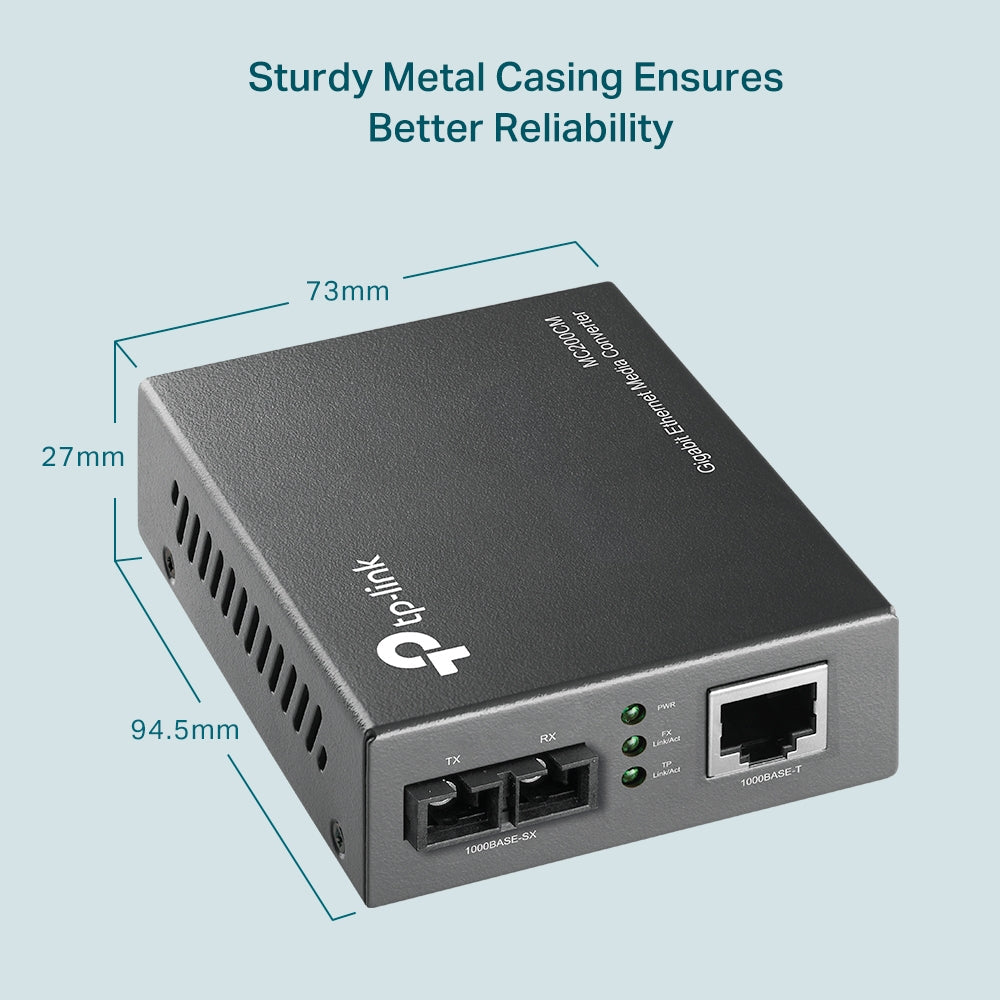

Dimensions

• 3.7 × 2.9 × 1.1 in (95 × 73 × 27 mm)

Certifications

• FCC, CE, RoHS

Environmental Conditions

• Operating Temperature: 0℃~40℃ (32℉~104℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% RH non-condensing

• Storage Humidity: 5%~90% RH non-condensing

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link is globally trusted for delivering reliable, cost-effective networking solutions. With decades of innovation and leadership, products like the MC200CM provide seamless integration of fiber and copper technologies, empowering businesses with flexible and scalable connectivity.

SKU

MC200CM

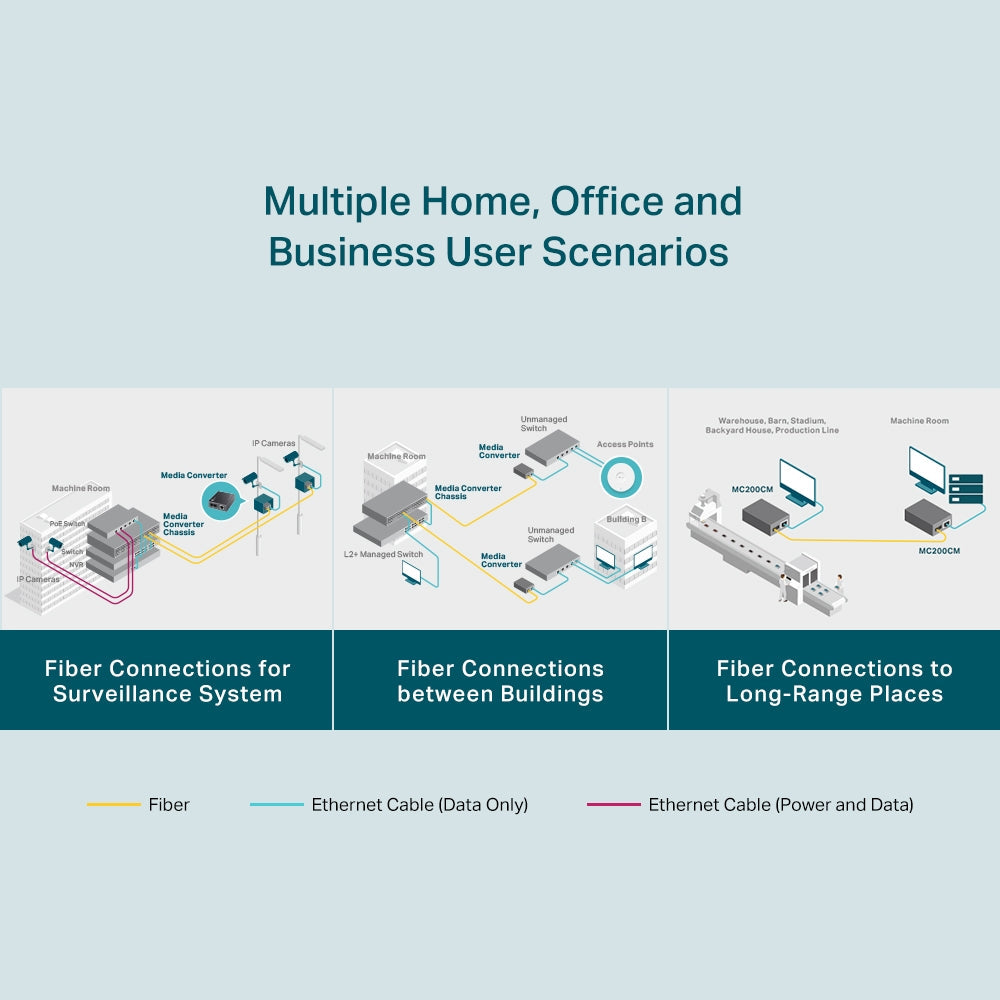

Practical Use Scenarios

🏢 Business Campuses – Connect office buildings or server rooms across fiber lines
🎓 Educational Institutions – Extend LAN infrastructure between facilities securely
🎥 IP Surveillance Networks – Support high-bandwidth video streams over fiber
🏭 Industrial Environments – Deploy stable fiber connections with copper Ethernet devices
🌐 Fiber-Connected Homes/Studios – Bridge FTTH fiber to standard home Ethernet gear

Datasheets / Downloadable Resources

MC200CM datasheet

Excellence for the Australian and New Zealand Market

The TP-Link MC200CM is optimized for deployment in the ANZ market, with full compliance to FCC, CE, and RoHS standards. The unit is exclusively sourced from authorized Australian and New Zealand distributors, ensuring product authenticity, local compatibility, and direct warranty support via TP-Link ANZ. Perfect for local government infrastructure, telcos, and enterprise-grade installations that demand low-latency fiber extension.

 FAQs

Q1. How far can the MC200CM transmit over fiber? (MC200CM)
The MC200CM supports distances up to 550m using 50/125µm fiber and up to 220m using 62.5/125µm fiber.

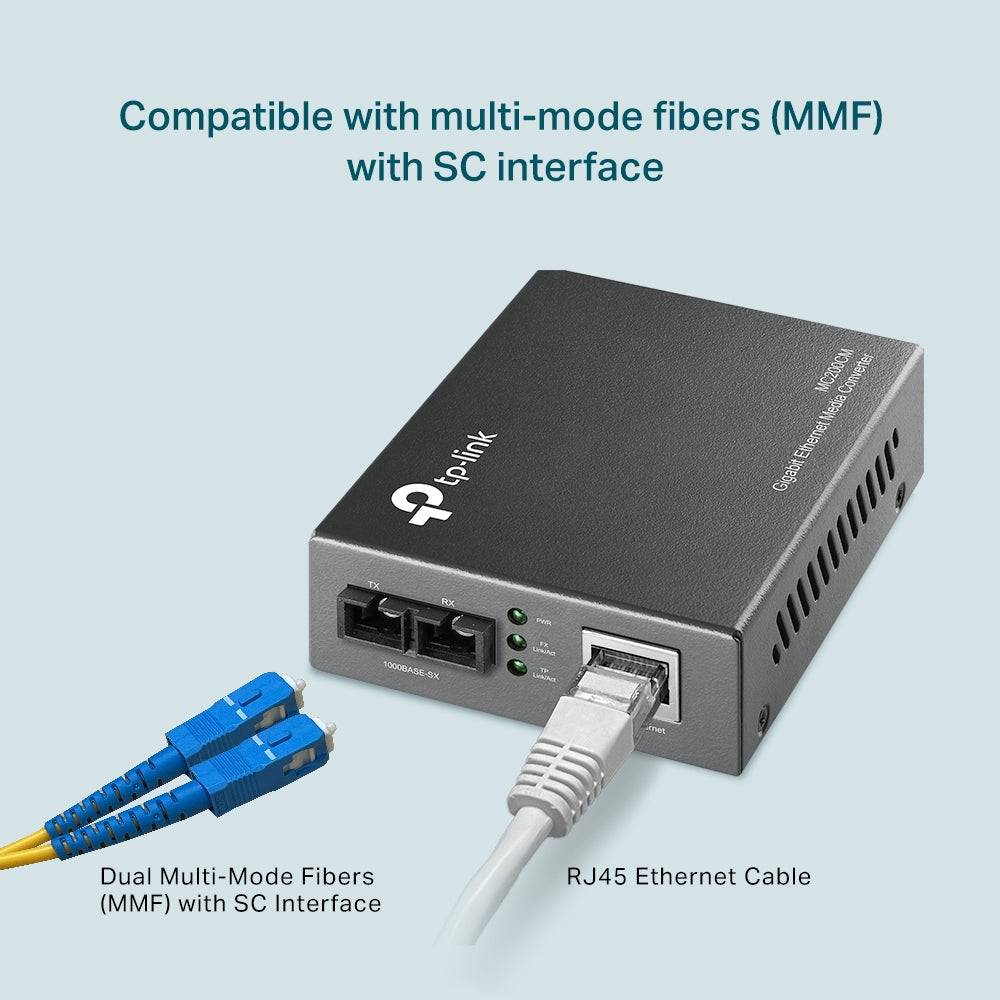

Q2. What fiber type and connector does the MC200CM use? (MC200CM)
It uses SC/UPC multi-mode fiber connectors and operates at an 850nm wavelength.

Q3. Is the MC200CM compatible with other network devices or brands? (MC200CM)
Yes, the MC200CM is IEEE standard-compliant and works with all compatible Gigabit switches or routers.

Q4. Does the MC200CM require configuration? (MC200CM)
No, the device is plug-and-play and requires no setup or software installation.

Q5. Can this converter be used in high humidity environments? (MC200CM)
Yes, it operates safely within 10%–90% relative humidity (non-condensing), suitable for most indoor environments.
