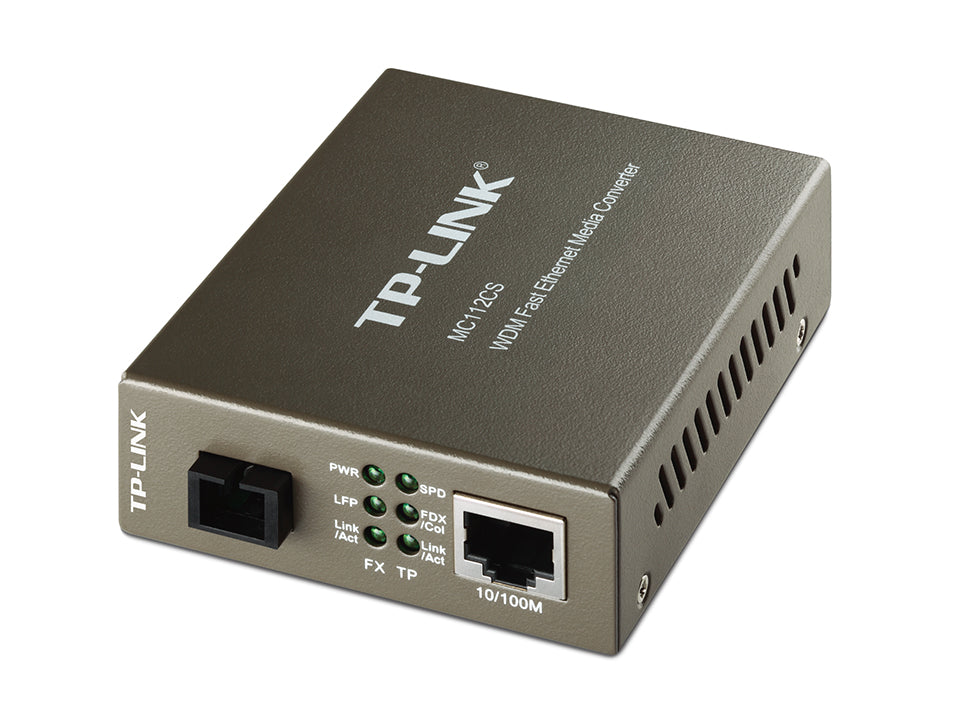

MC112CS | TP-Link 10/100Mbps WDM Media Converter – Single-Mode Fiber up to 20km

The TP-Link MC112CS is a 10/100Mbps WDM (Wavelength Division Multiplexing) Media Converter, engineered for long-distance single-fiber transmission using SC connectors. By leveraging WDM technology, it transmits and receives signals over a single strand of fiber, significantly reducing fiber cable infrastructure costs without compromising performance.

Designed in compliance with IEEE 802.3, 802.3u, and 802.3x standards, this converter extends your fiber network up to 20 kilometers via single-mode fiber, making it ideal for use in ISP backhaul, campus networks, and enterprise edge deployments. Advanced features such as Link Fault Passthrough (LFP) and Far End Fault (FEF) ensure timely detection of link failures, improving network uptime and reliability.

Its plug-and-play design, compact form factor, and fanless operation provide silent, seamless integration into any desktop or wall-mounted environment.

What's in the Box

• TP-Link MC112CS Media Converter

• Power Adapter

• Installation Guide

Main Features

✅ WDM single-fiber design using 1310nm Tx / 1550nm Rx wavelengths
✅ Up to 20km transmission over single-mode fiber
✅ Supports Half/Full-Duplex mode for FX port
✅ Link Fault Passthrough (LFP) & Far End Fault (FEF) enhance reliability
✅ Compact, fanless, and energy-efficient design
✅ Plug-and-play setup – no software configuration needed

Detailed Specifications

Standards and Protocols

• IEEE 802.3, 802.3u, 802.3x

Interface

• 1 × 100M SC/UPC WDM Fiber Port

• 1 × 100M RJ45 Port (Auto MDI/MDIX)

Wavelength

• Transmit: 1310nm

• Receive: 1550nm

Transmission Distance

• Up to 20 km over single-mode fiber

Network Media Support

• 10BASE-T: UTP Cat 3, 4, 5 / EIA/TIA-568 STP (max. 100m)

• 100BASE-TX: UTP Cat 5, 5e / EIA/TIA-568 STP (max. 100m)

• 100BASE-FX: Single-mode fiber

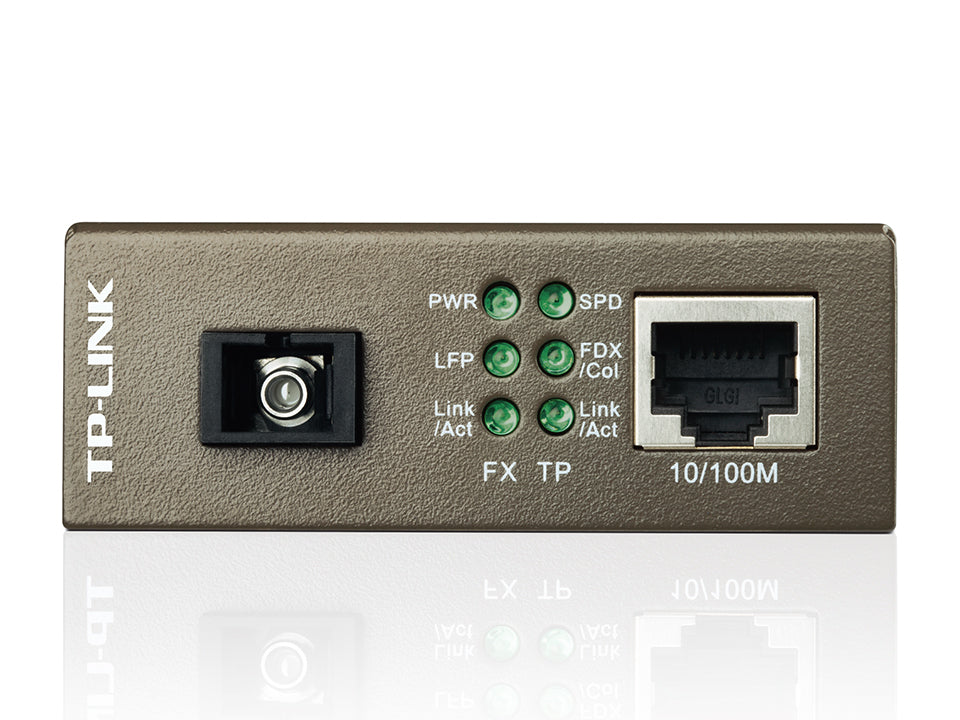

LED Indicators

• Power (PWR)

• Full Duplex / Collision (FDX/Col)

• Link/Activity (Link/Act)

• Speed (SPD)

Power Supply

• External Power Adapter

• Max. Power Consumption: 2.41W

Dimensions

• 3.7 × 2.9 × 1.1 in (94.5 × 73 × 27 mm)

Certifications

• FCC, CE, RoHS

Environmental Conditions

• Operating Temperature: 0℃~40℃ (32℉~104℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% RH non-condensing

• Storage Humidity: 5%~90% RH non-condensing

Warranty Information

Manufactures warrenty applied

Brand Description

TP-Link is a global leader in wired and wireless networking solutions. With a strong commitment to quality, reliability, and value, TP-Link products like the MC112CS deliver professional-grade connectivity at a competitive price point for both SMBs and enterprise environments.

SKU

MC112CS

Practical Use Scenarios

🏢 Enterprise Networks – Connect distant network segments using single-mode fiber infrastructure
📡 ISP Infrastructure – Integrate long-distance fiber runs in last-mile and metro access applications
🎓 Educational Campuses – Cost-efficient extension of network between buildings
🏭 Industrial & Utility Sites – Reliable fiber backhaul with single-strand savings
🏠 Fiber-to-the-Home (FTTH) deployments – Bridge remote locations cost-effectively

Datasheets / Downloadable Resources

MC112CS datasheet

Excellence for the Australian and New Zealand Market

The TP-Link MC112CS is tailored for the Australian and New Zealand IT landscape, offering full compliance with FCC, CE, and RoHS certifications. Sourced exclusively through authorized regional distributors, this model ensures full compatibility with local fiber infrastructure and adheres to stringent regional quality and safety regulations. Customers benefit from local technical support and warranty services managed directly by TP-Link’s ANZ team.

 FAQs

Q1. How far can the MC112CS transmit over single-mode fiber? (MC112CS)
The MC112CS supports transmission up to 20 kilometers over standard single-mode fiber.

Q2. What wavelengths does the MC112CS use for WDM communication? (MC112CS)
It transmits at 1310nm and receives at 1550nm, utilizing WDM for single-fiber bidirectional data transfer.

Q3. Is the MC112CS compatible with third-party media converters? (MC112CS)
Yes, as long as the third-party unit supports WDM at the reciprocal wavelength (Tx: 1550nm, Rx: 1310nm).

Q4. Does the MC112CS require any configuration? (MC112CS)
No configuration is necessary; the unit is fully plug-and-play, making deployment fast and easy.

Q5. Can the MC112CS be used in business-critical networks? (MC112CS)
Yes, it supports Link Fault Passthrough and Far End Fault to enhance reliability in mission-critical environments.
