MB110-4G | 300 Mbps Wireless N 4G LTE Router | Plug & Play with SIM Support | 32 Devices | MERCUSYS

The MERCUSYS MB110-4G is the perfect entry-level 4G LTE router designed to provide reliable, high-speed wireless internet in areas without fixed-line connectivity. Supporting download speeds up to 150 Mbps and Wi-Fi speeds up to 300 Mbps, it’s ideal for everyday internet needs like browsing, emails, streaming, and smart home connections.

Simply insert a Nano SIM card and enjoy instant plug-and-play access with no configuration required. With the ability to connect up to 32 devices simultaneously, the MB110-4G is a compact and powerful solution for homes, mobile offices, rural setups, or temporary locations. It also supports Wi-Fi Router Mode via the LAN/WAN port for flexibility when a 4G signal is unavailable.

What's Included in the Box

• 1× MB110-4G Wireless N 4G LTE Router

• 1× Power Adapter

• 1× RJ45 Ethernet Cable

• 1× Quick Installation Guide

Main Features

• ✅ 4G LTE Support up to 150 Mbps – Seamless mobile broadband access

• ✅ Wi-Fi Speeds up to 300 Mbps – Smooth browsing, streaming, and sharing

• ✅ Supports 32 Wi-Fi Devices – Ideal for small households and mobile setups

• ✅ Plug & Play Nano SIM – No configuration required

• ✅ Wi-Fi Router Mode – Switch to wired broadband when needed

• ✅ Dual External Antenna Ports – Enhance mobile signal strength with optional antennas

• ✅ Compact & Reliable – Easy to place and set up in any environment

Detailed Specifications

Wireless Standards

• IEEE 802.11b/g/n

• 2.4 GHz frequency band

Wi-Fi Speed

• 2.4 GHz: Up to 300 Mbps

Reception Sensitivity

• 11g 54M: -74 dBm

• 11n HT20: -71 dBm

• 11n HT40: -68 dBm

Transmission Power

• < 20 dBm (2.4 GHz)

Wireless Security

• WPA-PSK / WPA2-PSK

• Wireless Scheduling, WMM, Enable/Disable Wireless, Statistics

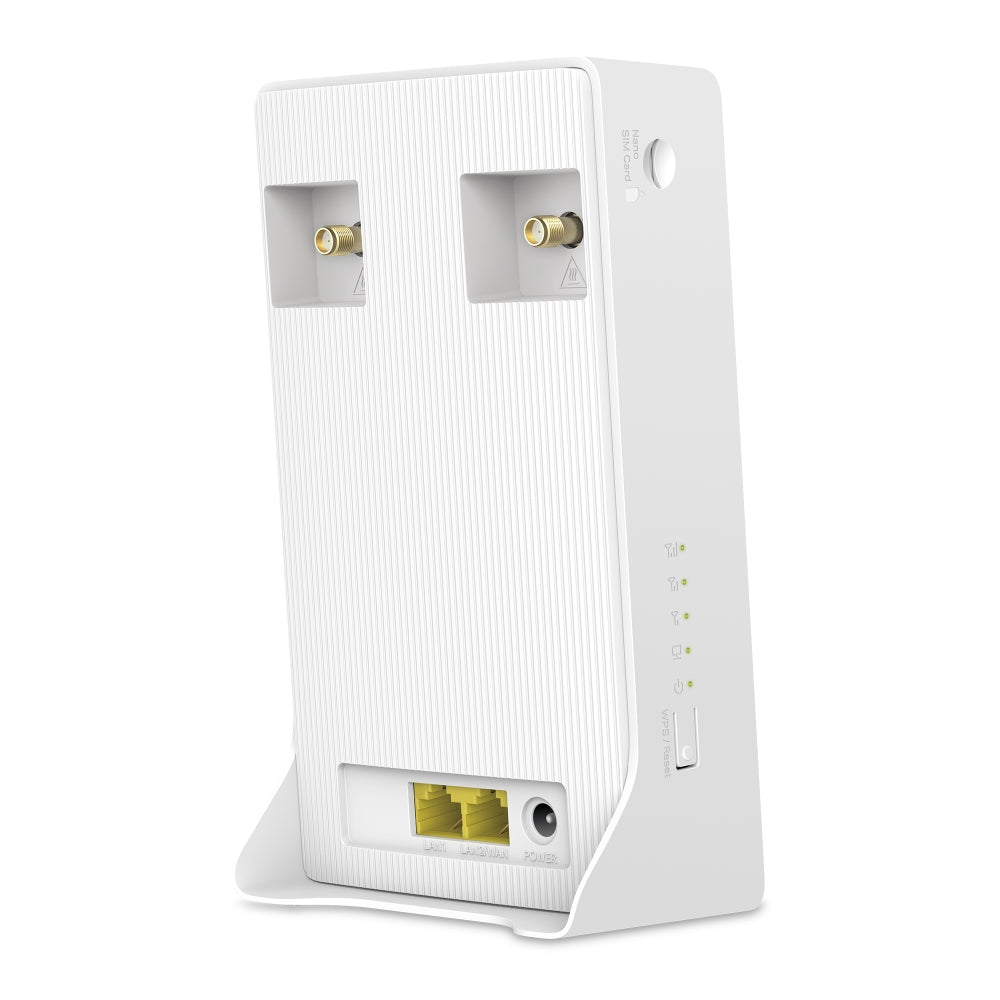

Hardware Overview

• Dimensions: 95 × 61.05 × 165.97 mm

• Ports:

  • 1× 10/100 Mbps LAN/WAN

  • 1× 10/100 Mbps LAN

  • 2× External 4G/3G Antenna Ports

  • 1× Nano SIM Card Slot

• Button: WPS/Reset Button

Mobile Network Compatibility

EU Version

• FDD-LTE: B1/B3/B5/B7/B8/B20/B28

• TDD-LTE: B38/B40

• HSPA+/UMTS: B1/B5/B8

UN Version

• FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66

• TDD-LTE: B40

• HSPA+/UMTS: B1/B2/B4/B5/B8

Software Features

• DHCP Server

• Wireless Management

• Wireless Schedule & Statistics

Warranty Information

Manufactures warrenty applied .

Brand Description

Manufactures warrenty applied ..

SKU

MB110-4G

Practical Use Scenarios

• 🏕️ Rural or Off-Grid Locations – Use 4G where fixed broadband isn't available

• 🚐 Travel, Caravans & Events – Instant internet anywhere with a SIM

• 🏠 Temporary Accommodation – No need for NBN; just plug and connect

• 🧑💼 Mobile Offices – Reliable 4G connection for on-the-go professionals

• 🏗️ Construction Sites – Instant, shareable internet for site teams

Datasheets / Downloadable Resources

• MB110-4G datasheet

Excellence for the Australian and New Zealand Market

The MB110-4G is optimized for regional LTE networks in both Australia and New Zealand, with full support for commonly used bands like B3, B7, B28, and more. It’s sourced through authorized local distributors, ensuring genuine hardware, regional compliance, and warranty support from MERCUSYS’s ANZ representatives. The router complies with ACMA and RSM standards for telecommunications.

 FAQs

Q1: Does the MB110-4G router work with Telstra, Optus, or Vodafone SIM cards? (MB110-4G)
Yes, the MB110-4G supports SIM cards from all major Australian carriers, including Telstra, Optus, and Vodafone, with full compatibility for LTE bands such as B3, B7, and B28.

Q2: How many devices can connect to the MB110-4G at once? (MB110-4G)
This router supports up to 32 Wi-Fi-connected devices, ideal for small homes or mobile business environments.

Q3: Can I add antennas to improve the 4G signal? (MB110-4G)
Yes, the MB110-4G features two external 4G/3G antenna ports, allowing signal enhancement in areas with weak reception.

Q4: Can this router be used in New Zealand with Spark or One NZ? (MB110-4G)
Absolutely. The MB110-4G supports LTE bands used by Spark, One NZ (Vodafone NZ), and 2degrees, ensuring full connectivity.

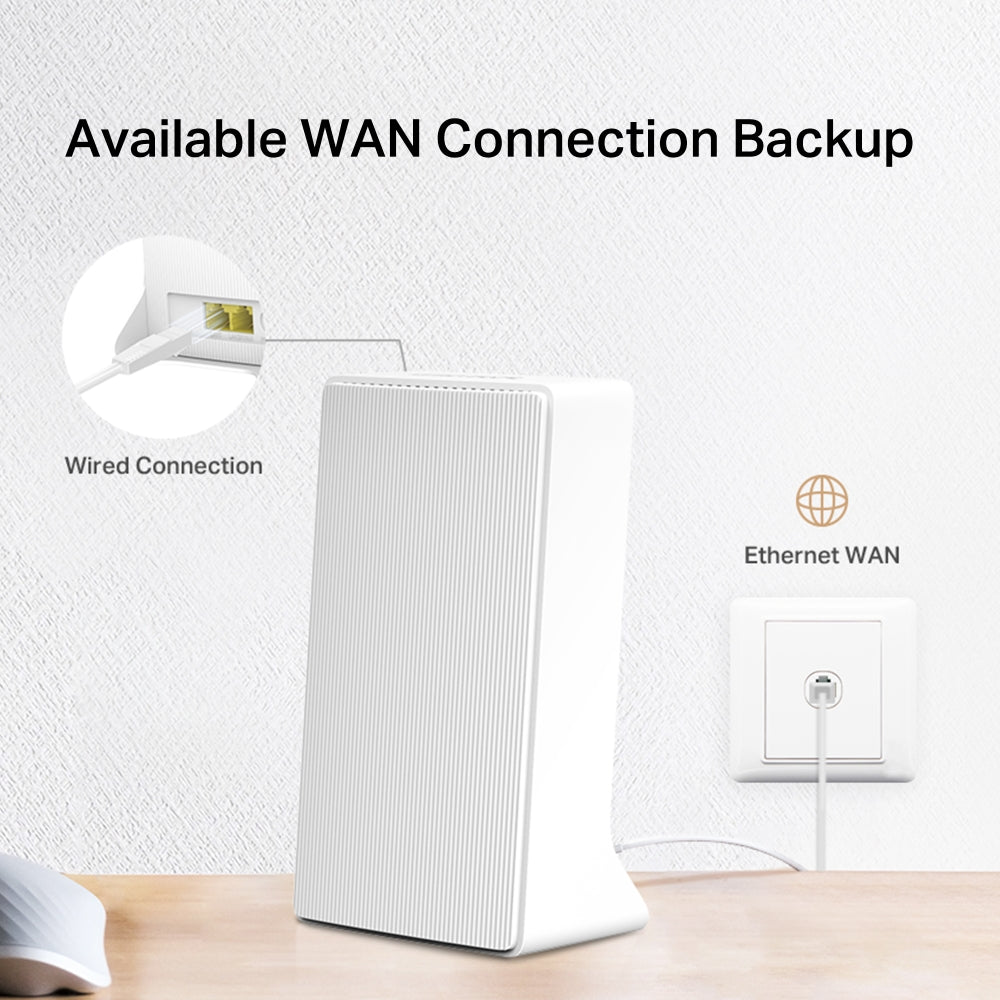

Q5: Can I use the MB110-4G as a regular Wi-Fi router if 4G isn’t available? (MB110-4G)
Yes, it features a LAN/WAN port that enables Wi-Fi Router Mode, perfect for wired bro
