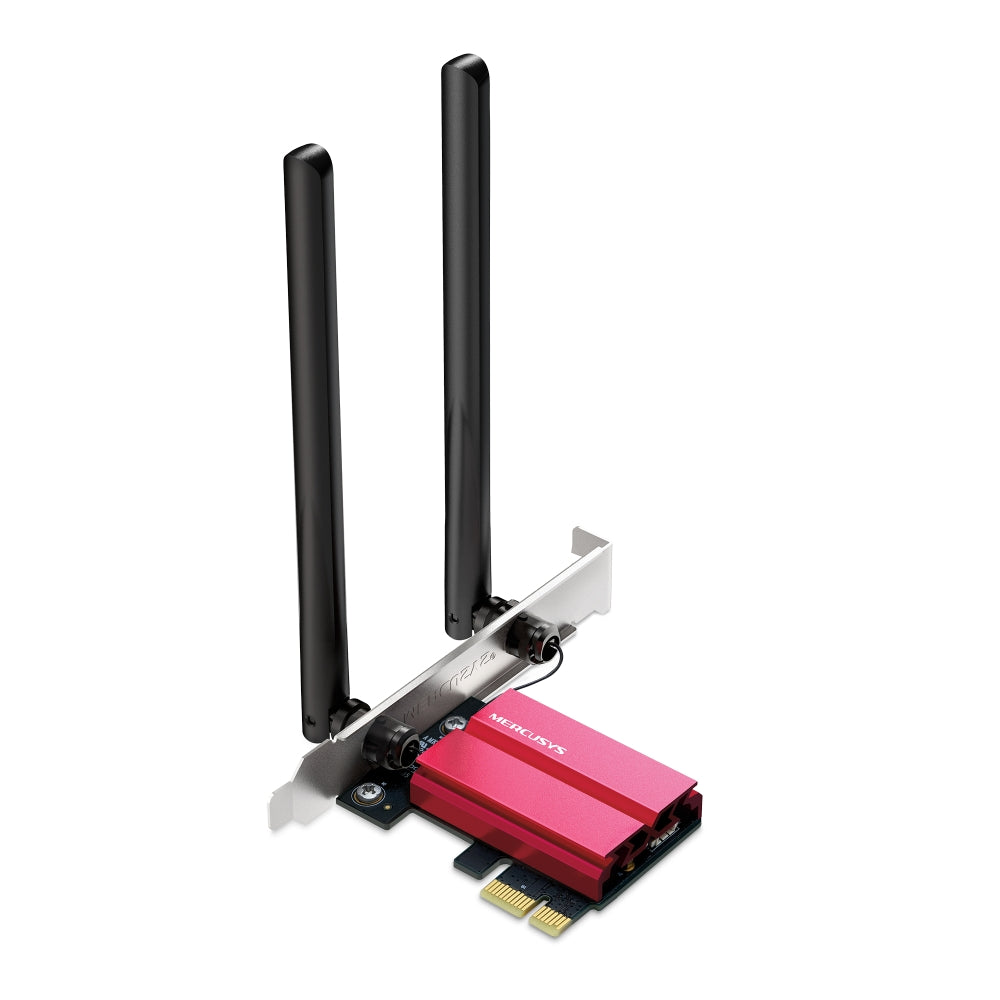

MA86XE | AXE5400 Tri-Band Wi-Fi 6E & Bluetooth 5.3 PCIe Adapter | MERCUSYS

Unleash next-generation wireless performance on your desktop with the MERCUSYS MA86XE AXE5400 Wi-Fi 6E & Bluetooth 5.3 PCIe Adapter. Designed for gamers, professionals, and high-bandwidth users, this adapter delivers tri-band speeds up to 5400 Mbps, including access to the newly expanded 6 GHz Wi-Fi 6E band, delivering ultra-low latency and congestion-free networking.

Equipped with Bluetooth 5.3, it offers faster device pairing and extended range for all your wireless peripherals. Engineered for reliability with dual high-performance fixed antennas and the latest WPA3 security standard, the MA86XE ensures smooth streaming, competitive gaming, and robust connectivity for every task.

Note: Due to fixed antennas, the MA86XE does not support low-profile bracket installations.

What's Included in the Box

• 1× MA86XE AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter

• 1× Bluetooth Header Cable

• 1× Resource CD

• 1× Quick Installation Guide

Main Features

• 🚀 Unstoppable Tri-Band Wi-Fi Speeds – Up to 2402 Mbps on 6 GHz, 2402 Mbps on 5 GHz, and 574 Mbps on 2.4 GHz

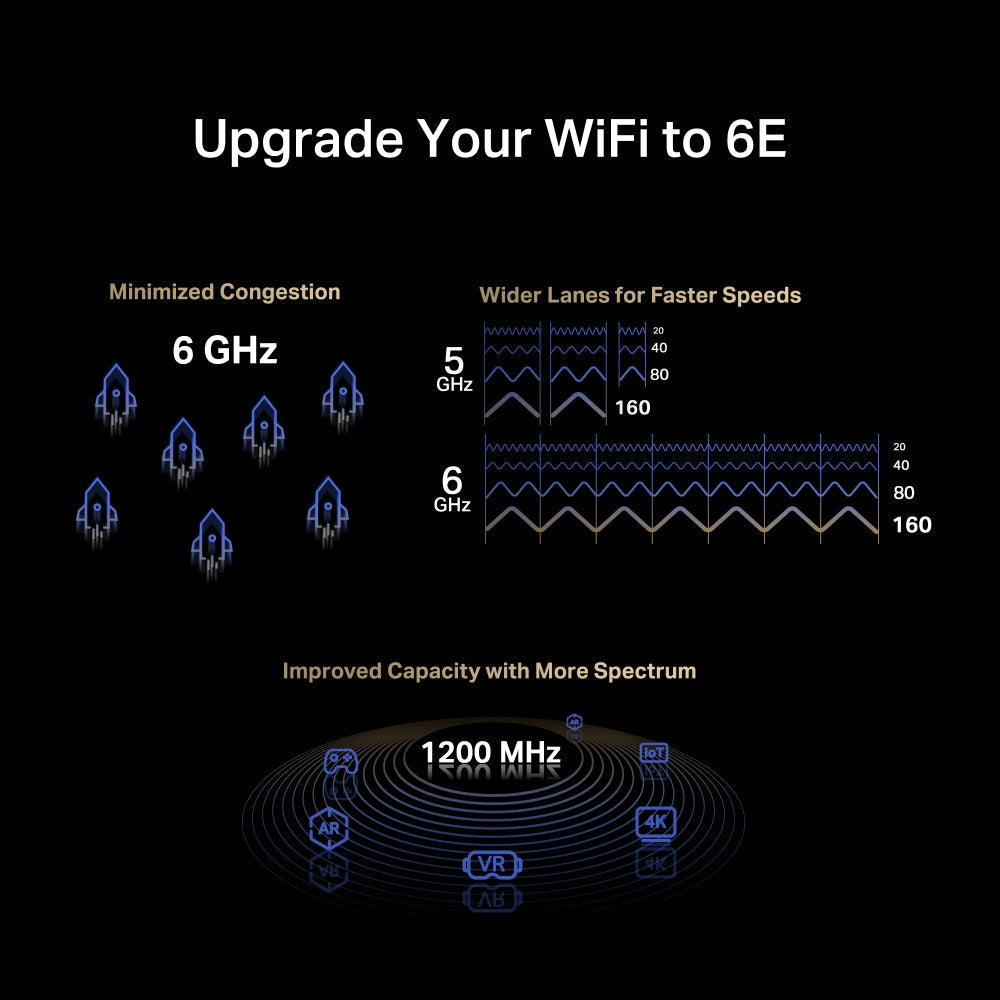

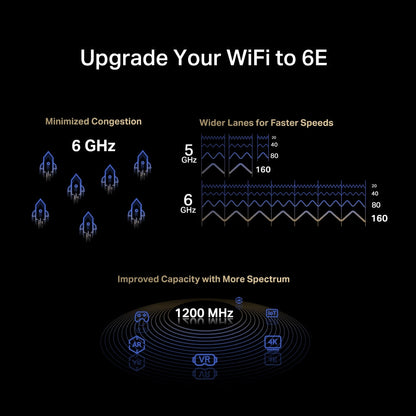

• 🆕 Wi-Fi 6E Technology – Access the clearer, faster 6 GHz spectrum for lower latency and interference

• 📶 Dual Fixed High-Performance Antennas – Broader coverage and stronger signal stability

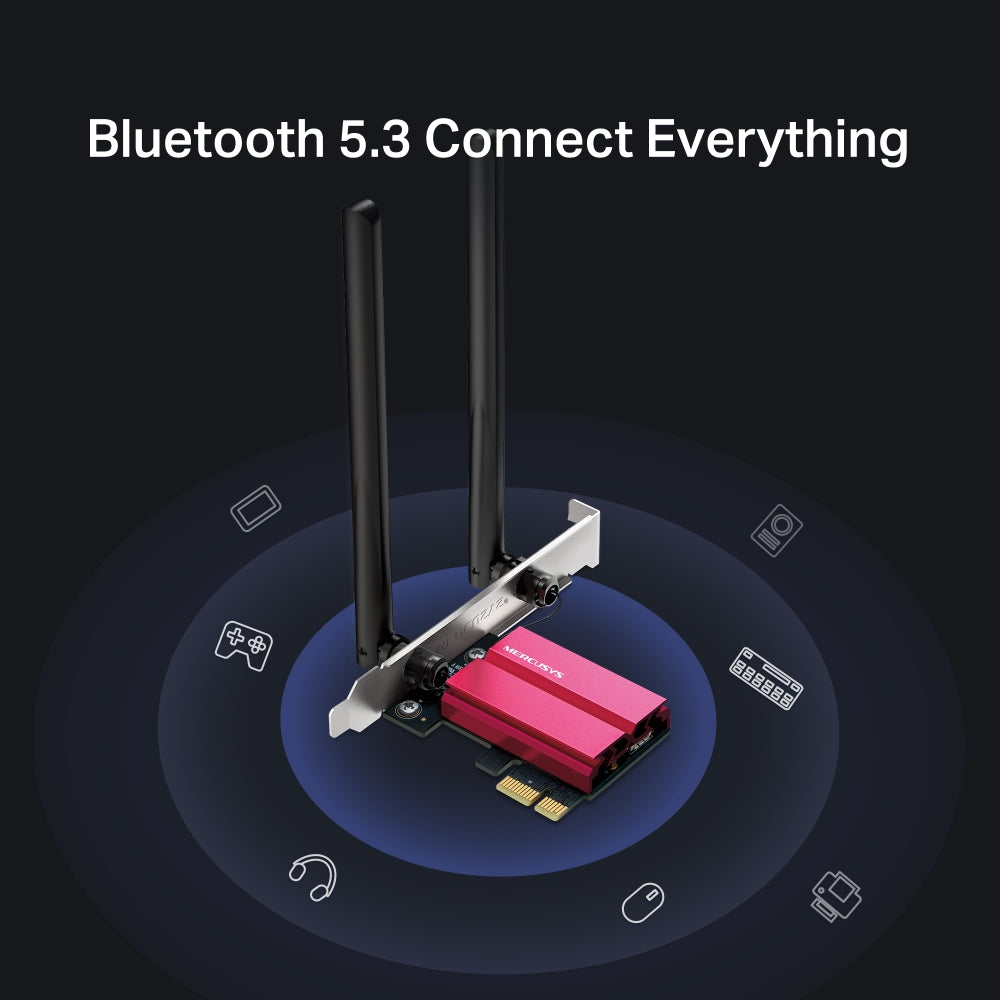

• 🔄 Bluetooth 5.3 – Faster and more efficient Bluetooth connectivity with lower power consumption

• 🔐 WPA3 Security – Advanced wireless encryption and protection for personal networks

• ↩️ Full Backward Compatibility – Supports legacy Wi-Fi standards: 802.11ax/ac/a/b/g/n

• 🪟 Windows OS Support – Compatible with Windows 10 and 11 (64-bit); 6 GHz band supported on Windows 11 only

Detailed Specifications

Wireless Standards

• IEEE 802.11ax 6 GHz

• IEEE 802.11ax/ac/a 5 GHz

• IEEE 802.11ax/b/g/n 2.4 GHz

Wi-Fi Speeds

• 6 GHz: Up to 2402 Mbps

• 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 574 Mbps

Reception Sensitivity

6 GHz

• HE160 MCS0: -86 dBm

• HE160 MCS11: -56 dBm

5 GHz

• HE80 MCS0: -90 dBm

• HE80 MCS11: -59 dBm

• 11a 54 Mbps: -77 dBm

• VHT80 MCS0: -92 dBm

• VHT80 MCS9: -64 dBm

2.4 GHz

• HE40 MCS0: -91 dBm

• HE40 MCS11: -60 dBm

• 11g 54 Mbps: -76 dBm

• HT40 MCS7: -72 dBm

Wireless Security

• WPA-PSK

• WPA2-PSK

• WPA3-SAE

Hardware Overview

• Dimensions: 228 × 120.8 × 21.5 mm (9.0 × 4.8 × 0.85 in)

• Antenna Type: 2× Fixed High-Performance Omni-Directional Antennas

System Requirements

• Operating System: Windows 10 and Windows 11 (64-bit)

• 6 GHz Band Usage: Supported only on Windows 11

Warranty Information

Manufactures warrenty applied .

Brand Description

MERCUSYS is dedicated to creating dependable, high-performance networking solutions. Known for merging cutting-edge technology with user-friendly design, MERCUSYS products are trusted by tech-savvy users, gamers, and professionals across the globe.

SKU

MA86XE

Practical Use Scenarios

• 🎮 Lag-Free Gaming – Tap into the 6 GHz band for ultra-low latency during competitive gameplay

• 📡 VR/AR Streaming – Uninterrupted wireless throughput for high-bandwidth applications

• 🖥️ Upgrade Old PCs – Bring the latest Wi-Fi and Bluetooth standards to legacy desktops

• 🎧 Bluetooth Peripherals – Seamlessly connect headsets, gamepads, keyboards, and more

• 💼 Work-From-Home Professionals – Dependable high-speed Wi-Fi for meetings, uploads, and VPNs

Datasheets / Downloadable Resources

• Product Datasheet – MA86XE


Excellence for the Australian and New Zealand Market

The MA86XE Wi-Fi 6E PCIe Adapter is distributed exclusively via authorized channels in Australia and New Zealand, fully optimized for local Wi-Fi standards and WPA3 compliance. With region-specific compatibility and support from verified partners, users can enjoy enhanced wireless performance with peace of mind and local warranty handling.

 FAQs

Q1: Is the MA86XE PCIe Adapter compatible with my desktop PC? (MA86XE)
Yes, as long as your PC has an available PCIe slot and runs Windows 10 or 11 (64-bit). The 6 GHz band is supported only in Windows 11.

Q2: Does the MA86XE include Bluetooth support? (MA86XE)
Absolutely. The MA86XE features Bluetooth 5.3, which offers faster connection speeds and extended range compared to previous versions.

Q3: Can I use the MA86XE with a low-profile PC case? (MA86XE)
No, the MA86XE is not compatible with low-profile brackets due to its fixed antennas.

Q4: What kind of antennas does the MA86XE use? (MA86XE)
It comes with 2× fixed high-performance omni-directional antennas for wider signal coverage and stability.

Q5: Is WPA3 security supported on the MA86XE? (MA86XE)
Yes, the MA86XE supports the latest WPA3-SAE encryption for enhanced network security and personal data protection.
