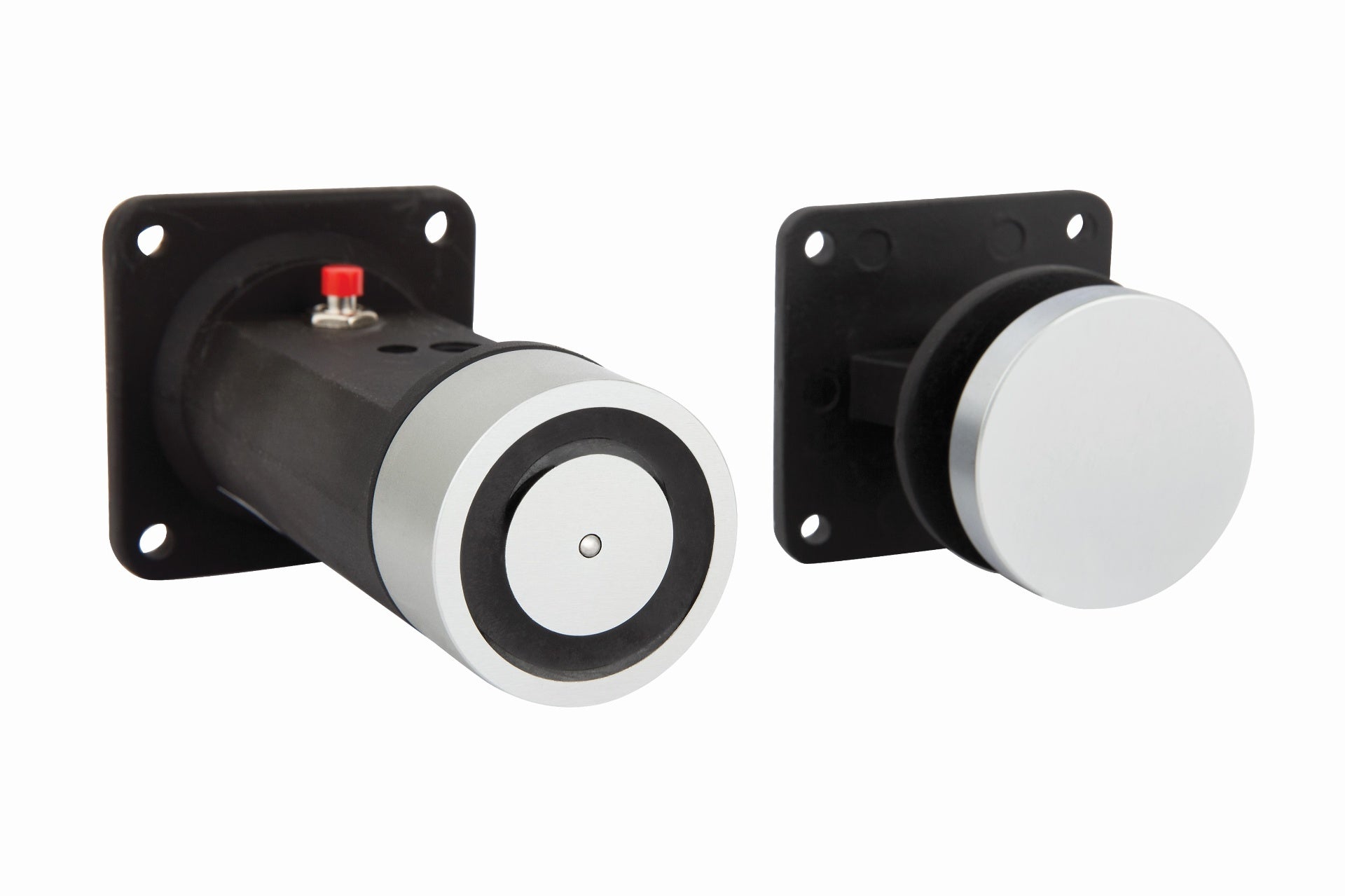

LOX R40PCH-24 | 24VDC Wall-Mounted Magnetic Door Holder with Extension, 25 kg Holding Force

LOX R40PCH-24 | 24VDC Wall-Mounted Magnetic Door Holder with Extension, 25 kg Holding Force

$130.56 AUD
$147.90 AUD $130.56 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The LOX R40PCH-24 Door Hold-Open Magnet delivers dependable performance using a fail-safe, low-energy electromagnetic design. Ideal for environments like hospitals, commercial buildings, or high-traffic areas, it keeps fire and smoke doors open until triggered by a fire or alarm system—ensuring occupant safety. This model is wall-mounted with extension, available in both 12 VDC and 24 VDC (this version is 24 VDC), and includes a sleek titanium alloy surface finish with a discreet black color.

What’s Included in the Box

  • LOX R40PCH-24 Magnetic Door Holder (Wall-Mounted with Extension)

  • Manufacturer’s Warranty Applied

Main Features

  • Wall-mounted magnetic door holder with extension

  • Fail-safe operation (power drop → door releases)

  • Up to 25 kg holding force

  • 24 VDC operation at 80 mA current consumption

  • 4-hour fire-rated, ideal for fire and smoke door systems

  • Titanium alloy surface finish in elegant black

  • Non-monitored, single-door configuration with push-button door release

Detailed Specifications

Specification Details
Product Code (SKU) R40PCH-24 / LR40PCH24
Holding Force Up to 25 kg
Voltage / Current 24 VDC / 80 mA
Mounting Type Wall-mounted with extension
Fire Rating Up to 4 hours (fire- and smoke-rated)
Monitoring Non-monitored
Release Mechanism Push-button manual release
Finish Titanium alloy, black
Warranty Manufacturer’s Warranty Applied
Dimensions (D×W×H) ~108 mm × 59 mm × 59 mm (estimated)

Warranty Information

Manufacturer’s Warranty Applied – covers manufacturing defects and performance reliability. Warranty is handled directly through authorized LOX representatives.

Brand Description

LOX Locking is an emerging leader in electromechanical locking solutions based in Sydney, Australia. Founded by industry veterans Bob Graham and Marc Bindner, LOX offers high-quality, reliable locking and door-holding products through top-tier Australian distributors.

Practical Use Scenarios

  • Commercial Buildings: Hold lobby or corridor doors open during peak hours—automatically releasing upon fire alarm activation.

  • Healthcare Facilities: Maintain clear access for stretchers and equipment during normal operations, with fail-safe release during emergencies.

  • Educational Institutions: Secure corridors and classrooms while facilitating smooth pedestrian flow.

  • Hospitality Venues: Ensure accessibility and safety in large communal areas, with fire-safe protocol integration.

Excellence for the Australian and New Zealand Market

This product is meticulously tailored for the Australasian market—designed, tested, and certified to Australian fire-safety standards. LOX sources components exclusively from authorized brand representatives, ensuring authenticity and reliability. Warranty support is provided through direct communication with LOX, offering swift and trustworthy after-sales service.

FAQs (Product Code: R40PCH-24)

  1. What is the power consumption of the R40PCH-24?
    The R40PCH-24 operates at 24 VDC and draws 80 mA.

  2. Is the R40PCH-24 fire-rated?
    Yes, it is rated for up to 4 hours for fire and smoke door applications.

  3. What holding strength does R40PCH-24 provide?
    It delivers up to 25 kg of magnetic holding force.

  4. How long is the warranty on R40PCH-24?
    The product has a Manufacturer’s Warranty Applied.

  5. Is the R40PCH-24 monitored or non-monitored?
    It is a non-monitored, fail-safe device with manual push-button release.
