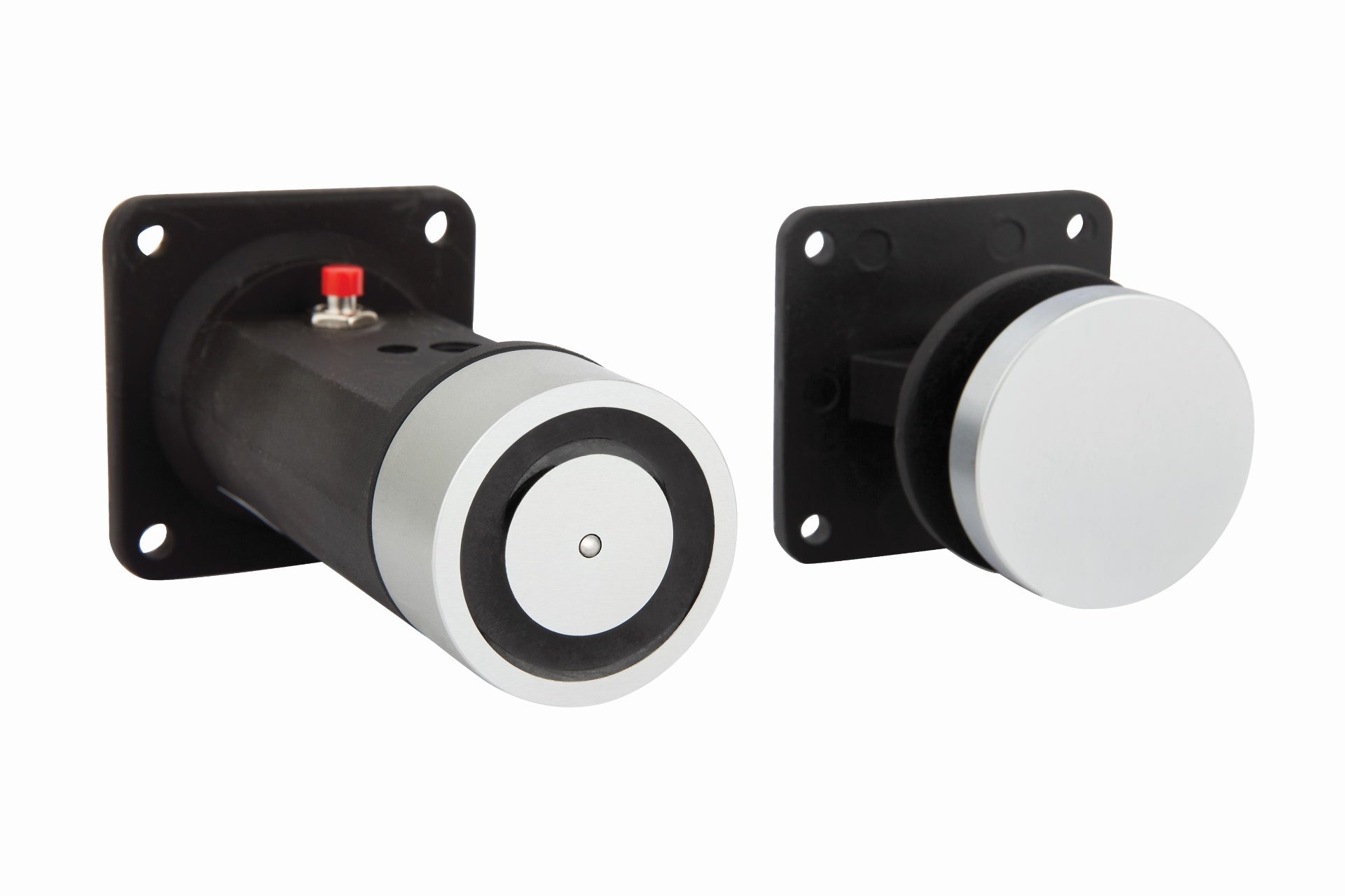

LOX R40PCH-12 Standard 12 VDC Wall-Mounted Magnetic Door Holder with Extension – Fail-Safe, 25 kg Holding Force

The LOX R40PCH-12 is a reliable, wall-mounted magnetic door holder with a built-in extension, designed to maintain doors in an open position until released. This unit operates on a fail-safe principle, automatically disengaging the door when power is cut—making it ideal for fire safety and emergency scenarios.

Constructed with a round electromagnetic lock and a durable steel armature plate, the R40PCH-12 delivers secure door holding for high-traffic areas in commercial, public, and institutional settings. Its extended body design (108 mm length) provides flexibility in installation, particularly where additional reach is required.

What's Included in the Box

• LOX R40PCH-12 Magnetic Door Holder (12 VDC)

• Warranty information (Manufacturer’s warranty applied)

Main Features

• Fail-Safe Operation: Door is released automatically when power is cut

• Extended Length Design: 108 mm body extension for versatile installation

• Strong Holding Force: Up to 25 kg to secure heavy doors in place

• 12 VDC Power: Operates at approximately 160 mA current draw

• Push-Button Override: Manual release capability when needed

• Wall-Mounted Build: Space-efficient, robust design for lasting use

• Fire Door Compatibility: Suitable for use with fire and smoke-rated doors

Detailed Specifications

Brand Description

LOX Locking is a respected Australian manufacturer of high-quality electromechanical locking solutions. Their products are trusted by security installers, architects, and facility managers across Australia and New Zealand for their reliability, compliance, and robust performance.

SKU / Product Code

Product Code: R40PCH-12

Practical Use Scenarios

• Commercial Buildings: Keep doors open during operating hours with automatic fail-safe release during alarms.

• Healthcare Facilities: Allow smooth movement for patients and staff while ensuring rapid closure in emergencies.

• Educational Institutions: Manage corridor traffic efficiently with safety-focused design.

• Public Venues: Provide open access during events, with automatic closure during fire alarms.

Excellence for the Australian and New Zealand Market

• Meets Local Standards: Designed to comply with Australian fire safety regulations.

• Certified for Safety: Suitable for applications requiring adherence to building and fire codes.

• Authorized Sourcing: Available only through approved distributors in ANZ.

• Local Warranty & Support: Warranty managed through the manufacturer’s authorized representatives in Australia and New Zealand.

FAQs (Featuring Product Code R40PCH-12)

Q: What is the holding strength of the R40PCH-12?
A: The R40PCH-12 provides a holding force of up to 25 kg.

Q: What is the length of the R40PCH-12 unit?
A: The R40PCH-12 has an extended length of 108 mm for installation flexibility.

Q: What voltage and current does the R40PCH-12 require?
A: The R40PCH-12 operates at 12 VDC with an approximate draw of 160 mA.

Q: Is the R40PCH-12 suitable for fire-rated doors?
A: Yes, it is compatible with fire and smoke doors for enhanced safety.

Q: Does the R40PCH-12 include a manual release feature?
A: Yes, it features a push-button manual release for quick door disengagement.

Q: What warranty is provided with the R40PCH-12?
A: The R40PCH-12 comes with a manufacturer’s warranty applied.

Q: Where is the R40PCH-12 supported in Australia and New Zealand?
A: It is supported and serviced through the manufacturer’s authorized local representatives.
